A /28 subnet is a subnet that has a network prefix of 28 bits and a host prefix of 4 bits. A /28 subnet can support up to 16 hosts (14 usable hosts) and has a subnet mask of 255.255.255.240. Using a /28 subnet can meet the minimum IP requirement for deploying a web application in a public cloud with two web servers, two database servers, and a load balancer that is accessible over a single public IP, taking into account the gateway for this subnet and the potential to add two more web servers. Using a /28 subnet can provide enough host addresses for the current and future web servers, database servers, load balancer, and gateway, as well as allow for some growth or redundancy. References: CompTIA Cloud+ Certification Exam Objectives, page 15, section 2.8

An access control list (ACL) is a set of rules that defines which traffic is allowed or denied between different network segments or devices. An ACL can be used to filter traffic based on various criteria, such as source and destination addresses, ports, protocols, and applications. Configuring an ACL between the VLANs of the finance and marketing departments is the most suitable method to meet the requirements of allowing HTTPS/HTTP and disabling FTP and SMB traffic. An ACL can specify which ports and protocols are permitted or blocked between the VLANs, such as allowing port 80 (HTTP) and port 443 (HTTPS), and denying port 21 (FTP) and port 445 (SMB). References: [CompTIA Cloud+ Certification Exam Objectives], page 15, section 2.8

Part 1: Router 2

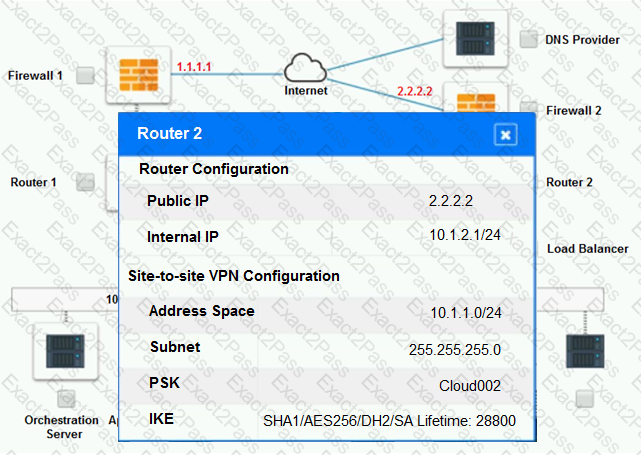

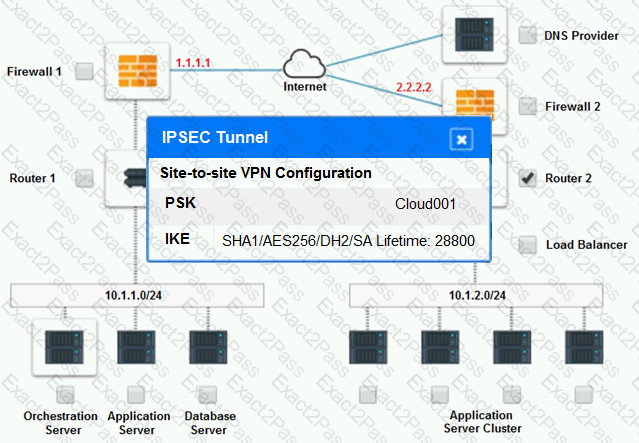

The problematic device is Router 2, which has an incorrect configuration for the IPSec tunnel. The IPSec tunnel is a secure connection between the on-premises datacenter and the cloud provider, which allows the traffic to flow between the two networks. The IPSec tunnel requires both endpoints to have matching parameters, such as the IP addresses, the pre-shared key (PSK), the encryption and authentication algorithms, and the security associations (SAs) .

According to the network diagram and the configuration files, Router 2 has a different PSK and a different address space than Router 1. Router 2 has a PSK of “1234567890”, while Router 1 has a PSK of “0987654321”. Router 2 has an address space of 10.0.0.0/8, while Router 1 has an address space of 192.168.0.0/16. These mismatches prevent the IPSec tunnel from establishing and encrypting the traffic between the two networks.

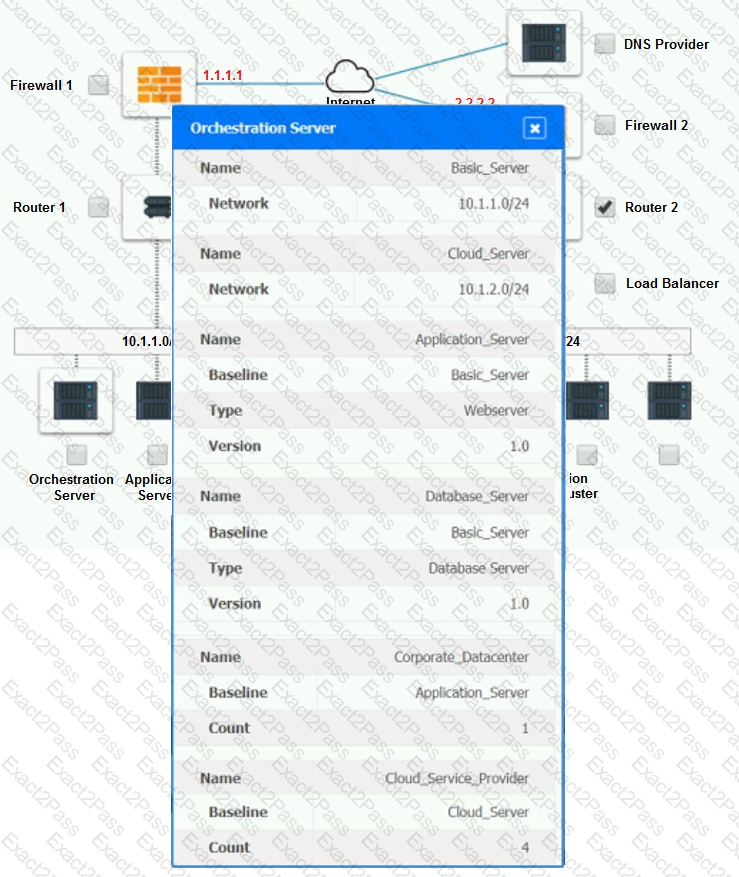

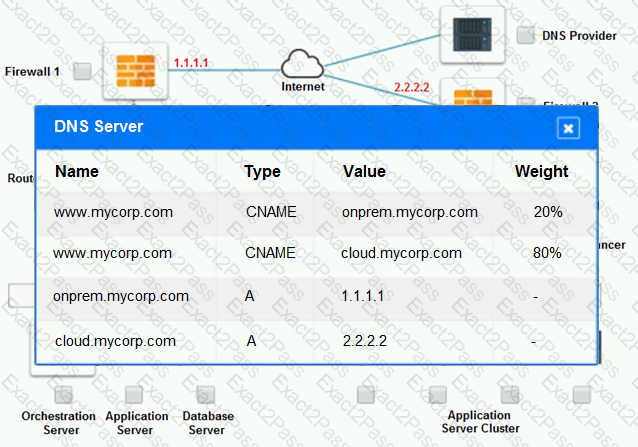

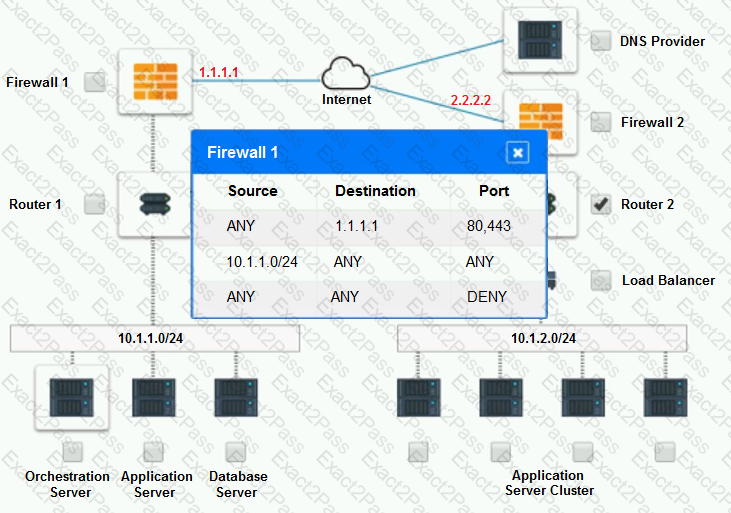

The other devices do not have any obvious errors in their configuration. The DNS provider has two CNAME records that point to the application servers in the cloud provider, with different weights to balance the load. The firewall rules allow the traffic from and to the application servers on port 80 and port 443, as well as the traffic from and to the VPN server on port 500 and port 4500. The orchestration server has a script that installs and configures the application servers in the cloud provider, using the DHCP server to assign IP addresses.

Part 2:

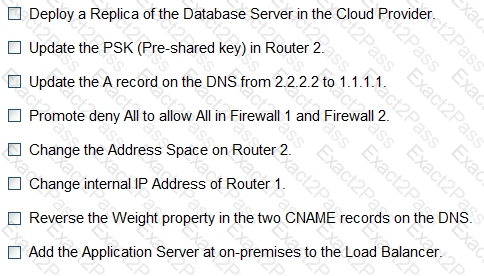

The correct options to provide adequate configuration for hybrid cloud architecture are:

Update the PSK in Router 2.

Change the address space on Router 2.

These options will fix the IPSec tunnel configuration and allow the traffic to flow between the on-premises datacenter and the cloud provider. The PSK should match the one on Router 1, which is “0987654321”. The address space should also match the one on Router 1, which is 192.168.0.0/16.

B. Update the PSK (Pre-shared key in Router2)

E. Change the Address Space on Router2
