A screenshot of a computer Description automatically generated

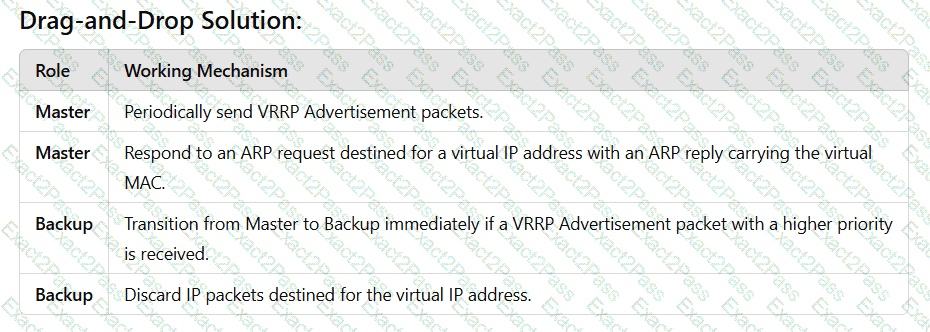

Explanation of VRRP Roles and Their Functions:

In VRRP (Virtual Router Redundancy Protocol) , devices are assigned roles as either Master or Backup after an election process. Each role has specific responsibilities to ensure the availability of the virtual IP address.

Matching Roles and Mechanisms:

Master:

Periodically send VRRP Advertisement packets.

The Master device sends advertisement packets to inform Backup devices that it is active.

Respond to an ARP request destined for a virtual IP address with an ARP reply carrying the virtual MAC address.

The Master device is responsible for responding to ARP requests for the virtual IP and forwarding traffic for it.

Backup:

Transition from Master to Backup immediately if a VRRP Advertisement packet with a higher priority is received.

A Backup device becomes Master only if the current Master stops sending advertisement packets or has a lower priority.

Discard IP packets destined for the virtual IP address.

Backup devices do not process traffic for the virtual IP address unless they become the Master.

The native AC (Access Controller) function in Huawei ' s agile switches enables wired and wireless convergence. This integration allows the agile switch to act as both a wired network switch and a wireless controller, managing all traffic centrally. This architecture simplifies network management and improves efficiency, making the statement true ​.

 DIS and DR Election

The IS-IS Designated Intermediate System (DIS) is responsible for generating and updating pseudonode LSPs on a broadcast network.

Unlike OSPF DR, the IS-IS DIS does not preempt by default. This behavior avoids unnecessary flapping in the network due to frequent DIS re-elections.

 HCIP-Datacom-Core Reference

The characteristics of DIS and DR behavior are explained in IS-IS network operation chapters​​.

Comprehensive and Detailed in-depth Step-by-Step Explanation:

The Network Entity Title (NET) is a unique identifier assigned to an IS-IS router. It is derived from the Network Service Access Point (NSAP) address and consists of the following components:

Area Address:

Identifies the area in which the router resides.

Multiple routers in the same IS-IS area must have the same area address.

System ID:

Uniquely identifies the router within the IS-IS area.

The System ID is typically derived from the router ' s loopback IP address or another unique value.

SEL (Selector Field):

The SEL field is always set to 00 for IS-IS NETs.

The NET is used by IS-IS for route calculation and to identify the router within the IS-IS domain. Therefore, the statement is TRUE.

The virtual MAC address for a VRRP virtual router is determined by the formula 00-00-5E-00-01-[VRID in hexadecimal] . For VRID 3, the hexadecimal equivalent is 03 . Thus, the virtual MAC address is 00-00-5E-00-01-03 ​.

 RST BPDU Handling

On an RSTP network, if a port receives an RST BPDU and determines its own buffered BPDU is superior, it discards the received BPDU without responding. This ensures stability and proper convergence in the network.

 HCIP-Datacom-Core Reference

BPDU handling is described in the RSTP operation chapters​​.

Comprehensive and Detailed Step-by-Step Explanation:

Bidirectional Forwarding Detection (BFD):

BFD is a lightweight protocol that provides rapid fault detection on links independent of the underlying routing protocol or media.

Requirements for BFD:

Both devices at the endpoints of the link must support and configure BFD for it to operate.

If one device does not support BFD, the feature cannot be used for link detection.

Comprehensive and Detailed Step-by-Step Explanation:

1. How Firewalls Match Security Policies:

Firewalls use security policies to define rules for filtering traffic.

Each policy contains matching conditions (e.g., source IP, destination IP, protocol, etc.) and an action (e.g., permit or deny).

Traffic is evaluated against these policies in sequential order, and the first matching policy is applied.

2. Analysis of Each Statement:

Option A: Multiple values can be configured for a single matching condition, and the values are logically ANDed.

Incorrect.

Multiple values for a single matching condition (e.g., multiple source IPs) are logically ORed , not ANDed. For example, traffic from any of the specified source IPs matches the policy.

Option B: If a security policy contains multiple matching conditions, the relationship between them is AND.

Correct.

When a policy has multiple matching conditions (e.g., source IP AND destination IP AND protocol), all conditions must be met for the policy to match.

Option C: The system has a default security policy named default, where all matching conditions are any and the default action is permit.

Incorrect.

The default security policy typically denies all traffic unless explicitly permitted by user-defined policies.

Option D: When multiple security policy rules are configured, they are sorted in a list by configuration sequence by default. A security policy rule configured earlier is placed higher in the list and has a higher priority.

Correct.

Security policies are processed in sequential order based on their configuration sequence. Policies configured earlier have higher priority and are evaluated first.

3. Summary:

The correct statements are B and D .

Comprehensive and Detailed in-depth Step-by-Step Explanation:

BGP (Border Gateway Protocol) uses specific message types to establish and maintain peer relationships between routers. The primary BGP messages involved during the establishment and maintenance of peer relationships are:

Open (D):

The Open message is the first message sent after a TCP connection is established between BGP peers.

It is used to exchange parameters such as the AS number, BGP version, hold time, and BGP identifier.

Keepalive (A):

After the Open message exchange, Keepalive messages are sent periodically to maintain the BGP session.

These messages confirm that the connection is still alive.

Update (C):

Update messages are used to exchange routing information after the peer relationship is established.

They contain information about network prefixes and their associated path attributes.

Hello (B):

Hello messages are not used in BGP. They are typically used in protocols like OSPF or IS-IS to establish and maintain neighbor relationships.

Thus, the correct answers are A (Keepalive) , C (Update) , and D (Open) .

IS-IS uses a two-level hierarchy:

Level-1 routers operate within a single area and cannot exchange routing information with routers in other areas directly.

To reach external areas (the IS-IS backbone or other areas), Level-1 routers rely on Level-1-2 routers , which perform inter-area route redistribution.

Therefore, a Level-1 router must use a Level-1-2 router as a gateway to reach destinations outside its own area.
