To troubleshoot why a post-deployment automation workflow (Playbook) is not executing, the administrator should investigate the specific execution records and the trigger configuration:

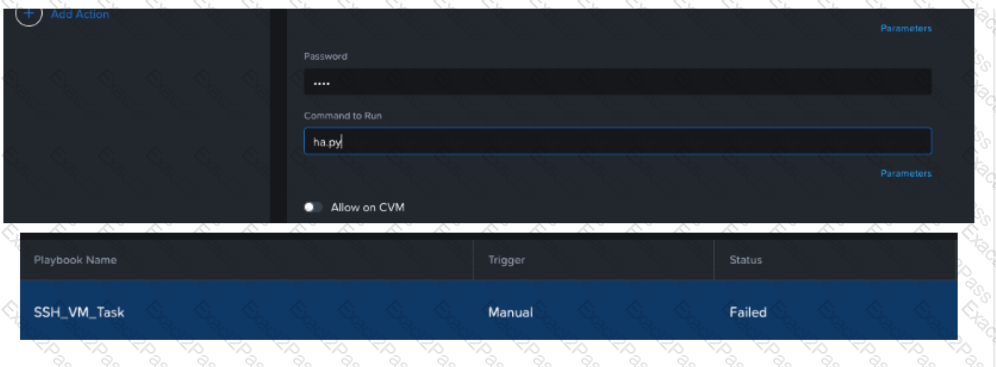

Check Playbook Execution History (C): The Playbook "Plays" or execution history (found in the Intelligent Operations or Self-Service Audit tab depending on the specific type of playbook used) provides the definitive record of whether the system attempted to run the automation. If the playbook appears in the history with a "Failed" status, the logs will indicate which specific step (e.g., HTTP task or API call) failed. If it does not appear at all, the issue lies in the trigger.

Verify Invocation (D): If the playbook is intended to run "post-deployment," it must be explicitly triggered.

For X-Play Playbooks , this involves verifying the Trigger logic (e.g., ensuring the "VM Created" event filter matches the specific Project Categories assigned to the new VMs).

For Self-Service (Calm) Runbooks , this involves verifying that the blueprint's "Post-Create" or "Profile" actions are correctly configured to call the Runbook.

Confirming these settings ensures the automation is properly "hooked" into the deployment lifecycle.

Reviewing VM creation logs in Prism Element (Option B) only confirms the VM was built (which is already known), and reassigning the project (Option A) is a destructive test that does not isolate the automation logic.

To satisfy the requirement where a user must manually enter a value (Cost Center) at request time, and have that specific value applied to the resulting VM's Category , the administrator must use a Runtime Variable combined with a Task .

Runtime Variable: Configuring a variable (e.g., @@{cost_center}@@) as "Runtime" in the Blueprint ensures that the Self-Service Marketplace prompts the user to input this data when they click "Launch."

Task for Categorization: In standard Self-Service blueprints, Categories defined in the VM configuration pane are typically static or tied to the Project/Environment defaults. To apply a dynamic category based on a specific user input string, the administrator creates a Task (typically a script using the API or a "Set Category" action if available in the version) that runs post-create. This task takes the value from the runtime variable and updates the VM entity with the corresponding CostCenter:Value category tag.

Why not others?

Option A uses a "Pre-Defined" variable, which typically implies a static value fixed by the admin, not input by the user.

Option C suggests using the Environment to set the value. Environments are used to map deployments to infrastructure (e.g., "Production" vs "Dev" clusters) and do not support dynamic injection of arbitrary user strings into category values during the launch process.

Option D suggests associating the variable to the Category in the Project . Project-level categories are generally static defaults applied to all workloads in that project (e.g., all VMs in the "HR Project" get CostCenter:HR), which contradicts the requirement for the requester to enter the specific cost center at launch.

In the context of Nutanix Self-Service (Calm) Blueprints, an Application Profile acts as a configuration wrapper that defines a specific variation of the application deployment. 1

Combinations: It allows the blueprint developer to define multiple "sizes" or "flavors" of the same application (e.g., "Small," "Medium," "Large") within a single blueprint.

Variables: Each Application Profile maps specific values to the variables defined in the underlying Services and Packages. For example, the "Small" profile might set the vCPU variable to 2 and the Memory variable to 4GB, while the "Large" profile sets them to 8 and 32GB respectively.

User Experience: When a user launches a blueprint from the Marketplace, they select the desired Application Profile, which then determines the specific infrastructure resources (VM specs) and software packages that get deployed. 2

Comprehensive and Detailed Explanation

When configuring a Self-Service Account for AWS , Prism Central must be able to:

Resolve AWS service endpoint URLs

Validate API calls via name-based resolution

Nutanix documentation specifies that DNS is required for all cloud-provider integrations, including AWS, Azure, and GCP.

Therefore, DNS is the required network element.

Correct answer: B

In Nutanix Self-Service (Calm), to protect sensitive data (such as passwords, keys, or personal tokens) from being displayed in plain text in the UI and Audit Logs, the developer must configure them as Secret Variables .

Secret Configuration: When defining a variable in a Blueprint or Runbook, there is a specific checkbox option to mark the variable as "Secret" (often indicated by a lock icon).

Behavior: Once a variable is marked as Secret, the Self-Service engine automatically masks the value (replacing it with asterisks *****) in all Audit Log outputs, task details, and the user interface. It is passed securely to the script execution environment but is never echoed back to the console logs in readable form.

Macros like jsonEncode (Option D) affect formatting, not security masking.

Comprehensive and Detailed Explanation

Nutanix Calm supports OS customization through Guest Customization , which:

Applies Sysprep for Windows

Injects configuration files

Sets hostnames, time zones, networking, and more

Runs scripts post-deployment

Sysprep is specifically executed during Windows Guest Customization .

Therefore, Option C: Guest Customization is correct.

The "Environment" construct in Nutanix Self-Service is designed specifically to abstract infrastructure details from the end user while ensuring correct placement.

Within a single Project, an administrator can define multiple Environments (e.g., "Development" and "Production").

The Development Environment is configured to map to the Development Cluster and its associated networks.

The Production Environment is configured to map to the Production Cluster and its associated networks.

When a blueprint is launched, the user (or the application profile) simply selects the target Environment. The Self-Service engine then automatically directs the provisioning to the specific cluster defined in that Environment's settings, ensuring correct placement without requiring the user to know cluster details or manual intervention.

For users to successfully deploy Marketplace Blueprints to a specific infrastructure, the Project must have a configured Environment .

The Gap: Merely adding the Account and whitelisting the Cluster in the Project settings (the "Infrastructure" tab) only authorizes access. It does not tell the Self-Service engine how to use that infrastructure (e.g., which Networks to attach, which Storage Containers to use, or what sizing policies to apply).

The Solution: The administrator must go to the Environments tab within the Project and Create a New Environment mapped to the new Account and Cluster.

Marketplace Logic: Marketplace blueprints are typically "Environment Agnostic." When a user launches one, they are prompted to select a destination Environment. If no Environment exists for the new cluster, the user cannot select it as a target for deployment.

In Nutanix Self-Service Runbooks, tasks that execute scripts (such as Shell for Linux or PowerShell for Windows) require a target destination. This target is defined as an Endpoint.

An Endpoint configures the connection details (IP address, port, connection protocol, and credentials) required to communicate with the remote machine where the script will run. Without selecting a valid Endpoint, the Runbook engine does not know where to send the script for execution.

To configure and enforce resource limits within a Nutanix Self-Service (formerly Calm) project, the specific governance component known as the Policy Engine must be active. 2

According to the Self-Service Administration and Operations Guide regarding the Policy Engine and Quotas Overview :

Enabling the Policy Engine: You enable and use the policy engine to enforce resource quota policies for infrastructure resources (compute, memory, and storage) on Nutanix and VMware accounts. 3

Prerequisite status: Until the policy engine is enabled in the Admin Center Settings, Prism Central cannot perform any quota checks or validation on resource consumption. 4

Availability: The options to define resource quota limits (such as vCPU, Memory, and Disk fields in the Project configuration) appear only when you enable the policy engine in your Prism Central instance. 5 If the policy engine is not enabled, the Quota section in the Projects pages remains unavailable. 6
