the administrator should click theTier-1 DR iconlocated within theEdge Node.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:In aVMware Cloud Foundation (VCF)environment, North-South traffic flows through a hierarchical routing structure composed ofTier-0andTier-1 Gateways. Each gateway is further divided into aDistributed Router (DR)component, which runs as a kernel module on all Transport Nodes (ESXi and Edges), and aService Router (SR), which provides centralized services and resides on the Edge Nodes.

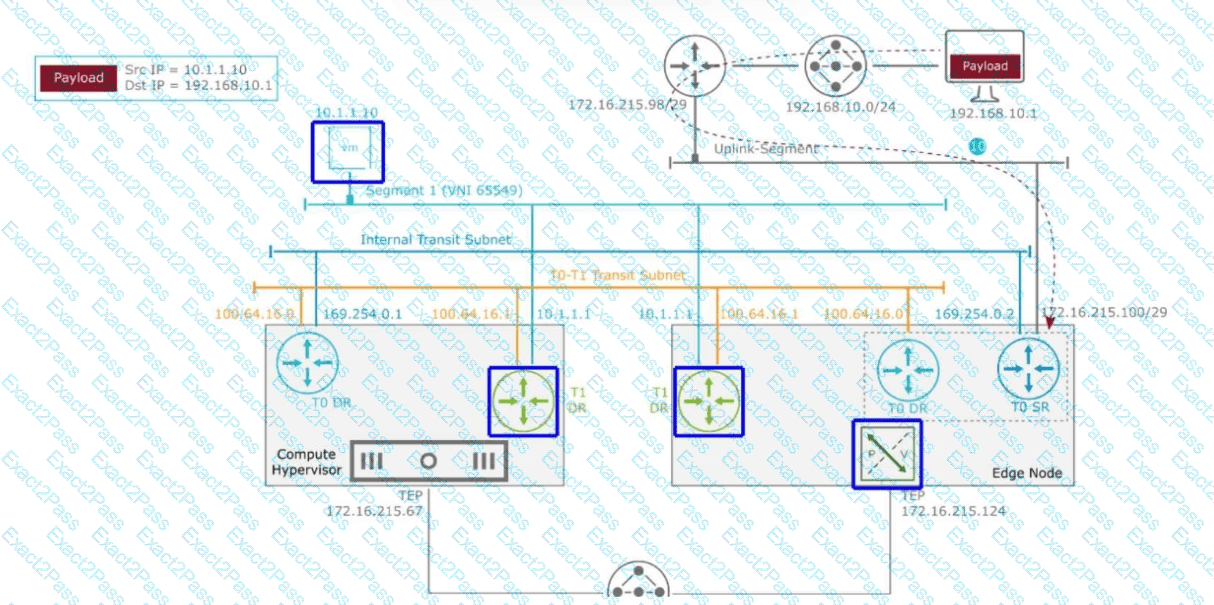

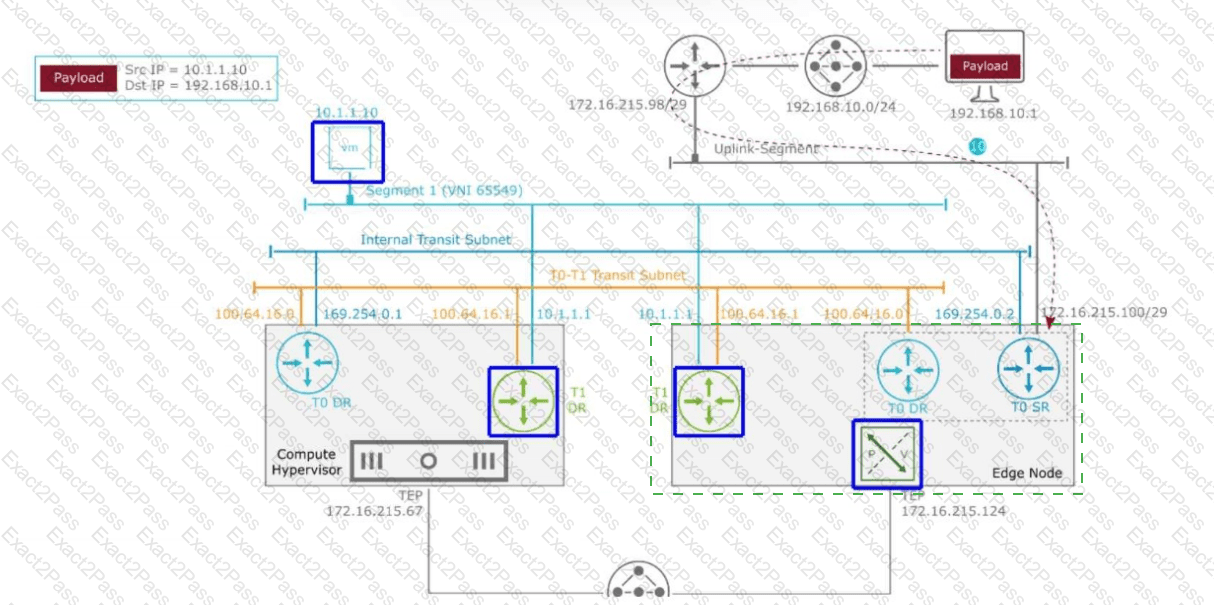

According to the packet walk logic for an incoming (North-to-South) packet, once the traffic arrives from the physical router at theTier-0 Service Router (SR)on the Edge Node, it must be routed toward the destination virtual machine (10.1.1.10). In a multi-tier NSX architecture, the Tier-0 SR identifies that the destination subnet belongs to a connectedTier-1 Gateway. The communication between the Tier-0 and Tier-1 gateways occurs over an internal transit subnet, often referred to as theRouter Link(in this diagram, represented by the 100.64.16.0/31 subnet).

The "Next Hop" for the packet currently residing at the Tier-0 SR on the Edge Node is theTier-1 Distributed Router (DR)instance located on that same Edge Node. This is because the Edge Node participates as a Transport Node in the overlay and maintains local instances of all Distributed Routers to ensure efficient path processing. After the packet is processed by the local Tier-1 DR on the Edge Node, it determines that the destination VM is residing on a remote host (Compute Hypervisor). Only then is the packet encapsulated in aGeneveheader and sent via theTunnel Endpoints (TEP)from the Edge Node (172.16.215.124) to the Compute Hypervisor (172.16.215.67). Therefore, the Tier-1 DR on the Edge Node is the immediate logical next step in the routing pipeline before any host-to-host encapsulation occurs.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

NSX Federationis the architectural framework used withinVMware Cloud Foundation (VCF)to provide consistent networking and security across multiple sites. The core of this framework is the relationship between theGlobal Manager (GM)and one or moreLocal Managers (LMs).

The registration process is the critical first step in establishing this "parent-child" relationship. According to the "NSX-T Data Center Administration Guide" and Federation-specific documentation, the registration is initiated from theActive Global Manager.

Initiation and Credentials (Requirement E):The administrator logs into the Global Manager UI and navigates to the "System > Fabric > Locations" section. To add a new site, the GM-Active requires theIP address or FQDNof the target Local Manager and theAdmin credentials. This allows the GM to authenticate with the LM, exchange security certificates, and establish a secure thumbprint-verified connection.

Stable Communication Endpoint (Requirement C):For the ongoing management and synchronization of "Global Objects" (like Tier-0s or Security Groups), the GM must communicate with the LM cluster as a whole rather than a single individual node. Therefore, theLM Cluster Virtual IP (VIP)or aFQDNpointing to that VIP is provided. Using the VIP ensures that if the specific LM node that initially handled the registration fails, the GM can continue to communicate with the remaining nodes in the LM cluster without administrative intervention.

Option A is incorrect because the Global Manager typically manages the licensing for the federation, not the LM validating the GM. Option B is incorrect as an external load balancer is not a prerequisite for the native GM-LM registration handshake. Option D is incorrect because providing the IP of an individual node (one of the three) does not provide the high availability required for a production Federation environment. Thus, the use of theCluster VIPand theGM-Active's request for LM credentialsare the verified procedural requirements.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

The architecture ofNSX Federationwithin a VCF Multi-Site design is built upon a separation of theControl Planeand theData Plane. This "decoupled" architecture ensures high availability and resiliency even when management components become unavailable.

In NSX Federation, theGlobal Manager (GM)handles the configuration of objects that span multiple locations, while theLocal Manager (LM)is responsible for pushing those configurations down to the local Transport Nodes (ESXi hosts and Edges) within its specific site. When a configuration is pushed, the Local Manager communicates with theCentral Control Plane (CCP)and subsequently theLocal Control Plane (LCP)on the hosts.

If an NSX Local Manager goes offline, the "Management Plane" for that site is lost. This means no new segments, routers, or firewall rules can be created or modified at that site. However, the existing configuration is already programmed into theData Plane(the kernels of the ESXi hosts and the DPDK process of the Edge nodes).

According to VMware's "NSX Multi-Location Design Guide," the data plane remains fully operational during a Management Plane outage. Existing VMs will continue to communicate, BGP sessions on the Edges will remain established, and Distributed Firewall (DFW) rules will continue to be enforced based on the last known good configuration state cached on the hosts. The data plane does not require constant heartbeats from the Local Manager to forward traffic. Therefore, operations continue normally "headless" until the LM is restored and can resume synchronization with the Global Manager and local hosts. Failover to a primary site (Option D) is only necessary if the actual data plane (hosts/storage) fails, not just the management components.

===========
