BGP Shortcuts Concept : BGP shortcuts leverage MPLS tunnels to carry transit traffic efficiently across the network, reducing the need for full-mesh iBGP peering.

Statement Analysis :

Option A : Correct. MPLS tunnels are indeed used to carry transit traffic across the network.

Option B : Correct. A full mesh of iBGP peering sessions is not required when using BGP shortcuts.

Option C : Incorrect. Only edge routers need to be configured with BGP. Transit routers only need to support MPLS (LDP or RSVP-TE) but do not need to run BGP.

Option D : Correct. Transit routers need to support LDP (Label Distribution Protocol) or RSVP-TE (Resource Reservation Protocol-Traffic Engineering) LSPs (Label Switched Paths).

Conclusion : Option C is false because transit routers do not need to be configured with BGP.

References:

Nokia Border Gateway Protocol Fundamentals

Nokia 7750 SR OS BGP Configuration Guide

To prevent route advertisement loops in a network using route reflectors, specific attributes are employed.

The key attributes used for loop prevention in BGP are:

MED (Multi-Exit Discriminator) : Used to influence the incoming traffic from neighboring ASes. It is not used for loop prevention.

ORIGIN : Indicates the origin of the route but does not directly prevent loops.

CLUSTER_LIST : Used by route reflectors to prevent loops. When a route reflector propagates a route, it adds its cluster ID to the CLUSTER_LIST. If a route with its own cluster ID is received, it is rejected to prevent loops.

AS_PATH : Records the ASes a route has traversed, preventing loops by rejecting routes containing the local AS number.

Therefore, the CLUSTER_LIST attribute is specifically used by route reflectors to prevent routing loops by keeping track of the clusters a route has passed through.

References :

Nokia Border Gateway Protocol Fundamentals documentation, Section 6.5 on Attributes for Loop Prevention in Route Reflectors.

Understanding the Network Topology:

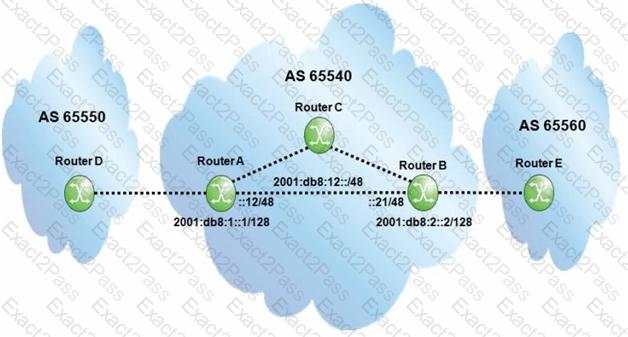

Routers are part of different ASes: Router A and Router B are in AS 65540, Router D is in AS 65550, and Router E is in AS 65560.

To allow Router B to exchange traffic with Router D, proper iBGP (internal BGP) configuration is required within AS 65540.

Configuration Requirements:

The configuration on Router A should include:

Enabling IPv6 family for BGP.

Setting the next-hop-self to ensure that the BGP next-hop is reachable.

Specifying the type as internal to denote an iBGP session.

Configuring the neighbor as Router B ' s IPv6 address.

Analyzing Options:

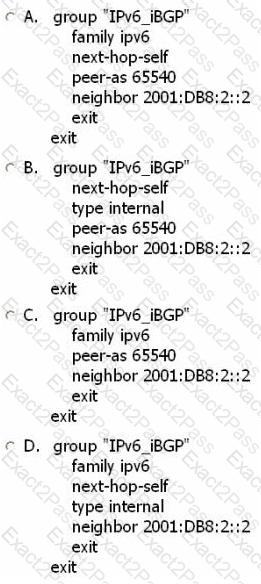

Option A: Missing the type internal configuration.

Option B: Missing the family ipv6 configuration.

Option C: Missing both next-hop-self and type internal configurations.

Option D: Correctly includes all necessary commands:

family ipv6

next-hop-self

type internal

neighbor 2001:DB8:2::2

Conclusion:

Option D provides a complete configuration for Router A to enable traffic exchange between Router B and Router D using iBGP with IPv6.

References

Nokia Border Gateway Protocol (BGP) Fundamentals documentation

Best practices for iBGP and eBGP configurations

IPv6 addressing and BGP configurations in multi-AS environments

Local Preference Comparison : Local preference is the first criterion BGP uses to select the best path. The higher the local preference, the more preferred the route. Here, the first route has a local preference of 150, while the other two routes have a local preference of 100.

Best Path Selection : Since the first route has the highest local preference (150), it will be preferred over the other two routes regardless of the AS Path length or any other attributes.

RIB-Out : The RIB-Out (Routing Information Base - Outbound) contains the routes selected for advertisement to peers. As only the best path is advertised, only the first route with the highest local preference will be included in the RIB-Out.

References:

Nokia Border Gateway Protocol Fundamentals

RFC 4271 - A Border Gateway Protocol 4 (BGP-4)

When a BGP session is stuck in the " Connect " state, it indicates that the local router is attempting to establish a TCP connection, but it hasn ' t succeeded yet. This often occurs when the remote BGP peer isn ' t configured correctly or there is an issue with the remote peer ' s reachability. Here are the potential reasons why this happens:

The remote BGP peer might not be configured to accept the BGP session.

There might be network issues preventing the local router from reaching the remote peer.

Given the options, if the local router is properly configured but the remote peer isn ' t, the session would be stuck in the " Connect " state as it waits for a successful TCP connection.

References Nokia Border Gateway Protocol Fundamentals, Troubleshooting BGP Sessions, Chapter on BGP State Machine and Connection Issues.

When a BGP router receives multiple routes for the same destination, it selects the best route based on several attributes in the following order of preference:

Highest local preference : Routes with the highest local preference are preferred.

Shortest AS_PATH : Routes with the shortest AS path are preferred.

Lowest MED : Routes with the lowest MED are preferred.

eBGP over iBGP : Routes learned via eBGP are preferred over iBGP routes.

Lowest IGP metric to BGP next hop .

Given the routes:

Local preference 100, MED 150, AS Path 65300 65200 (eBGP)

Local preference 100, MED 100, AS Path 63200 (iBGP)

Local preference 200, MED 150, AS Path 65400 63200 (iBGP)

Local preference 200, MED 100, AS Path 63700 (eBGP)

Route 4 has the highest local preference (200), the lowest MED (100), and is learned via eBGP. Therefore, it is the best route.

References Nokia Border Gateway Protocol Fundamentals, Chapter on BGP Route Selection Process.

When an export policy is applied to a router to advertise a prefix to its eBGP peers, the local AS number is added to the AS_PATH attribute of the route update.

LOCAL_PREFERENCE is not set in eBGP updates; it is used within an AS.

NEXT_HOP is typically set to the advertising router ' s interface IP address.

COMMUNITY attribute is not set by default unless explicitly configured.

References :

Nokia Border Gateway Protocol Fundamentals documentation, Section 4.3 on BGP route advertisement.

Route reflectors (RR) follow specific rules for propagating routes to prevent routing loops and ensure efficient route distribution within an Autonomous System (AS).

Here are the rules that a route reflector follows:

If the best route is received from an eBGP peer, it propagates the route to all iBGP peers.

If the best route is received from an eBGP peer, it propagates the route to all eBGP peers.

If the best route is received from a client, it propagates the route to all iBGP peers, including other clients and non-clients.

If the best route is received from a non-client, it propagates the route to all clients.

The statement " If the best route is received from a client, do not propagate to eBGP peers. " is NOT followed by a route reflector. In fact, if the best route is received from a client, it is propagated to both eBGP and iBGP peers as required.

References :

Nokia Border Gateway Protocol Fundamentals documentation, Section 5.3 on Route Reflector Rules and Propagation.

IPv6 Link-Local addresses are specific types of addresses used within a single local network segment. Here are key points about IPv6 Link-Local addresses:

A. True : Every physical interface running IPv6 is assigned a Link-Local address automatically.

B. True : Link-Local addresses are only valid for communication within the same broadcast domain (i.e., the local link).

C. True : They all have the same 64-bit subnet prefix ( FE80::/64 ).

The false statement is:

D. False : The interface ID for Link-Local addresses is not derived from the interface’s IPv4 address. Instead, it is typically generated from the interface’s MAC address or using a random number.

References Nokia Border Gateway Protocol Fundamentals, Chapter on IPv6 Addressing.

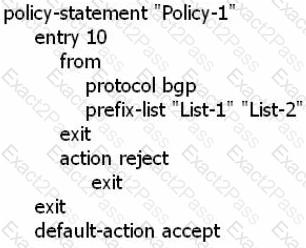

Policy Statement Analysis : The given policy statement includes an " or " condition for matching prefixes in " List-1 " or " List-2 " .

Action on Match : The action specified for matches is " reject " .

Import Policy Behavior : When applied as an import policy, any BGP route that matches either " List-1 " or " List-2 " will be rejected and not allowed into the BGP table.

References:

Nokia Border Gateway Protocol Fundamentals

Nokia 7750 SR OS BGP Configuration Guide
