IBC Table 722.7.1(2) assigns a 40-minute protection contribution to 5/8-inch Type X gypsum board . Therefore, option D is correct.

The same table assigns 25 minutes to 1/2-inch Type X gypsum board. Consequently, option B overstates the protection contribution of the thinner Type X panel. Ordinary gypsum board values appearing elsewhere in Section 722 cannot simply be substituted for the specific mass timber noncombustible protection values in Table 722.7.1(2). Options A and C therefore do not state the protection contribution recognized by the mass timber table.

These assigned values are particularly important when multiple layers are required. For example, a two-hour building element requires at least 80 minutes of noncombustible protection under Table 722.7.1(1), which can be satisfied prescriptively with two properly installed layers of 5/8-inch Type X gypsum board, each contributing 40 minutes.

The contribution is valid only when the gypsum board is installed and fastened in accordance with Section 722.7.2.

References/Topics: 2021 IBC Tables 722.7.1(1) and 722.7.1(2); Section 722.7.2; Type X gypsum noncombustible protection.

===============

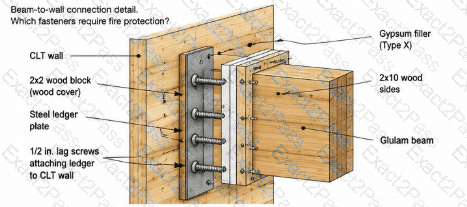

The 1/2-inch lag screws attaching the structural steel ledger require fire protection, making option D correct. These fasteners are structural components of the ledger-to-CLT connection and therefore form part of the connection whose fire performance must be maintained for the required duration.

AWC Technical Report 10 states that wood structural connections—including their connectors, fasteners, and participating members—must be protected from fire exposure for the required fire-resistance time . Protection may be provided by wood cover, fire-rated gypsum board, other approved materials, or a combination.

TR10 distinguishes structural connection fasteners from small fasteners used merely to hold sacrificial protection in place. The report specifically explains that fasteners attaching protective wood strips need not themselves be protected, provided they are sufficiently long to keep the protection in position throughout the required exposure.

In the illustrated ledger connection, the 1/2-inch lag screws transfer structural load between the steel ledger and CLT wall. Their thermal protection is therefore integral to maintaining connection capacity.

References/Topics: AWC Technical Report No. 10 Sections 4.5 and connection examples; thermal protection of structural connectors and fasteners.

===============

When the footnotes are disregarded, the fire-resistance ratings assigned to the principal building elements of Type IV-A construction correspond to those of Type I-A construction . Option A is therefore correct.

IBC Table 601 assigns both Type I-A and Type IV-A a 3-hour rating for the primary structural frame , 3 hours for exterior and interior bearing walls, 2 hours for floor construction and associated secondary structural members , and 1½ hours for roof construction and associated secondary structural members . Interior nonbearing walls and partitions are generally rated zero by Table 601 unless another code provision requires a rating. Exterior nonbearing walls are governed separately based on fire separation distance.

The similarity in Table 601 ratings does not mean Type I-A and Type IV-A are otherwise equivalent construction types. Type I-A relies principally on noncombustible structural construction, whereas Type IV-A permits mass timber subject to the substantial noncombustible protection requirements of Section 602.4.1.

Types II-A, III-A, IV-C, and IV-HT have materially different Table 601 requirements, so options B, C, and D do not provide a complete rating match.

References/Topics: 2021 IBC Section 601 and Table 601; Types I-A and IV-A fire-resistance ratings.

===============

A sealant required to resist air passage between qualifying mass timber elements must comply with ASTM C920. Therefore, option C is correct. ASTM C920 is the recognized specification for elastomeric joint sealants and establishes requirements for properties such as movement capability, adhesion, cohesion, hardness, weathering, and durability.

IBC Section 703.7 differentiates between the two materials: sealants must meet ASTM C920, while adhesives must meet ASTM D3498. Option D therefore applies to an adhesive rather than a sealant. ASTM E119 is the standard fire test used to establish the fire-resistance rating of structural members and assemblies; it does not serve as the product specification for the sealant. ASTM E114 is not the applicable standard under this provision.

The stated exception is important. Section 703.7 does not require an additional sealant or adhesive where it is not a required component of the tested fire-resistance-rated assembly. Where the approved assembly or code provision does require it, however, the specified product, location, joint preparation, backing material, depth, width, and tooling must match the approved construction documents.

References/Topics: 2021 IBC Section 703.7; ASTM C920 sealants; ASTM D3498 adhesives; tested fire-resistance-rated assemblies.

===============

Steel plates are not themselves a fire-protective material for the connection; therefore, option A is the exception. Steel plates frequently form part of mass timber structural connections, but because steel is highly thermally conductive, exposed steel can rapidly transmit heat into fasteners and adjacent wood. Consequently, the steel connection components are normally the items that require protection , not the material relied upon to provide that protection.

AWC guidance recognizes wood cover, fire-rated gypsum board, and other approved protection materials as valid means of shielding structural connections. TR10 specifically provides calculation procedures and worked examples using sacrificial wood cover and Type X gypsum wallboard. An approved protective coating can also be used where its documented fire-performance characteristics establish the required endurance under the approved design.

The distinction is important for inspection. A concealed steel plate does not automatically mean a protected connection. The special inspector must verify whether sufficient wood cover, gypsum protection, approved coating, or another engineered protection system surrounds the steel for the required duration. Hardware geometry, exposed edges, gaps, and penetrations can all materially affect thermal performance.

References/Topics: AWC Technical Report No. 10, protection of structural connections; 2021 IBC Section 2304.10.1; AWC guidance that connection protection can be provided by wood cover, gypsum board, or other approved material.

===============

The calculation begins with 2021 IBC Table 506.2. Because the building is a Group B occupancy, has more than one story, and is protected throughout by an automatic sprinkler system complying with Section 903.3.1.1, the applicable tabular classification is “SM”—a multistory, fully sprinklered building.

For Group B and Type IV-A construction, Table 506.2 assigns an SM allowable area factor of 324,000 square feet. However, this is not the final total allowable building area. Section 506.2.1 requires a single-occupancy building with more than three stories above grade plane to use Equation 5-2. Where no frontage increase is stated, the calculation is:

324,000 square feet × 3 = 972,000 square feet.

The story-area multiplier is limited to three even though the building contains 15 stories. The code does not permit multiplying 324,000 square feet by all 15 stories. Additionally, the actual area of an individual story cannot exceed its calculated allowable area. Option A represents a different construction-type area factor, while option B does not result from the required IBC multistory calculation. The building is not automatically unlimited merely because it is Type IV-A and sprinklered.

References/Topics: 2021 IBC Sections 506.2 and 506.2.1; Equation 5-2; Table 506.2, Group B, Type IV-A, SM area factor.

===============

IBC Table 601 requires floor construction and associated secondary structural members in Types IV-A, IV-B, and IV-C construction to have a two-hour fire-resistance rating. Therefore, option B is correct.

This requirement applies to the complete floor assembly, not only the timber panel. The required two-hour performance may be established through the calculated fire resistance of the mass timber, the contribution of approved noncombustible protection, or a permitted combination of both. Any topping, protective membrane, connection protection, and edge condition that forms part of the approved rated design must be installed accordingly.

The ratings for other building elements should not be transferred to the floor. A three-hour rating applies to the primary structural frame and bearing walls of Type IV-A, but its floor construction remains two hours. Type IV-B and Type IV-C floors also require two hours, even though those construction types permit different degrees of exposed mass timber.

The special inspector must verify panel dimensions, approved layup, protection layers, joints, penetrations, connections, topping thickness, and other details that influence the floor’s rated performance.

References/Topics: 2021 IBC Sections 601 and 602.4; Table 601, floor construction and associated secondary structural members.

===============

Option C correctly states the fundamental UL finish-rating criterion. UL defines a finish rating for assemblies containing combustible wood structural supports as the elapsed fire-exposure time at which the wood member immediately behind the protective membrane reaches the prescribed temperature-rise threshold.

More precisely, UL uses two criteria: an average temperature rise of 250°F or an individual-point temperature rise of 325°F , measured on the plane of the wood nearest the fire, typically between the gypsum membrane and the wood stud or joist. The question asks for the principal definition, which is the 250°F temperature-rise criterion; therefore, option C is correct. Option D incorrectly treats the 325°F individual-point limit as the sole definition.

Options A and B confuse a finish rating with “assigned protection time.” IBC Tables 722.6 and 722.7 provide calculated contribution values for specified protective materials, but those assigned values are not themselves UL finish ratings.

This distinction matters in mass timber fire design because membrane contribution, thermal separation, structural fire resistance, and finish rating are related but not interchangeable concepts.

References/Topics: UL Fire Resistance Directory terminology; finish rating; average 250°F and individual 325°F temperature-rise criteria.

===============

The minimum required fire flow is 500 gallons per minute. Therefore, option C is correct.

Under 2021 IFC Section 3313.2, an approved water supply must be available when combustible building materials for the building under construction are delivered to the project site. The hydrant supplying the required flow must be located within the prescribed distance of the combustible materials as measured along an approved fire apparatus access route. Where one hydrant cannot provide coverage to all combustible material locations, additional hydrants are required.

The 500-gpm requirement is the initial minimum associated with the delivery of combustible building materials. It should not be confused with the potentially greater fire-flow requirements applicable after vertical construction of a Type III, IV, or V building begins. Depending on fire separation distance and the building’s calculated final fire-flow demand, a larger supply may be required under subsequent provisions.

Options A and B provide inadequate suppression capacity. Option D is not the baseline amount prescribed for the condition stated in the question. Inspectors and site safety personnel should verify that the water source is operational and accessible before substantial quantities of mass timber arrive on-site.

References/Topics: 2021 IFC Sections 3313.1 and 3313.2; construction-site water supply and combustible building materials.

===============

A 7/16-inch wood structural panel does not satisfy the prescribed minimum thickness for fireblocking. Therefore, option C is the exception.

IBC Section 718.2.1 permits one thickness of 23/32-inch wood structural panel where the joints are properly backed. A 7/16-inch panel is substantially thinner and cannot be substituted without an approved alternative-material determination. The code also recognizes one-half-inch gypsum board and properly installed batts or blankets of mineral wool or other approved materials.

Mass timber complying with Section 2304.11 is also permitted as fireblocking. Its large cross section provides resistance to the movement of flame, hot gases, and smoke through a concealed space that is at least equivalent to the nominal lumber traditionally accepted for this purpose.

The inspector must distinguish fireblocking from a tested firestop system. Fireblocking divides or interrupts concealed combustible cavities; it does not automatically protect a penetration through a fire-resistance-rated wall or floor. Installation must completely fill or close the required space, remain securely supported, and comply with requirements for joints, edges, penetrations, and mineral-fiber compression.

References/Topics: 2021 IBC Section 718.2.1; Section 2304.11; approved fireblocking materials in mass timber construction.

===============
