IKEv1 negotiation consists of two phases. Phase 1 is responsible for establishing a secure IKE Security Association (SA), including peer authentication, key exchange, and protection of subsequent negotiations. In Huawei IPsec implementations, IKEv1 Phase 1 supports Main mode and Aggressive mode .

Main mode uses six message exchanges to securely negotiate parameters, protect identity information, and establish a trusted channel. It provides higher security and is commonly used in site-to-site IPsec VPN scenarios. Aggressive mode , on the other hand, completes negotiation using only three message exchanges, offering faster setup at the cost of reduced identity protection.

Quick mode is not part of IKEv1 Phase 1; it is used in Phase 2 to negotiate IPsec SAs for data traffic protection. Normal mode is not a valid IKEv1 negotiation mode.

According to HCIP Datacom Campus Network documentation and standard IPsec principles, the supported IKEv1 Phase 1 negotiation modes are Main mode and Aggressive mode , making options B and C correct.

Comprehensive and Detailed 200 to 250 words of Explanation From HCIP Datacom Campus Network documents knowledge without any URL or Links:

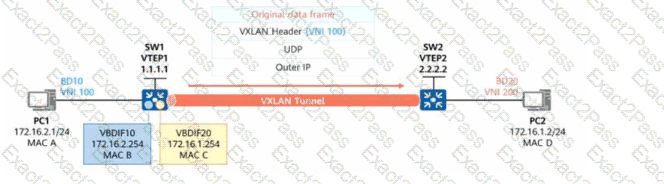

In an asymmetric IRB (Integrated Routing and Bridging) VXLAN forwarding model, Layer 2 forwarding and Layer 3 routing occur on different VTEPs . When PC1 sends traffic to PC2, the packet is first forwarded to the local gateway (VBDIF interface) on VTEP1 for Layer 3 routing.

After routing is performed, VTEP1 encapsulates the packet into a VXLAN packet and forwards it to VTEP2. Importantly, the original data frame inside the VXLAN packet has already been rewritten after routing. The destination MAC address in the original Ethernet frame is no longer the MAC address of PC2, but the MAC address of the next-hop gateway on the remote VTEP .

In the figure, this next-hop MAC address is MAC C , which belongs to the VBDIF interface on VTEP2. MAC D (PC2’s MAC address) is only used after the packet is decapsulated and forwarded locally by VTEP2.

According to HCIP Datacom Campus Network VXLAN forwarding behavior, the correct destination MAC address of the original data frame sent from VTEP1 to VTEP2 is MAC C , making option C correct.

DHCP is a core protocol used in campus networks to automatically assign IP addresses and deliver network parameters to hosts, improving deployment efficiency and simplifying address management. DHCP messages include several fixed fields and an Options field , which plays a critical role in parameter delivery.

Option A is false . Even if only gateway and DNS server information needs to be delivered to a client, the DHCP Offer message must carry the Options field . Default gateway and DNS server information are delivered through specific DHCP options, such as Option 3 (Router) and Option 6 (DNS Server). Without the Options field, these parameters cannot be conveyed to the client.

Option B is correct. The Options field in DHCP messages uses a TLV (Type-Length-Value) format, allowing flexible extension and supporting various network parameters, including NTP server addresses, wireless AC addresses, and log server addresses, which aligns with HCIP Datacom Campus Network descriptions.

Option C is also correct. DHCP supports static IP address allocation by binding a specific IP address to a client’s MAC address. This is commonly used for printers, servers, or network devices that require fixed IP addresses.

Option D is correct as well. Because DHCP uses broadcast messages that cannot cross Layer 3 boundaries, a DHCP relay agent is required when the client and server reside on different IP networks.

Therefore, option A is the only incorrect statement.
