Comprehensive and Detailed In-Depth Explanation:

1. Understanding MPLS LDP (Label Distribution Protocol)

LDP (Label Distribution Protocol) runs over TCP port 646 .

LDP uses the transport address (Loopback0 in this case) to establish TCP sessions between neighbors.

For an LDP session to be established, both routers must:

Enable LDP on the interface (GE0/0/1).

Allow TCP traffic on port 646 (used for LDP adjacency formation).

2. Analyzing the Issue and Possible Causes

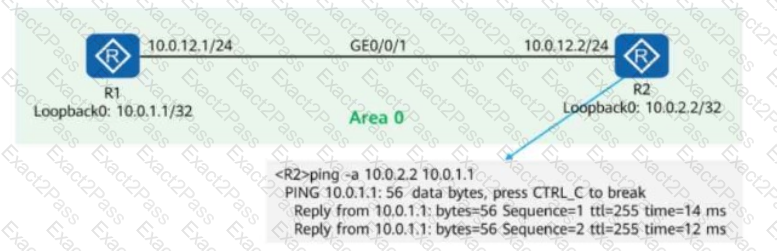

The figure shows a successful ping from R2 to R1’s Loopback0 (10.0.1.1/32) .

This means basic IP connectivity between R1 and R2 is working.

OSPF is properly advertising Loopback0 addresses between the routers.

The problem must be related to LDP itself, not general IP reachability.

3. Evaluating Each Answer Option

Option A: " R1’s GE0/0/1 rejects packets with the destination IP address 10.0.2.2. "

Incorrect.

The ping test in the figure shows successful replies from 10.0.1.1 to 10.0.2.2 , meaning packets to 10.0.2.2 are not being rejected .

This is NOT the cause of the LDP failure.

Option B: " MPLS LDP is not enabled on R2’s GE0/0/1. "

Correct.

If LDP is not enabled on R2’s GE0/0/1 , then R1 and R2 cannot form an LDP session .

MPLS LDP must be enabled on both interfaces for label exchange.

This is a valid cause of the issue.

Option C: " R2’s GE0/0/1 rejects packets with TCP destination port 646. "

Correct.

LDP operates over TCP port 646 , so if R2’s GE0/0/1 has a firewall or ACL blocking TCP port 646 , then LDP will fail .

Blocking TCP 646 on R2’s interface would prevent the session from establishing.

This is another valid cause of the issue.

Option D: " R1’s GE0/0/1 rejects packets with UDP destination port 646. "

Incorrect.

LDP does not use UDP; it uses TCP port 646.

This is not a valid cause of the issue.

Final Answer:

✅ B and C are correct.

HCIP-Datacom-Advanced Routing & Switching Technology References:

MPLS LDP Session Establishment and TCP 646 Dependency

How OSPF Advertises Loopback0 for LDP Transport

Common LDP Debugging Techniques and ACL Issues

Comprehensive and Detailed In-Depth Explanation:

Understanding Port Isolation in the Network

Network Setup Details:

The switch is Layer 3 , with VLANIF10 configured as 10.1.1.1/24 (gateway for all PCs).

All PCs are in VLAN 10 and use 10.1.1.1 as the default gateway.

Port isolation is enabled on switch interfaces, dividing them into two groups:

Group 1 (PC1 & PC2): GigabitEthernet0/0/1 and GigabitEthernet0/0/2

Group 2 (PC3 & PC4): GigabitEthernet0/0/3 and GigabitEthernet0/0/4

Port Isolation Behavior:

Ports within the same isolation group CAN communicate with each other.

Ports from different isolation groups CANNOT communicate directly.

All devices CAN still communicate with the L3 switch (10.1.1.1), which acts as the gateway.

Ping Analysis from PC1 (10.1.1.2)

Destination IP

Device

Connected Port

Isolation Group

Ping Result from PC1

10.1.1.3

PC2

GigabitEthernet0/0/2

Group 1

✅ Can Ping

10.1.1.4

PC3

GigabitEthernet0/0/3

Group 2

❌ Cannot Ping

10.1.1.5

PC4

GigabitEthernet0/0/4

Group 2

❌ Cannot Ping

10.1.1.1

L3 Switch (Gateway)

N/A

Not Isolated

✅ Can Ping

Which IPs Cannot be Pinged from PC1?

PC3 (10.1.1.4) and PC4 (10.1.1.5) are in a different isolation group (Group 2), so PC1 cannot reach them directly.

PC2 (10.1.1.3) is in the same isolation group (Group 1), so PC1 can ping it.

PC1 can ping the gateway (10.1.1.1) because the switch is Layer 3 and forwards traffic.

Thus, the correct answers are: A. 10.1.1.3 and D. 10.1.1.4 .

Final Conclusion:

✅ PC1 CAN ping:

10.1.1.3 (PC2, same isolation group)

10.1.1.1 (Gateway, L3 Switch)

❌ PC1 CANNOT ping:

10.1.1.4 (PC3, different isolation group)

10.1.1.5 (PC4, different isolation group)

Thus, the correct answer is: A. 10.1.1.3 and D. 10.1.1.4 .
