Sizing a storage solution for SAP HANA is fundamentally different from sizing general-purpose virtualization workloads. SAP HANA is an in-memory database, but it has extremely strict requirements for the underlying persistent storage layer to ensure data integrity during savepoints and log writes. SAP enforces these requirements through the SAP HANA Tailored Data Center Integration (TDI) program.

To begin the sizing process and ensure the solution will pass the SAP Hardware Configuration Check Tool (HWCCT) or the newer SAP HANA System Check, a storage architect must first determine the required IOPS rate, specifically for the /hana/data and /hana/log volumes. SAP provides specific KPIs for latency and throughput that must be met. For instance, the log volume requires extremely low-latency writes to handle the sequential redo logs, while the data volume requires high-throughput (MB/s) and specific IOPS to handle asynchronous savepoints.

While the number of nodes (Option C) and replication features (Option D) are important for the overall architecture, they do not dictate the "right-sizing" of the storage performance tier in the same way the IOPS and throughput requirements do. If the storage cannot meet the SAP-certified IOPS and latency thresholds, the entire solution will be unsupported, regardless of how many nodes are present. By identifying the IOPS and throughput needs first, the architect can determine if the customer requires an All-Flash Alletra 9000 or if an Alletra MP configuration with specific drive counts is necessary to provide the required "parallelism" to hit SAP's performance targets.

Meshed fabric: Has many-to-many connectivity and requires high performance.

Cascaded fabric: Data access is localized with servers and storage connected to the same switch.

Core-edge fabric: Data access is a mix of local and distributed.

Ring fabric: Accommodates diverse geographic conditions and location.

In the design of modern Storage Area Networks (SANs), selecting the right topology is critical for balancing performance, scalability, and cost. Each of these Brocade/HPE B-series architectures serves a specific workload profile:

Meshed Fabric: This design provides the highest level of redundancy and performance by connecting switches in an "any-to-any" pattern. Because every switch is connected to multiple other switches, it provides many-to-many connectivity and minimized "hop counts," making it ideal for high-performance environments where application traffic is unpredictable and widely distributed.

Cascaded Fabric: The simplest topology, where switches are connected in a serial or daisy-chain fashion. It is most effective in small environments where data access is localized—meaning the server and the storage it needs are physically connected to the same switch, minimizing Inter-Switch Link (ISL) traversal.

Core-Edge Fabric: The standard for enterprise data centers. Servers are connected to "Edge" switches, and storage is connected to a high-capacity "Core". This allows for a mix of local and distributed data access. Large enterprises use this to scale easily by adding edge switches without disrupting the core storage connectivity.

Ring Fabric: By connecting switches in a closed loop, this topology is designed to accommodate diverse geographic conditions. If a single link between two locations fails, traffic can be re-routed the other way around the ring. This provides a cost-effective way to link multiple sites or campus buildings while maintaining fabric integrity.

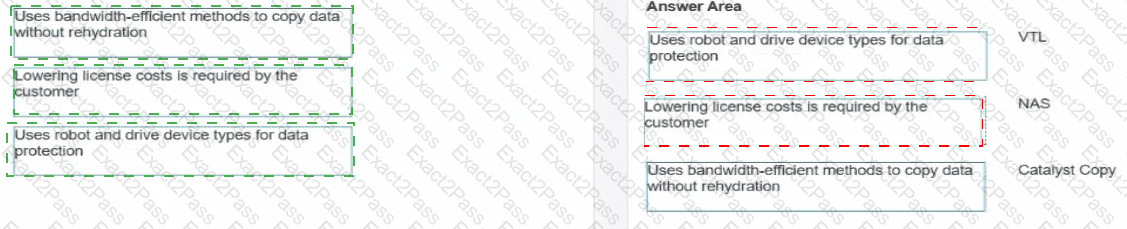

Catalyst Copy: Uses bandwidth-efficient methods to copy data without rehydration

NAS: Lowering license costs is required by the customer

VTL: Uses robot and drive device types for data protection

The HPE StoreOnce portfolio provides multiple data protection interfaces to align with different legacy and modern workload requirements. Understanding the specific technical "DNA" of each interface is key to a successful Master ASE design.

HPE StoreOnce Catalyst Copy is the most advanced method for data movement. Unlike standard protocols that must "rehydrate" (decompress/deduplicate) data before sending it over the network, Catalyst Copy is "deduplication-aware". It identifies unique data blocks at the source and only transmits those that do not already exist at the destination. This bandwidth-efficient method allows for high-speed replication over WAN links with minimal overhead.

The NAS (Network Attached Storage) interface is often chosen when lowering license costs is a primary driver. Because it utilizes industry-standard protocols like NFS or SMB/CIFS, it does not require the specialized (and often separately licensed) backup software agents or plug-ins associated with the high-performance Catalyst protocol. While it lacks some of the advanced deduplication-at-source benefits of Catalyst, it remains a cost-effective choice for general-purpose file-based backups.

The VTL (Virtual Tape Library) interface is designed for customers with existing investments in tape-based backup workflows. It emulates physical tape hardware, presenting the backup software with virtual "robot" (medium changer) and drive device types. This allows organizations to transition from physical tape to disk-based deduplication without changing their existing backup scripts or procedures, providing a seamless "drop-in" replacement for aging tape libraries.
