The HPE Alletra 9000 (and its predecessor, HPE Primera) supports various Remote Copy (RC) topologies to meet different disaster recovery and data distribution requirements. These include 1-to-1, 1-to-N (fan-out), and N-to-1 (fan-in) configurations.

In an N-to-1 Remote Copy configuration , multiple source storage systems (represented by ' N ' ) replicate their data to a single, centralized target system at a disaster recovery (DR) or secondary site. This architecture is particularly efficient for organizations with multiple regional or branch offices that wish to centralize their backup and DR operations into a single data center to reduce hardware costs and simplify management. In the scenario described, the company has three primary sites ($N = 3$), each with its own storage array. To implement an N-to-1 strategy, the administrator only needs to provide one storage array at the DR site. This single target array must be sized appropriately to handle the combined capacity and performance requirements (IOPS and throughput) of the incoming replication streams from all three source systems.

Architecturally, the Alletra 9000 uses Remote Copy Groups to manage these relationships. Each group on the source systems is mapped to a corresponding group on the single target system. It is important to note that while the hardware requirement is a single array, the administrator must ensure the target array has sufficient Remote Copy ports (RCIP or RCFC) and licensed capacity to accommodate the fan-in ratio. The Alletra 9000 management interface and HPE GreenLake Data Services Cloud Console (DSCC) provide the orchestration necessary to monitor these multiple inbound streams and ensure that the Recovery Point Objectives (RPOs) are met across all sites simultaneously.

The HPE Alletra MP B10000 (Block) utilizes a disaggregated shared-everything architecture where capacity is distributed across multiple NVMe drives and enclosures. To ensure 100% data availability, the system allows administrators to define the level of resilience required via the High Availability (HA) settings.

Architecturally, there is a direct trade-off between the level of hardware resilience and the achievable space efficiency (usable capacity).

Enclosure Level HA (Option D): This is the most resilient setting. It ensures the system can survive the total failure of an entire drive enclosure (JBOF) without losing data. To achieve this, the system must distribute parity and data stripes across different enclosures. This " vertical " redundancy requires a larger percentage of raw capacity to be reserved for parity, thereby reducing the net space efficiency.

Drive Level HA (Option A): This setting protects against individual drive failures (similar to traditional RAID 6 or RAID-TP) but assumes the enclosure itself remains operational. Because the stripes can be optimized more densely within fewer hardware boundaries, the system requires less " overhead " capacity to maintain the protection state.

By changing the High Availability option to Drive Level , the administrator instructs the Alletra MP software to prioritize usable capacity over enclosure-level fault tolerance. This is a common optimization for customers who have multi-enclosure systems but prefer to maximize their ROI on raw NVMe flash. It is important to note that changing this setting may require a re-striping of existing data and should be done in accordance with the customer’s risk profile and SLA requirements. The sparing algorithms (Options B and C) manage how much space is set aside for automatic rebuilds, but the primary driver of bulk space efficiency in a multi-enclosure MP cluster is the HA policy selection.

Hardware

To expand a single-array configuration into a multi-array scale-out cluster (known as an HPE Nimble/Alletra 6000 Group ), the administrator must navigate to the physical resource management section of the interface. In the HPE Alletra 6000 and legacy Nimble Storage UI, this is located under the Hardware tab in the primary navigation menu.

Once the administrator clicks on Hardware , the system displays the " Arrays " view. If a second, uninitialized Alletra 6000 array is physically connected to the same network and has been discovered by the management software (via the Discovery protocol), it will appear in a list of " Discovered Arrays " or within the main hardware pane with an option to be added to the current group. By selecting the uninitialized array and clicking the add/plus icon within that specific Hardware sub-menu, the administrator triggers the group expansion process. This process non-disruptively integrates the new array ' s controllers and capacity into the existing management plane, allowing for seamless data migration and performance scaling across the member arrays.

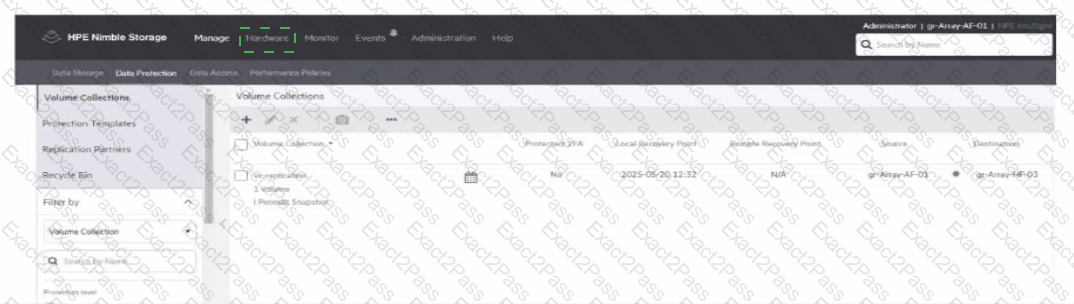

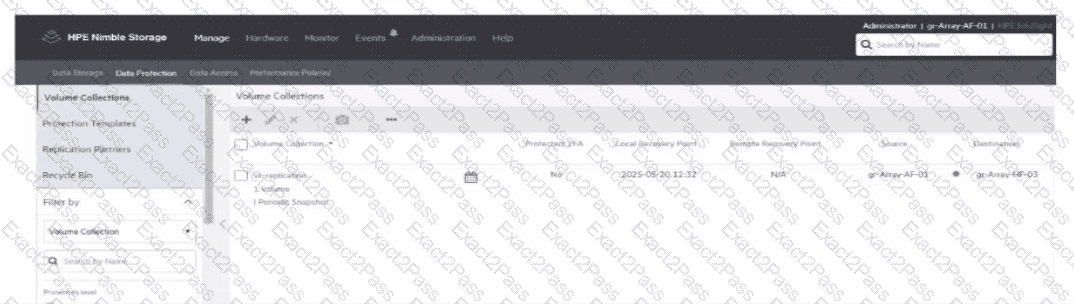

The exhibit provided (image_64b359.png) currently shows the Data Protection sub-tab under the Manage menu. This area is dedicated to managing volume collections, snapshots, and replication partners rather than hardware membership. To perform the hardware-level task of adding a new physical node to the cluster, the administrator must first move away from the " Manage " view and select Hardware . This architectural separation ensures that logical data management tasks are distinct from physical infrastructure scaling. Once the second array is added, the " Manage " view will then reflect the combined resources of both arrays, allowing for group-wide volumes that can span the performance and capacity of the entire scale-out solution.

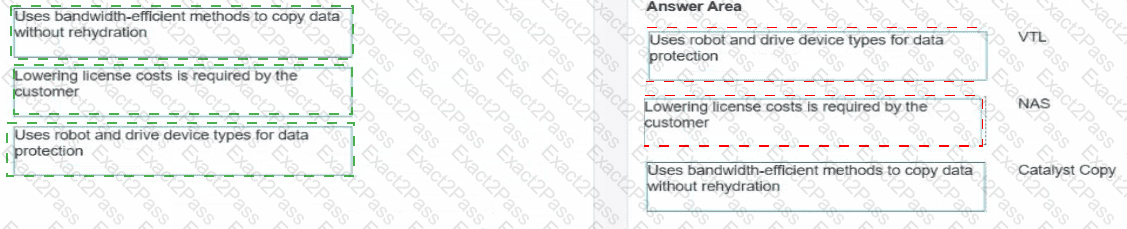

Catalyst Copy: Uses bandwidth-efficient methods to copy data without rehydration

NAS: Lowering license costs is required by the customer

VTL: Uses robot and drive device types for data protection

The HPE StoreOnce portfolio provides multiple data protection interfaces to align with different legacy and modern workload requirements. Understanding the specific technical " DNA " of each interface is key to a successful Master ASE design.

HPE StoreOnce Catalyst Copy is the most advanced method for data movement. Unlike standard protocols that must " rehydrate " (decompress/deduplicate) data before sending it over the network, Catalyst Copy is " deduplication-aware " . It identifies unique data blocks at the source and only transmits those that do not already exist at the destination. This bandwidth-efficient method allows for high-speed replication over WAN links with minimal overhead.

The NAS (Network Attached Storage) interface is often chosen when lowering license costs is a primary driver. Because it utilizes industry-standard protocols like NFS or SMB/CIFS, it does not require the specialized (and often separately licensed) backup software agents or plug-ins associated with the high-performance Catalyst protocol. While it lacks some of the advanced deduplication-at-source benefits of Catalyst, it remains a cost-effective choice for general-purpose file-based backups.

The VTL (Virtual Tape Library) interface is designed for customers with existing investments in tape-based backup workflows. It emulates physical tape hardware, presenting the backup software with virtual " robot " (medium changer) and drive device types . This allows organizations to transition from physical tape to disk-based deduplication without changing their existing backup scripts or procedures, providing a seamless " drop-in " replacement for aging tape libraries.

HPE Cloud Bank Storage is an extension of HPE StoreOnce Catalyst that enables the movement of deduplicated data to public, private, or hybrid cloud object storage. The Cloud Bank Detach feature is a critical lifecycle management capability designed for long-term retention and disaster recovery scenarios.

According to the HPE StoreOnce User Guide , the " Detach " operation is a specific administrative action that essentially " unplugs " the Catalyst store from the local StoreOnce appliance while leaving the data intact in the cloud bucket (e.g., AWS S3 or Azure Blob). For an administrator to initiate the detach process, the Cloud Bank store must currently be in a Read-Write (RW) state on the StoreOnce system. If a store is currently connected as Read-Only (often the case after a disaster recovery sync), it cannot be detached until it is promoted or was originally connected in a Read-Write capacity.

Once the detach operation is executed using the required Detach Capacity LTU (License to Use), the store enters a " Detached " state. In this state, the data in the cloud becomes immutable and the store is removed from the local StoreOnce system ' s active management. It is important to note that once detached, the store can only be reconnected to a StoreOnce system (either the original or a new one for DR) in a Read-Only state for recovery purposes. Statement D is incorrect because you cannot write to a detached store. Statement B is incorrect because one of the primary value propositions of Cloud Bank is portability —allowing you to connect a detached store to a completely different StoreOnce appliance in a different region for recovery. Finally, while HPE Services are available for complex DR planning, they are not a technical requirement for the software-defined reconnection of a detached store.

HPE Peer Persistence for the Alletra 6000 (and Nimble) provides synchronous replication and automatic transparent failover (ATF) using the Automatic Switchover (ASO) feature. This process is governed by a Quorum Witness that monitors the health of both arrays in a group.

A fundamental design principle of HPE high-availability storage is to prevent " flapping " —a condition where a workload repeatedly bounces between two sites due to an unstable connection. Consequently, the ASO process is designed to be unidirectional and sticky . When a primary site failure occurs and the Quorum Witness authorizes an automatic switchover, the secondary array becomes the " Upstream " (active) array and begins serving I/O. Once the original primary site is restored and the replication link is re-established, the arrays will automatically begin a resynchronization to ensure data consistency. However, even after the data is fully synced, the system will not automatically move the workload back to the original array. The administrator must perform a manual handover to return the volume collection to its preferred primary site.

Regarding the other options:

Option B: If the witness is unreachable, ASO is automatically disabled to prevent a " split-brain " scenario where both arrays might try to become active simultaneously.

Option C: A single controller failure within an Alletra 6000 does not trigger an ASO. Instead, the array performs an internal controller failover (ALUA) which is transparent to the Peer Persistence relationship.

Option D: In a synchronous relationship, if the target becomes unavailable, the source array typically transitions to an " Out of Sync " state but continues to serve host I/O in order to maintain application availability, rather than rejecting it.

HPE CloudPhysics is a SaaS-based analytics platform that collects high-resolution metadata (at 20-second intervals) from a customer ' s virtualized infrastructure to drive data-led procurement and optimization decisions. In the context of performance analysis and sizing, it is critical to understand not just the average utilization, but how different resource demands interact over time.

The Peak Details statistic is unique within the CloudPhysics analytics framework because it provides time-correlated values across different resource dimensions (CPU, RAM, and Disk I/O). While standard " Storage Metrics " or " Hardware Performance " summaries often present aggregated averages or 95th percentile figures that lose their temporal context, Peak Details allows an architect to see exactly when a spike occurred.

This correlation is essential for determining if a storage bottleneck is being driven by a simultaneous compute peak or if a specific " noisy neighbor " VM is impacting the entire datastore during a backup or batch processing window. By aligning disk latency peaks with IOPS and throughput peaks on the same timeline, CloudPhysics enables the architect to validate if the existing third-party array is truly under-provisioned or simply misconfigured. This time-correlated insight ensures that the new HPE storage solution is sized not just for total capacity, but for the actual performance " burstiness " observed in the customer ' s production cycle. Other metrics, while useful for high-level summaries, do not provide the granular, synchronized timeline required to perform a deep-dive root cause analysis or precision sizing for mission-critical workloads.

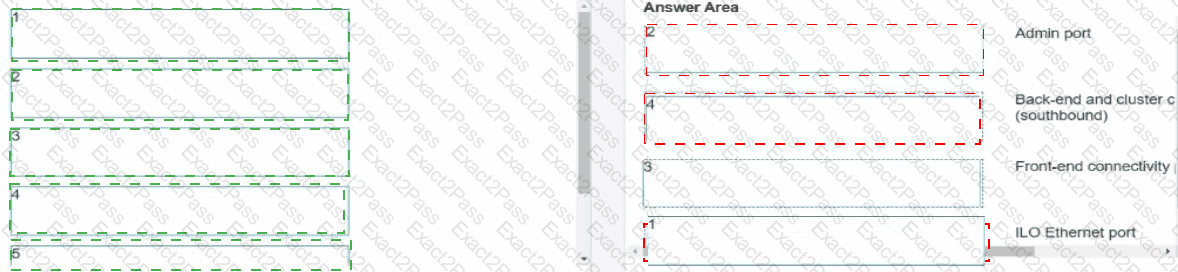

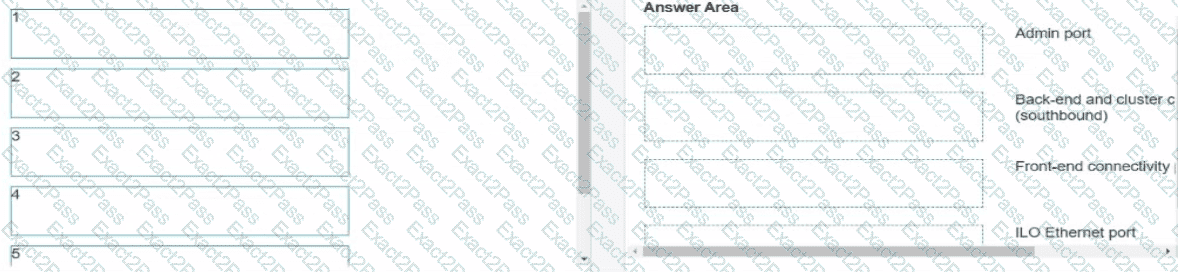

Admin port: 2

Back-end and cluster connectivity (southbound): 4

Front-end connectivity (northbound): 3

iLO Ethernet port: 1

The HPE Alletra MP B10000 architecture is defined by its disaggregated nature, separating the controller nodes from the physical storage capacity. Proper cabling of these nodes is fundamental to ensuring the performance and manageability of the cluster.

The ports on the rear of a controller node are categorized by their function within the disaggregated ecosystem:

iLO Ethernet port (1): This is the dedicated management port for the Integrated Lights-Out (iLO) processor. It provides out-of-band management, allowing administrators to access the hardware ' s health, power status, and remote console regardless of the operating system state.

Admin port (2): This RJ45 port is used for the management plane of the storage OS. It allows the array to communicate with the HPE GreenLake Data Services Cloud Console (DSCC) or local management software for configuration and provisioning tasks.

Front-end connectivity / Northbound (3): These ports (typically located in PCIe slots 1 and 2) provide the " Northbound " path to the host fabric. They are populated with high-speed Fibre Channel or iSCSI adapters to facilitate data access for servers and applications.

Back-end and cluster connectivity / Southbound (4): In a disaggregated shared-everything (DASE) architecture, " Southbound " connectivity is critical. These ports (often 100GbE RoCEv2) connect the controllers to the storage fabric and the disaggregated NVMe JBOFs. This allows every controller to see every drive in the cluster with ultra-low latency.

Understanding the distinction between Northbound (Host) and Southbound (Storage/Cluster) cabling is vital for a Master ASE. Incorrectly cabling the Southbound ports can lead to a " cluster split " or performance bottlenecks, as the disaggregated architecture relies on high-bandwidth, redundant paths to the underlying flash media to maintain its mission-critical performance profile. Number 5 in the diagram often represents the Serial console port, which is utilized primarily for initial setup or low-level troubleshooting by HPE Support and is typically not included in primary functional matching.

Fibre Channel over IP (FCIP) , as defined by IETF RFC 3821, is a tunneling protocol used to interconnect Fibre Channel (FC) storage area networks (SANs) over long distances using standard IP infrastructure. One of the primary architectural reasons for choosing FCIP over native Fibre Channel extension is its ability to overcome distance constraints.

Native Fibre Channel is governed by a flow-control mechanism called Buffer-to-Buffer (BB) Credits . In a native FC link, a frame cannot be sent until the sender has a " credit " from the receiver. As the distance between sites increases, the time it takes for an acknowledgment (and thus the return of a credit) to travel back significantly increases. This creates a " protocol drop-off " where performance collapses once the distance exceeds the available buffer memory. In contrast, FCIP encapsulates FC frames into TCP/IP segments . TCP/IP uses a different flow-control mechanism called windowing .

By moving the transport to TCP/IP, the storage traffic is no longer strictly bound by the physical light-propagation constraints of the FC buffer-credit mechanism. While latency still increases with distance (governed by the speed of light in fiber), FCIP provides no fixed protocol distance limitation , making it possible to replicate data across continents or globally (asynchronous replication) as long as the IP network provides a path. Option D is incorrect because the " tunnel " handles the delivery, effectively shielding the FC fabric from the long-haul buffer requirement. Option A is incorrect because the encapsulation process in FCIP always adds more latency than " transparent " optical extensions like DWDM. Therefore, the architectural value of FCIP is its ability to provide " unlimited " distance connectivity using existing WAN infrastructure.

The HPE Peer Motion Utility (PMU) and its integrated counterpart in HPE GreenLake and SSMC are designed for the non-disruptive migration of data between storage systems, such as from an HPE 3PAR to an HPE Alletra 9000 or Primera. A core requirement for the " Online " (non-disruptive) version of this migration is that the storage fabric must support and have N-Port ID Virtualization (NPIV) enabled.

Architecturally, Peer Motion relies on the destination array ' s ability to " masquerade " as the source array during the transition. When a volume is migrated, the destination array creates virtual ports using NPIV to inherit the identity (WWNs) of the source array ' s ports. This allows the host ' s multipathing software to see the new storage paths as if they were additional paths to the original volume, enabling a seamless transition without a server reboot or I/O interruption. According to the HPE Peer Motion Utility User Guide , if the SAN fabric (the switches) does not support NPIV or if NPIV is disabled on the specific ports, the migration utility will default to a Minimally Disruptive Migration (MDM) or an offline migration, both of which involve host-side downtime.

Furthermore, the fabric must be zoned such that the source and destination arrays can " see " each other to establish the Peer Motion relationship and handle the data orchestration. Option B is incorrect because while the management station (running the PMU) requires IP connectivity to send commands, the actual data movement and host-transparent pathing are strictly dependent on the FC fabric ' s NPIV capability. Option C is incorrect as fabric connections (via switches) are required; direct point-to-point connections between array FC ports are typically not supported for Peer Motion federations.
