In Autodesk Revit Electrical Design, panel schedules display data that originates from the Electrical Circuits category, not directly from the Electrical Equipment or Electrical Fixtures families. Each circuit in a panel schedule represents an instance of an Electrical Circuit object within Revit’s system-based MEP structure. Therefore, to add an additional field like Breaker Type, the parameter must be created and assigned specifically to the Electrical Circuits category.

According to the Revit MEP User’s Guide – Chapter 50 “Electrical Systems and Panel Schedules”:

“Panel schedules display parameters that are associated with electrical circuits, including load names, rating, poles, and breaker information. To include additional circuit information in a panel schedule, create a Project Parameter assigned to the Electrical Circuits category.”

This means the designer should:

1️⃣ Open Manage → Project Parameters → Add

2️⃣ Create a Project Parameter named Breaker Type

3️⃣ Assign it to the Electrical Circuits category

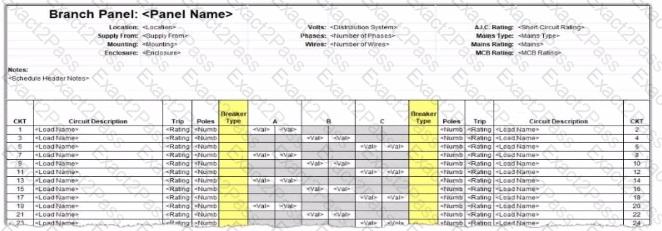

4️⃣ Set it to appear in schedules and tags, ensuring it becomes available for use in the panel schedule template

As noted in the Smithsonian Facilities Revit Template User’s Guide:

“Custom circuit data fields such as ‘Breaker Type’ or ‘Wire Tag’ are defined as project parameters applied to the Electrical Circuits category so they can be displayed in panel schedule templates.”

Incorrect options:

A. Shared Parameter in Electrical Equipment — Electrical Equipment holds overall panel data (e.g., Mains Rating, Voltage) but not per-circuit data.

B. Shared Parameter in Electrical Fixture families — Fixtures are individual load devices, not part of the circuit’s breaker assignment.

D. Project Parameter assigned to Electrical Equipment — would apply to the panelboard as a whole, not to individual breakers in circuits.

Thus, the correct answer is C. Project Parameter assigned to Electrical Circuits, ensuring each breaker in the panel schedule can display its type individually and dynamically.

In Autodesk Revit, the Collaborate tab provides the tools necessary for managing multi-user worksharing environments. The Synchronize with Central command allows users to save their local changes back to the central model. However, this command becomes disabled under certain conditions — most notably when the user is currently working directly within the central file rather than a local copy.

The Autodesk Revit User’s Guide – Worksharing and Collaboration section clearly explains this behavior:

“When you open the central file directly, the Synchronize with Central option is unavailable because all edits are already in the central file. Worksharing operations such as borrowing, relinquishing, or synchronization only apply to local copies created from the central model.”

This rule ensures that the integrity of the central model is preserved and that no user directly edits or synchronizes within it, preventing potential file corruption. In normal collaborative workflows, users open local copies of the central model. The local files maintain an editable subset of elements while allowing synchronization and relinquishing operations.

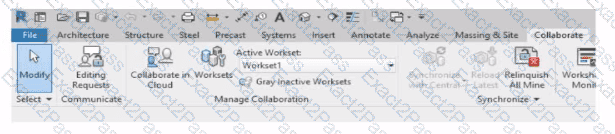

Thus, the disabled Synchronize with Central button (as shown in the exhibit) indicates that the designer is currently in the central model, not a local copy. Since synchronization is unnecessary in this state — all changes are automatically applied to the central file — the command is grayed out.

In Autodesk Revit Electrical Design, a lighting device (switch) must be associated with lighting fixtures through a switch system, not through electrical circuits. Switch systems are independent of lighting circuits and wiring, as they are intended to represent the control relationship between a light switch and the lighting fixtures it operates.

According to the Autodesk Revit MEP User’s Guide (Chapter 17 – Electrical Systems, pages 475–478), the official method is described under “Creating a Switch System.”

“You can assign lighting fixtures to specific switches in a project.

The switch system is independent of lighting circuits and wiring.”

(Revit MEP User’s Guide, p. 475)

“To create a switch system:

Select one or more lighting fixtures in a view, and clickModify | Lighting Fixtures tab ➤ Create Systems panel ➤ Switch.

Click Switch Systems tab ➤ System Tools panel ➤ Edit Switch System.

Click Add to System, and select one or more lighting fixtures.

Click Select Switch, and select a switch in the drawing area.

Click Finish Editing System.”**(Revit MEP User’s Guide, p. 476)

How It Works:

The switch system links a lighting device (switch) with lighting fixtures, enabling Revit to manage how light fixtures respond to specific switches.

Unlike electrical circuits, which define power flow and load connections to panels, the switch system defines control logic (which lights are turned on/off by which switch).

The designer begins by selecting the switch and then adding lights to its system, ensuring all lights associated with that switch are grouped correctly.

Supporting Extract from Revit Documentation:

“You can also create a lighting switch system by right-clicking the connector for a lighting fixture and clicking Create Switch System.”

(Revit MEP User’s Guide, p. 475)

“Add lighting fixtures to the switch system…

Click Select Switch and select a switch in the drawing area.”

(Revit MEP User’s Guide, p. 476)

“The switch system is independent of lighting circuits and wiring.”

(Revit MEP User’s Guide, p. 475)

Conclusion:

To associate a lighting device (switch) with light fixtures in a Revit electrical model, the designer must create a switch system. This is done by selecting the switch, then adding the desired lighting fixtures to that system using the Add to System and Select Switch tools under the Switch Systems tab.
