In Autodesk Revit Electrical Design , lighting control systems such as single-pole, three-way, and four-way switches are managed using Switch Systems . These systems logically connect lighting devices (switches) to the lighting fixtures they control. For multiple switches (like three-way configurations) to be part of the same control circuit, they must share the same Switch ID value.

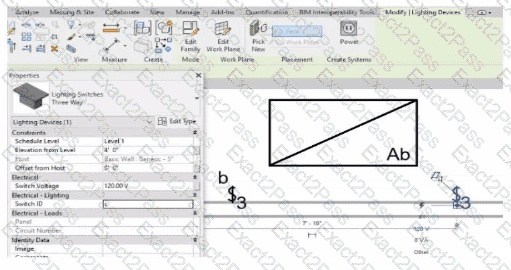

In the exhibit, the electrical designer is attempting to add a three-way switch to the existing switch system labeled “b” , but Revit does not allow it. The reason is that the Switch ID parameter of the new switch does not match the Switch ID of the system it is intended to join.

The Switch ID acts as the unique identifier that links all switches controlling the same group of fixtures. If the IDs differ (for example, “b3” versus “b”), Revit interprets them as belonging to separate systems and prevents them from being grouped together.

The Autodesk Revit MEP User’s Guide – Electrical Systems: Lighting and Switch Systems explains this clearly:

“Switch systems are organized by Switch ID. All switches controlling the same lighting circuit must have identical Switch ID values. Revit will not allow a switch to be added to an existing system if its Switch ID does not match that system’s identifier.”

To fix this, the designer must:

1️ ⃣ Select the three-way switch.

2️ ⃣ In the Properties palette , locate the Switch ID parameter.

3️ ⃣ Change its value to match the target switch system’s ID (in this case, “b”).

Once both switches share the same Switch ID , Revit will successfully include them in the same Switch System .

In Autodesk Revit , phasing is used to represent different stages of a project — for example, existing conditions, demolition, and new construction — all within a single model. Each view is assigned to a specific phase, and elements in that view are displayed according to their phase status (created, existing, demolished, or temporary).

According to the Autodesk Revit User’s Guide (Phasing and Phase Filters section):

“Each element in a project has 2 key phase-related parameters:

Phase Created – the phase in which the element was created.

Phase Demolished – the phase in which the element is demolished. These parameters control how elements display in different views depending on the view’s assigned phase and phase filter.” — Revit User’s Guide, Chapter: Phasing and Phase Filters

Revit automatically applies Graphic Overrides to display phase statuses. These are defined under Manage tab → Phases → Graphic Overrides . The categories include:

Existing

Demolished

New

Temporary

“Elements that are both created and demolished in the same phase are considered Temporary and display using the Temporary graphic override settings.”

— Revit MEP User’s Guide, Managing Phases and Graphic Overrides

Applying This to the Exhibit:

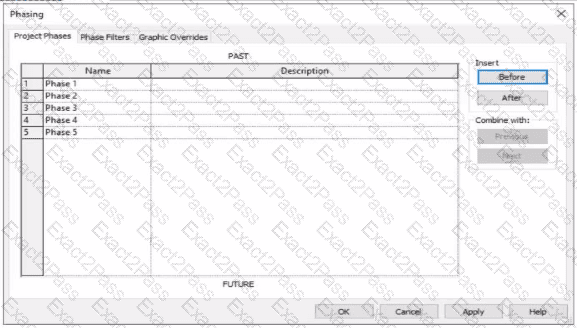

In the exhibit, the project includes multiple phases (Phase 1 through Phase 5). The designer is currently working in Phase 3 .

Elements created and demolished in the same phase (Phase 3) are displayed as Temporary .

Elements created in earlier phases (e.g., Phase 1) and demolished in the current phase (Phase 3) are displayed as Demolished .

Elements created in later phases (e.g., Phase 4) do not yet exist and are not shown.

Therefore:

A. Elements that will be demolished in Phase 4 → not applicable; those elements are still active in Phase 3.

B. Elements created in Phase 1 and demolished in Phase 3 → will appear as Demolished , not Temporary .

C. Elements created and demolished in Phase 3 → correctly displayed using Temporary graphic overrides.

D. Elements created and demolished in Phase 2 → would not appear in Phase 3 (they were already removed).

Verified References from Revit Electrical Design Documentation:

Autodesk Revit MEP User’s Guide (2011) , “Working with Phases”:

“Elements created and demolished in the same phase are shown using the Temporary phase graphic override settings.”

Autodesk Revit Architecture and MEP Official Study Guide , “Phasing and Phase Filters”:

“Temporary elements exist only during the phase in which they are created and demolished; they are displayed using the temporary override graphics.”

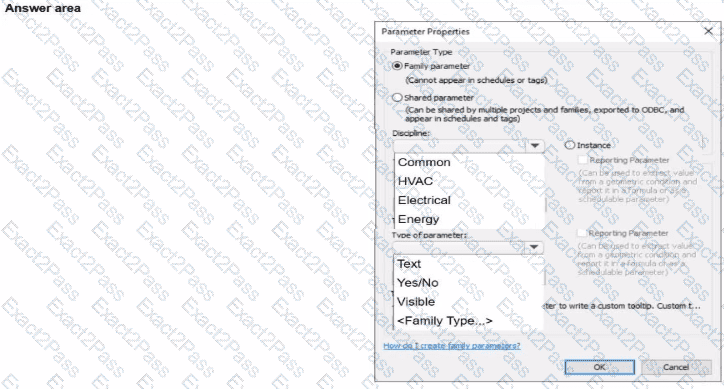

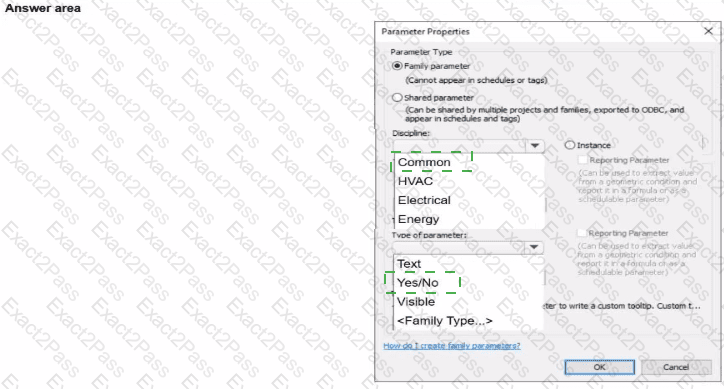

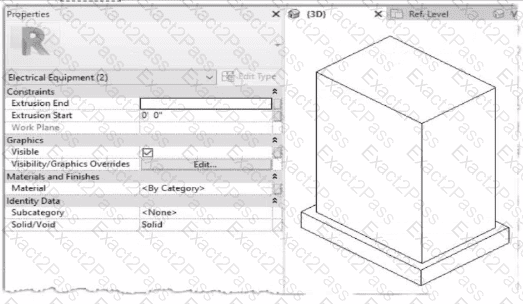

To allow conduit to be modeled from any point on a specific side of the electrical equipment, the most accurate method is to use the " Surface Connector " . This method enables the designer to place a surface-based conduit connector on a specific face of the equipment family. Here ' s how the process is explained:

" To place a conduit connector on the surface of a family component so that the conduit can start from anywhere on that surface, use the Surface Connector option. This connector attaches to the selected face of the equipment, allowing conduit to be drawn directly from any point on the selected face in the project environment. "

" Click Conduit Connector , then choose Surface Connector , and select the face where the conduit should connect. This gives flexibility in modeling, especially for equipment requiring multiple connection points across a single face or allowing freedom of routing. "

This process is especially beneficial in custom electrical equipment families where conduits must originate from arbitrary points along a flat side—ensuring both parametric flexibility and coordination ease within the project environment.

In contrast:

Option A refers to editing connector dimensions, which does not affect the connector ' s ability to accept connections from any surface point.

Option B uses Individual Connector which limits the connection to a specific point , not the whole face.

Option D refers to changing connector type in the Properties palette, which doesn ' t impact connector location or coverage on a face.

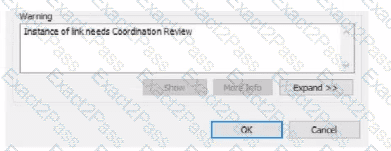

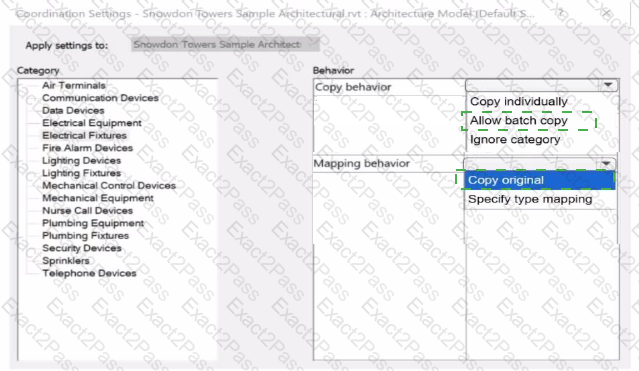

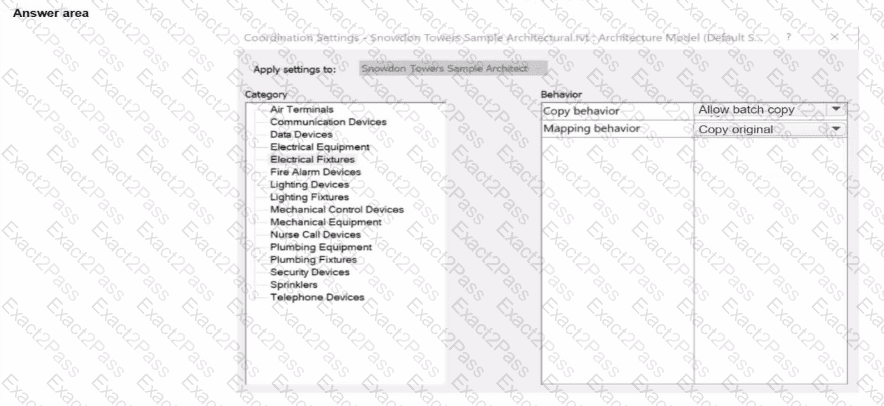

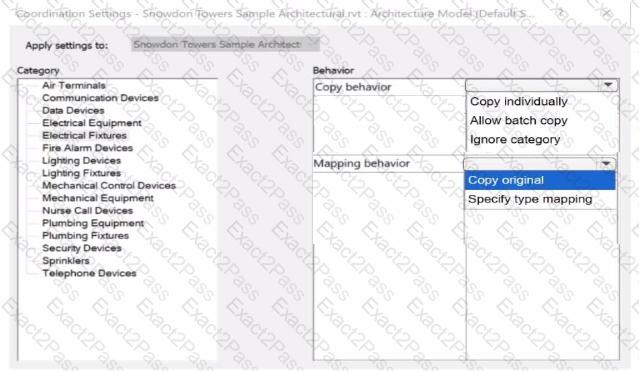

The warning message shown — “Instance of link needs Coordination Review” — appears when Revit detects a modification in a monitored element within a linked model , typically during a coordination workflow between architectural and MEP (electrical, mechanical, plumbing) disciplines.

According to the Revit MEP User’s Guide (Chapter 46 “Copy/Monitor and Coordination Review”):

“When a monitored element changes in the linked model, Revit displays a warning message indicating that the instance of the link needs Coordination Review. You can use the Coordination Review tool to accept, reject, or postpone the change.”

This mechanism ensures synchronization between linked models. For example, if the architectural ceiling or wall that hosts electrical elements (such as lighting fixtures or devices) is modified, moved, or deleted, Revit triggers this alert in the workshared MEP model .

The Smithsonian Facilities Template Guide further emphasizes:

“Coordination Review identifies monitored elements whose hosts or geometry have changed in a linked model. The designer must review these to maintain design consistency.”

Hence, the warning does not indicate a clash or interference (Option A), nor a coordination message created manually in the architectural model (Option B), but specifically a change in a monitored element in the linked architectural model (Option D).

When working in Autodesk Revit for MEP Electrical Design , lighting fixtures can be either hosted (such as ceiling-hosted or wall-hosted) or non-hosted . The movement of lighting fixtures in relation to linked model elements—like ceiling grids—is determined by the hosting condition and alignment constraints applied to those elements.

According to the Revit MEP User’s Guide (Chapter 24 “Ceilings” and Chapter 50 “Rendering”), a ceiling is a level-based element . You can create it on a specified level and host ceiling-based families such as lighting fixtures. When a ceiling is modified or repositioned, the hosted lighting fixtures will move with the ceiling itself , maintaining their relationship to the host surface. However, when ceiling grid patterns are changed or moved in a linked Revit model , the movement of those grid patterns does not automatically propagate to hosted elements in the electrical model unless those elements are directly linked or constrained to a movable reference plane.

As described:

“Ceilings are level-based elements… When you create a ceiling, you can host components such as lighting fixtures on its face. Hosted elements remain associated with their host even if the ceiling is modified.”

And further in the glossary section:

“Rehost: To move a component from one host to another. For example, you can use the Pick New Host tool to move a window from one wall to another wall.”

This confirms that a hosted light fixture maintains its attachment to the host element (the ceiling) but not to the grid pattern itself. Grid movement within a linked ceiling model does not alter the position of lights unless they are manually re-hosted or alignment-locked directly to a specific geometry within the host model.

Therefore, the correct interpretation is that when ceiling grid patterns move within a linked Revit model , the lights placed in the electrical model do not follow the grid pattern movement automatically. They remain stationary relative to the ceiling surface, provided they are hosted correctly.

This behavior reflects Revit’s parametric relationships — “hosted elements maintain dependency only on their host, not on graphical references like grids unless locked via constraints.”

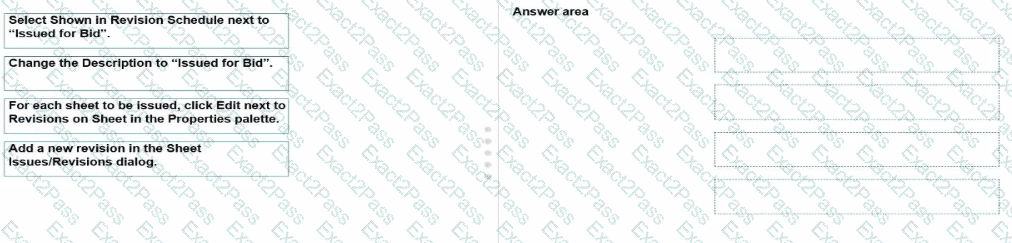

In Autodesk Revit Electrical Design , revisions are managed using the Sheet Issues/Revisions dialog to track changes and document issuance phases, such as “Issued for Bid” or “Issued for Construction.” The revision schedule on the title block automatically reflects this data when configured correctly.

According to the Revit MEP User’s Guide (Chapter 48 “Construction Documentation – Managing Sheets and Revisions”):

“Revisions define a record of changes issued with sheets. To display a revision in the title block, it must first be created in the Sheet Issues/Revisions dialog , assigned a description, and set to be shown in the revision schedule.”

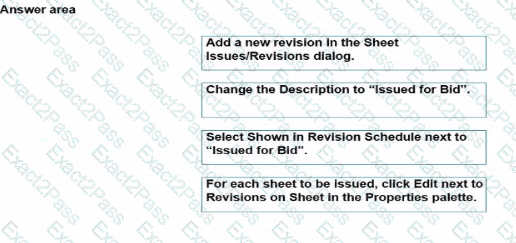

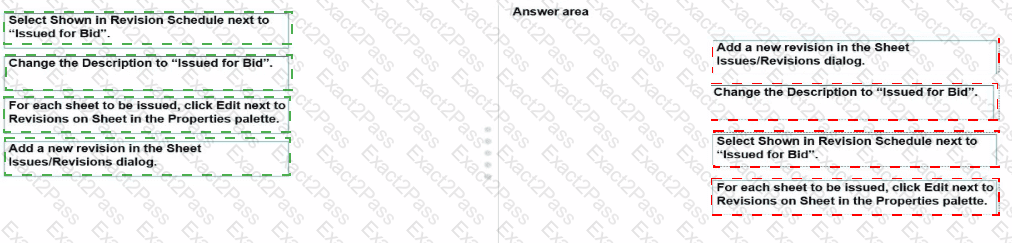

Here’s how the process works step-by-step:

1️ ⃣ Add a new revision in the Sheet Issues/Revisions dialog.

Navigate to View tab → Sheet Composition panel → Revisions .

Add a new revision line entry (this creates a new revision record).

2️ ⃣ Change the Description to “Issued for Bid”.

In the same dialog, edit the Description field to reflect the issuance purpose.

3️ ⃣ Select Shown in Revision Schedule next to “Issued for Bid”.

Check “Show” in the Revision Schedule column so it will appear in the title block’s revision schedule table.

4️ ⃣ For each sheet to be issued, click Edit next to Revisions on Sheet in the Properties palette.

In the Properties palette , under Identity Data , click Revisions on Sheet → Edit and assign the “Issued for Bid” revision only to the sheets being released.

This ensures only the selected sheets display the “Issued for Bid” entry, maintaining proper control over which drawings are issued while others remain unaffected.

As described in the Smithsonian Facilities Revit Template User’s Guide :

“Revision schedules are dynamically linked to sheet issue data. Designers can show or hide revisions on a per-sheet basis by editing ‘Revisions on Sheet’ from the Properties palette.”

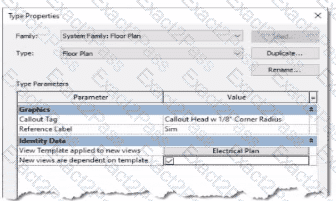

The exhibit shown displays the Type Properties dialog box for a System Family: Floor Plan view type. Within the “Identity Data” group, there are two critical parameters that govern the behavior of new views created from this view type:

“View Template applied to new views”

“New views are dependent on template”

According to Autodesk Revit’s documentation in the Revit MEP User’s Guide (Chapter 48 “Views and View Templates” and Chapter 49 “Preparing Construction Documents”):

“When a view template is assigned to a view type through the Type Properties dialog, any new view created from that view type automatically receives the defined view template. This ensures consistent visibility, graphics, and discipline settings for all new views.”

In this image, the parameter “View Template applied to new views” is set to Electrical Plan , and “New views are dependent on template” is checked. This means that any new floor plan created using this type will automatically have the Electrical Plan template applied , and the view will be dependent on that template , meaning it inherits all its visibility and annotation control settings.

This ensures that all electrical floor plan views generated are standardized and visually consistent, a fundamental practice in Revit Electrical Design workflows , as described in the Smithsonian Facilities Revit Template User’s Guide :

“Assigning a default view template to a view type (e.g., Electrical Plan) ensures every new view created follows organizational and graphical standards without manual setup.”

Option A matches this behavior exactly.

Option B is incorrect** because Revit does not create a new template automatically.

Option C is incorrect** because duplication of an existing view does not reassign templates by type.

Option D is incorrect** because dependent view creation requires a specific “Duplicate as Dependent” command, not this setting.
