NFPA 17, Standard for Dry Chemical Extinguishing Systems, provides the requirements for the design, installation, maintenance, and testing of dry chemical fire-extinguishing systems, including those used in kitchen hood applications. This standard ensures that kitchen hood fire-extinguishing systems operate effectively and in accordance with their intended design and manufacturer instructions.

According to NFPA 101, Life Safety Code, the occupant load for a retail space is calculated by dividing the total floor area by the occupant load factor specified for the occupancy type. For mercantile occupancies (such as a retail bicycle shop), the occupant load factor is typically 30 square feet (2.8 square meters) per person.

Occupant Load = Total Area / Occupant Load Factor = 3,240 ft² / 30 ft² per person = 108 people

Therefore, the occupant load for a 3,240 ft² (301 m²) single-story, retail bicycle shop is 108 people.

In sprinkler design, the "remote area" refers to the section of a building that is most challenging to protect with sprinklers due to its location and characteristics. The design criteria usually specify the minimum density of water (gallons per minute per square foot or liters per minute per square meter) over a specified area that the system must deliver. Based on the standard requirements for typical commercial occupancies, a delivery rate of 15 gpm (57 L/min) over 1,500 ft² (139 m²) is common for light to ordinary hazard classifications.

Top of Form

Bottom of Form

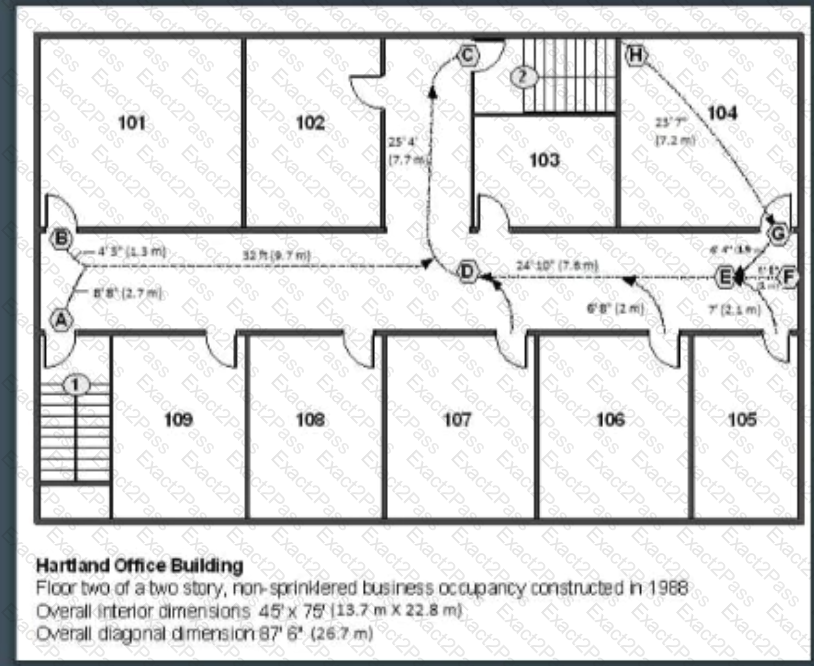

To determine the minimum diagonal distance between stairways 1 and 2, we need to calculate the diagonal length of the path between points A and H on the provided floor plan. According to NFPA 1031, Plan Examiners must verify egress routes to ensure compliance with NFPA standards, particularly regarding the minimum distance between exits to ensure that a fire in one location does not cut off access to an alternative exit.

Using the Pythagorean theorem for diagonal distance in a rectangular area, the calculation between stairways A (Stairway 1) and H (Stairway 2) is as follows:

Distance=(Length2+Width2)\text{Distance} = \sqrt{(Length^2 + Width^2)}Distance=(Length2+Width2)​

Based on the floor plan's measurements, the approximate diagonal distance between stairways is 37 ft 3 in (11.3 m). Therefore, option C is the correct answer.

General traffic safety is not a typical reason for requiring construction permits and reviewing plans by local government. The primary reasons for requiring permits and plan reviews include ensuring community safety (A), emergency responder safety (C), and property conservation (D). These factors help to ensure that new construction complies with applicable codes and standards, reducing risks to life and property. General traffic safety is usually handled through separate traffic and transportation planning processes.

According to NFPA 101, Life Safety Code, the maximum common path of travel in a sprinklered educational occupancy is 100 feet (30 meters). The common path of travel refers to the distance occupants must travel before having two separate means of egress. The code provides this limit to ensure that occupants have a reasonably short distance to safety, enhancing the likelihood of safe evacuation in an emergency.

Based on the typical placement conventions for manual pull stations and emergency egress routes, the most effective location for a manual pull station is often near exits to ensure they are easily accessible during an emergency. In this case, the description provided suggests that the manual pull station is located on the north wall adjacent to the cafeteria exit doorway, aligning with these safety principles.

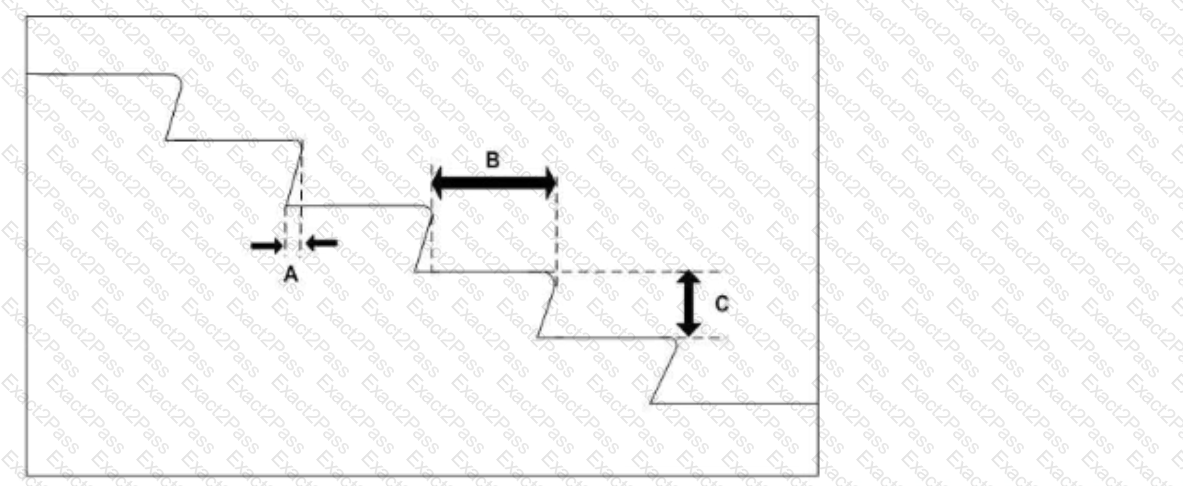

The tread depth is the horizontal distance from the front edge of a stair tread to the back edge of the same tread, which corresponds to dimension "B" in the figure. According to NFPA 101, Life Safety Code, the tread depth is crucial in ensuring safe stairway design for proper footing and egress.

According to NFPA 101, Life Safety Code, in a sprinklered educational occupancy, no more than 20% of the wall area may be covered with artwork or teaching materials to minimize fire hazards and ensure safe evacuation routes (NFPA 101, Section 14.7.4). This percentage is intended to balance educational needs with fire safety requirements.
