Formal methods involve the use of rigorous mathematical proofs to analyze and verify the correctness of algorithms within a software component. This approach provides a high level of assurance in the reliability and correctness of the software by mathematically proving properties of the algorithm or system. Unlike boundary value analysis, functional decomposition, or dynamic analysis, formal methods use mathematical models to verify system behaviors and correctness without executing the system.

The waterfall lifecycle model is most appropriate to use when the requirements are well known and unlikely to change. This model follows a linear and sequential approach where each phase must be completed before the next one begins. Because it assumes stable and well-defined requirements, it allows for thorough planning and design upfront, which can lead to a more structured and predictable development process. Waterfall is less flexible in accommodating changes compared to iterative or agile models, making it suitable for projects with clear, stable requirements. This approach is detailed in traditional software engineering textbooks and standards such as the IEEE Standard for Developing Software Life Cycle Processes (IEEE 1074).

Earned Value Management (EVM) includes several key metrics, one of which is the budgeted cost of work performed (BCWP). Here’s a detailed explanation:

Earned Value (EV) : Represents the value of work actually performed in terms of the budget assigned for that work.

Planned Value (PV) : The budgeted cost for the work planned/scheduled.

Actual Cost (AC) : The actual cost incurred for the work performed.

Performance Measurement : BCWP is crucial for comparing planned work with actual progress and costs, helping in performance measurement and project forecasting.

References :

"Project Management: A Systems Approach to Planning, Scheduling, and Controlling" by Harold Kerzner.

PMI’s "A Guide to the Project Management Body of Knowledge (PMBOK Guide)".

Test-driven development (TDD) is a key practice in extreme programming (XP) that ensures the quality of code by defining the test pass criteria before any code is written. In TDD, developers write automated test cases before writing the actual code. These tests specify what the code should do and serve as a guide for development. The process follows a cycle of writing a test, running it to see it fail (since the code hasn't been written yet), writing the minimum code necessary to pass the test, and then refactoring the code while ensuring the test still passes. This approach helps ensure that code meets the required specifications from the outset and encourages writing only the necessary code to pass tests, leading to higher quality and more maintainable code. References for TDD practices can be found in books like "Test-Driven Development: By Example" by Kent Beck.

Product audits are often based on customer requirements because they focus on verifying that the final product meets the specified requirements and expectations of the customer. The objective is to ensure that the product is fit for its intended use and meets the agreed-upon standards and specifications. This type of audit typically involves examining the product itself, its performance, and its documentation to ensure compliance with customer requirements.

For secure data handling due to export control regulations, running on the client's virtual machines without connecting through an enterprise VPN, the combination of a private cloud and infrastructure as a service (IaaS) is suitable. This setup allows the client to have dedicated infrastructure and control over their data environment, ensuring compliance with security and regulatory requirements.

The functional baseline is typically established after the completion and approval of system requirements. This baseline includes the functional requirements and specifications that describe what the system is supposed to do. It serves as a reference point for further development and testing, ensuring that all subsequent work aligns with the agreed-upon functional requirements.

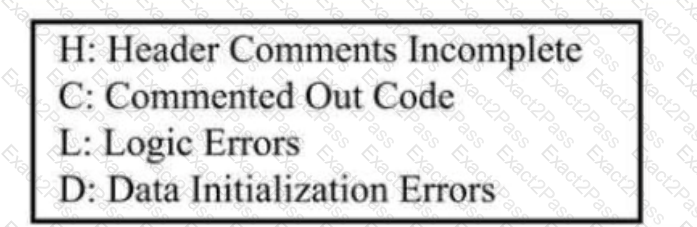

 Error Analysis: Module U has the highest total number of errors per KLOC, with significant issues in header comments (H), commented out code (C), and data initialization errors (D).

 Quality Concern: The high error rate indicates potential underlying quality issues in Module U that need to be addressed to improve overall software quality.

 Prioritization: According to defect prioritization guidelines, modules with the highest error rates should be investigated and corrected first to mitigate risks and improve reliability.

Cyclomatic complexity is a metric used to determine the number of linearly independent paths through a program's source code.

Definition : Cyclomatic complexity provides a quantitative measure of the complexity of a program, which is directly related to the number of test cases needed to achieve full branch coverage.

Calculation : It is calculated using the control flow graph of the program, where nodes represent blocks of code and edges represent control flow paths.

Test Cases : The metric indicates the minimum number of test cases required to cover all possible paths, ensuring that each statement is executed at least once.

Configuration item identification is the first and foundational step in effective software configuration management (SCM).

Configuration Item Identification :

Definition : The process of identifying and defining the configuration items (CIs) within a system, such as software, documentation, and hardware components.

Foundation : Establishes a baseline for all subsequent SCM activities.

Importance in SCM :

Control and Management : Enables precise control and tracking of each configuration item throughout the software lifecycle.

Baseline Establishment : Provides a reference point for configuration control, status accounting, and audits.

References : SCM best practices and standards (e.g., IEEE, ISO) highlight configuration item identification as the critical first step to ensure effective control and management of software and related artifacts.
