For IP destinations not found in the IS-IS Level 1 database, the Level 1 router must forward packets to the nearest Level 1-Level 2 router with the attach bit set. The attach bit is a flag in the IS-IS Level 1 LSP that indicates that the router is also a Level 2 router and can reach destinations outside the Level 1 area. The Level 1 router will install a default route pointing to the nearest Level 1-Level 2 router with the attach bit set. This way, the Level 1 router can forward packets to other areas without having to maintain a full Level 2 database. References: Ericsson IP Networking - Routing Protocols, Configure Attach Bit Set - Cisco

Penultimate hop popping (PHP) is a function performed by certain routers in an MPLS enabled network. It refers to the process whereby the outermost label of an MPLS tagged packet is removed by a label switch router (LSR) before the packet is passed to an adjacent label edge router (LER). The purpose of PHP is to reduce the load on the LER, as it saves one cycle of label lookup. The LER can forward the packet based on its IP header or another label in the stack, without having to process the outer label. PHPfunctionality is achieved by the LER advertising a label with a value of 3 to its neighbors. This label is defined as "implicit-null" and informs the neighboring LSRs to perform PHP12.

References: Penultimate hop popping - Wikipedia, MPLS Penultimate hop popping - NetworkLessons.com

The Area ID to which the router belongs is 49.00F0.0100. The Area ID is a variable-length field in the NSAP address that identifies the area to which the router belongs. The Area ID can be between 1 and 13 bytes long, but it must start and end with an octet (8 bits). The NSAP address is composed of three parts: the authority and format identifier (AFI), the area ID, and the system ID. The AFI is a one-octet field that indicates the format and authority of the rest of the address. The system ID is a fixed-length field of six octets that uniquely identifies the router within an area. The NSAP address also has a network selector (NSEL) field, which is a one-octet field that identifies the network layer service to which a packet should be sent. For IS-IS routers, the NSEL must always be 00.

In this question, the NSAP address is 49.00F0.0100.5012.3010.00. This means that:

• The AFI is 49, which indicates a private address.
• The Area ID is 00F0.0100, which is four octets long and starts and ends with an octet.
• The system ID is 5012.3010, which is six octets long and identifies the router within the area.
• The NSEL is 00, which indicates IS-IS.

Therefore, the answer is B.

References: Ericsson IP Networking - Routing Protocols, IS-IS NSAP address - Cisco Community, Understanding IS-IS NSAP Addresses - Todd Lammle, LLC, IS-IS - Nokia, Network service access point address - Wikipedia

A BGP session is established between two routers by sending a unicast OPEN message. BGP uses TCP as its transport protocol, which means that before exchanging any BGP information, a TCP connection must be established between the routers. The TCP connection uses port 179 as both source and destination port. After establishing a TCP connection, each router sends an OPEN message to its neighbor, containing parameters such as BGP version number, AS number, hold time, BGP identifier, and optional capabilities. The OPEN message also serves as a keepalive message for BGP. If both routers agree on these parameters, they proceed to exchange UPDATE messages containing routing information and establish a BGP session.

A BGP router does not send a NOTIFICATION message to establish a session, but rather to terminate a session due to an error or a manual shutdown. A BGP router does not send a CONNECT message, as this is a TCP state, not a BGP message. A BGP router does not send a multicast HELLO packet, as this is an OSPF message, not a BGP message. References: BGP Neighbor States > BGP Fundamentals | Cisco Press, Demystifying BGP Session Establishments - Packet Pushers, The TCP/IP Guide - BGP Connection Establishment: Open Messages

The subnet address for 10.57.126.156/29 is 10.57.126.152. To find the subnet address, we need to perform a bitwise AND operation between the IP address and the subnet mask. The subnet mask for /29 is 255.255.255.248, which in binary is 11111111.11111111.11111111.11111000. The IP address in binary is 00001010.00111001.01111110.10011100. The result of the AND operation is 00001010.00111001.01111110.10011000, which in decimal is10.57.126.152. References: Ericsson IP Networking - IP Addressing, Software Installation and Upgrade Overview (Junos OS)

 A reason for using VLANs in an IP network is to isolate hosts within the same IP subnet. VLANs (Virtual LANs) are logical grouping of devices in the same broadcast domain. VLANs are usually configured on switches by placing some interfaces into one broadcast domain and some interfaces into another. Each VLAN acts as a subgroup of the switch ports in an Ethernet LAN. VLANs allow network administrators to group hosts together even if the hosts are not directly connected to the same network switch. By using VLANs, hosts within the same IP subnet can be separated into different broadcast domains, which enhances security, reduces network congestion, and simplifies network management78.

References: 8 Different Types of VLANs in TCP/IP Networks, What is a VLAN? - Study-CCNA

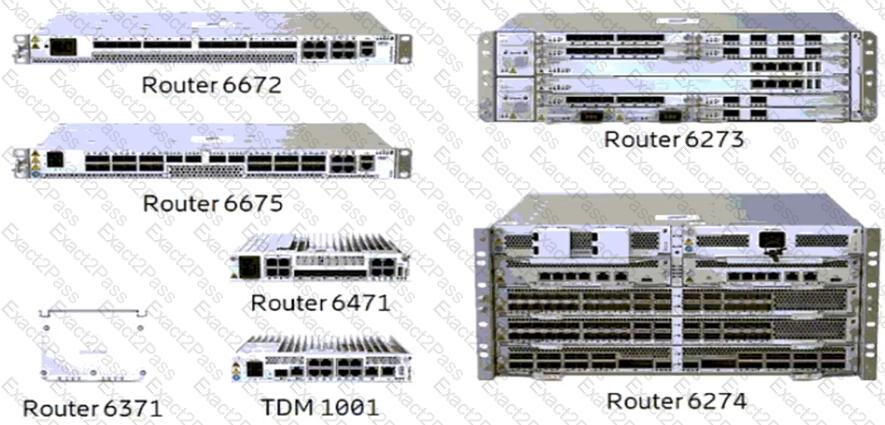

Referring to the exhibit, the two Ericsson routers that support the 100GE interface are Router 6675 and Router 6672. The 100GE interface is a high-speed Ethernet interface that operates at 100 gigabits per second. The Ericsson Router 6000 series is a family ofrouters that provide IP transport for mobile and fixed networks. The Router 6675 is a 5G combined access and E-RAN switch with 100GE interfaces and 320Gb forwarding capacity. The Router 6672 is a high-capacity metro aggregation router with 100GE interfaces and 1.6Tb forwarding capacity12.

References: Router 6000 Series - Ericsson, New Ericsson Router 6000 series couples radio and IP transport for 5G future - Global Brands Magazine

 The operating system used in Ericsson Router 6000 products is ERS (Ericsson Router Software). ERS is based on IPOS (IP Operating System), which is a common operating system for Ericsson’s IP portfolio. ERS provides advanced features and functionality for IP transport, such as MPLS, Segment Routing, QoS, IPSec, synchronization, SDN, and more. ERS also supports seamless integration with Ericsson Radio System and Ericsson Network Manager.

References: Router 6000 Series - Ericsson, Router 6675 Datasheet - Winncom

OSPF runs directly on IP, while IS-IS runs directly on Ethernet. This means that OSPF uses IP addresses to identify routers and links, while IS-IS uses MAC addresses or other link-layer identifiers. OSPF also requires an IP header for each packet, while IS-IS does not. Both OSPF and IS-IS are link state protocols, which means that they flood information about the network topology to all routers in the same area or domain. References: Ericsson IP Networking - Routing Protocols, Ericsson Router 6000 Series - Ericsson

In an Ethernet frame carrying a VLAN tag, the VLAN tag appears before the type field. A VLAN tag is a 4-byte field that is inserted into an Ethernet frame to indicate the VLAN membership and priority of the frame. The VLAN tag consists of two subfields: the tag protocol identifier (TPID) and the tag control information (TCI). The TPID subfield is a 16-bit field that identifies the frame as an IEEE 802.1Q-tagged frame, with a value of 0x8100. The TCI subfield is a 16-bit field that contains the priority code point (PCP), the drop eligible indicator (DEI), and the VLAN identifier (VID). The VLAN tag appears between the source MAC address and the type fields of the original frame, shifting the type field by four bytes. The type field indicates the type of the payload, such as IP or ARP .

References: [IEEE 802.1Q - Wikipedia], [VLAN Tagging Explained with DTP Protocol - GeeksforGeeks]

The code that is commonly used to assign higher priority to VoIP traffic is EF, which stands for Expedited Forwarding. EF is a per-hop behavior (PHB) defined by the Differentiated Services (DiffServ) model for QoS. EF provides low delay, low jitter, and low loss for real-time applications such as VoIP. EF is marked by setting the DSCP value to 101110, which corresponds to decimal 4678. AF31, which stands for Assured Forwarding class 3 low drop probability, is another PHB defined by DiffServ, but it provides lower priority than EF. AF31 is marked by setting the DSCP value to 011010, which corresponds to decimal 2678. DF, which stands for Default Forwarding, is a PHB defined by DiffServ that provides best-effort service for unmarked traffic. DF is marked by setting the DSCP value to 000000, which corresponds to decimal 078. AF11, which stands for Assured Forwarding class 1 low drop probability, is another PHB defined by DiffServ, but it provides lower priority than EF and AF31. AF11 is marked by setting the DSCP value to 001010, which corresponds to decimal 1078.

References: Differentiated services - Wikipedia, Solved: Cisco VoIP Phone traffic marking - Cisco Community

Two statements that are true about the Ericsson Router 6000 series are:

• The Router 6000 uses the same building practice and accessories as the Ericsson Radio System. The Ericsson Radio System is a modular and scalableradio access network solution that supports multiple standards, bands, and layers. The Router 6000 series is fully integrated into the Ericsson Radio System, using the same building practice and accessories such as mounting kits, cables, power supplies, etc. This simplifies installation, operation, and maintenance of both radio and transport equipment78.
• The Router 6000 products range from all-outdoor small site routers to large aggregation routers. The Router 6000 series consists of three main products: the Router 6672 for access, the Router 6675 for pre-aggregation, and the Router 6274 for metro aggregation. The Router 6672 is an all-outdoor small cell site router with high-capacity and low-power consumption. The Router 6675 is a combined access and E-RAN switch with hardware-accelerated IPSec and high-accuracy internal clock. The Router 6274 is a high-capacity metro aggregation router with SDN functionality and flexible interface options78.

References: Router 6000 Series - Ericsson, New Ericsson Router 6000 series couples radio and IP transport for 5G future - Global Brands Magazine

 IPv6 link-local addresses are designed to be used in three situations: for neighbor discovery, for local IP communication on the IPv6 capable routers, and for addressing on a single link for purposes such as auto-address configuration. Neighbor discovery is a protocol that allows IPv6 nodes to discover each other and learn their link-layer addresses on a local network. Neighbor discovery uses link-local addresses to send and receive messages such as router advertisements, router solicitations, neighbor advertisements, and neighbor solicitations34. Local IP communication on the IPv6 capable routers refers to the ability of routers to exchange routing information or management traffic using their link-local addresses as source and destination addresses. This reduces the need for global unicast addresses on router interfaces that are not reachable from outside the local network35. Addressing on a single link for purposes such as auto-address configuration refers to the use of link-local addresses to enable IPv6 nodes to obtain an address without manual configuration or a DHCP server. Link-local addresses can be automatically derived from the interface identifier in the modified EUI-64 format or randomly generated. Link-local addresses can also be used to test the connectivity of a link before obtaining a global unicast address36.

References: Understand the IPv6 Link-Local Address - Cisco, Link Local Address - GeeksforGeeks, IPv6 Address Types | Link-Local, Global Unicast, etc.⋆ IPCisco, MPLS Label Distribution Protocol Commands - Cisco

The function of LSR from an LDP perspective is to distribute labels of FEC to its LDP peers. LSR stands for Label Switching Router, which is a router that forwards packets based on labels rather than IP addresses in an MPLS network. LDP stands for Label Distribution Protocol, which is a protocol that distributes labels for MPLS forwarding along the shortest path calculated by an IGP. FEC stands for Forwarding Equivalence Class, which is a group of packets that are forwarded in the same manner by an LSR. An LSR uses LDP to advertise the label mappings for each FEC to its LDP peers, which are other LSRs that have established an LDP session with it12.

References: Ldp | Microsoft Learn, Label Distribution Protocol - Wikipedia

The router function that advertises external routes in OSPF is ASBR, which stands for Autonomous System Boundary Router. An ASBR is a router that connects an OSPF domain to another routing domain, such as another OSPF domain or a different routing protocol domain. An ASBR can redistribute routes from other routing domains into OSPF as external routes, which are carried in type 5 or type 7 LSAs. External routes have two types: E1 and E2. E1 routes include the cost from the ASBR to the destination, while E2 routes only include the cost advertised by the ASBR34.

References: OSPF External Routes ⋆ IpCisco, OSPF External Route selection algorithm - Cisco Community
