You are working with a customer whos has a paw of Aruba 8325 switches configured for Multi-Chassis Link Aggregation The customer is complaining that users are experiencing intermittent packet drops. Which action should be taken to quickly aid you in identifying the cause?

Refer to the exhibit.

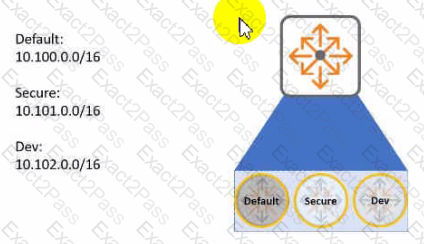

Aruba CX 6300 switch has routes in three different VRFs as per the example above. The user needs to leak routes between VRF Secure and VRF Dev. and also between VRF default and VRF Dev

The customer Is not able to establish routing between directly connected networks 10.100.50.0/24 and 10.102.26.0/24 Which statement is true regarding the routing troubleshooting?

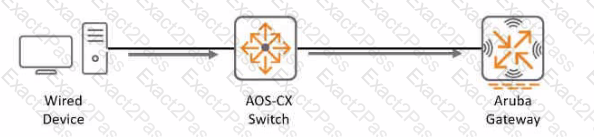

With the given topology, the customer Has ArubaOS-CX 6300 switches and Aruba Gateway in use.

What is required for the client traffic to be tunneled as per best practice between the connected switch port and the Aruba Gateway ' ' (Select two.)

(Scenarios may contain multiple errors which may or may not impact the solution )

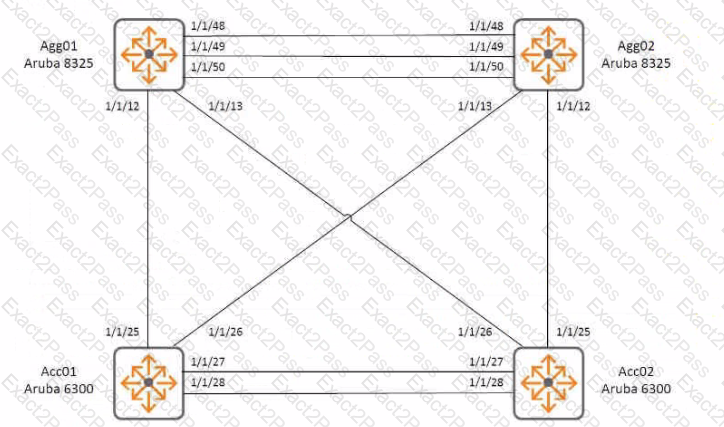

Refer to the exhibit.

An engineer has attempted to configure two pairs of switches in the referenced configuration It is required to implement VSX at the aggregation layer

The pons of the ArubaOS-CX 8325 switches used for Agg01 and Agg02 are populated as follows:

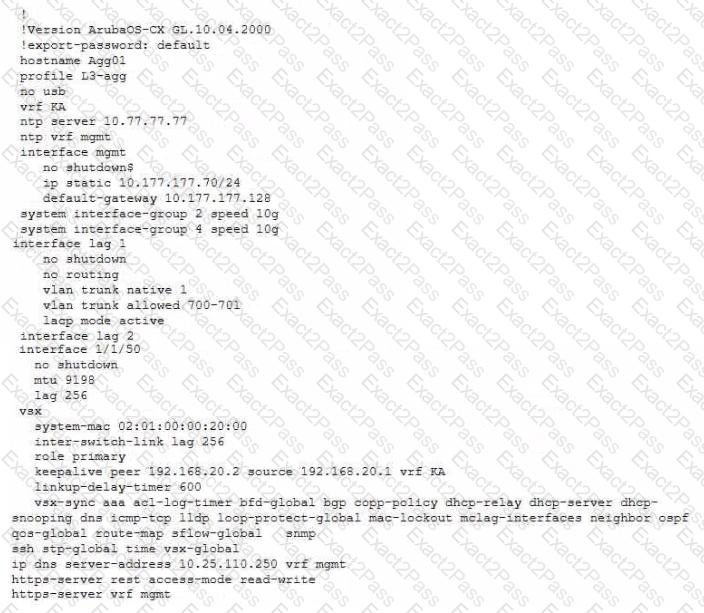

The configuration of switch AGG01 includes

The VSX cluster is not forming. Which modification should you make to resolve the error condition?

Refer to the exhibit.

You want to protect the aggregation layer if the VSXISL falls. Where should you place a VSX keepalive link?

Refer to the exhibit.

Criteria

1. All outbound traffic to AS 64516 prefers Edge-2 to AS 64516

2. All other outbound traffic prefers Edge-1 to AS 64513

Given the customer connectivity depicted in the diagram which single change can be performed on Edge-2 to ensure the criteria are met?

(Scenarios may contain multiple errors which may or may not Impact the solution)

Refer to the exhibit.

An engineer has attempted to configure two pairs of switches in the referenced configuration, it is required to implement Multi-Chassis Link Aggregation for each pair of switches

The ports of the Aruba 8325 switches used for Agg01 and Agg02 are populated as follows:

There is an error message staling " incompatible interface. " Which interfaces are the cause of the error? (Select two.)

(Scenarios may contain multiple errors which may or may not impact the solution)

Refer to the Exhibit.

An engineer has attempted to configure two pairs of switches m the referenced configuration it Is required to implement

Multi-Chassis Link Aggregation for each pair of switches

The ports of the Aruba 8325 switches used for Agg01 and Agg02 are populated as follows

The configuration includes:

There is an error message stating " mismatched group speed " What should you add to the configuration to correct the error?

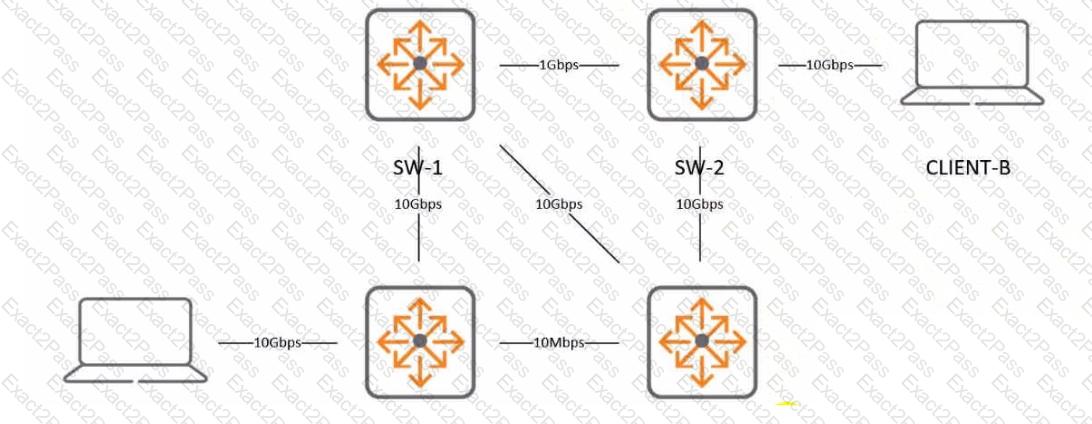

A customer would like to utilize some ArubaOS-CX 6300F switches to perform OSPF routing.

With the ports set up as routed ports, and default parameters for OSPF, which action is the simplest way to allow the fastest communication…

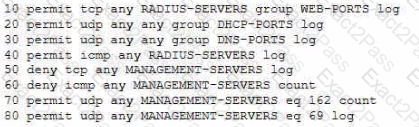

When applying me following access-Iist to an ArubaOS-CX 6300 switch:

How does this ACL behave on the selected switch? (Select two.)
