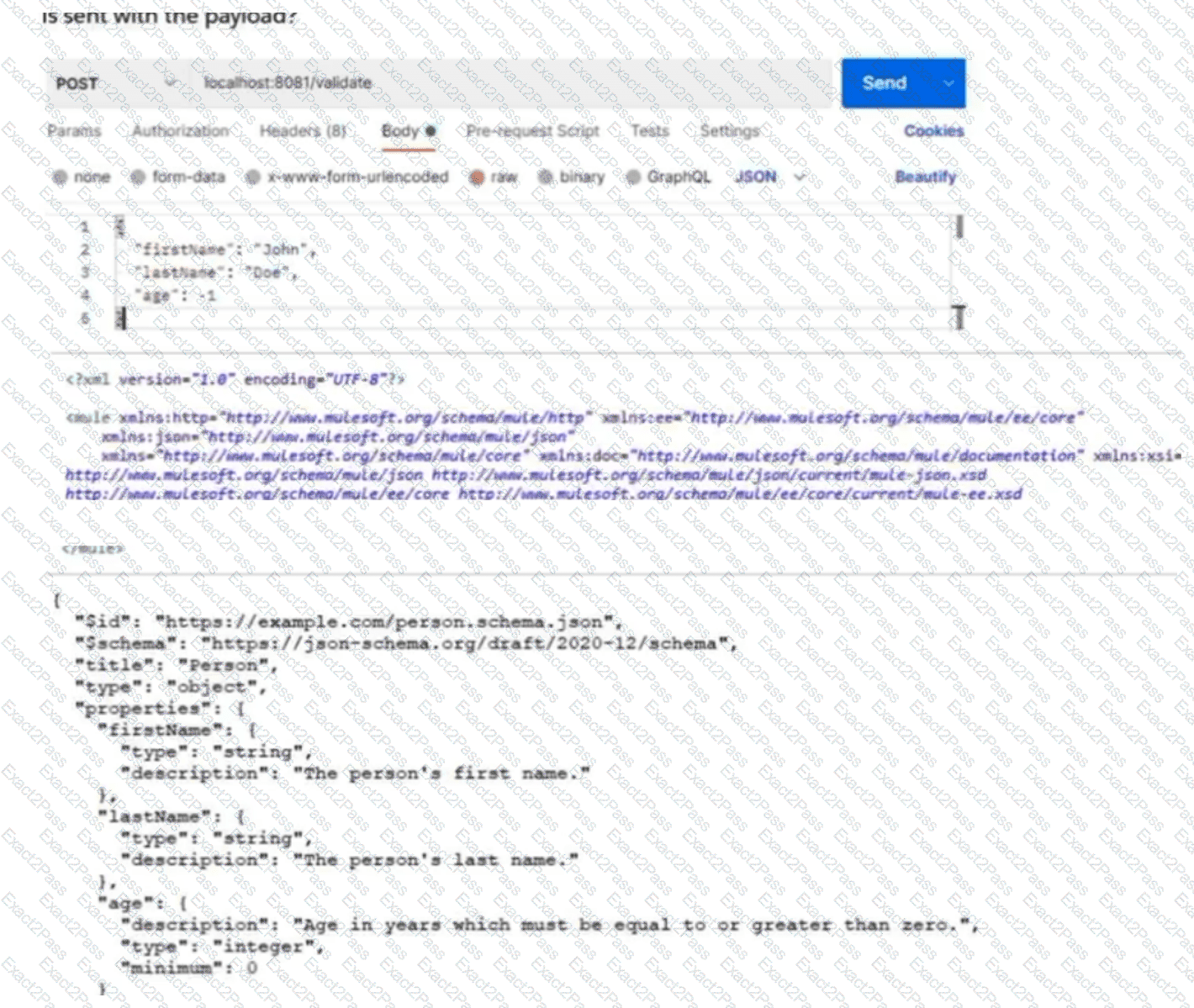

The flow passes the incoming HTTP request payload directly to the JSON Module's Validate schema operation. The referenced schema.json defines the age property as an integer with "minimum": 0. However, the request shown in the exhibit contains:

"age": -1

This violates the schema because -1 is below the permitted minimum. MuleSoft specifies that the JSON Module's Validate schema operation compares the input content with the supplied JSON Schema and, when the document does not conform, raises JSON:SCHEMA_NOT_HONOURED.

Consequently, normal flow execution stops at the validation operation unless an error handler explicitly consumes the exception. The Logger positioned after the validation operation is not executed in this flow because validation fails first.

The schema's description text—"Age in years which must be equal to or greater than zero."—is metadata describing the property; it does not automatically become a successful HTTP response. Similarly, the request payload is not returned through a successful normal path after the schema violation.

Therefore, because the supplied age value violates minimum: 0, Mule raises JSON:SCHEMA_NOT_HONOURED.

Reference topics: JSON Module; Validate Schema operation; JSON Schema constraints; minimum; JSON:SCHEMA_NOT_HONOURED.

Official documentation: https://docs.mulesoft.com/json-module/latest/json-schema-validation

===============================================================

A TLS cipher suite defines the cryptographic algorithms that the communicating parties use to protect the connection. During TLS negotiation, the client advertises cipher suites that it supports and the server selects a mutually supported suite according to the protocol version and its security configuration.

In TLS 1.2 and earlier, a cipher-suite name can identify several cryptographic components, including key-exchange/authentication mechanisms, the symmetric encryption algorithm, and integrity protection. TLS 1.3 expresses cipher suites differently, but the negotiated suite still determines the authenticated-encryption algorithm used to protect application traffic. MuleSoft's TLS documentation exposes cipher-suite configuration directly, including suites based on AES-GCM and ChaCha20-Poly1305.

The TLS protocol version is negotiated as part of the broader handshake but is conceptually distinct from choosing a cipher suite. Likewise, a public-key format is not what the cipher-suite exchange fundamentally selects, and "a protocol" is too general.

Among the provided choices, an encryption algorithm is therefore the technically correct description of what the cipher-suite negotiation establishes for protecting the session.

Reference topics: TLS handshake; cipher suites; symmetric encryption; AES-GCM; mTLS cryptographic negotiation.

Official documentation: https://docs.mulesoft.com/anypoint-security/cipher-suites

===============================================================

API Functional Monitoring permits a monitor to contain tests against one or more endpoints, including endpoints belonging to multiple public APIs. A schedule determines where and how frequently the monitor executes. Consequently, there is no technical requirement to create ten independent schedules simply because ten APIs have individual health endpoints.

Because all ten APIs are public and accessible from the internet, a public location is sufficient. A private location is primarily useful when the monitored endpoints are accessible only through a private network or when specific private-network connectivity requirements exist. Creating a private location would introduce unnecessary deployment and operational overhead in this scenario.

The most efficient design is therefore to place the ten health checks in a single monitor/test suite and associate that monitor with one schedule running from one public location. MuleSoft documentation explicitly shows that a single monitor can test endpoints belonging to multiple public APIs, while a single schedule is associated with a location and execution interval. This reduces schedule consumption and management complexity.

Reference topics: API Functional Monitoring; Public Locations; Monitor Tests and Schedules; Monitoring Public APIs.

Official documentation: https://docs.mulesoft.com/api-functional-monitoring/afm-monitoring-public-apis

===============================================================

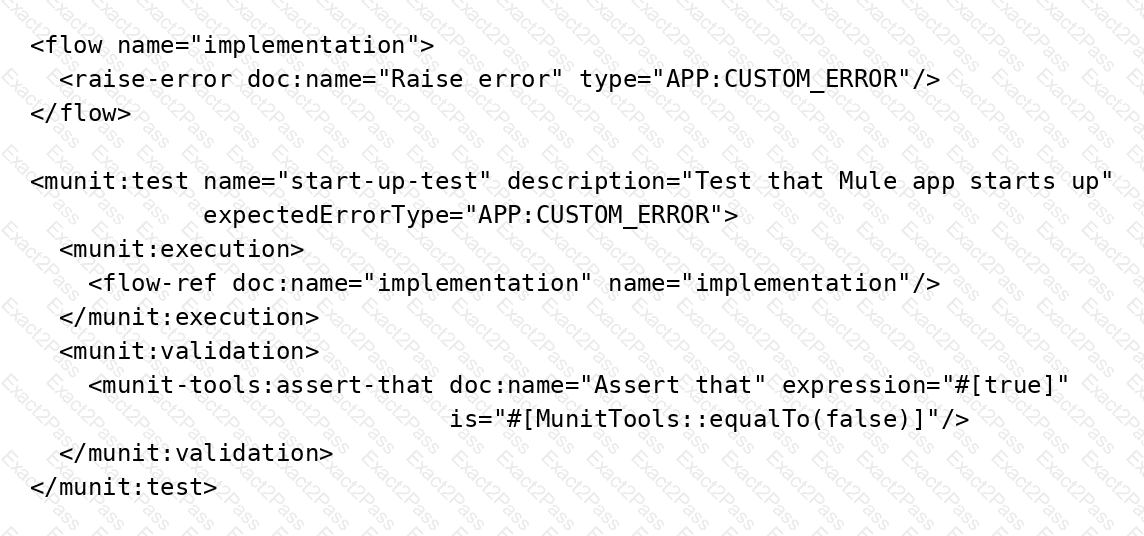

The significant attribute in the MUnit definition is expectedErrorType="APP:CUSTOM_ERROR". The referenced implementation flow deliberately invokes raise-error with exactly the same error type: APP:CUSTOM_ERROR.

MUnit supports expected-error testing specifically for negative scenarios. When expectedErrorType is configured, the test is considered successful when execution produces that expected Mule error. The raised error is therefore not treated as an unexpected test failure; it satisfies the test's declared expectation.

The apparently failing assertion—testing true against equalTo(false)—does not change the result in this scenario because normal execution does not reach the validation chain after the referenced flow raises the expected error. The expected error terminates the execution path being tested and satisfies the MUnit expectation.

If the implementation generated a different error type, option B would apply. If it generated no error when an error was expected, the test would also fail. Here, however, the flow explicitly raises the exact application-defined error specified by the test.

Reference topics: MUnit Test Structure; expectedErrorType; Error Testing; Raise Error Component.

Official documentation: https://docs.mulesoft.com/munit/3.6/munit-test-concept

===============================================================

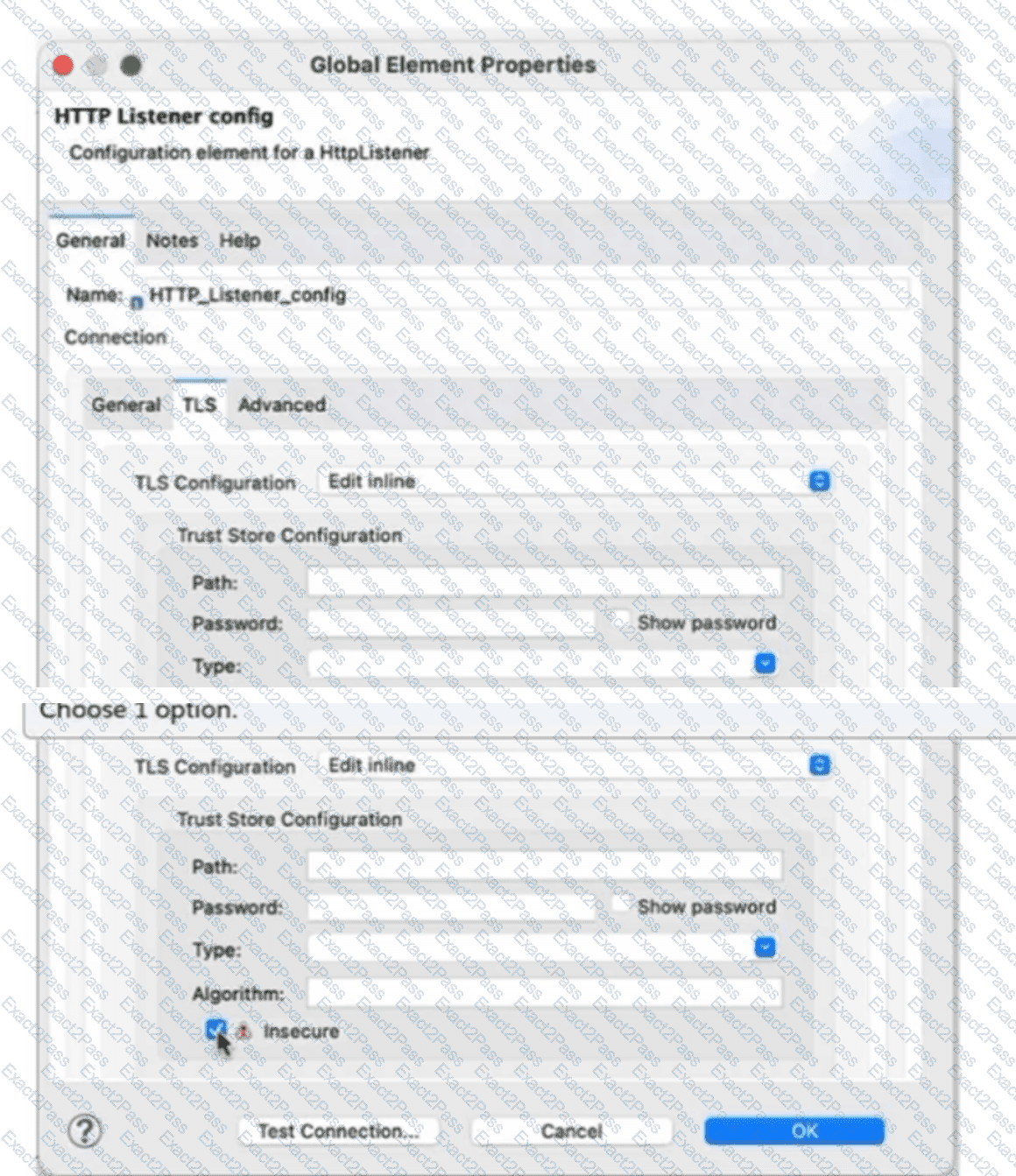

The Insecure setting belongs to Mule's TLS truststore configuration. MuleSoft defines the insecure property as a Boolean that determines whether truststore validation is performed. When insecure="true", Mule stops performing certificate validation.

For an HTTP Listener operating as the TLS server, the truststore is used when validating certificates supplied by connecting clients. Therefore, disabling truststore validation means the listener does not enforce normal trust verification against the configured certificate authorities; effectively, certificates presented by HTTP clients are trusted without the standard certificate-chain validation represented by the truststore. This corresponds to option A.

Selecting Insecure does not convert HTTPS into plain HTTP, so option B is incorrect. It also does not itself enable mutual TLS. Full mutual TLS requires appropriate server key material and client-certificate authentication/trust configuration. Likewise, "Insecure" specifically concerns certificate validation; it should not be interpreted as a generic instruction to bypass every possible authentication mechanism applied to the API.

MuleSoft explicitly warns that this option creates a security vulnerability and is appropriate only for development or prototyping, not production.

Reference topics: TLS Context; Truststore; insecure; client-certificate validation; mutual TLS.

Official documentation: https://docs.mulesoft.com/mule-runtime/4.11/tls-configuration

===============================================================

When Mule creates a new event, it needs a correlation ID so log entries and processing activity associated with that event can be traced together. Mule first checks whether the event source already provides a correlation ID. For an HTTP Listener, headers such as X-CORRELATION-ID or MULE_CORRELATION_ID can supply that identifier.

MuleSoft explicitly states that if the source message contains a correlation ID, Mule uses it; if the source does not provide one, Mule generates a unique correlation ID. Therefore, option C accurately describes HTTP Listener behavior.

Option B is incorrect because Mule does not unconditionally replace an incoming correlation ID. Option D is also incorrect: MuleSoft specifically documents that Anypoint MQ does not automatically propagate Mule correlationId between publisher and subscriber. If an identifier must traverse Anypoint MQ, it should be included as a user property and then reapplied or used by the receiving application.

Correlation IDs are central to production observability because they let operations teams connect log records and processing stages to the same business execution.

Reference topics: Mule correlation IDs; HTTP Listener; X-CORRELATION-ID; distributed tracing; event correlation.

Official documentation: https://docs.mulesoft.com/mule-runtime/latest/correlation-id

Official documentation: https://docs.mulesoft.com/mq/mq-faq

===============================================================

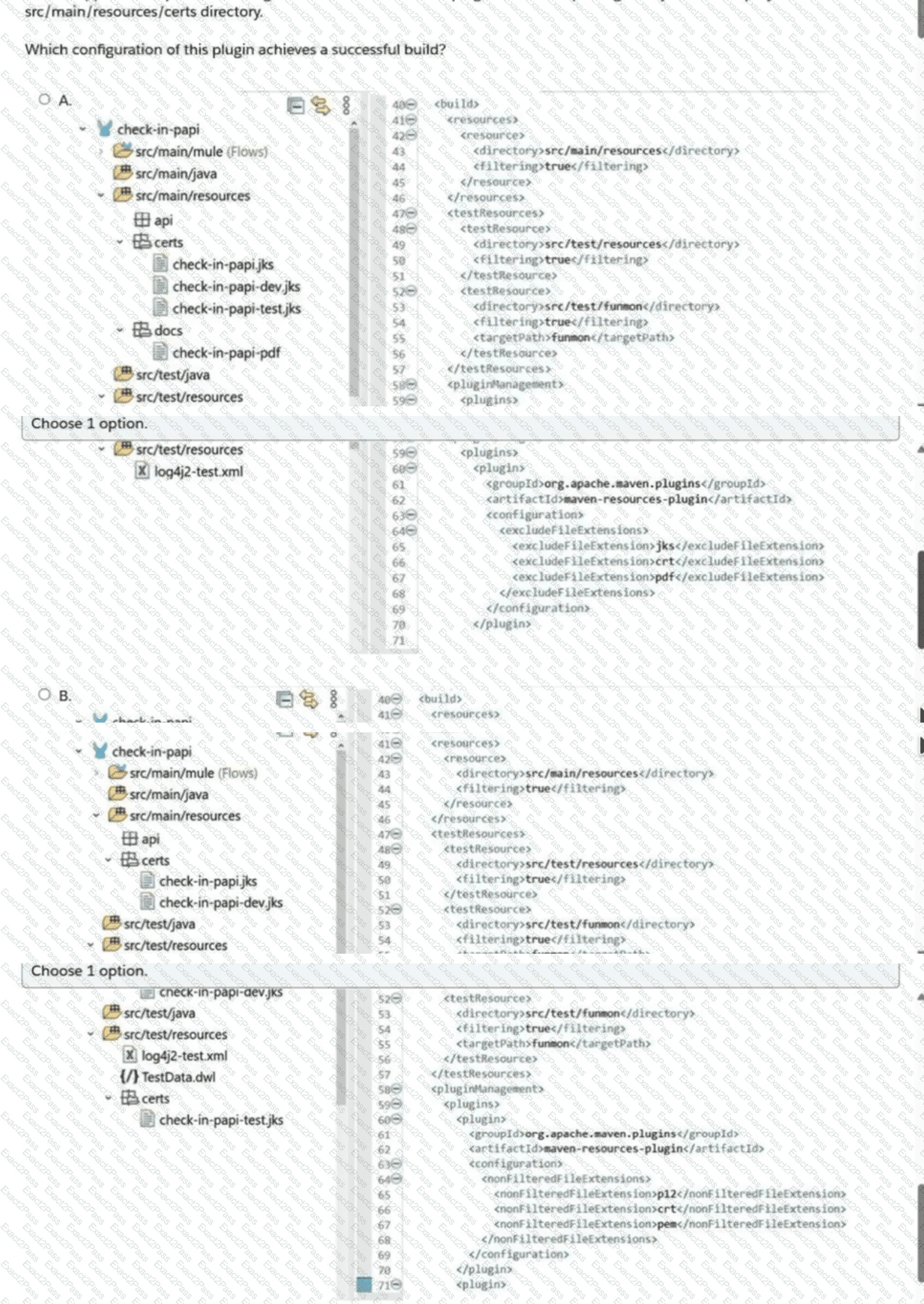

Resource filtering is designed primarily for textual resources in which Maven substitutes property expressions. Binary files such as PKCS#12 keystores and certificate files must not be passed through text filtering because filtering can corrupt their binary representation.

The Maven Resources Plugin provides the dedicated configuration element nonFilteredFileExtensions. Each additional extension is declared using a nested nonFilteredFileExtension. The plugin documentation specifically defines this parameter as the list of additional file extensions to which filtering must not be applied.

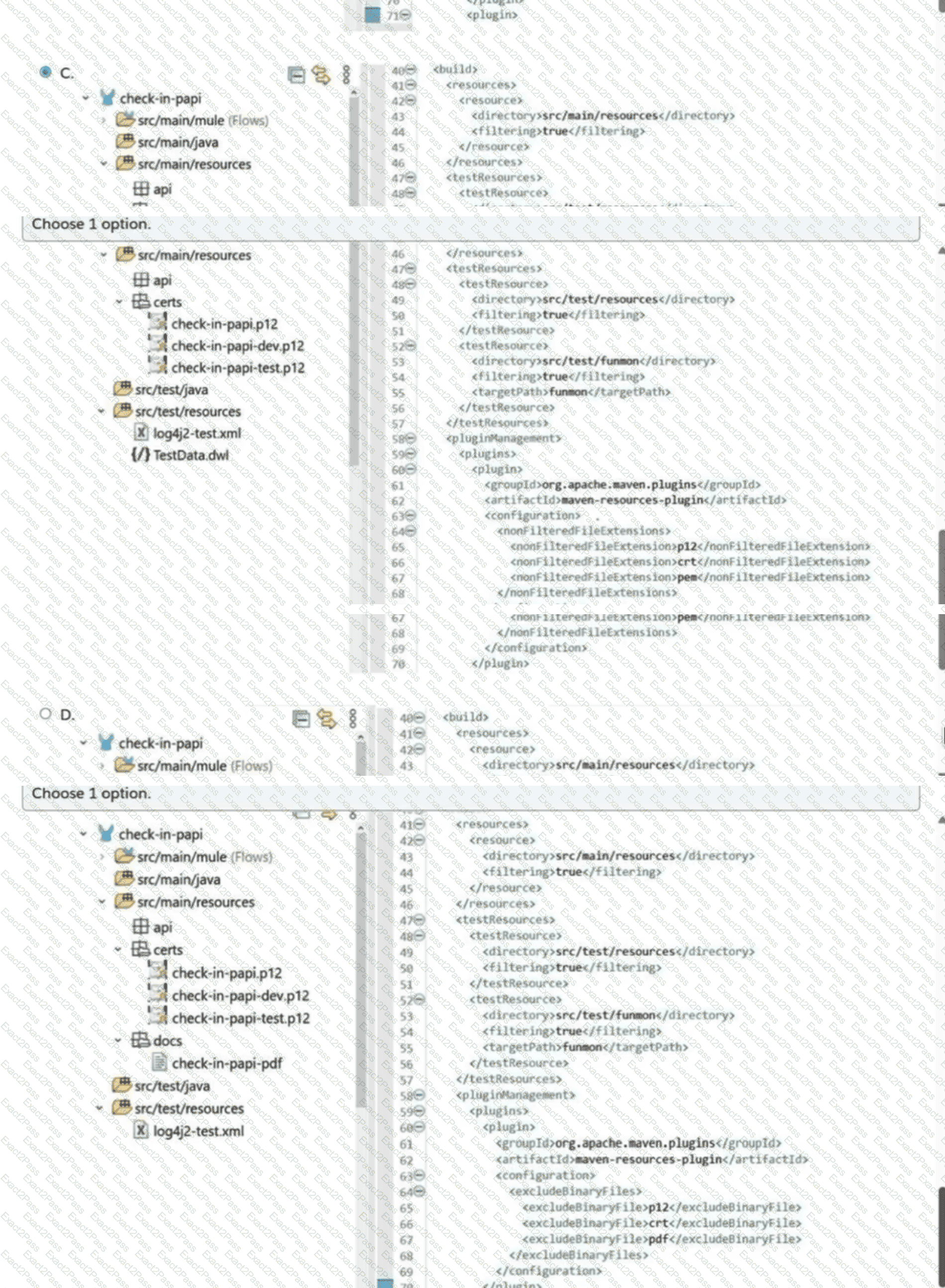

Option C correctly uses the documented structure:

< nonFilteredFileExtensions >

< nonFilteredFileExtension > p12 < /nonFilteredFileExtension >

< nonFilteredFileExtension > crt < /nonFilteredFileExtension >

< nonFilteredFileExtension > pem < /nonFilteredFileExtension >

< /nonFilteredFileExtensions >

This is important because the application's normal resource configuration can still use < filtering > true < /filtering > for textual files while Maven leaves the listed certificate/keystore formats untouched.

The alternative constructs visible in the other exhibits, such as excludeFileExtensions or excludeBinaryFiles, are not the Maven Resources Plugin parameter used for this purpose.

Reference topics: Maven Resources Plugin; resource filtering; binary resources; nonFilteredFileExtensions; Mule Maven builds.

Official documentation: https://maven.apache.org/plugins/maven-resources-plugin/resources-mojo.html

===============================================================

Anypoint MQ implements publish/subscribe fan-out by publishing a message to a message exchange and binding multiple queues to that exchange. Each subscribing application consumes from its own queue. As a result, a single gate-change event published by the Flight Management System can be copied to the Baggage Handler, Inflight Catering, and Passenger Notification queues independently.

MuleSoft documents that messages sent to an exchange are delivered to its bound queues and specifically describes exchanges as the mechanism for distributing one published message to multiple applications. A consumer does not directly consume from the exchange; consumption occurs from a queue. In fact, MuleSoft states that attempts to consume from a message exchange are rejected because the destination for consumption must be a queue.

Having all systems consume from one queue would instead create competing consumers: individual messages would normally be processed by one consumer rather than independently delivered to every subscribing system.

The required architecture is therefore: publisher → exchange → multiple bound queues → independent subscribers. This supplies asynchronous fan-out while preserving subscriber isolation and independent consumption.

Reference topics: Anypoint MQ exchanges; queue bindings; publish/subscribe; asynchronous event distribution.

Official documentation: https://docs.mulesoft.com/mq/

Official documentation: https://docs.mulesoft.com/mq/mq-exchanges

===============================================================

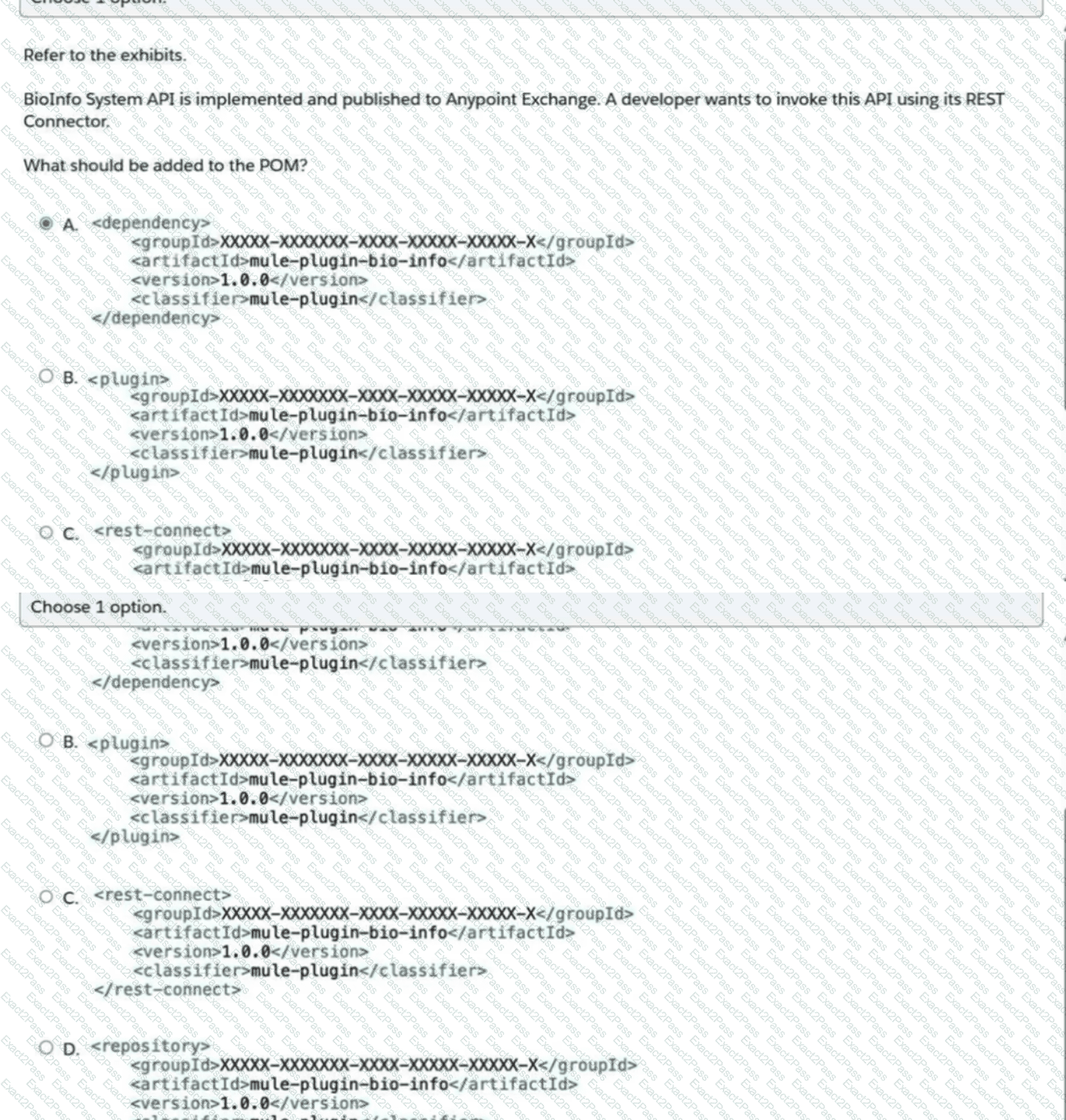

REST Connect converts a supported REST API specification published in Anypoint Exchange into a Mule 4 connector. MuleSoft states that REST Connect-generated Mule 4 connectors are produced as connector artifacts and can be used in Studio like other Mule connectors.

A Mule connector is consumed by an application through the project's Maven dependencies, not through the Maven build-plugin section. MuleSoft's standard connector Maven model requires the connector's Exchange groupId, artifactId, and version under < dependency > , together with:

< classifier > mule-plugin < /classifier >

The classifier is essential because it identifies the artifact as a Mule extension/plugin that the Mule runtime must load. MuleSoft's connector Maven documentation provides this exact dependency structure and directs developers to Exchange's Dependency Snippets for the current coordinates.

A < plugin > declaration is for Maven build plugins rather than runtime Mule connectors. < repository > merely defines where Maven can resolve artifacts and does not itself add the connector to the application. < rest-connect > is not the POM dependency element used to consume a generated connector.

Reference topics: REST Connect; Anypoint Exchange generated connectors; Maven dependencies; mule-plugin classifier.

Official documentation: https://docs.mulesoft.com/exchange/to-deploy-using-rest-connect

Official documentation: https://docs.mulesoft.com/connectors/introduction/intro-config-xml-maven

===============================================================

This answer requires an important correction to the selection shown in the supplied material. MuleSoft's current Anypoint MQ documentation explicitly states that Anypoint MQ does not propagate Mule correlationId from publisher to subscriber in the same way that APIs propagate correlation IDs between layers. MuleSoft instructs developers to place the required identifier in an Anypoint MQ user property and consume that value in the receiving application.

Therefore, the publishing application should include the original orderId as a custom message property. When another Mule application consumes the MQ message, it extracts that property and establishes the appropriate correlation context for its processing. The Tracing Module's With CorrelationID scope can then be used within that receiving application if the event correlation ID needs to be changed to the supplied order ID. MuleSoft confirms that With CorrelationID temporarily modifies the Mule event's correlation ID for processors inside the scope.

Wrapping only the publisher in With CorrelationID does not make Anypoint MQ transport that Mule event correlation ID automatically. Option D is explicitly contradicted by MuleSoft's MQ documentation.

Reference topics: Anypoint MQ user properties; correlation propagation; Tracing Module; With CorrelationID; distributed observability.

Official documentation: https://docs.mulesoft.com/mq/mq-faq

Official documentation: https://docs.mulesoft.com/tracing-module/1.0/tracing-module-with-correlationid

===============================================================
