To minimizeco-channel interference (CCI)in multi-floor Wi-Fi environments, planners should assigndifferent non-overlapping 2.4 GHz channels per floor—typically channels 1, 6, and 11.

According toRUCKUS One Online Help – RF Planning Best Practices, overlapping floors can cause vertical signal leakage, leading to channel contention and performance degradation. TheRUCKUS Wi-Fi Plannerallows layer-based channel mapping to simulate floor separation and interference.

While reducing transmit power can complement this strategy,channel segregationremains the primary CCI mitigation method. Increasing AP density or enabling SmartMesh does not resolve channel reuse conflicts in vertical topologies.

Background Scanningin RUCKUS APs allows radios to periodically scan other channels to collect RF environment data while still serving clients. The scan interval determines how often the AP samples channel information for features likeChannelFly,Auto Cell Sizing, androgue detection.

According toRUCKUS One Online Help – Background Scanning and RF Management, andRUCKUS Analytics 3.5 User Guide – RF Monitoring, increasing theBackground Scanning intervalto90 secondsdelays updates for processes that depend on real-time RF sampling, specifically:

Rogue AP Detection (B):Takes longer to discover unauthorized or neighboring APs.

Auto-Channel Selection (C):Updates channel quality metrics less frequently, slowing responsiveness to interference changes.

Auto Power Adjustment (E):Depends on scanning results to optimize transmit power for coverage balance, so adjustments occur less frequently.

Processes such asclient countandthroughput measurementrely on active client data, not background scanning, andspectrum analysisoperates in a dedicated analysis mode outside of normal scanning intervals.

In this SmartZone 5.2 onboarding scenario:

San Mateo (200.7.10.202.121):These APs are runningUnleashed firmware, which cannot directly join a SmartZone controller. According to theRUCKUS One Online Help – AP Firmware Migration, Unleashed APs must first be converted toStandalone (Solo) modeusing CLI (set director ip or set scg ip) before they can connect. Thus,D (San Mateo devices can use ap-mode commands to onboard)is correct.

Toronto (102.0.0.0.5):This firmware version representsZoneDirector (ZD)code. APs on ZD firmware communicate usingLWAPP, and to migrate them, administrators must perform a firmware conversion process (using set scg ip) for SmartZone compatibility. Therefore,E (Toronto devices will use LWAPP to communicate to SmartZone)is correct.

Mexico City (5.2.0.0.1412):These APs already match the SmartZone firmware family (5.2.x), meaning they are currently or can immediately be managed by this SmartZone cluster. Therefore,Fis correct.

When onboarding access points (APs) toRUCKUS One, the system requires essential identifiers to register and associate the devices with the correct organization and physical site.

According toRUCKUS One Online Help – Device Onboarding and Registration, administrators must specify:

Device Serial Number (A):Unique hardware ID for authentication and cloud linkage.

Device Model (B):Ensures the correct firmware image and configuration profile are applied.

Venue to Assign to Devices (D):Determines the logical and geographical site placement for analytics and management grouping.

Device name and WLAN settings are optional and configured later after registration.

ChannelFlyis RUCKUS’s machine learning–baseddynamic channel selectiontechnology. It evaluates real-timethroughputon each channel rather than relying only onnoise or interference metricsto determine the best operating channel.

As outlined inRUCKUS One Online Help – ChannelFly OperationandRUCKUS AI Documentation – Channel Optimization, ChannelFly continuously monitors channel conditions and switches to those offering higher capacity.

This ensures maximum real-world performance, especially in dense environments with unpredictable interference.

BeamFlex+adjusts antenna patterns,SmartCastprioritizes traffic, andPD-MRCenhances signal reception but do not handle channel learning or selection.

Indoor WLAN coverageis influenced by multiple RF and physical parameters that determine how effectively a signal propagates and maintains connectivity quality.

According toRUCKUS One Online Help – RF Design FundamentalsandRUCKUS AI Documentation – Coverage Optimization, the three most impactful factors are:

AP Transmit Power (A):Directly affects signal reach; excessive power can cause co-channel interference, while low power results in coverage holes.

AP Orientation (C):Affects signal radiation direction—wall-mounted, ceiling-mounted, or tilted deployments impact pattern uniformity and coverage overlap.

Antenna Pattern (D):Defines gain and directional behavior; omnidirectional antennas provide uniform coverage, while directional models concentrate energy for targeted areas.

Antenna diversityandspatial multiplexingimprove throughput and reliability, but do not primarily determine raw coverage boundaries. “Earth bulge” is irrelevant for indoor deployments.

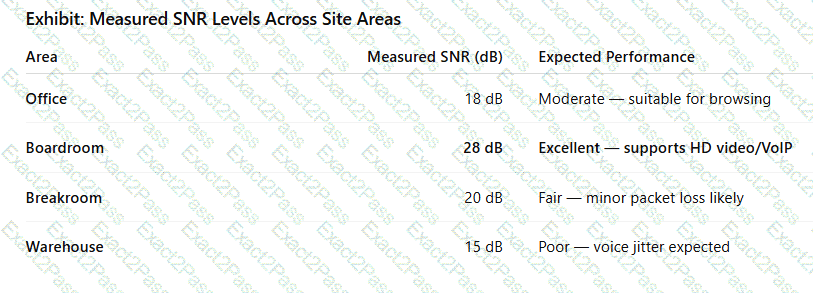

Signal-to-Noise Ratio (SNR)directly influences themodulation and coding scheme (MCS)that can be used between a Wi-Fi client and AP. A higher SNR allows the AP to select higher-order modulations (e.g., 256-QAM or 1024-QAM), which increases throughput efficiency.

According toRUCKUS One Online Help – RF Signal and SNR Concepts, an SNR of around 25 dB or greater is typically required for high-rate modulation such as MCS 9 or above.

RUCKUS Analytics 3.5 User Guide – PHY Metricsconfirms that RUCKUS APs continuously adapt MCS levels based on SNR, optimizing link performance dynamically.

Lower SNR conditions force modulation downshifts (e.g., QPSK or BPSK), reducing data rates for reliability.
