Your customer wants their Brocade VCS Fabric to participate in a loop-free network when connecting to other switches.
Which three protocols are supported? (Choose three.)
You are providing cloud-based virtual desktops to businesses from your data center. Each business needs to be completely segmented from each other; however, to keep costs down, you decide to use a single DHCP and DNS server with the least amount of configuration.
Which three features must be configured in the Brocade VCS Fabric? (Choose three.)
You are deploying a new Brocade VCS Fabric. The fabric must support IP routing both within the fabric and to external routers.
Which two protocols would be used? (Choose two.)

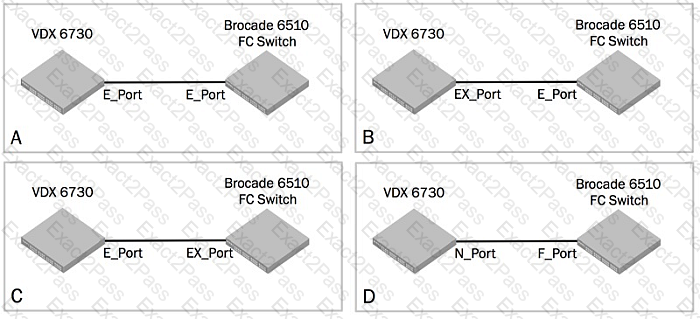

You are connecting your Brocade VCS Fabric to a native Brocade Fibre Channel Router (FCR) using FC ports on one of your Brocade VDX switches.
Which two port types are supported? (Choose two.)
You are designing a network with Brocade VCS Fabrics. You must support four 10 Gbps Brocade trunking ports in between the VDX switches. You need to determine which interfaces to connect.
What are two solutions? (Choose two.)
Your Brocade VCS Fabric consists of two Brocade VDX 8770s and 10 Brocade VDX 6740s. The current fabric is running in VCS fabric mode. You need to add a VLAN on one switch and have it distributed to all other switches in the fabric.
Which feature is required to accomplish this task?
You want to create trunks with your existing 40 GbE ISL connections between two Brocade VDX 8770s using NOS 4.1.1. The two VDX 8770s are not forming a trunk as expected.
VDX8770# sh fab isl
Rbridge-id: 131 #ISLs: 2
Src Src Nbr Nbr
Index Interface Index Interface Nbr-WWN BW Trunk Nbr-Name
----------------------------------------------------------------------------------------------
13 Fo 131/2/1 8 Fo 132/2/1 10:00:00:05:33:D4:0C:CE 40G Yes "sw-0"
15 Fo 131/2/2 45 Fo 132/2/2 10:00:00:05:33:D4:0C:CE 40G Yes "sw-0"
Referring to the exhibit, which two steps are required? (Choose two.)
You want to examine packets in transit across links to troubleshoot the traffic pattern on a specific port using SPAN on a Brocade VDX 6730-76. You configure a monitor session with source interface Te 1/0/10 and destination interface Te 1/0/21.
Which two statements are correct? (Choose two.)
You are asked to implement PIM in your existing Brocade VCS Fabric running NOS 4.1. The fabric consists of VDX 8770s, VDX 6740s, VDX 6730s, and VDX 6720s.
On which two Brocade VDX models would this be implemented? (Choose two.)
According to Brocade best practices, which management utility should be used in a Brocade VCS Fabric?
You just connected a new Brocade VDX 6740T-1G switch to the top of rack. You want to connect two 40 GbE uplinks to VDX1 and two 40 GbE uplinks to VDX2. Two of the links come online and two of them are segmented.
What is a reason for this problem?
Which two statements are true about Network OS integration with VMware vCenter? (Choose two.)
Your customer would like to control a Brocade VCS Fabric consisting of four Brocade VDX 6740s by using SSH to the same address on the principal switch in the fabric.
Which two attributes should be configured to accomplish this? (Choose two.)
You are troubleshooting an FCoE login problem in your environment. The port shown in the exhibit has not been able to log into the fabric. The default FCoE fabric map in your environment has not been changed.
Interface TenGigabitEthernet 3/0/4
Mode PFC
DCBX enabled for PFC negotiation
TX 0 frames
TX TX RX RX Output Paused
CoS Admin Oper Admin Oper 512 BitTimes
---------------------------------------
0 Off Off Off Off 0
1 Off Off Off Off 0
2 Off Off Off Off 0
3 On Off On Off 0
4 Off Off Off Off 0
5 Off Off Off Off 0
6 Off Off Off Off 0
7 Off Off Off Off 0
sw0(conf-if-te-3/0/1-24)# do show lldp neighbors interface ten 3/0/4 detail
Neighbors for Interface Te 3/0/4
---
DCBX TLVs
===========
Version : CEE
DCBX Ctrl OperVersion: 0 MaxVersion: 0 SeqNo: 4 AckNo: 6
DCBX ETS OperVersion: 0 MaxVersion: 0 Enabled: 1 Willing: 0 Error: 1
Enhanced Transmission Selection (ETS)
Priority-Group ID Map:
Priority : 0 1 2 3 4 5 6 7
Group ID : 0 0 0 0 1 0 0 0
Group ID Bandwidth Map:
Group ID : 0 1 2 3 4 5 6 7
Percentage: 50 50 0 0 0 0 0 0
Number of Traffic Classes supported: 2
DCBX PFC OperVersion: 0 MaxVersion: 0 Enabled: 0 Willing: 0 Error: 1
Priority-based Flow Control (PFC)
Enabled Priorities: 3
Number of Traffic Class PFC supported: 8
FCoE App OperVersion: 0 MaxVersion: 0 Enabled: 1 Willing: 0 Error: 0
FCoE Application Protocol
User Priorities: 4
What are two causes of the problem? (Choose two.)
After implementing a topology that requires edge loop detection, you detected a broadcast storm within the environment.
Which two required parameters must be configured? (Choose two.)
You see a large number of alerts in Brocade Network Advisor on a Brocade VDX switch. You are asked to gather information to send to technical support for analysis.
What information should you send? (Choose three.)
You are an administrator at a cloud-based provider. You need a solution that provides L3 multi-tenancy to enable separate resources to be used by your customers.
Which feature would resolve this problem?
What are two valid ways to transfer firmware to a Brocade VDX when you perform a firmware upgrade? (Choose two.)
You have connectivity from a top of rack Brocade VDX 6740 to two Brocade VDX 8770s in the core. Ports 1-16 are connected to one VDX 8770, and ports 49-52 are connected to the other VDX 8770 in break out mode.
Which two statements about the VDX 6740 in this scenario are true? (Choose two.)
You have Brocade Network Advisor managing your Brocade VCS Fabric. Your security manager wants an inbound ACL on the port connected to Network Advisor server.
Which three protocols must be permitted? (Choose three.)
Your task is to configure remote server authentication in all of the switches in your Brocade VCS Fabric running NOS 4.1.1.
Which protocols would you use to accomplish this task? (Choose three.)
The server connected to the port shown in the exhibit is sending VLAN tagged frames for VLAN 40 to the port.
sw0# sh run in ten 2/0/20
interface TenGigabitEthernet 2/0/20
fabric isl enable
fabric trunk enable
switchport
switchport mode access
switchport access vlan 40
spanning-tree shutdown
no shutdown
!
What will happen to the frames when received by the Brocade VDX?
