Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

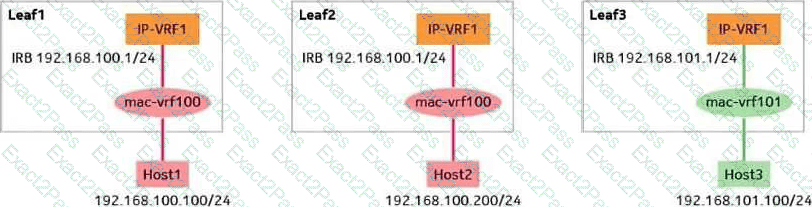

EVPN route type 2 carries MAC/IP advertisement information. It is central to host-based routing and to designs where the fabric must distribute host MAC-to-IP bindings for integrated routing and bridging. In host routing, RT-2 is required because individual host reachability is signaled through MAC/IP advertisements. In interface-less prefix routing, RT-2 is still needed because the system relies on host or gateway MAC/IP information associated with the IRB and distributed gateway behavior. Interface-ful unnumbered designs may also require RT-2-style information to resolve next-hop or adjacency behavior because the routed interface does not use a conventional numbered next-hop model. Prefix routing with interface-ful numbered operation is different. In that model, the routed interface has explicit IP addressing and prefix reachability can be carried with L3 prefix routes without requiring EVPN RT-2 host MAC/IP advertisement as a dependency. Therefore, the symmetric routing option that does not require EVPN route type 2 is prefix routing interface-ful numbered. Reference: symmetric L3 EVPN routing models, RT-2 MAC/IP advertisements, prefix routing behavior.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

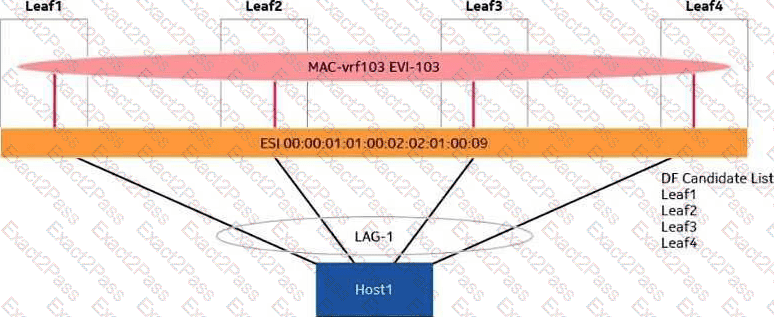

For Layer 2 all-active EVPN multi-homing on SR Linux, the Ethernet Segment configuration is the control-plane anchor that binds the redundant access attachment to EVPN. The relevant LAG subinterfaces must be associated with the Ethernet Segment so that the PE can advertise the segment correctly and apply split-horizon and aliasing behavior. The Ethernet Segment must also be administratively enabled; otherwise, the PE will not participate properly in ES discovery and DF procedures. The multi-homing mode must be set to all-active to permit forwarding through multiple attached leaf routers and support host-side LAG operation. The false statement is option B. The Ethernet Segment Identifier has a defined structure, and the blanket statement that the 2nd through 7th octets “must not be all zeros” is not a valid requirement as stated. What matters operationally is that the ESI uniquely identifies the same multi-homed Ethernet Segment across participating PEs and is consistently configured where required. The ESI must be non-zero as a meaningful segment identifier, but the specific octet restriction in the option is not the SR Linux all-active configuration rule. Reference: SR Linux L2 EVPN all-active multi-homing, Ethernet Segment configuration, LAG association.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

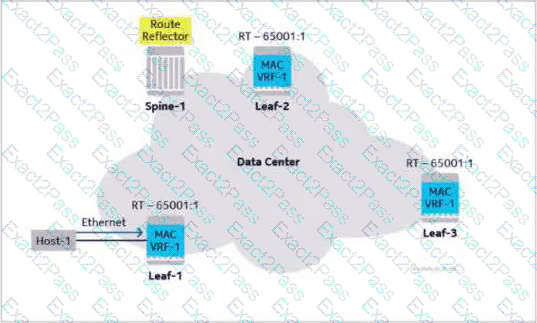

The route target is the extended community consistently associated with EVPN updates to control route import and export between EVPN instances. In SR Linux EVPN services, route targets determine which MAC-VRF or IP-VRF should import a received EVPN route. This is essential for tenant separation because multiple tenants may use overlapping MAC or IP address spaces while sharing the same physical fabric and BGP control plane. The AFI/SAFI is not an extended community; it identifies the BGP address family and subsequent address family used to carry EVPN NLRI. The EVPN route type is also not an extended community; it is part of the EVPN NLRI structure and identifies whether the route is RT-1, RT-2, RT-3, RT-4, RT-5, and so on. The VXLAN network ID may be carried or inferred through service and encapsulation-specific attributes, but it is not universally present as the required extended community in every EVPN update. The route target is the mandatory policy element that enables receiving PEs to place EVPN routes into the correct service context. Reference: EVPN extended communities, route-target import/export policy, tenant service identification.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

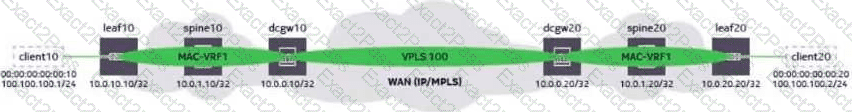

For Layer 2 data center interconnect using an integrated gateway, VPLS 100 on the Nokia 7750 SR represents the WAN-side Layer 2 VPN service. The VPLS requires an EVI because EVPN uses the EVI to identify the L2 service instance in the control plane. It also requires BGP EVPN signaling with the appropriate route targets so the local and remote service instances can import the correct EVPN routes. Because the service is transported across the WAN, the BGP/EVPN instance must be associated with the MPLS transport tunnels toward the remote gateway, dcgw20. A VXLAN instance with a VNI is not configured in the 7750 SR VPLS 100 for this integrated WAN gateway service. The VXLAN/VNI mapping is used inside the SR Linux data center fabric where MAC-VRF services are transported over VXLAN. On the WAN side, the VPLS service is carried using MPLS/EVPN mechanisms, not a VXLAN VNI configured directly under the VPLS. Reference: integrated gateway DCI, L2 EVPN/VPLS interworking, EVI and route-target operation.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

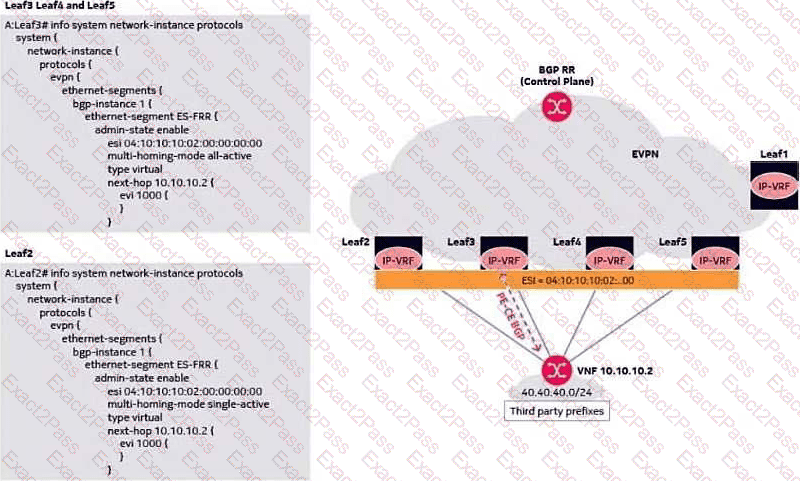

The exhibit describes a Layer 3 multi-homing scenario where the Ethernet Segment is associated with an IP-VRF and the configuration references an EVI value of 1000. The segment is configured with all-active multi-homing, allowing multiple attached leaf routers to advertise reachability for the same external L3 next-hop or third-party prefix attachment. In this model, the Ethernet Segment represents the shared L3 attachment and is used by EVPN to associate remote prefix reachability with the multi-homed segment. The incorrect statement is that a LAG must be configured on the connected leaf routers and the host. That requirement is specific to many Layer 2 all-active host attachment designs, where the host commonly uses LACP toward multiple leaf routers and the leaf LAG subinterfaces are associated with the Ethernet Segment. In Layer 3 multi-homing, the attached device can be a router or VNF, and the EVPN ES association can be used for L3 prefix reachability without mandating that the host side be configured as a LAG. Reference: L3 EVPN multi-homing, EVI association, all-active Ethernet Segment behavior.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

A BGP route target is an extended community used to control which EVPN routes are imported into which MAC-VRF or IP-VRF. It is carried with EVPN updates and acts as the import/export policy tag for tenant service membership. The statement that it is a BGP extended community is correct. It is also correct that route targets support multi-tenant operation, because they allow different EVPN instances to carry potentially overlapping MAC or IP information while importing only the routes intended for that service. However, option D is false in the wording used here. The route target does not itself identify the EVPN instance in the control plane as a unique route identifier. That role is more closely associated with the route distinguisher and EVPN NLRI construction, while the route target determines import eligibility. A route target tells a receiving PE whether the route belongs in a local service instance, but it is not the unique identity of the EVPN route. This distinction is critical: route distinguishers make routes unique; route targets control route distribution and service membership. Reference: EVPN route targets, BGP extended communities, route import/export policy, RD versus RT function.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

Ethernet Auto-Discovery per EVI information is used in EVPN multi-homing to advertise that a PE has reachability to a particular Ethernet Segment for a specific EVPN instance. Remote PEs use this information for aliasing, allowing them to forward known unicast traffic toward a multi-homed Ethernet Segment through eligible PEs rather than relying only on the PE that advertised a specific MAC route. In VXLAN-based EVPN, the update also carries information needed by remote peers to select the proper data-plane encapsulation and VNI for the service. The multi-homing behavior advertised with the Ethernet Segment enables remote peers to understand whether the attachment is operating in all-active or single-active mode. Option D is the false statement in this context because route-target handling is a general BGP EVPN import/export mechanism associated with VPN route policy and extended communities; it is not the specific operational function that defines AD per EVI behavior. The AD per EVI route's purpose is Ethernet Segment reachability for an EVI, not route-target-based service identification by itself. Reference: EVPN route type 1, AD per EVI, aliasing and multi-homing signaling.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

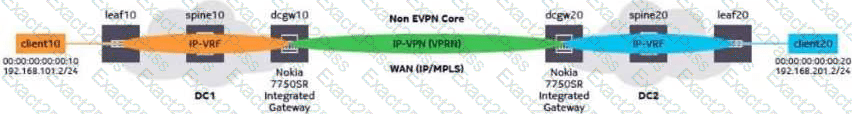

In an integrated gateway-based DCI solution, the data center gateway and WAN PE functions reside on the same router. This device acts as the interworking point between the data center EVPN/VXLAN environment and the WAN transport service. It may need to translate or interwork between VXLAN encapsulation in the data center and MPLS or another WAN tunneling protocol in the WAN. For Layer 3 services, the integrated gateway may also re-advertise EVPN routes learned from the data center fabric into VPN-IPv4 or VPN-IPv6 routes for transport across the WAN. Option B does not describe the integrated gateway model. A border leaf using eBGP or static routes to interconnect with a gateway is a decoupled gateway-based design, where the data center border leaf and WAN PE/gateway are separate devices with a routing handoff between them. In the integrated model, that border-leaf-to-separate-gateway handoff is not the defining architecture because the gateway and WAN PE roles are combined on one router. Reference: integrated gateway DCI, VXLAN-to-WAN interworking, EVPN to VPN-IPv4/VPN-IPv6 re-advertisement, decoupled gateway distinction.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

Aliasing is an EVPN multi-homing mechanism that allows remote PEs to send traffic to any eligible PE attached to the same Ethernet Segment, even if a specific MAC address was learned and advertised by only one of those PEs. This avoids a traffic bottleneck and enables load-sharing in all-active multi-homing designs. The route type used to implement this behavior is the Ethernet Auto-Discovery per EVI route, commonly referred to as AD per EVI. This route tells remote PEs that a given PE has reachability to a specific Ethernet Segment for a specific EVPN instance. When remote PEs receive these advertisements from multiple PEs for the same ESI and EVI, they can treat those PEs as valid next-hops for traffic toward that Ethernet Segment. Ethernet Segment routes support ES discovery and DF election, while IP/MAC routes advertise host MAC and optionally IP binding information. AD per ES routes are used for broader Ethernet Segment-level procedures, but aliasing at the service level relies on AD per EVI reachability. Reference: EVPN route type 1, AD per EVI, aliasing in all-active multi-homing.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

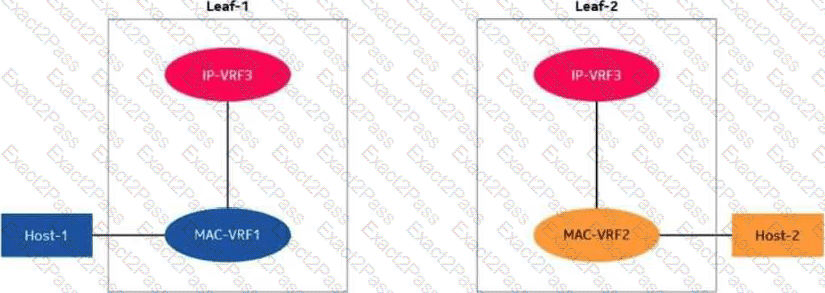

In asymmetric L3 EVPN routing, the ingress PE performs the routing decision and then sends traffic across the overlay in the context of the destination MAC-VRF. The egress PE performs Layer 2 MAC forwarding only toward the destination host. This is why options A and B correctly describe asymmetric data-plane behavior. Asymmetric routing relies heavily on EVPN route type 2 MAC/IP Advertisement routes because the ingress PE must know the destination host's MAC/IP binding and the destination bridge domain information. EVPN route type 5, which advertises IP prefixes, is a symmetric L3 EVPN mechanism and is not mandatory for asymmetric routing. Therefore, option C is false. Option D is treated as correct in this asymmetric-routing model because each PE participating in inter-subnet forwarding needs the destination MAC-VRF context to encapsulate traffic toward the correct L2 VNI. This requirement is one reason asymmetric routing scales less efficiently than symmetric routing: MAC-VRF presence and host reachability information must be broadly available. Symmetric routing improves scale by using an IP-VRF routed VXLAN interface and RT-5 prefix routes instead. Reference: asymmetric L3 EVPN routing, ingress IP/MAC forwarding, egress MAC forwarding, RT-2 versus RT-5 usage.

================
