The product name extension " -L " is recommended for environments requiring low-light performance. Axis cameras with the " -L " extension are equipped with integrated IR illumination, making them suitable for low-light or nighttime surveillance. This ensures clear and detailed images even in challenging lighting conditions. Axis Communications ' product naming conventions and specifications confirm this recommendation.

For a 1920x1080 camera, the pixel density at a distance of 3 meters (10 feet) can be calculated using the formula for pixel density (pixels per meter/foot). Given the resolution and distance, the pixel density is 162 pixels per meter (54 pixels per foot). Axis provides guidelines and tools for calculating pixel density to ensure the camera setup meets the required image quality for identification and recognition purposes in their technical resources and planning tools.

AXIS M3057-PLVE MkII and AXIS P1378-LE both have built-in IR LED illumination. This feature is crucial for enhancing visibility in low-light conditions or complete darkness, making them suitable for various surveillance applications. The built-in IR LEDs ensure that these cameras can provide clear images even in challenging lighting environments.

Closing the aperture at a fixed focal length increases the f-number (aperture value), resulting in a longer depth of field. This means that a greater portion of the scene will be in focus, both in the foreground and background. A higher f-number indicates a smaller aperture, which allows less light to enter the lens but enhances the sharpness and clarity of the image over a larger depth. References: Axis Communications camera optics and image quality documentation.

Top of Form

Bottom of Form

The AXIS P3807-PVE and AXIS Q3819-PVE are multi-sensor cameras. Multi-sensor cameras have multiple image sensors within a single camera housing, providing wide-area coverage and high-resolution images. These cameras can capture different angles simultaneously, making them ideal for large areas where comprehensive coverage is needed. References: Axis Communications product specifications for multi-sensor cameras.

“PoE+ (IEEE 802.3at) provides up to 30 W of power per port, which is required for PoE+ devices such as PTZ cameras and certain outdoor models.”

— Axis PoE Guide

“A standard PoE+ device requires 30 W at the source.”

— Axis Communications Academy, Network Video Fundamentals, 2022

The XF/XP product line is specifically designed for hazardous areas. These cameras are certified for use in environments where flammable gases, vapors, or dust may be present. They meet the necessary safety and compliance standards for such conditions, making them suitable for deployment in hazardous areas. This recommendation is based on Axis Communications’ documentation on product lines certified for hazardous environments.

" A lens with a lower f-number (larger aperture) allows more light to reach the image sensor, which is beneficial for low-light performance. For example, an aperture of f/2.0 lets in significantly more light than f/3.6, f/5.6, or f/8.0. "

— Axis Communications Academy, Network Video Fundamentals, 2022

" The amount of light entering the camera is inversely related to the f-number. The lower the f-number, the wider the aperture, and thus, more light is gathered by the image sensor. "

— Axis Communications, Lens Guide

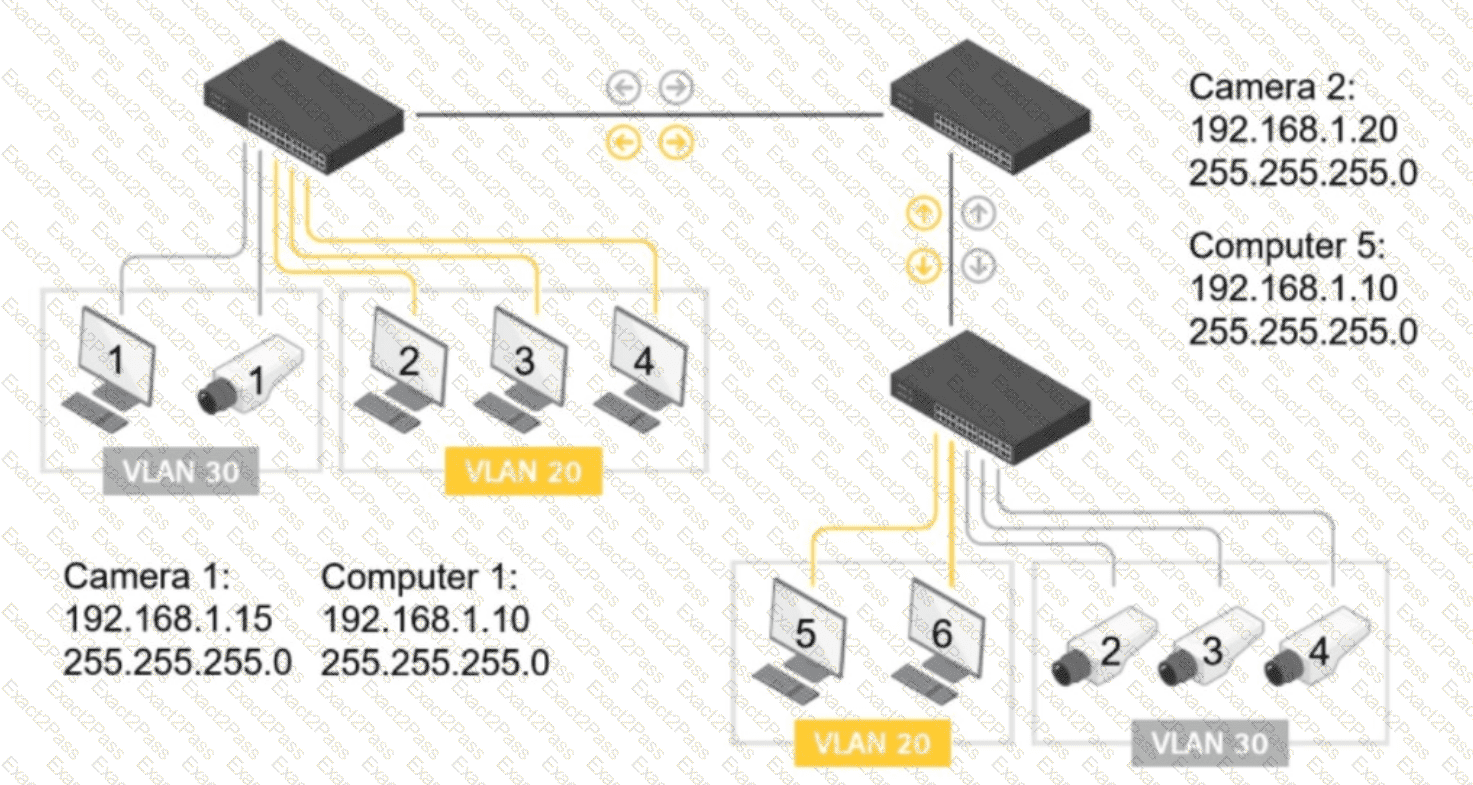

" Both Computer 1 (192.168.1.10) and Computer 5 (192.168.1.10) have the same IP address assigned within the same network (192.168.1.0/24). This creates an IP address conflict, causing communication errors on the network. "

— Axis Communications Academy, Network Video Fundamentals, 2022

" An IP address conflict occurs when two devices share the same IP address, resulting in communication issues for both devices. "

— Axis Networking Basics Guide

" Lightfinder technology provides Axis cameras with extreme light sensitivity, enabling them to deliver high-quality, full color images in extremely low-light conditions. "

— Axis Lightfinder Technology Overview

" Lightfinder technology allows for color images in situations where other cameras would only produce black-and-white. "

— Axis Communications Academy, Network Video Fundamentals, 2022
