Because the host model itself has not changed, the first investigation should focus on how the external references are being resolved. Relative paths depend on the relationship between the host file and the linked files within the project folder structure. If a folder was renamed, relocated, synchronized differently, or omitted from a distributed package, Revit may no longer locate the linked models even though the links remain correctly configured in the host.

The BIM manager should review the link status and saved paths in Manage Links , confirm that the referenced files still exist, and compare the current folder structure with the approved project structure. Access permissions, cloud synchronization status, and network availability should also be checked where applicable.

Converting all references to absolute paths would make the links dependent on a specific drive or network location and commonly causes failures for other users. Removing and reinserting links risks losing positioning, pinning, display overrides, workset assignments, and coordination history. Rebuilding the host from backup is disproportionate and does not address an external path or access failure.

Reference topics: Manage Links; relative file paths; federated-model folder structures; reference resolution; link-status troubleshooting; Common Data Environment access.

===============

A complete absence of clashes on a large multidisciplinary retail project is more likely to indicate an input or positioning problem than perfect coordination. The BIM manager should first confirm that every published model uses the approved shared-coordinate system and appears in the correct horizontal position, elevation, and orientation. Models exported using unrelated internal or project coordinates may be separated by a substantial distance in the coordination space, preventing the clash engine from detecting intersections.

After correcting the source models, the teams should republish the designated coordination views and verify visually that the architectural, structural, and building-services models overlay correctly before rerunning clash detection. Publication status, model versions, included geometry, and coordination-space assignments should also be checked.

Adding sheets does not affect three-dimensional clash detection because sheets are documentation containers rather than coordinated model geometry. Proceeding on the assumption that zero results means zero issues would bypass essential input validation. A case study would be inappropriate until the unexpected result has been investigated and confirmed.

The governing principle is that clash results are only reliable when the model inputs, coordinate systems, publication settings, and federation are validated first.

Reference topics: Shared coordinates; model publication; coordination-space validation; clash-detection inputs; federated-model positioning; quality assurance.

===============

Because the same model opens successfully for every other team member, the central or cloud-hosted model is unlikely to be the primary cause. The failure is isolated to one workstation or user profile. After the model itself has already been audited and compacted, the most appropriate next action is to clear that user’s local collaboration cache and allow Revit to rebuild the locally stored model data during the next connection attempt.

Cloud-workshared Revit models rely on locally cached information to reduce transfer time and support synchronization. A damaged, incomplete, or obsolete cache can prevent one user from opening a model even though the authoritative cloud version remains healthy. Re-creating the local cache is therefore a targeted and proportionate troubleshooting step.

A hardware upgrade is not justified without evidence of insufficient memory, storage, graphics capability, or processor resources. Rolling the model back would affect the entire team and could discard valid work despite the model opening normally for other users. Republishing the model also fails to address a user-specific local condition and may unnecessarily alter the project’s delivery state.

Reference topics: Revit cloud-worksharing troubleshooting; collaboration cache management; user-specific model access; audit and compact; fault isolation; Autodesk cloud-model workflows.

===============

A project-closeout handover package should contain verified record models populated with the asset information required by the owner’s operational and facilities-management processes. Depending on the defined information requirements, this may include asset identifiers, classification, manufacturer and model data, installation information, warranty details, maintainability fields, commissioning status, spatial relationships, and links to associated documentation.

The record model must represent the accepted project condition rather than an intermediate coordination state. It should undergo final validation for required parameters, naming, file format, model structure, and information completeness before delivery. Where COBie or another structured asset-data format is required, the embedded model information should correspond with the exported dataset.

Federated clash-detection models and temporary 3D coordination views are process artifacts. They may be archived where the contract or organizational retention policy requires them, but they are not normally the principal operational deliverable. Internal coordination notes likewise document project activity but do not provide the owner with a usable digital representation of the completed facility.

The defining characteristic of a BIM handover deliverable is verified, structured information that supports the owner’s specified post-project uses.

Reference topics: BIM closeout; record models; asset-information requirements; COBie; facilities-management handover; data validation; digital deliverables.

===============

Warnings should be managed through structured triage rather than treated as one undifferentiated backlog. The BIM manager should demonstrate how the Revit Warnings dialog groups recurring conditions by warning type, allowing the team to identify high-volume patterns and understand their underlying causes. Examples include duplicate instances, overlapping elements, disconnected systems, room-separation conflicts, and constraints that are no longer satisfied.

The team should then classify warnings according to severity, coordination impact, data integrity, and performance risk. Critical warnings should be corrected first, while lower-risk conditions should be documented and reviewed against the project’s agreed warning-management standard. Teaching users how to select affected elements, use Show , review contextual information, and research the relevant Revit behaviour creates sustainable capability rather than dependency on the BIM manager.

Bulk deletion is unsafe because the affected elements may be valid design content. Ignoring every warning through an add-in conceals model-health problems without resolving them. Creating a cloud issue for each individual warning would generate excessive administrative noise and is not an appropriate substitute for native model-quality management.

Reference topics: Revit warning management; model-health training; warning categorization; quality-control procedures; team capability development.

===============

The Model Element Table and LOD matrix define the required progression of geometry and information at the element level. They establish which party is responsible for each model element, the stage at which it must be developed, the required geometric maturity, and the associated non-graphical data needed for coordination, procurement, construction, and asset handover.

This element-specific structure is essential when the owner’s facilities-management system requires defined asset fields and consistent information formats. It prevents teams from assuming that visual completeness automatically means data completeness. For example, an equipment object may appear adequately modelled but still lack classification, manufacturer, serial-number, maintainability, warranty, or commissioning information.

A Master Information Delivery Plan is useful for scheduling broader information exchanges, but it normally operates at the deliverable or task-team level rather than defining detailed information requirements for individual model-element categories. Naming protocols and authoring standards govern production consistency but do not specify who develops each asset and to what information level. A quantity-takeoff checklist is too narrow.

The Model Element Table and LOD matrix therefore provide the clearest mechanism for assigning element ownership and defining required geometry and information through handover.

Reference topics: Model Element Table; LOD matrix; level of information need; asset-data requirements; element responsibility; facilities-management handover.

===============

A structured performance audit is the correct starting point because it evaluates the model comprehensively rather than assuming a single cause. The review should examine warning quantity and severity, file size, imported or linked CAD data, excessive views, unused content, model groups, in-place families, highly detailed components, workset configuration, and other authoring practices that can increase regeneration time and memory consumption.

In-place families are particularly relevant because numerous or geometrically complex instances can make the model difficult to maintain and may increase computational overhead. Warning trends also matter: some warnings create repeated relationship checking or indicate poor modelling practices, although warning count alone does not determine performance.

Deleting sheets or exporting only 3D views damages the project’s documentation structure and does not constitute a controlled health-improvement strategy. Clash reports evaluate multidisciplinary spatial conflicts; they do not diagnose the internal efficiency of the submitted Revit model. Loading linked files individually can be useful later when evidence specifically implicates a link, but it is too narrow as the primary health assessment.

The audit should produce documented findings, prioritized recommendations, and measurable actions that the consultant can implement without compromising required project deliverables.

Reference topics: Revit model-health audits; performance management; warnings; in-place families; file-size analysis; consultant model review; coordination readiness.

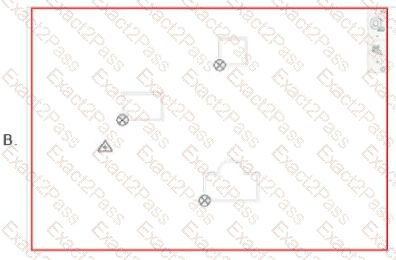

Exhibit 3 represents the correct multi-building coordination condition. It shows the three building models occupying their intended and separate locations while referencing a common site-coordinate framework. Each building retains the model reference required for its individual internal setup, but all models are related to one consolidated site reference, thereby preserving their geographic placement and orientation when linked into the site model.

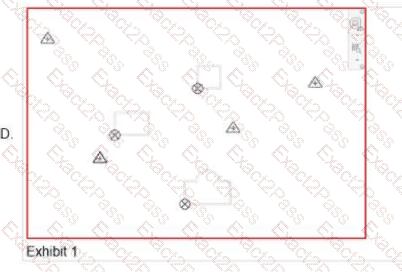

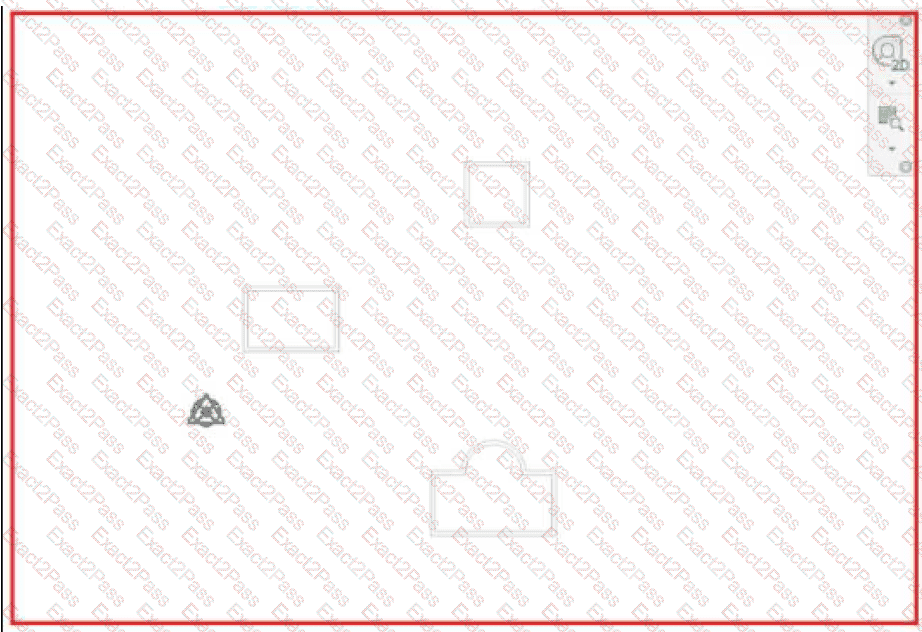

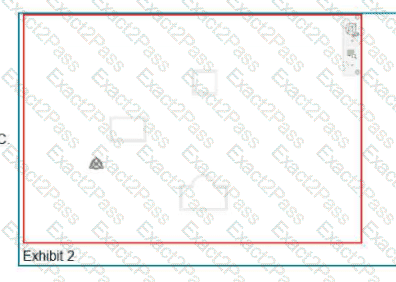

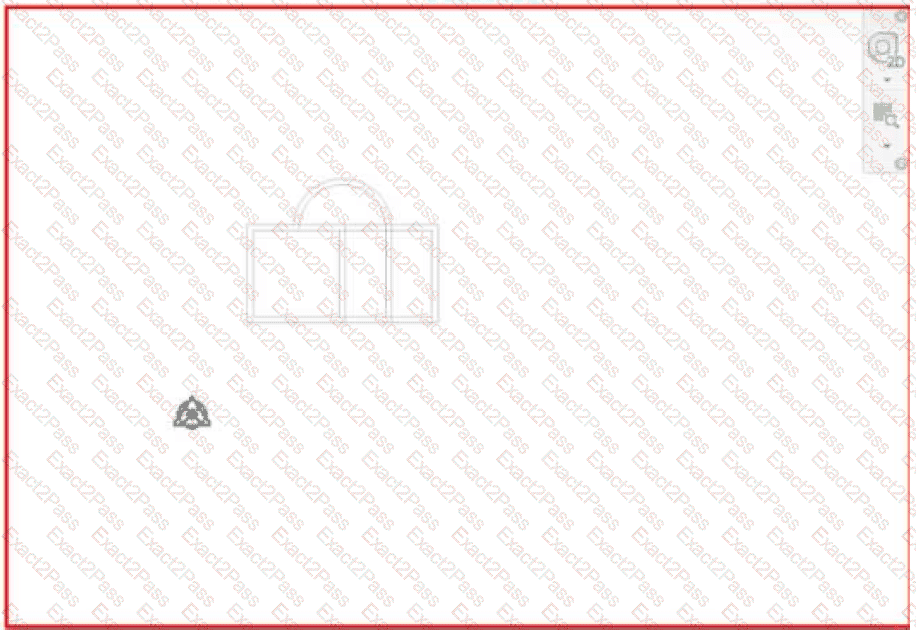

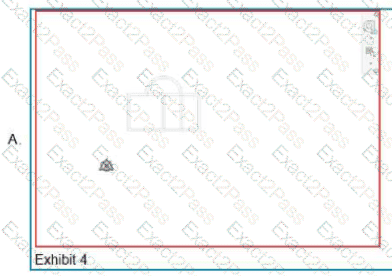

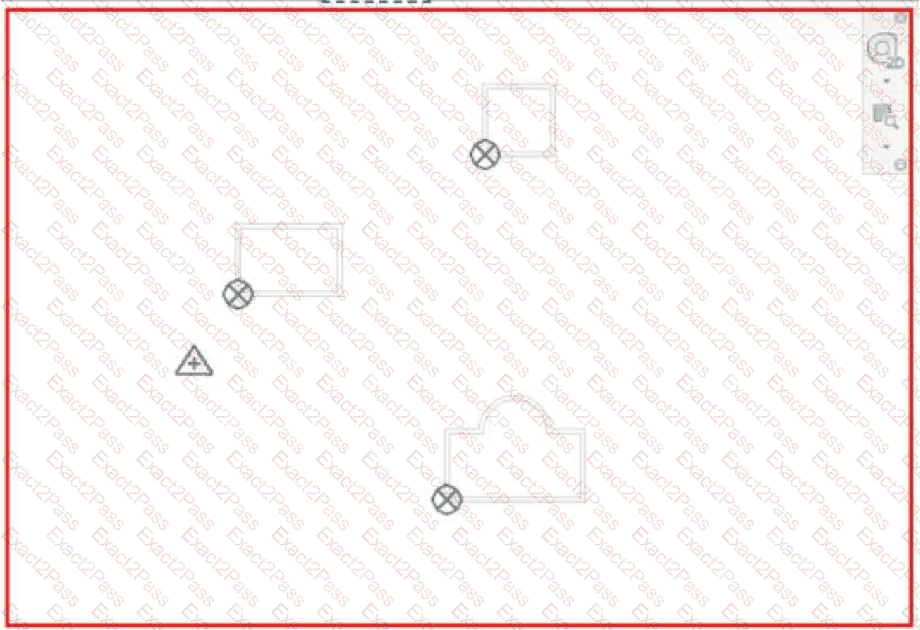

Exhibit 1 displays multiple displaced site-reference indicators, suggesting that the building models have not been reconciled to one authoritative shared-coordinate system. This condition creates a risk that models will appear correctly only when manually positioned and will subsequently shift when reloaded or exchanged. Exhibit 2 does not demonstrate the required relationship between the individual building origins and the shared site reference. Exhibit 4 places the building geometries on top of one another, which is characteristic of models linked using a common internal origin without applying their correct site positions.

For a campus or multi-building project, the site model should function as the authoritative spatial reference. Each building model is positioned against that site definition, and the coordinated relationship is retained through shared positioning rather than repeated manual movement. This allows consistent federation, consultant exchange, reload behavior, and downstream coordination.

Reference topics: Shared coordinates; multi-building projects; site-model authority; linked-model positioning; survey and internal reference management; model federation.

===============

The existing project levels should be retained because the preset floor plans, reflected ceiling plans, and other level-associated views already placed on sheets depend on them. The BIM manager should align those levels with the authoritative as-built levels and then establish monitoring where appropriate. The linked grids can be created in the host through Copy/Monitor , providing native project grids that correspond to the resource model.

Deleting the template levels would also delete or disrupt dependent views, resulting in precisely the extensive sheet and view reconstruction the question requires the BIM manager to avoid. A Scope Box controls datum extents and view cropping; it does not reconcile level elevations or create coordinated grid elements. Hiding the host levels and displaying only linked datums would leave the host project without properly coordinated native reference elements and would not support reliable modelling or documentation.

After alignment and copying, the team should review Copy/Monitor warnings whenever the linked as-built model changes. This preserves the firm’s established documentation infrastructure while integrating authoritative project-specific datum information.

Reference topics: Copy/Monitor; level-associated views; linked as-built models; grid coordination; Revit template reuse; datum management.

===============

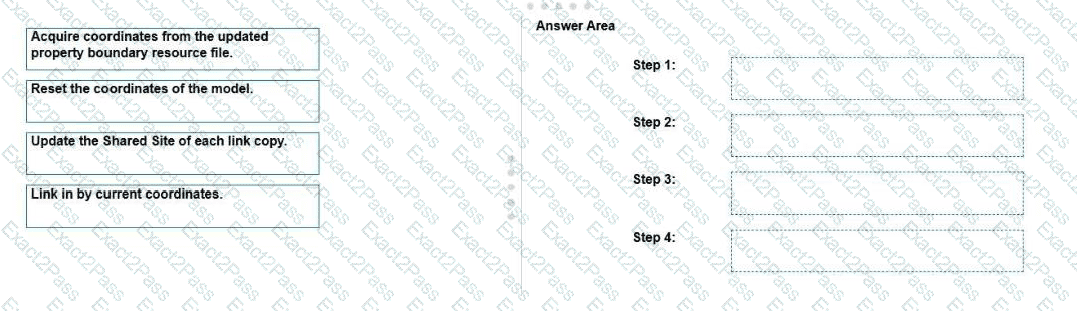

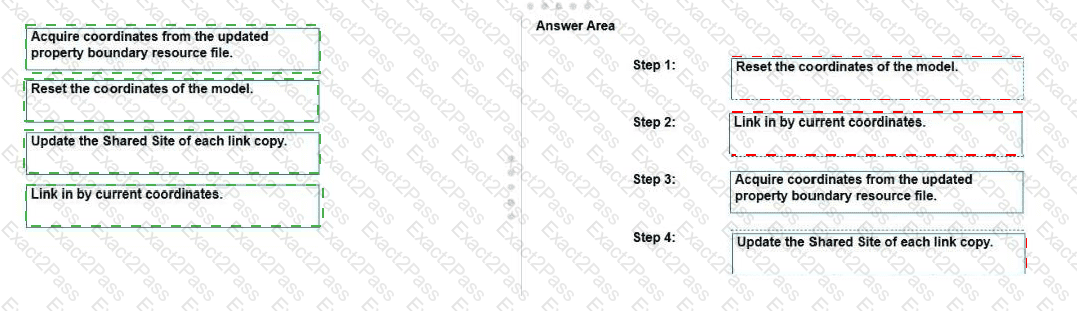

Step 1: Reset the coordinates of the model.

Step 2: Link in by current coordinates.

Step 3: Acquire coordinates from the updated property boundary resource file.

Step 4: Update the Shared Site of each link copy.

The existing shared-coordinate relationship must first be cleared because the authoritative civil background now contains revised GIS positioning. Resetting the model coordinates removes the obsolete relationship and prepares the architectural model to establish a new shared-coordinate system without physically moving its authored building geometry.

The updated property-boundary or civil resource is then linked using its current positioning so that it can serve as the authoritative coordinate source. Once the updated reference is correctly positioned, the architectural model acquires coordinates from that file. Acquiring coordinates transfers the civil model’s survey-coordinate definition into the host while preserving the architectural model’s internal origin and local modelling arrangement.

The final step is to update the Shared Site assigned to each duplicated building-link instance. This is necessary because multiple copies of the same building model may occupy different campus locations or orientations. Each link instance must reference the appropriate named site position so that the copies remain correctly placed after the revised GIS coordinate system is adopted.

Changing link sites before updating the host coordinate framework would apply positions against outdated coordinate data and could displace the campus federation.

Reference topics: Shared coordinates; Acquire Coordinates; named Shared Sites; campus model assembly; GIS and civil-reference updates; duplicated Revit links.

===============
