When replacing a 3.5" hard drive in a Dell EMC PowerScale Gen 6 drive sled, it's crucial to follow the proper procedures to ensure the drive is installed correctly and securely.

Drive Sled Handle Position:

Handle Should Be Open Before Insertion:

Before pushing the drive sled forward into the node chassis, the handle of the drive sled must be in the open position.

This allows the drive sled to slide into the chassis without obstruction.

Securing the Drive Sled:

Once the drive sled is fully inserted, you then close the handle to lock the sled into place.

Closing the handle engages the locking mechanism and ensures proper connectivity between the drive and the backplane.

Why the Handle Should Be Open:

Prevent Damage:

Inserting the sled with the handle closed can cause damage to the drive connectors or the chassis backplane.

Ease of Installation:

An open handle provides leverage and guidance during insertion.

Dell PowerScale References:

Dell EMC PowerScale Hardware Replacement Guide:

Section on Drive Replacement Procedures :

Specifies that the drive sled handle should be open when inserting the drive sled.

Provides illustrations showing the correct position of the handle during installation.

Best Practices:

Always handle drives and sleds carefully to prevent electrostatic discharge (ESD) damage.

Ensure the drive sled is fully seated before closing the handle.

When a platform engineer connects to a Dell PowerScale F600 node using a serial connection and the session is unresponsive, the first action should be to check the settings of the serial connection . Serial communication requires specific configuration parameters to establish a successful connection. An incorrect setting can result in an unresponsive session.

The standard serial connection settings for Dell PowerScale nodes are:

Baud Rate: 115200

Data Bits: 8

Parity: None

Stop Bits: 1

Flow Control: None

Steps to resolve the issue:

Verify Serial Port Configuration:

Open your terminal emulator software (e.g., PuTTY, Tera Term).

Check that the serial port settings match the required parameters.

Confirm Physical Connections:

Ensure that the serial cable is securely connected to both the laptop and the node's serial port.

Test the Serial Cable:

If possible, test the cable with another device to rule out a faulty cable.

Restarting the server or updating firmware is unnecessary at this stage and could introduce additional issues. Replacing the serial cable should only be considered after confirming that the settings and connections are correct.

References:

Dell PowerScale Hardware Installation and Planning Guide – Serial Connection Settings

Dell PowerScale OneFS CLI Administration Guide – Accessing the Cluster Through a Serial Connection

Dell Knowledge Base Article – Troubleshooting Serial Console Access

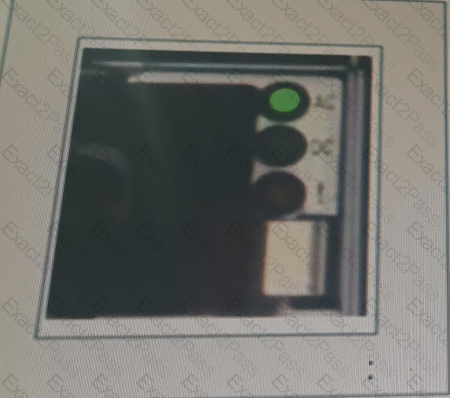

In the exhibit, the status indicators show:

AC (Alternating Current): A green light indicating the PowerScale system is receiving power from the AC input, which means it is powered on.

DC (Direct Current): The absence of a lit DC indicator means that the system is not currently converting AC power to DC power, but this does not indicate an issue with functionality based on this view.

Given that the AC light is green, the system is powered and functioning as expected. Therefore, the system is "On and healthy" based on the AC input, making B. On and healthy the correct answer.

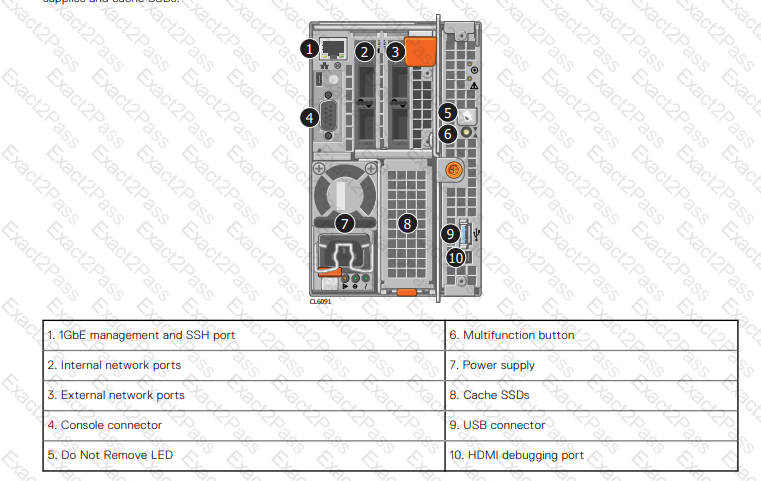

Callout 4 in the exhibit refers to the console connector on the Dell EMC PowerScale Gen6 node. The console connector provides front-end Ethernet connectivity, enabling the management of the node. This connector is typically used for direct access during the initial configuration, maintenance, or troubleshooting activities.

This front-end console port allows administrators to log in to the node using a console cable to access the system for configurations or debugging purposes.

The Command Line Interface (CLI) provides the most comprehensive and detailed interaction with a Dell PowerScale cluster. Through the CLI, administrators have access to a wide range of commands that offer detailed network traffic statistics, system performance metrics, and the ability to perform granular file and directory operations.

While the Web console offers a user-friendly graphical interface for cluster management, it may not provide the same level of detail or the full set of functionalities available in the CLI. The Serial console is primarily used for initial setup or troubleshooting when network access is unavailable. The Platform API allows for programmatic access but requires additional development effort to utilize.

The CLI is accessible via SSH and provides tools like isi statistics for detailed performance metrics and isi commands for file system operations. This makes it the most powerful interface for administrators needing in-depth information and control over the cluster.

References:

Dell PowerScale OneFS Command-Line Administration Guide

Dell PowerScale OneFS CLI Reference Guide

To ensure nondisruptive upgrades in an SMB environment, SMB Continuous Availability (CA) must be enabled. SMB CA allows file shares to remain accessible without interruption during planned maintenance or unexpected node failures.

Key features of SMB Continuous Availability:

Transparent Failover:

Client sessions persist seamlessly when the SMB service fails over to another node.

State Preservation:

Open files, locks, and session states are maintained during the failover.

High Availability:

Enhances the cluster's ability to provide uninterrupted service.

Steps to enable SMB Continuous Availability:

Verify OneFS Version:

Ensure the cluster is running OneFS version that supports SMB 3.0 or higher.

Enable SMB CA on the Cluster:

Use the OneFS WebUI or CLI to enable Continuous Availability for SMB shares.

Configure SMB Shares:

Set the "Continuous Availability" option on the specific SMB shares that require it.

Client Requirements:

Clients must be running Windows 8 or Windows Server 2012 (or later) to support SMB CA.

By enabling SMB Continuous Availability, upgrades and maintenance can be performed without disrupting client access to file shares.

References:

Dell PowerScale OneFS SMB Administration Guide – Configuring SMB Continuous Availability

Dell PowerScale OneFS Upgrade Planning Guide – Ensuring Nondisruptive Upgrades

Microsoft SMB Protocol Documentation – SMB 3.0 Features

During installation planning for a Dell PowerScale cluster, verifying IP addresses is a critical detail that must be addressed.

Importance of IP Addresses in Installation Planning:

Network Configuration:

PowerScale clusters rely heavily on network connectivity for data access, management, and cluster operations.

Proper IP addressing ensures that nodes can communicate with each other and with clients.

Cluster Communication:

Nodes use internal networks (backend) and external networks (frontend) requiring accurate IP configurations.

SmartConnect Zones:

IP addresses are essential for configuring SmartConnect, which provides load balancing and failover for client connections.

Components Requiring IP Address Verification:

Node Interfaces:

Each node may have multiple network interfaces that need IP addresses.

Management Interfaces:

IP addresses for management access, such as iDRAC and OneFS web administration.

Subnet and VLAN Configurations:

Ensuring correct subnet masks and VLAN IDs are associated with the IP addresses.

DNS and NTP Servers:

IP addresses of external services that the cluster will interact with.

Consequences of Incorrect IP Address Planning:

Communication Failures:

Nodes may fail to join the cluster if they cannot communicate due to IP conflicts or misconfigurations.

Client Access Issues:

Clients may be unable to access data if IP addresses are not correctly assigned or mapped.

Security Risks:

Incorrect IP configurations can expose the cluster to unauthorized access or network vulnerabilities.

Why Other Options Are Less Critical at Installation Planning Stage:

B. SyncIQ license:

SyncIQ is used for replication between clusters.

While important for data protection, the license can be applied after initial installation.

Not critical for the initial setup unless replication is required immediately.

C. Switch OS version:

While network switch compatibility is important, the specific OS version is usually less critical unless known issues exist.

Ensuring switches support required features (e.g., LACP, VLAN tagging) is important, but OS version verification is often part of network planning, not specifically installation planning.

D. Node serial numbers:

Serial numbers are used for support and warranty purposes.

While they should be documented, they do not impact the installation process directly.

Best Practices for IP Address Planning:

Create an IP Address Scheme:

Document all required IP addresses, subnets, and VLANs.

Reserve IP Addresses:

Ensure that all necessary IP addresses are reserved in DHCP servers or excluded from DHCP pools if using static IPs.

Verify Network Connectivity:

Test network connections and IP addresses before installation.

Dell PowerScale References:

Dell EMC PowerScale Networking Guidelines:

Provides detailed information on network planning and IP address configuration.

Dell EMC PowerScale Network Design Considerations

Dell EMC PowerScale Installation Checklist:

Outlines the necessary steps and considerations for installation planning, highlighting the importance of IP addresses.

Dell EMC PowerScale Installation Checklist

Knowledge Base Articles:

Article ID 000456789: "Network Planning for PowerScale Cluster Installation"

Article ID 000456790: "Common Networking Pitfalls During PowerScale Installation"

When replacing a failed chassis in a Dell PowerScale Gen6 cluster, it's critical to preserve the data and configuration by maintaining the exact placement of the drive sleds. After powering off the nodes, the engineer should:

Remove Drive Sleds:

Carefully remove each drive sled from the failed chassis.

Label for Identification:

Label each drive sled with its corresponding slot number or unique identifier.

Install New Chassis:

Mount the new chassis in the rack where the failed one was located.

Reinstall Drive Sleds:

Insert the labeled drive sleds into the same slots in the new chassis.

Power On Nodes:

Power on the nodes and verify that they boot correctly and rejoin the cluster.

This procedure ensures that the drives remain in their original configuration, preserving data integrity and cluster settings. There's no need to transfer motherboards or reimage drives, as these actions could disrupt cluster operations and lead to data loss.

References:

Dell PowerScale Hardware Replacement Guide – Chassis Replacement Procedures

Dell PowerScale OneFS Administration Guide – Best Practices for Hardware Maintenance

Dell Knowledge Base Article – Preserving Drive Order During Chassis Replacement

Before performing any maintenance activities on a Dell PowerScale platform, it is crucial to consult Dell SolVe Online . This tool provides comprehensive, step-by-step procedures, best practices, and necessary precautions for servicing Dell EMC equipment.

Dell SolVe Online Overview:

Service and Procedures Resource:

An online platform offering detailed service procedures for Dell EMC products.

Customized Instructions:

Generates procedure guides tailored to specific tasks and equipment models.

Safety and Compliance:

Includes safety warnings and regulatory compliance information.

Importance in Maintenance Activities:

Accurate Procedures:

Ensures that maintenance tasks are performed correctly, reducing the risk of errors.

Updated Information:

Provides the latest procedures reflecting current best practices and product updates.

Resource for Technicians:

Essential for both Dell EMC technicians and customers performing self-maintenance.

Using Dell SolVe Online:

Accessing the Tool:

Available at the Dell support website (requires login credentials).

Selecting the Product:

Choose the specific PowerScale model to get relevant procedures.

Generating Procedures:

Select the desired maintenance activity to receive a detailed guide.

Why Other Options Are Less Suitable:

B. Dell Technical Support:

While valuable, it's more reactive and may not provide step-by-step procedures without direct engagement.

C. Dell iDRAC Service Module:

Used for system management and monitoring, not for procedural guidance.

D. OneFS Logs and Error Messages:

Useful for troubleshooting but do not provide maintenance procedures.

Dell PowerScale References:

Dell SolVe Online Portal:

The primary resource for service procedures.

Dell EMC PowerScale Maintenance Guides:

Referenced within SolVe Online procedures.

Support Documentation:

Accessible through Dell's support site, often linked within SolVe Online.

A ShockWatch meter is a device attached to shipping containers or equipment that indicates if the item has been exposed to excessive shock or mishandling during transit. If the ShockWatch meter has been activated (typically indicated by a color change), it suggests that the equipment may have been subjected to impact beyond acceptable limits.

Recommended Action:

Contact Dell EMC PowerScale Technical Support:

Before proceeding with unpacking or installation, you should report the activated ShockWatch meter to Dell EMC.

Technical Support may advise on additional inspections, testing, or replacement of the affected components.

Why Option C is Correct:

Potential Equipment Damage:

An activated ShockWatch meter indicates possible damage that may not be immediately visible.

Manufacturer Guidance:

Dell EMC can provide instructions to ensure that any damaged equipment is identified and addressed.

Safety Considerations:

Prevents potential issues that could arise from installing compromised hardware.

Why Other Options Are Incorrect:

Option A (Deactivate the ShockWatch meter):

The ShockWatch meter cannot be deactivated once triggered.

Option B (Reset the ShockWatch meter):

The meter is not resettable; it's a single-use indicator.

Option D (Proceed with unpacking):

Ignoring the activated meter could lead to installing damaged equipment.

Dell PowerScale References:

Dell EMC Shipping and Handling Guidelines:

ShockWatch Indicators:

Explain the purpose of ShockWatch meters.

Provide instructions on what to do if the meter is activated.

Technical Support Procedures:

Reporting Shipping Damage:

Emphasize the importance of reporting any signs of damage upon receipt.

Outline the steps for contacting support and initiating any necessary actions.

Best Practices:

Inspect All Shipments:

Upon receipt, carefully examine all packaging and indicators like ShockWatch meters.

Documentation:

Take photographs of the activated ShockWatch meter and any visible damage.

Keep records of communications with Dell EMC.

Await Instructions:

Do not proceed with installation until authorized by Dell EMC Technical Support.

Follow any testing or inspection procedures provided.

Benefits of Contacting Support:

Risk Mitigation:

Ensures that any potential issues are addressed before they impact system performance.

Warranty Protection:

Properly reporting and documenting the issue helps in warranty claims.

Customer Satisfaction:

Facilitates prompt resolution and minimizes deployment delays.
