In Dell EMC PowerScale clusters, upgrades can be performed using different methods, each with its own impact on cluster availability and performance.

Simultaneous Upgrade:

Definition:

A simultaneous upgrade involves rebooting all nodes in the cluster at the same time.

Characteristics:

The entire cluster is taken offline during the upgrade process.

Downtime is required, making it suitable for non-production environments or maintenance windows.

Why Other Options Are Incorrect:

Rolling Upgrade (Option B):

Nodes are upgraded one at a time, allowing the cluster to remain online.

Side-by-Side Upgrade (Option C):

Involves building a new cluster and migrating data; nodes are not rebooted simultaneously.

In-Place Upgrade (Option D):

Refers to upgrading software on the existing hardware but does not imply simultaneous reboots.

Dell PowerScale References:

Dell EMC PowerScale OneFS Upgrade Guide:

Chapter on Upgrade Methods :

Describes simultaneous upgrades and their impact on cluster availability.

Provides guidelines on when to choose this method.

Best Practices:

Schedule simultaneous upgrades during planned downtime.

Notify users of the expected service interruption.

In Dell EMC PowerScale Gen 6 nodes, such as the ones in the F-series, nodes are deployed in pairs within a chassis, sharing power supplies for redundancy.

Key Points:

LED Indicator Inside Compute Module:

When a power supply is removed from one node, an LED inside the compute module may illuminate.

This LED indicates that the node is still receiving power from its pair node's power supply, ensuring continuous operation.

Redundant Power Supply:

PowerScale Gen 6 nodes are designed with redundant power configurations.

If one power supply fails or is removed, the paired node's power supply provides power to both nodes.

Safe Removal and Replacement:

The LED serves as a visual indicator that the node is still powered, and caution should be exercised when handling components.

There is no immediate shutdown or time limit for replacing the power supply due to the redundancy.

Dell PowerScale References:

Dell EMC PowerScale Hardware Installation Guide:

Chapter on Power Supply Replacement :

Explains the redundant power features and the role of the pairing between nodes.

Provides instructions on safely removing and replacing power supplies.

Visual Indicators:

Details the meaning of LEDs within the compute module.

Confirms that an illuminated LED in this context indicates redundant power from the pair node.

Best Practices:

Always verify the node's power status before performing maintenance.

Use the proper procedures to remove and replace hardware components to prevent damage.

To meet SEC 17a-4(f) requirements, which mandate the preservation of electronic records in a non-erasable, non-rewritable format, Dell EMC PowerScale systems need to be configured in SmartLock Compliance mode . SmartLock is a feature that allows for the creation of tamper-proof storage areas to meet regulatory compliance standards, such as those set by the SEC.

Steps to meet SEC 17a-4(f) compliance:

Reboot into SmartLock Compliance mode : The PowerScale node must be configured to boot into SmartLock Compliance mode , which ensures that the system adheres to the required write-once, read-many (WORM) compliance for data storage.

Activate SmartLock : Once in Compliance mode, the SmartLock feature is activated to enable WORM storage, making the data tamper-proof and compliant with SEC regulations.

Therefore, the correct action is to reboot the system into SmartLock Compliance mode to ensure compliance with SEC 17a-4(f), making C. Reboot into SmartLock Compliance mode the correct answer​.

In Dell EMC PowerScale Gen 6 systems, components are categorized as either Customer Replaceable Units (CRUs) or Field Replaceable Units (FRUs). CRUs are parts that customers are authorized to replace themselves without the need for a Dell EMC service technician. Understanding which components are CRUs is essential for efficient maintenance and minimal downtime.

CRUs in PowerScale Gen 6:

SSD (Solid-State Drive) and Disk Drive:

Both SSDs and HDDs are considered CRUs.

They can be hot-swapped without powering down the node.

Customers can replace failed drives to restore full functionality.

Power Supply:

Power supplies are hot-swappable and designated as CRUs.

Nodes typically have redundant power supplies; replacing one does not require shutting down the node.

Bezel:

The front bezel is considered a CRU.

It can be removed and replaced without tools.

Serves both aesthetic and airflow management purposes.

Why Option C is Correct:

SSD: As a storage component, the SSD is a CRU.

Power Supply: Designated as a CRU for quick replacement.

Disk Drive: Refers to HDDs, also CRUs.

Bezel: Easily removable by the customer.

Why Other Options are Incorrect:

Option A: Includes fan , which is not typically a CRU in Gen 6 nodes; fans are usually considered FRUs due to the complexity of replacement and potential risks.

Option B: Lists back-end switch , which is a complex component requiring a service technician (FRU).

Option D: Includes memory card (DIMM), which is generally not a CRU because replacing memory modules requires technical expertise and poses risks if not done correctly.

Dell PowerScale References:

Dell EMC PowerScale Hardware Replacement Guide:

Chapter on Customer Replaceable Units (CRUs):

Lists the components that customers can replace.

SSDs, HDDs, power supplies, and bezels are specified as CRUs.

Safety Instructions:

Provides guidelines on how to safely replace CRUs.

Emphasizes the use of ESD (Electrostatic Discharge) precautions.

Dell EMC PowerScale OneFS Administration Guide:

Disk Management Section:

Explains how to handle drive replacements.

Details the hot-swapping procedure for drives.

Best Practices:

Before Replacing a CRU:

Verify the component has indeed failed.

Ensure you have the correct replacement part.

During Replacement:

Follow proper shutdown procedures if required (though CRUs are typically hot-swappable).

Use appropriate ESD protection.

After Replacement:

Confirm that the system recognizes the new component.

Monitor the system for any errors or warnings.

The platform engineer should inform the customer that hybrid node SSDs in identical sled locations can be used for either cache or primary storage .

Understanding Dell PowerScale H600 Nodes:

Hybrid Nodes:

H600 nodes are hybrid, combining HDDs for capacity and SSDs for performance.

Drive Sleds:

Nodes have sleds (drive bays) where drives are installed.

SSDs and HDDs are populated in specific sled locations.

Using SSDs for Cache or Primary Storage:

Flexibility:

SSDs in hybrid nodes can serve as either L3 cache or as a tier for primary storage.

Identical Sled Locations:

For consistency and performance optimization, SSDs should be installed in identical sled positions across all nodes in the pool.

Configuration:

Administrators can configure the usage of SSDs through SmartPools and data storage policies.

Benefits of Using SSDs for Primary Storage:

Performance Improvement:

Storing hot or frequently accessed data on SSDs enhances read/write speeds.

Data Tiering:

OneFS can automatically move data between SSDs and HDDs based on access patterns.

Why Other Options Are Less Suitable:

Option A (Cache expansion requires a Dell Professional Services engagement):

While professional services can assist, customers can add SSDs and configure caching without mandatory professional services.

Option C (Only F series nodes can use SSDs for primary storage):

Incorrect; hybrid nodes can also use SSDs for primary storage via SmartPools.

Option D (Each sled must have an equal number of SSDs):

Not strictly required; however, best practices recommend balanced configurations for performance consistency.

Best Practices:

Balanced Configuration:

Install SSDs uniformly across nodes to maintain consistent performance.

Consult Documentation:

Review hardware guides and configuration manuals for specific instructions.

Dell PowerScale References:

Dell EMC PowerScale OneFS SmartPools Administration Guide:

Details on configuring SSDs for primary storage and caching.

Dell EMC PowerScale OneFS SmartPools Guide

Dell EMC PowerScale H600 Hardware Guide:

Provides information on drive sled configurations and SSD usage.

Dell EMC PowerScale H600 Hardware Guide

Knowledge Base Articles:

Article ID 000123010: "Using SSDs in Hybrid Nodes for Primary Storage"

Article ID 000123011: "Configuring SSDs in Dell PowerScale Hybrid Nodes"

When a Dell PowerScale Gen6 single node is replaced, the standard procedure is to return the entire faulty node, including all its components, back to Dell. This ensures proper handling, compliance with warranty agreements, and allows Dell to perform failure analysis if necessary.

Node Replacement Process:

Faulty Node Identification: A node exhibiting issues is identified for replacement.

Data Protection: Before replacement, data is protected via OneFS, which ensures data is redistributed across the cluster to prevent data loss.

Replacement Node Shipment: Dell ships a replacement node to the customer.

Handling of Components:

No Component Swapping: Components such as drives, memory modules, and CPUs are not transferred from the old node to the new one.

Return Procedure: The entire faulty node, with all its components intact, is returned to Dell.

Purpose of Return: Returning the node allows Dell to:

Perform Diagnostics: Analyze the faulty components for failures.

Manage Inventory: Ensure proper accounting of hardware.

Environmental Compliance: Dispose of or recycle components according to regulations.

Dell's Return Material Authorization (RMA) Policy:

RMA Process: Dell issues an RMA for the faulty node, and the customer is responsible for returning it.

Shipping Instructions: Detailed instructions are provided to safely package and ship the node back to Dell.

Dell PowerScale References:

Dell EMC PowerScale Field Replacement Unit (FRU) Installation and Replacement Guide:

Outlines the procedures for replacing nodes and the requirement to return faulty units to Dell.

Dell EMC PowerScale OneFS Administration Guide:

Provides information on cluster maintenance and node management.

Warranty and Support Agreements:

Specify the obligations for returning faulty hardware under service contracts.

The OneFS API uses HTTPS (HyperText Transfer Protocol Secure) to encrypt communications, ensuring secure data transfer between clients and the PowerScale cluster.

OneFS API and Security:

OneFS API:

Provides a RESTful interface for programmatically managing and interacting with the PowerScale cluster.

Security Importance:

Protects sensitive data and configuration information transmitted via the API.

Use of HTTPS:

Encryption:

HTTPS uses TLS (Transport Layer Security) to encrypt data in transit.

Prevents eavesdropping and man-in-the-middle attacks.

Authentication:

Supports certificate-based authentication to verify the identity of the server.

Standard Protocol:

Widely accepted and supported for secure web communications.

Why Other Options Are Less Suitable:

Option A (SED):

Self-Encrypting Drives (SEDs) encrypt data at rest, not communications.

Option B (RBAC):

Role-Based Access Control (RBAC) manages user permissions and authorization, not encryption.

Option D (OpenSSH):

OpenSSH provides secure shell access, not used for the OneFS API communications.

Implementing HTTPS with OneFS API:

Default Behavior:

OneFS API endpoints are accessed via HTTPS by default on port 8080 or 8080.

Certificate Management:

Administrators can install custom SSL certificates to ensure secure connections.

API Calls:

Applications interacting with the OneFS API must support HTTPS requests.

Dell PowerScale References:

Dell EMC PowerScale OneFS API Reference Guide:

Details on API usage and security considerations.

Dell EMC PowerScale OneFS API Reference Guide

Dell EMC PowerScale OneFS Security Configuration Guide:

Provides information on configuring HTTPS and managing certificates.

Dell EMC PowerScale OneFS Security Guide

Knowledge Base Articles:

Article ID 000123006: "Securing OneFS API Communications with HTTPS"

Article ID 000123007: "Configuring SSL Certificates for OneFS API Access"

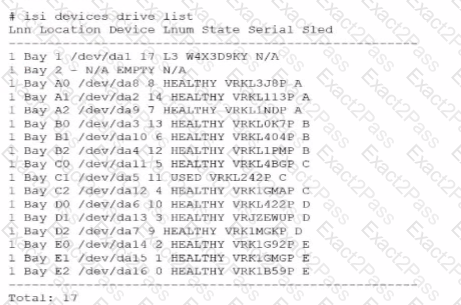

In the output of the isi devices drive list command shown in the exhibit, the drive in location C1 is marked as "USED," with the serial number VRKL242P. This indicates that the drive has been replaced but has not yet been initialized or formatted for use within the PowerScale cluster.

To make the drive usable, it must be formatted. The correct procedure to follow is to use the isi devices drive format command, specifying the drive location (C1 in this case). This will prepare the drive for use in the cluster, ensuring that it is recognized and available for OneFS to start writing data to it.

Steps to format the drive:

Log in to the OneFS cluster using an SSH session with an account that has the necessary privileges.

Run the following command to format the new drive:

bash

Copy code

isi devices drive format C1

This command will format the drive located at C1, making it available for use in the cluster.

After the format is complete, verify that the drive is now in a HEALTHY state by running:

isi devices drive list

This should display the new status of the drive as HEALTHY, indicating that it has been successfully formatted and is ready for data operations.

This process is outlined in Dell’s PowerScale Administration Guide and ensures the correct initialization of new or replaced drives​.

When running the Configuration Wizard during the initial setup of a Dell PowerScale cluster, certain key configurations are required to ensure the cluster operates correctly. The Configuration Wizard specifically prompts for settings related to Date and time and Secure Remote Services (formerly known as ESRS - EMC Secure Remote Services).

Date and Time Configuration:

Purpose:

Setting the correct date and time is crucial for log accuracy, system operations, and security protocols.

Ensures synchronization across the cluster nodes and with external systems.

Configuration Steps:

The wizard prompts for the time zone selection.

Allows setting of the date and time manually or configuring NTP (Network Time Protocol) servers for automatic synchronization.

For serial console connections to a Gen 5 node, specific terminal settings are required.

Required Settings:

Transfer Rate (Baud Rate): 115,200 bps

Data Bits: 8

Parity: None

Stop Bits: 1

Flow Control: Hardware

Dell PowerScale References:

Dell EMC PowerScale Hardware Installation Guide:

Serial Connection Settings:

Provides the exact settings for terminal emulation software.

Recommends these settings for successful communication.

Best Practices:

Use reliable terminal software (e.g., PuTTY).

Verify cable connections and adapter compatibility.
