Set up the migration environment to migrate applications from the source array to the target array.

Examine the specific storage for the applications on the source array and automatically provision equivalent storage on the target array.

Initiate data synchronization from the source to the target and cutover to make source array paths inactive so target array services all host I/O.

Commit the necessary changes after the source to target data synchronization is complete and all application data has been migrated to the target.

Remove the configured array-to-array connectivity for the data migration pathway on both storage arrays.

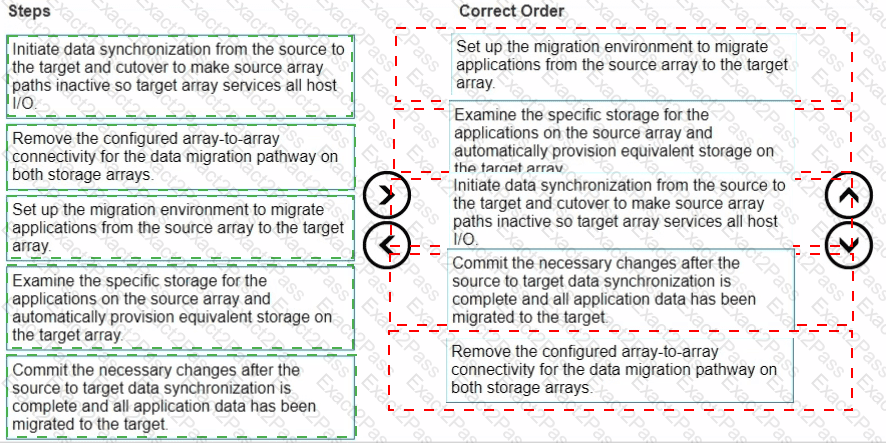

Correct Order:

Set up the migration environment to migrate applications from the source array to the target array.

Why: This is the initial setup phase, where you configure the necessary settings on both the source and target arrays to enable the migration. This involves actions like:

Verifying compatibility between the source and target arrays.

Ensuring that the required licenses are in place (e.g., NDM license).

Configuring network connectivity (FC or iSCSI) for data transfer between the arrays.

Examine the specific storage for the applications on the source array and automatically provision equivalent storage on the target array.

Why: Before migrating data, you need to ensure that the target array has the appropriate storage capacity and configuration to host the applications.

How: NDM can often automatically provision equivalent storage on the target based on the source configuration. This includes creating storage groups, volumes, and masking views that mirror the source.

Initiate data synchronization from the source to the target and cutover to make source array paths inactive so target array services all host I/O.

Why: This is the core of the migration process. Data is copied from the source to the target while the application continues to run. Cutover is the final step where I/O is redirected to the target array.

How:

Synchronization: Data is copied in the background.

Cutover: Once synchronization is complete, a brief cutover is performed. In a well-planned NDM, this cutover is designed to be within the I/O timeout limits of most applications.

Commit the necessary changes after the source to target data synchronization is complete and all application data has been migrated to the target.

Why: This step finalizes the migration and makes it permanent.

What it involves: The migration session is acknowledged and the configuration is finalized on the target array.

Remove the configured array-to-array connectivity for the data migration pathway on both storage arrays.

Why: After the migration is complete, the temporary connections used for data transfer between the arrays should be removed to free up resources and maintain a clean configuration.

What it involves: This typically means removing the FC zones or iSCSI settings that were configured specifically for the NDM process.

Step by Step Comprehensive Detailed Explanation:

The topology shown in the exhibit depicts Cascaded SRDF . This SRDF configuration involves three storage arrays (or sites) connected in a chained or cascaded manner.

Here's how it works:

Primary Site (R1): The production host is connected to the primary storage array (R1).

Intermediate Site (R2): The primary array (R1) synchronously replicates data to an intermediate array (R2).

Remote Site (R2): The intermediate array (R2) then asynchronously replicates data to a remote array (also labeled R2 in the diagram).

This cascading setup provides a multi-hop disaster recovery solution, where data is first replicated synchronously to a nearby site for high availability and then asynchronously replicated to a further remote site for disaster recovery.

Why other options are incorrect:

B. SRDF/Star: SRDF/Star involves a central array replicating to multiple remote arrays in a star-like pattern.

C. SRDF/Metro: SRDF/Metro is designed for synchronous replication over short distances, typically within a metropolitan area.

D. Concurrent SRDF: Concurrent SRDF allows multiple SRDF relationships to exist simultaneously for the same device.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide: This guide provides detailed information about different SRDF configurations, including Cascaded SRDF. You can find this document on the Dell Support website by searching for "Solutions Enabler SRDF Family CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide: This guide offers a comprehensive overview of SRDF and its functionalities, including various topologies and use cases.

The storsrvd daemon is a critical component of the Solutions Enabler (SYMCLI) software suite used to manage Dell PowerMax and VMAX storage arrays. Its primary function is to:

Listen for SYMAPI Sessions: It acts as a communication endpoint, listening for incoming SYMAPI sessions from clients or management tools like Unisphere.

Handle Management Requests: When a client connects, storsrvd receives and processes SYMAPI commands and requests, forwarding them to the appropriate components within Solutions Enabler for execution.

Essentially, storsrvd acts as an intermediary between SYMCLI clients and the storage array, facilitating communication and management operations.

Why other options are incorrect:

A. Manages Composite Groups and Device Groups: This is handled by other components within Solutions Enabler.

B. Provides centralized gatekeeper device management: While storsrvd plays a role in device management, it's not the sole component responsible for it.

C. Provides replication consistency protection: This is a function of SRDF (Symmetrix Remote Data Facility) and related components.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 CLI User Guide: This guide provides information about the architecture and components of Solutions Enabler, including the role of the storsrvd daemon in handling SYMAPI communication. You can find this document on the Dell Support website by searching for "Solutions Enabler CLI User Guide."
