When connecting a VPLEX Cluster-1 to VPLEX Cluster-2, the best practice is to ensure that every director port in Cluster-1 is zoned to every director port in Cluster-2 within each fabric. This approach is recommended to maintain a robust and resilient storage network that can handle failover scenarios and provide continuous availability.

Zoning Directors : Zoning is a SAN best practice that isolates traffic within the fabric to specific devices. By zoning every director port from one cluster to every director port in the other cluster, you ensure that there are multiple paths for communication, which enhances redundancy and fault tolerance 1 .

Fabric Configuration : Each fabric should be configured separately to maintain isolation between the paths. This prevents a single point of failure from affecting all paths and allows for continued operation even if one fabric experiences issues 1 .

Path Redundancy : With every director port zoned to its counterpart in the other cluster, there are multiple paths for data to travel. This redundancy is crucial for VPLEX Metro’s high availability, as it allows for seamless failover between clusters 1 .

Continuous Availability : VPLEX is designed for continuous availability, and proper zoning is key to achieving this. The zoning configuration should support VPLEX’s ability to provide uninterrupted access to data, even in the event of hardware failures or maintenance activities 1 .

Best Practices Documentation : Dell EMC provides detailed documentation on VPLEX implementation and best practices, including zoning recommendations. It is important to consult these documents when planning and implementing zoning for VPLEX clusters 1 .

In summary, the best practice for connecting VPLEX Cluster-1 to Cluster-2 is to zone every director port to every director port in each fabric, ensuring multiple paths for communication and enhancing the overall resilience of the storage network.

In a VPLEX system, zoning a host initiator to a Director-A port requires identifying the front-end ports, which are used for host connectivity. Based on the standard VPLEX director port configuration:

Director Identification : Determine which unit is Director-A. In a VPLEX system, directors are typically labeled as A or B, and each has a set of front-end and back-end ports 1 .

Front-End Port Selection : The front-end ports on Director-A are used for connecting to host initiators. These ports are typically numbered starting with 0 1 .

Zoning Process : Zoning involves configuring the SAN fabric to allow communication between the host’s HBA (Host Bus Adapter) and the VPLEX front-end port. This is done using the SAN switch management interface 1 .

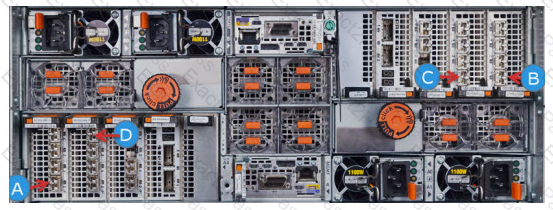

Port Identification in Exhibit : Based on the exhibit provided, if the black arrow points to the first port on Director-A, it would be the front-end port 0, which can be zoned to a host initiator 1 .

Verification : To confirm the correct port for zoning, one would typically refer to the official Dell EMC VPLEX documentation for hardware installation and setup, which would provide clear labeling of each port 1 .

In summary, based on the standard VPLEX port configuration, the Director-A port that can be zoned to a host initiator is the front-end port 0, which is indicated by the letter D in the exhibit provided.

To identify the Director-B back-end ports in a VPLEX system, one must understand the standard port numbering and layout for VPLEX directors. Based on the information provided in the Dell community forum 1 , the back-end ports for Director-B can be identified by the following method:

Director Identification : Determine which director is Director-B. In a VPLEX system, directors are typically labeled as A or B, and each has a set of front-end and back-end ports 1 .

Port Numbering : The port numbering for a VPLEX director follows a specific pattern. For example, in a VS2 system, the back-end ports are typically numbered starting from 10 onwards, following the front-end ports which are numbered from 00 1 .

Back-End Ports : Based on the standard VPLEX port numbering, the back-end ports for Director-B would be the second set of ports after the front-end ports. This is because the front-end ports are used for host connectivity, while the back-end ports connect to the storage arrays 1 .

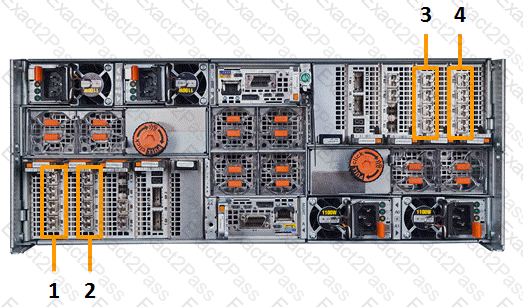

Exhibit Analysis : In the exhibit provided, if the numbering follows the standard VPLEX layout, number 4 would highlight the Director-B back-end ports, assuming that number 3 highlights the front-end ports and the numbering continues sequentially 1 .

Verification : To verify the correct identification of the back-end ports, one can refer to the official Dell VPLEX documentation or use the VPLEX CLI to list the ports and their roles within the system 1 .

In summary, based on the standard layout and numbering of VPLEX systems, number 4 in the exhibit likely highlights the Director-B back-end ports. This identification is crucial for proper configuration and management of the VPLEX system.

Advanced provisioning in Dell VPLEX systems allows for more granular control over storage volumes by enabling the division of storage volumes into multiple extents. This capability is particularly useful for optimizing storage utilization and performance.

Division into Extents : Advanced provisioning allows administrators to divide a larger storage volume into smaller, more manageable extents. This can help in aligning storage allocation with application requirements and improving performance by distributing I/O loads 1 .

Flexibility : By dividing storage volumes into extents, administrators have the flexibility to manage storage more efficiently, such as allocating different extents to different virtual volumes or applications as needed 1 .

Efficient Storage Utilization : This approach can lead to more efficient utilization of storage resources, as extents can be allocated and de-allocated dynamically based on changing needs 1 .

Provisioning Steps : While advanced provisioning offers this flexibility, it does not require each provisioning step to be executed simultaneously. Instead, it allows for a more tailored approach to storage management 1 .

Third-Party Arrays : Advanced provisioning is not limited to storage volumes from third-party arrays; it can be used with storage volumes from a variety of sources, including those directly managed by VPLEX 1 .

In summary, the consideration when using Advanced provisioning in Dell VPLEX systems is that it allows the user to divide storage volumes into extents, providing greater flexibility and efficiency in storage management.

For connecting the MMCS-A to the customer management network in a Dell VPLEX system, it is essential to use the correct port that is designated for management traffic. According to the Dell EMC VPLEX documentation 1 , each MMCS (Management Module Control Station) has two network connections that connect to the customer’s network. One of these is used for system monitoring and remote connectivity for Dell Technologies Customer Support, and the other is for use by the Network Address Translation (NAT) Gateway.

In the context of the VS6 VPLEX cluster, the management ports are located on MMCS-A and MMCS-B, and both must be configured and connected to the customer network. MMCS-A is the management port that will be accessed for all management and monitoring purposes 1 . Therefore, the cable that should be connected to the customer management network is the one associated with MMCS-A.

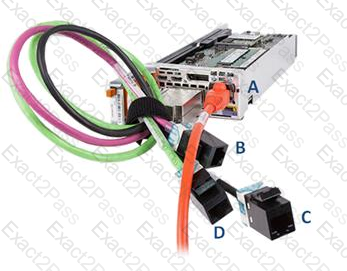

Based on the information provided in the search results and the description of the image, the correct cable to connect to the customer management network for MMCS-A is indicated by the letter B in the exhibit. This connection is crucial for enabling management and monitoring access to the VPLEX system.

The default subnet mask for a management server network, specifically for the network 128.221.252.0, is typically a subnet mask that allows for a small number of hosts, as management networks do not usually require a large number of IP addresses.

Subnet Mask Purpose : A subnet mask is used in IP networking to divide the IP address into a network and host identifier. The default subnet mask for a particular network depends on the class and configuration of the network 1 .

Management Server Network : For a management server network like 128.221.252.0, a common default subnet mask is 255.255.255.248. This subnet mask allows for up to 6 usable IP addresses, which is generally sufficient for management purposes 1 .

Network Configuration : The choice of subnet mask can affect the number of hosts that can be accommodated within a network. A subnet mask of 255.255.255.248 indicates a very small network, often used for specialized network segments such as management interfaces 1 .

Dell VPLEX Configuration : In the context of Dell VPLEX Deploy Achievement, the management server network would be configured with a subnet mask that supports the network architecture and design best practices as outlined in Dell’s documentation 1 .

Best Practices : It is important to follow the recommended settings and configurations provided in the Dell VPLEX Deploy Achievement documents to ensure proper network segmentation, security, and performance 1 .

In summary, the default subnet mask value for a management server network like 128.221.252.0 is typically 255.255.255.248, which aligns with the standard practices for configuring management networks in a Dell VPLEX environment.

To verify that the VPLEX Metro WAN COM link is restored, the storage administrator should run the connectivity validate-local-com command. This command checks the connectivity status of the local communication links within the VPLEX cluster.

Command Execution : The administrator should access the VPLEX CLI and execute the connectivity validate-local-com command. This will initiate a check of the local COM ports’ connectivity status 1 .

Interpreting Results : After running the command, the administrator should review the output to verify that all expected connectivity is present. The output will indicate whether each local COM port is communicating as expected 1 .

WAN COM Link : The WAN COM link is responsible for the communication between VPLEX clusters over a wide area network. Ensuring that the local COM links are operational is a prerequisite for the WAN COM link to function properly 1 .

Post-Outage Verification : Following a WAN outage, it’s crucial to confirm that the communication links are fully operational to maintain the high availability and data mobility features of VPLEX Metro 1 .

Best Practices : It is recommended to follow the Dell EMC VPLEX best practices for post-outage recovery, which include running the connectivity validate-local-com command to ensure that the system is ready to resume normal operations 1 .

In summary, the connectivity validate-local-com command is the correct procedure to verify that the VPLEX Metro WAN COM link is restored, as it checks and confirms the presence of all expected local communication link connectivity within the VPLEX cluster.

In a VPLEX VS2 dual engine setup, each engine is fixed at 72GB of cache, with 36GB per director. Since a dual engine setup contains two engines, the total available cache would be:

72\ GB\ (per\ engine) \times 2\ (engines) = 144\ GB 72 GB (per engine)×2 (engines)=144 GB

However, as each engine contains two directors, and each director has 36GB of cache, the total cache available in a dual engine setup would be:

36\ GB\ (per\ director) \times 4\ (directors) = 144\ GB 36 GB (per director)×4 (directors)=144 GB

Therefore, the total cache available in a VPLEX VS2 dual engine setup is 144 GB 1 .
