The Transport layer (Layer 4) of the OSI model ensures reliable data transfer between systems by providing:

End-to-end connections – manages communication sessions

Sequencing – orders data packets

Integrity – error detection and correction

Session (Layer 5) : Manages sessions and controls dialogues between systems.

Data Link (Layer 2) : Deals with local network frame delivery.

Presentation (Layer 6) : Translates data formats (like encryption, compression).

IP packet segmentation can cause replication performance issues over the WAN.

Since FCIP tunnels FC frames over IP networks, if the IP packet size exceeds the MTU, packets are fragmented and reassembled, increasing latency.

TE_Port mode is used for trunking, not related to packet fragmentation.

EX_Port mode is used for inter-switch connectivity (FCR).

Ethernet frame segmentation is not relevant in FCIP tunneling.

Monitoring is the ongoing process of observing and tracking the performance and availability of IT infrastructure, including:

Storage devices

File systems

Ports and connectivity

It helps ensure service levels are met and detect potential issues.

Reporting : Summarizes data (often based on monitoring data).

Alerting : Notifies of specific events or thresholds (also uses monitoring data).

Infrastructure discovery : Detects and inventories devices.

OSD gateways provide access to object storage systems through APIs. The most common interfaces are:

REST (Representational State Transfer) : A stateless protocol using standard HTTP methods, widely used for web services.

SOAP (Simple Object Access Protocol) : A protocol for exchanging structured information in web services, using XML.

These APIs allow applications to interact with object storage systems over HTTP/HTTPS protocols.

SSH and SMB : SSH is for secure shell access; SMB is for file sharing, not typically used for object storage.

HTTP and HTTPS : These are transport protocols; while used by REST and SOAP, they are not interfaces themselves.

NFS and CIFS : File-based interfaces, not used for object storage.

Native NVMe is a protocol designed for direct-attached storage (DAS) environments. It allows a host to communicate with NVM storage devices (like NVMe SSDs) within the same server.

Limitation: Native NVMe does not support external NVMe storage connectivity beyond the server.

To connect to external shared NVMe storage, protocols like NVMe over Fabrics (NVMe-oF) are used.

Dell RecoverPoint is a continuous data protection (CDP) solution that uses journaling to provide any point-in-time recovery of data. It continuously captures and replicates data changes, storing them in a journal to enable precise recovery to any required point in the past.

Dell SRDF (Symmetrix Remote Data Facility): Provides synchronous/asynchronous replication, not CDP.

Dell TimeFinder SnapVX: Creates point-in-time snapshots but doesn’t offer continuous journaling.

Dell Cloud Tier: Used for archiving older data to the cloud.

Full Detailed Explanation with Step by Step Solutions:

A standard Fibre Channel (FC) frame consists of several fields in a specific order. The typical sequence for an FC data frame is:

1️ ⃣ Frame header: Contains control and addressing information.

2️ ⃣ Data field: Carries the actual payload (up to 2112 bytes).

3️ ⃣ CRC (Cyclic Redundancy Check): Ensures data integrity of the frame.

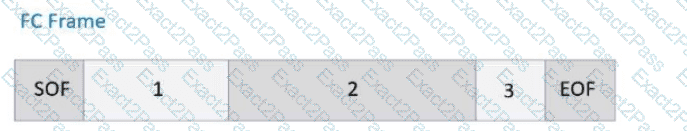

The diagram in the exhibit shows exactly this ordering:

SOF (Start of Frame) – marks the beginning of the frame.

1 (Frame header) – the control and addressing info.

2 (Data field) – the main data payload.

3 (CRC) – for error checking.

EOF (End of Frame) – marks the end of the frame.

To calculate the MTBF, we need to determine the total operational time and the number of failures.

Total operational time (Monday to Friday): 5 days × 24 hours = 120 hours

Number of failures: 3 (Tuesday, Thursday, Friday)

MTBF = Total operational time / Number of failures

MTBF = 120 hours / 3 = 40 hours

FCIP (Fibre Channel over IP) is a protocol used to connect Fibre Channel SANs across geographically dispersed locations over IP networks. It does this by encapsulating Fibre Channel frames into IP packets (Layer 3). This allows FC SAN traffic to be transmitted across IP-based WANs.

Ethernet networks (Layer 2) are not involved in the FCIP encapsulation process directly because FCIP uses IP packets.

Splitting LAN/SAN data is not the method used; FCIP encapsulates all FC frames .

Separating LAN and SAN data also does not describe the tunneling function.

A full backup captures all data each time it runs.

Main advantage: Fastest recovery because no additional backup sets (like incrementals or differentials) need to be combined.

Disadvantage: Takes more backup time and requires more storage space compared to incremental backups.

Option B: Full backups have a higher impact because of the time and bandwidth required.

Option C: Full backups consume the most storage.

Option D: Full backups are not the fastest in terms of backup window – they are the fastest in recovery.
