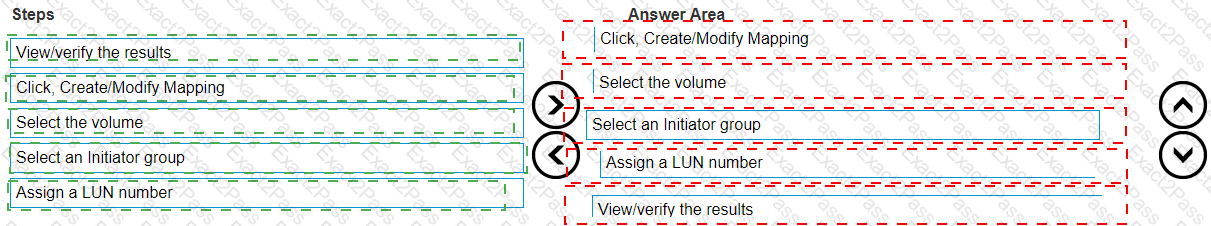

 Click, Create/Modify Mapping

 Select the volume

 Select an Initiator group

 Assign a LUN number

 View/verify the results

Click, Create/Modify Mapping : Start by navigating to the section where you can create or modify mappings in the XtremIO WebUI.

Select the volume : Choose the volume you want to map to a host from the list of available volumes.

Select an Initiator group : Pick the appropriate initiator group, which represents the host or group of hosts to which the volume will be mapped.

Assign a LUN number : Assign a Logical Unit Number (LUN) to the volume, which the host will use to access it.

View/verify the results : Finally, review the mapping configuration to ensure that everything is set up correctly and verify that the host can access the mapped volume.

References :

Dell XtremIO User Guide

XtremIO WebUI Documentation

Dell XtremIO Deployment Services

Best practices for managing volumes and host mappings in XtremIO environments

Failed Cluster Creation : When a cluster creation fails, logs need to be collected for troubleshooting.

Debug Command : Running the create-debug-info debug-info-name=initial setup command helps in collecting the necessary logs for analysis.

Log Bundle Collection : This command gathers all relevant information needed to diagnose and fix the cluster creation issue.

References :

Dell XtremIO Command Reference Guide

Dell XtremIO Troubleshooting Guide

When powering up an XtremIO X2 multi X-Brick cluster, both the Disk Array Enclosures (DAEs) and the Storage Controllers will automatically power up once the rack Power Distribution Units (PDUs) are turned on. This process ensures that the essential components for storage and data management are operational immediately, facilitating a seamless startup of the storage environment. The DAEs contain the SSDs for data storage, while the Storage Controllers manage the data operations, ensuring high performance and reliability.

References :

Dell EMC XtremIO X2 documentation explains that upon powering the PDUs, the DAEs and Storage Controllers automatically power up as part of the system ' s startup process​

The delay in the quick formatting process of a 2 TB LUN from an XtremIO storage array when installing a new Microsoft Windows 2012 host is likely caused by the UNMAP feature being enabled. The UNMAP command is part of the SCSI thin provisioning set, which allows the host to inform the storage array which blocks are no longer in use and can be reclaimed. When UNMAP is enabled, the quick format process may take longer because the storage array needs to process these UNMAP commands and perform the necessary space reclamation tasks 1 .

It’s important to note that while UNMAP can improve storage efficiency, it can also introduce overhead during operations like formatting, which can lead to delays. For detailed procedures and best practices, it is recommended to consult the Official Dell XtremIO Deploy Achievement document or reach out to Dell support for the most accurate guidance.

The largest size supported for each volume in a new XtremIO X2-S single X-Brick cluster, as per the Official Dell XtremIO Deploy Achievement documents, is 64 TB. This information is verified through the official documentation which outlines the capabilities and specifications of the XtremIO X2 systems. The documents provide a detailed description of the critical components, features, and implementation solutions in customer environments, which includes the storage capacity specifications for XtremIO systems 1 .

Zoning : Zoning is the process of configuring which devices can communicate with each other on a storage network.

VPLEX and XtremIO : The first step in adding an XtremIO cluster to a VPLEX environment is to zone the VPLEX to the XtremIO Storage Controllers.

Initial Configuration : This step ensures that the VPLEX can recognize and communicate with the XtremIO storage, which is necessary before proceeding with other configurations.

References :

Dell XtremIO and VPLEX Integration Guide

Dell XtremIO Zoning Configuration Documentation

User ID Requirement : The installation of the XtremApp code requires specific user permissions.

xinstall User : The xinstall user ID has the necessary permissions to perform installations and modifications on the XtremIO XMS and Storage Controllers.

Installation Process : Using the xinstall user ensures that the process is completed without permission issues.

References :

Dell XtremIO Installation Guide

Dell XtremIO User Management Guide

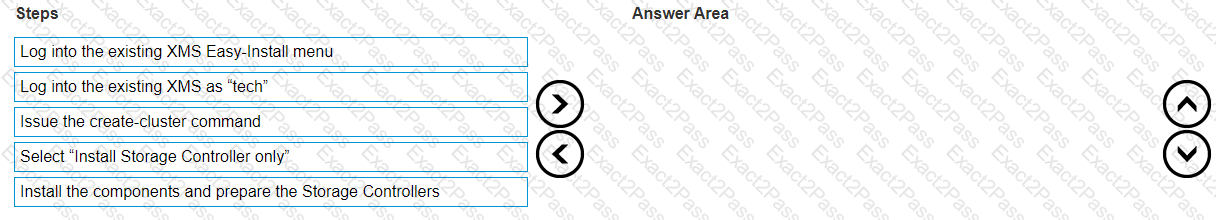

 Log into the existing XMS as " tech "

 Select “Install Storage Controller only”

 Log into the existing XMS Easy-Install menu

 Install the components and prepare the Storage Controllers

 Issue the create-cluster command

Log into the existing XMS as " tech " : Begin by logging into the existing XtremIO Management Server (XMS) using the " tech " user account, which has the necessary privileges to perform installation and configuration tasks.

Select “Install Storage Controller only” : Choose the option to install only the storage controller to ensure the proper setup of the storage controllers in the cluster.

Log into the existing XMS Easy-Install menu : Access the Easy-Install menu on the XMS to guide you through the setup process.

Install the components and prepare the Storage Controllers : Follow the instructions to install all necessary components and prepare the storage controllers for integration into the cluster.

Issue the create-cluster command : Finally, execute the create-cluster command to officially create and configure the new XtremIO X1 cluster within the XMS.
