The SAS (Serial Attached SCSI) connection speed for an XtremIO X1 is 6 Gb/s, while for an XtremIO X2, it is 12 Gb/s. The increased speed in the X2 model enhances data transfer rates and overall performance, reflecting advancements in the hardware capabilities of the newer generation.

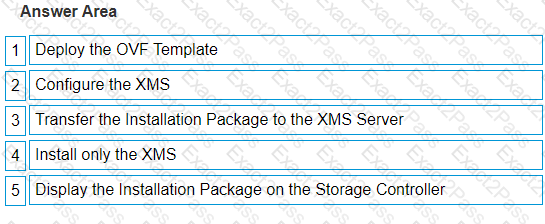

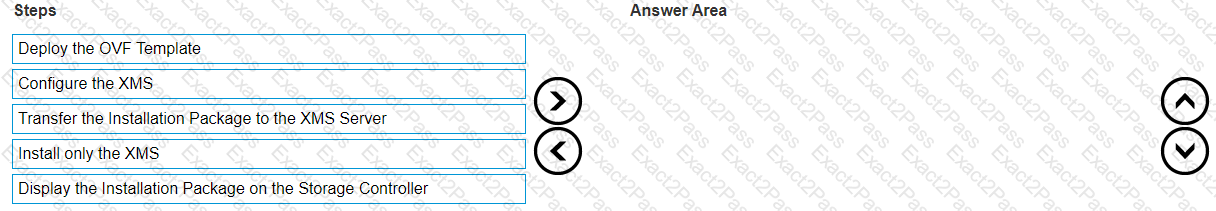

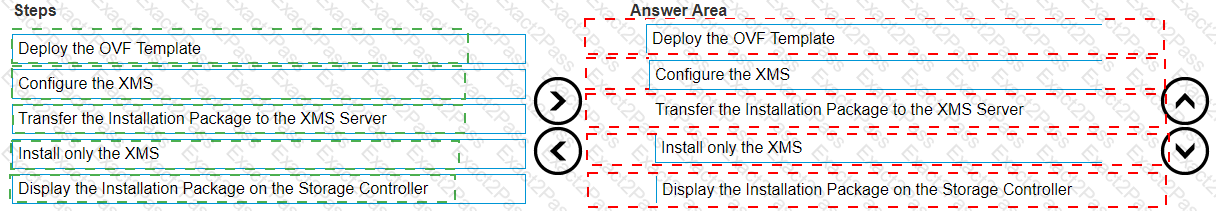

The correct sequence of steps to install a virtual XMS prior to creating the cluster on an XtremIO X2 is:

Deploy the OVF Template

Configure the XMS

Transfer the Installation Package to the XMS Server

Install only the XMS

Display the Installation Package on the Storage Controller

Deploy the OVF Template : Begin by deploying the Open Virtualization Format (OVF) template which is a pre-configured virtual machine that contains all necessary installation files.

Configure the XMS : After deployment, configure XtremIO Management Server (XMS) which involves setting up network configurations and other system settings.

Transfer the Installation Package to the XMS Server : The next step is transferring all necessary installation files for XtremIO to your newly configured XMS server.

Install only the XMS : Proceed with installing only XtremIO Management Server software on your server.

Display the Installation Package on Storage Controller : Finally, ensure that your storage controller can access and display all relevant installation packages for further processes.

These steps are outlined in the Dell XtremIO Maintenance Achievement document and provide a systematic approach to installing a virtual XMS, which is essential for managing and creating an XtremIO X2 cluster.

For uploading the XtremApp to the XtremIO Management Server (XMS), the recommended tool is WinSCP . WinSCP is a popular SFTP client and FTP client for Microsoft Windows that allows for secure file transfer between a local and a remote computer 1 . It is particularly useful for uploading files like XtremApp due to its graphical user interface, which simplifies the process of transferring files.

The steps for uploading the XtremApp to the XMS using WinSCP are as follows:

Download and install WinSCP on your local machine.

Open WinSCP and enter the XMS’s hostname or IP address, as well as the username and password.

Navigate to the XtremApp file on your local machine within the WinSCP interface.

Drag and drop the XtremApp file to the desired directory on the XMS.

Verify that the upload was successful by checking the file size and timestamp on the XMS.

This method is recommended in the Official Dell XtremIO Maintenance Achievement document as it provides a secure and reliable way to manage files on the XMS 1 .

=========================

To successfully operate Technician Advisor on an XtremIO X2, TCP ports 80 and 443 need to be open between the XMS (XtremIO Management Server) and X1-SC1 (Storage Controller). These ports are used for HTTP and HTTPS communication, respectively, allowing for secure management and operation of the storage system.

The show-storage-controllers command is used in XMCLI to verify the IP addresses of the Storage Controllers after they have been changed. This command provides detailed information about the status and configuration of the storage controllers, including their IP addresses.

Before an XtremIO X1 cluster can start, it is required that the Battery Backup Units (BBUs) are charged to at least 70%. This ensures that there is sufficient power reserve to maintain data integrity and allow for safe shutdown procedures in case of an unexpected power loss. The BBUs provide power to the Storage Processors and other critical components during an outage, allowing them to complete any in-progress operations and commit data to SSDs 1 .

The startup process checks the BBU charge level and will only proceed if the minimum charge requirement is met. This is a safety feature designed to protect the system and the data it holds. If the BBUs are not adequately charged, the system will not start, preventing potential data loss or corruption that could occur if the system were to lose power without the ability to properly shut down 1 .

=========================
