This question addresses the critical architectural distinction between " member-based " and " node-based " load balancing in environments where servers are multi-homed or host multiple virtualized services. On a BIG-IP, a node represents the underlying IP address of a physical or virtual server, while a pool member represents a specific combination of that IP and a service port (e.g., 10.1.1.10:80).

When multiple pools reference the same IP address across different ports or Virtual Servers, using Least Connections (member) (Option D) only balances connections relative to that specific pool. For example, if Pool_A and Pool_B both use Server_X, and Pool_A has 100 connections while Pool_B has only 5, a member-based algorithm for Pool_B only sees the 5 connections and may continue to send traffic there even if Server_X is CPU-saturated by Pool_A.

The Least Connections (node) algorithm (Option B) solves this by tracking the aggregate total of all active connections directed to that specific node (IP address) across every pool on the system. By selecting the node with the absolute lowest total connection count, the BIG-IP ensures a more equitable distribution of work at the hardware resource level. Predictive methods (Options A and C) use a ranking system based on the trend of connection counts over time, but for the specific requirement of maintaining an equal number of current connections on multi-service servers, the direct Least Connections (node) calculation is the standard and most effective procedural choice.

Slow Ramp Time prevents new members from being overwhelmed immediately after activation.

WAN-optimized TCP profiles improve performance for high-latency Internet clients, while LAN profiles are optimal for backend servers.

A 400 Bad Request response from an HTTP/1.1 web server is a definitive indicator that the HTTP request sent by the health monitor is missing a required Host header . In HTTP/1.1, the Host header is mandatory per RFC 7230. Web servers — particularly those hosting named virtual hosts such as www.f5.com — will reject any HTTP/1.1 request that omits the Host header, returning a 400 error, which the BIG-IP monitor interprets as a failed health check, marking all members DOWN.

The correct Send string must include:

The GET request line with HTTP/1.1 protocol declaration

A \r\n (carriage return + line feed) after the request line

The Host: www.f5.com header to satisfy HTTP/1.1 requirements

A \r\n after the Host header

Connection: Close header to instruct the server to close the connection after responding

A final \r\n\r\n to properly terminate the HTTP request headers

Only option C satisfies all these requirements with the correct syntax and Host header inclusion.

Option D (the current configured string) omits the Host header entirely — the root cause of the 400 error. Options A and B are structurally incomplete or syntactically malformed.

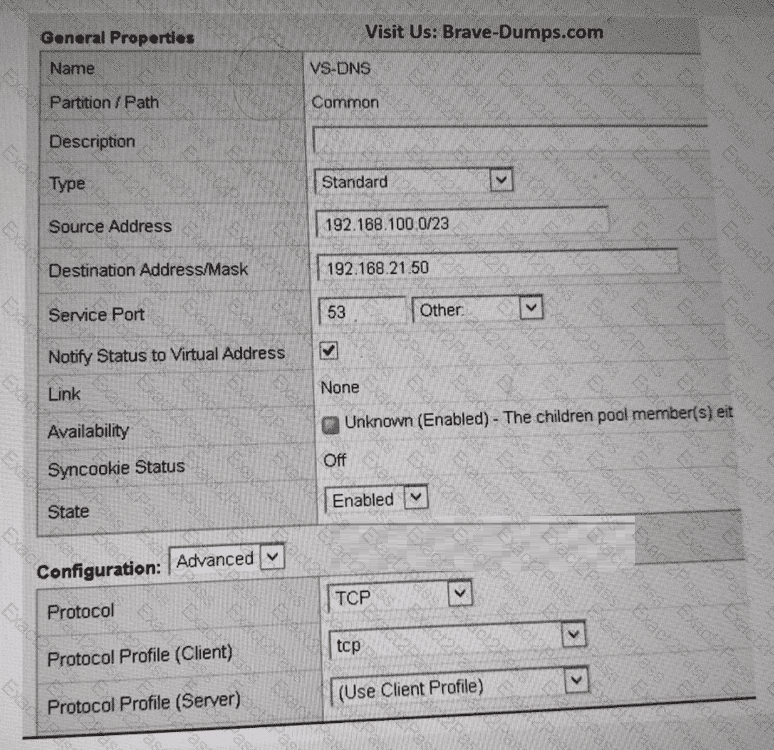

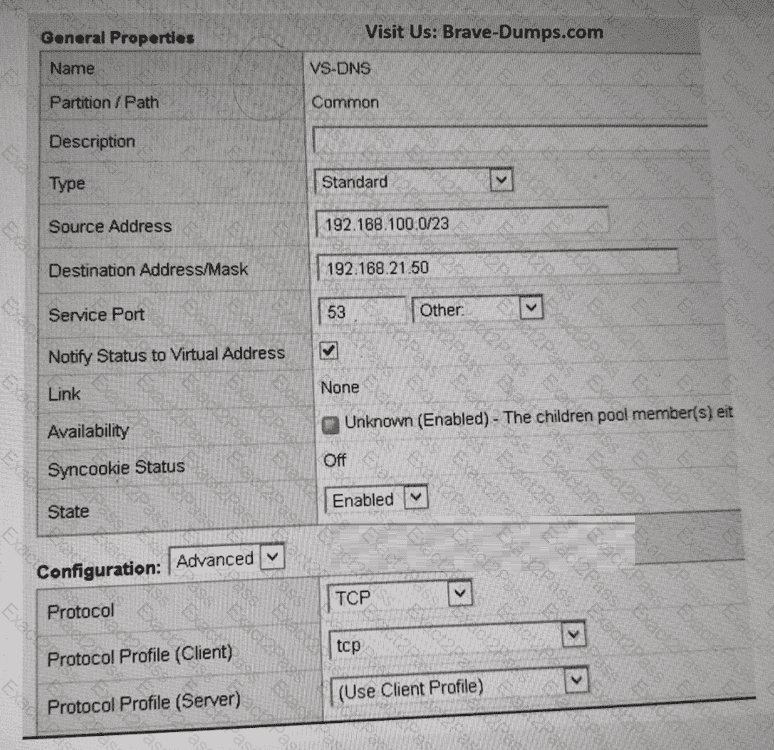

DNS traffic is primarily transported using UDP port 53. In the exhibit, the Virtual Server is configured with the Protocol set to TCP, which prevents standard DNS queries from being processed correctly. BIG-IP Virtual Servers must be configured with the correct Layer 4 protocol to match the application traffic they are handling.

According to the BIG-IP Administration: Data Plane Configuration documentation:

The Protocol setting on a Virtual Server defines whether traffic is processed as TCP, UDP, or another supported transport protocol.

Standard DNS queries and responses use UDP, while TCP is only required for DNS zone transfers (AXFR) or exceptionally large responses.

When a DNS Virtual Server is incorrectly configured with TCP, UDP-based DNS queries are dropped, causing all requests to fail.

Why the other options are incorrect:

A. Protocol profile (Client) to DNS_OPTIMIZEDA DNS profile enhances DNS functionality but does not correct an incorrect transport protocol configuration.

B. Type to Performance (HTTP)Performance (HTTP) Virtual Servers are designed for HTTP traffic and are not suitable for DNS services.

C. Source Address to 192.168.10.0/24The existing source IPs already fall within the allowed range, so this setting does not address the failure.

Correct Resolution:

Changing the Protocol to UDP aligns the Virtual Server with standard DNS transport requirements, allowing DNS queries to be successfully processed and load-balanced.

Standard BIG-IP administration dictates that hardware-level physical attributes are managed within the Network section of the configuration. When a network switch and a BIG-IP fail to successfully negotiate speed and duplex settings (Auto-Negotiation), it can result in CRC errors, late collisions, or a total lack of link. To resolve this manually, the administrator must navigate to the Configuration Utility (GUI) and go to Network > Interfaces.

Within the Interfaces list, the administrator can select the specific physical port (e.g., 1.1 or 1.2) and modify its properties. By default, the media speed is set to " Auto, " but the drop-down menu allows for manual selection of specific speeds (e.g., 100Mb/s, 1Gb/s, 10Gb/s) and duplex settings (Full or Half). While these changes can also be made via the TMOS Shell (TMSH) (Option B) using the modify net interface command, the question asks for the standard location, which in most administrative contexts refers to the primary GUI path. System > Configuration (Option D) is used for global device settings like NTP, DNS, and licensing, not for interface-specific physical layer parameters. The Front Console (Option A), referring to the LCD panel on physical appliances, is primarily used for initial management IP setup and viewing system alerts, but does not provide the granular interface configuration required for media speed adjustments.

Slow Ramp Time prevents new pool members from receiving a full share of traffic immediately, allowing applications to warm up gradually.

Persistence overrides load balancing decisions by maintaining client-to-server affinity.

URI-based traffic steering requires inspection of the HTTP request. BIG-IP processes HTTP headers and URIs in the HTTP_REQUEST event. Pool member selection based on URI must occur before the request is sent to the server, making HTTP_REQUEST the correct event.

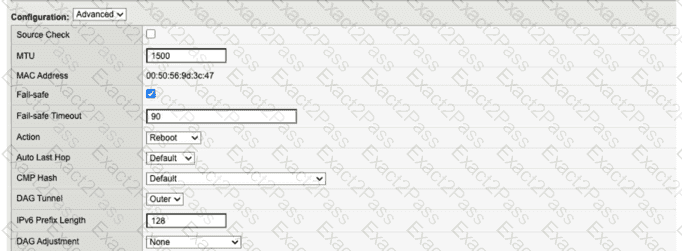

The exhibit shows the advanced configuration of a VLAN where the Fail-safe option is checked. VLAN Fail-safe is a high-availability feature used to monitor network connectivity on a specific VLAN. When enabled, the BIG-IP system monitors the VLAN for network traffic. If the system does not detect any " useful " traffic on the VLAN within the specified Fail-safe Timeout (which is 90 seconds in the exhibit), it attempts to generate traffic by pinging the default gateway or other devices. If it still detects no traffic, the BIG-IP concludes that the VLAN is unreachable or the network interface has failed, and it triggers a " Fail-safe Action " —in this case, " Reboot " or a failover to the peer device in the HA group.

Because the administrator has just created a new VLAN that " does NOT yet have any traffic, " the Fail-safe mechanism triggers immediately after the 90-second timeout period. Since no devices are yet communicating on this VLAN, the BIG-IP incorrectly assumes there is a hardware or cabling failure and forces a failover to ensure the standby device (which might have better connectivity) takes over. To prevent this unwanted failover, the administrator should uncheck the Fail-safe box for that specific VLAN until the VLAN is fully populated with active nodes and regular traffic. Once the application is live and traffic is flowing, Fail-safe can be re-enabled to provide an additional layer of redundancy. Auto Last Hop (Option A) and Source Check (Option B) are routing and security features that do not trigger HA failover events.
