Huawei ' s Wi-Fi 7 documentation describes several technologies introduced or enhanced relative to Wi-Fi 6 to increase throughput, spectrum efficiency, and reduce latency. 4096-QAM raises modulation density from the 1024-QAM maximum associated with Wi-Fi 6, allowing more bits to be carried per modulation symbol under suitable radio conditions. Multi-RU allows one user to be assigned multiple resource units, improving spectrum scheduling flexibility compared with the Wi-Fi 6 restriction of a user operating within its assigned RU. Multi-link operation allows a station to establish and use links across multiple bands or radios as a coordinated connection. Wi-Fi 7 also enhances MU-MIMO capabilities, increasing the ability to serve multiple users and exploit additional spatial resources. Huawei product documentation commonly lists 4096-QAM, multi-RU, MLO/multi-link, and enhanced MU-MIMO among Wi-Fi 7 improvements built on Wi-Fi 6. Therefore, each technology listed in the question contributes to Wi-Fi 7 performance improvement, and the verified selection is A, B, C, and D.

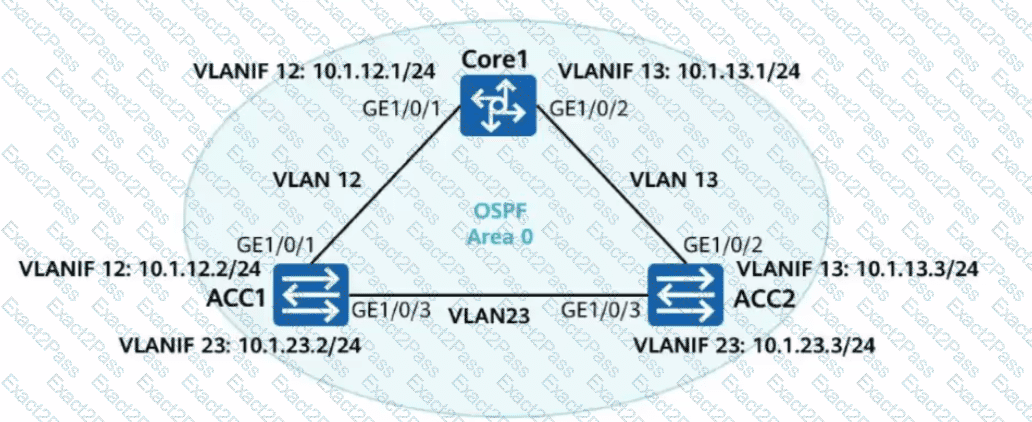

The topology contains three Layer 3 interconnection VLANs: VLAN 12 between Core1 and ACC1, VLAN 13 between Core1 and ACC2, and VLAN 23 between ACC1 and ACC2. OSPF is enabled across the campus, while STP still controls Layer 2 forwarding on the VLAN links. If ACC2 GE1/0/3 is an alternate port, STP blocks service forwarding on the ACC1-ACC2 path. As a result, OSPF Hello packets cannot be exchanged across that blocked Layer 2 path and ACC1 and ACC2 cannot establish an OSPF neighbor relationship on VLAN 23, so C is true. Core1 still has routes for all three interconnection networks: VLAN 12 and VLAN 13 are directly connected, and information for VLAN 23 can be learned through OSPF from the access devices, making B true. Statement A is incorrect because ACC1 already has VLANIF 23 as a directly connected network rather than needing to learn that same connected segment through OSPF. Statement D is also false: STP can still be relevant on Layer 2 VLAN links even in a campus using Layer 3 routing.

On a non-root bridge, the root port is the port that receives the best BPDU toward the root bridge. STP selects the root port by comparing several parameters in order. The first important parameter is the root path cost (RPC) , so option B is correct. If multiple ports have the same RPC, the switch then compares the bridge ID (BID) of the upstream device sending the BPDU, making option C correct. If those are still equal, the switch compares the port ID (PID) of the upstream sending port, so option D is also correct.

If all of those values remain identical from the switch’s perspective, the device can finally compare the local port ID to determine which local interface becomes the root port, so option A is also correct. HCIA-Datacom teaches this comparison logic as part of STP election rules. The process ensures deterministic selection of a single root port on every non-root switch. Understanding the comparison sequence is essential for predicting STP topology behavior and for influencing port roles through path cost tuning or bridge-priority adjustments during campus network design and troubleshooting.

Python identifiers and string values are case-sensitive. The variables Test and test are therefore two different variable names, and the assigned strings also differ in capitalization. Test contains the string ' Hello World ' , whereas test contains ' hello world ' . Calling print(Test) outputs the capitalized form, while print(test) outputs the lowercase form. Python does not automatically normalize case when resolving variable names or when displaying strings. The same principle applies to function names, class names, dictionary keys, and most other identifiers or values used in network automation scripts. In Datacom automation work, case sensitivity matters when processing device output, JSON/YANG data, NETCONF payloads, interface names, and user-defined variables. A script that refers to Test when only test has been defined can even raise a NameError because Python treats the two identifiers as unrelated. In this question both variables are defined, but their printed output is visibly different. Consequently, the statement that the two print operations produce the same output is FALSE, option B.

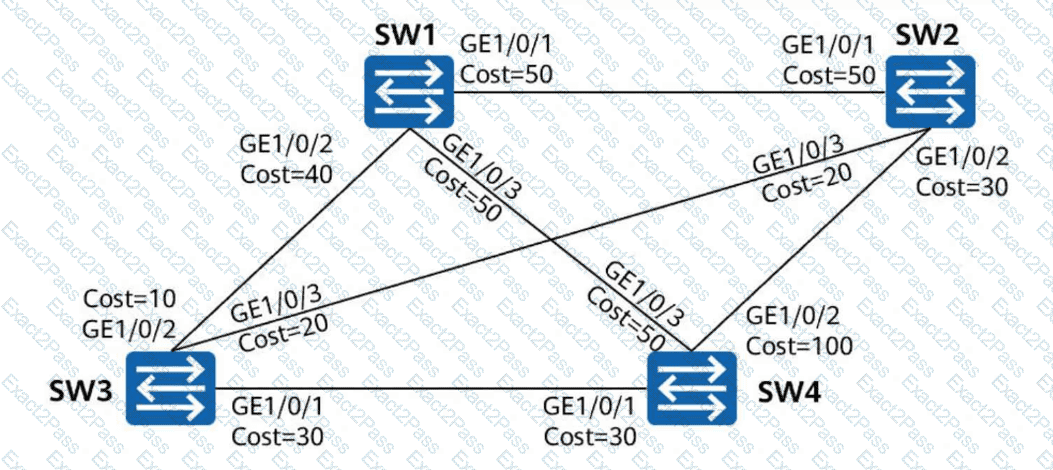

After STP convergence, only ports in the forwarding state participate in active traffic forwarding, while redundant ports may be placed into the blocking or discarding state to eliminate loops. According to the topology and STP role election shown in the question, the valid forwarding path from SW1 to SW4 is SW1 → SW3 → SW4, so option B is correct.

This means that the direct alternative path or the path through SW2 is not the active spanning-tree forwarding path after election and state transition. STP selects paths based on the root bridge, path cost, bridge ID, and port ID. Once the root bridge and port roles are determined, some links remain active and others are blocked to ensure a loop-free Layer 2 topology. HCIA-Datacom emphasizes that the resulting forwarding topology is a tree, not a mesh, even if the physical topology contains redundant links. Understanding the actual forwarding path after STP convergence is important for troubleshooting connectivity, predicting traffic behavior, and verifying whether bridge priority and path-cost settings have produced the intended design outcome in campus switching networks.

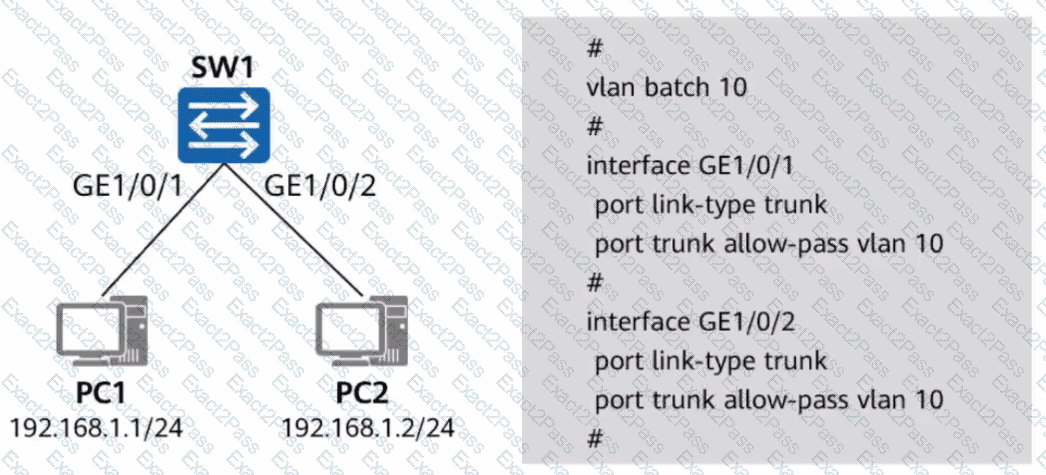

Both switch ports shown in the exhibit are configured as trunk ports and VLAN 10 is permitted, but the configuration does not change the trunk PVID from its default value of VLAN 1. On Huawei switches, untagged frames received on a trunk interface are associated with the interface PVID. A normal PC sends untagged Ethernet frames, so traffic from both PC1 and PC2 is classified into VLAN 1. VLAN 1 is permitted on a trunk by default unless it is explicitly removed with an undo port trunk allow-pass vlan 1 command. As a result, the two PCs remain in the same Layer 2 broadcast domain through VLAN 1 and can exchange ARP and ICMP traffic. Merely adding VLAN 10 to the allowed VLAN list does not force untagged host traffic into VLAN 10. Therefore, the statement that pinging 192.168.1.2 from PC1 must fail is incorrect. The correct response is FALSE, option B.

OSPF defines five protocol packet types: Hello, Database Description (DD), Link State Request (LSR), Link State Update (LSU), and Link State Acknowledgment (LSAck). A Link State Advertisement, or LSA, is not itself an OSPF packet type. LSAs are data structures that describe topology or routing information and are carried inside OSPF packets, especially LSU packets. For example, an LSU packet may transport one or more LSAs to a neighbor, and an LSAck packet acknowledges receipt of LSAs. Hello packets discover and maintain neighbor relationships, DD packets summarize LSDB contents during synchronization, and LSR packets request specific missing LSAs. The distinction between an LSA and an LSU is important in Huawei Datacom study material because they operate at different conceptual levels: an LSA is routing information, whereas an LSU is the OSPF protocol packet that transports that information. Therefore, among the choices, LSA is the item that is not one of the five OSPF packet types. The correct answer is B.

This statement is true . On a Huawei WAC, the number of APs that can go online is controlled by the available license resources . If a Fit AP fails to come online and the command display ap online-fail-record shows Insufficient license resources , it means the controller does not currently have enough licensed capacity to allow additional APs to register successfully.

In this case, the administrator must expand the license capacity or adjust existing license allocation so that the AP can be admitted. This is a common WLAN deployment issue, especially when new APs are added without first verifying the current AP license limit on the WAC. HCIA-Datacom troubleshooting methodology emphasizes interpreting controller diagnostics and fault records accurately. An AP can fail to go online for many reasons, including CAPWAP reachability problems, version mismatch, authentication issues, or licensing limitations. When the failure reason explicitly indicates insufficient license resources, the troubleshooting direction is clear: the controller’s AP license capacity must be checked and, if necessary, increased. This question tests the ability to map a specific WAC alarm record to the correct operational response.

This statement is true . ARP is a Layer 2 broadcast-based protocol used to resolve an IPv4 address into a MAC address within the same broadcast domain. If two PCs are connected to the same switch but cannot learn each other’s ARP entries, one likely reason is an incorrect VLAN configuration .

For example, if PC1 and PC2 are placed in different VLANs, or if one interface is configured with the wrong access VLAN, ARP broadcast frames from one PC will not reach the other PC because VLANs separate Layer 2 broadcast domains. As a result, the ARP request will not be received by the peer, and the MAC address cannot be resolved. Other causes may also exist, such as incorrect IP addressing, port isolation, or security policies, but VLAN misconfiguration is a very common and valid cause in campus switching scenarios. HCIA-Datacom teaches that ARP communication depends on correct Layer 2 domain membership, and VLAN planning or interface configuration errors often directly affect host-to-host communication even when both hosts are physically connected to the same switch.

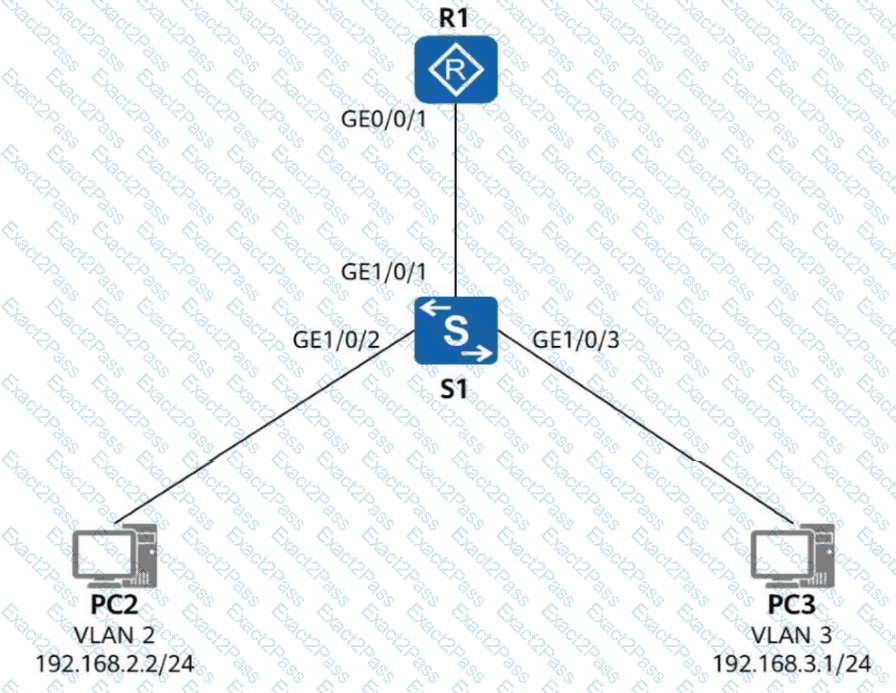

This scenario describes the classic router-on-a-stick inter-VLAN routing design. A single physical interface on R1 connects to switch S1, and multiple sub-interfaces are created on that physical interface to serve as gateways for multiple VLANs. Therefore, if R1 provides Layer 3 gateway functions for VLAN 2 and VLAN 3, sub-interfaces such as GE0/0/1.2 and GE0/0/1.3 must be configured, so option A is correct.

Because PC2 and PC3 are connected to switch S1, S1 learns their source MAC addresses dynamically and stores them in its MAC address table, making option B correct. R1 receives tagged frames from different VLANs on the trunk link and, through its sub-interfaces, can identify and terminate frames for VLAN 2 and VLAN 3, so option C is also correct. Option D is incorrect because hosts in different VLANs do not need to be connected to different physical switches; VLAN separation is logical, not necessarily physical. HCIA-Datacom uses this deployment to explain inter-VLAN communication, 802.1Q trunking, and flexible campus gateway design using limited router interfaces.
