To troubleshoot an Aruba CX 6200 switch that is failing to boot correctly, accessing the switch via the RJ-45 console port on any of its member switches provides direct access to the switch's console for troubleshooting. This method allows a network technician to interact with the boot process, view boot messages, and access boot options, including the selection of different OS images or ServiceOS for recovery purposes.

Aruba AirMatch is a feature that optimizes RF Radio Frequency. RF is any frequency within the electromagnetic spectrum associated with radio wave propagation. When an RF current is supplied to an antenna, an electromagnetic field is created that then is able to propagate through space. performance and user experience by using machine learning algorithms and historical data to dynamically adjust AP power levels, channel assignments, and channel width. AirMatch performs live firmware upgrades on Aruba APs by partitioning all the APs based on RF neighborhood data and minimizing the impact on clients. AirMatch uses a rolling upgrade process that upgrades one partition at a time while ensuring that adjacent partitions are not upgraded simultaneously. References: https://www.arubanetworks.com/assets/ds/DS_AirMatch.pdf https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/arm/AirMatch.htm

To regain access to an Aruba CX switch when credentials are unknown or lost, one can press and hold the clear button, then power cycle the switch to reset the password. Additionally, using the boot profile 0 at the boot loader menu can be used to bypass the current startup configuration, which may include the unknown credentials.

In large logistic facilities, to ensure comprehensive monitoring and performance analysis, it's recommended to place a User Experience Insight (UXI) sensor in every aisle. This allows for detailed and specific monitoring of network performance across the extensive coverage area of such facilities.

The correct command to add a static route to a class-c-network 10.2.10.0 via a gateway of 172.16.1.1 is ip-route 10.2.10.0/24 172.16.1.1 . This command specifies the destination network address (10.2.10.0) and prefix length (/24) and the next-hop address (172.16.1 .1) for reaching that network from the switch. The other commands are either incorrect syntax or incorrect parameters for adding a static route. References: https://www.arubanetworks.com/techdocs/AOS-CX_10_04/NOSCG/Content/cx-noscg/ip-routing/static-routes.htm

To add a static route in network devices, including Aruba switches, the correct command format generally includes the destination network, subnet mask (or CIDR notation for the mask), and the next-hop IP address. The command "ip route 10.2.10.0/24 172.16.1.1" correctly specifies the destination network "10.2.10.0" with a class C subnet mask indicated by "/24", and "172.16.1.1" as the next-hop IP address. This command is succinct and follows the standard syntax for adding a static route in many network operating systems, including ArubaOS-CX. The other options either have incorrect syntax or include additional unnecessary parameters that are not typically part of the standard command to add a static route.

When a client connects to an Aruba AP in tunnel mode and is assigned to a VLAN based on the client's MAC address, this indicates a Dynamic VLAN assignment. The VLAN is determined dynamically at the time of authentication based on the client's credentials or attributes, such as its MAC address.

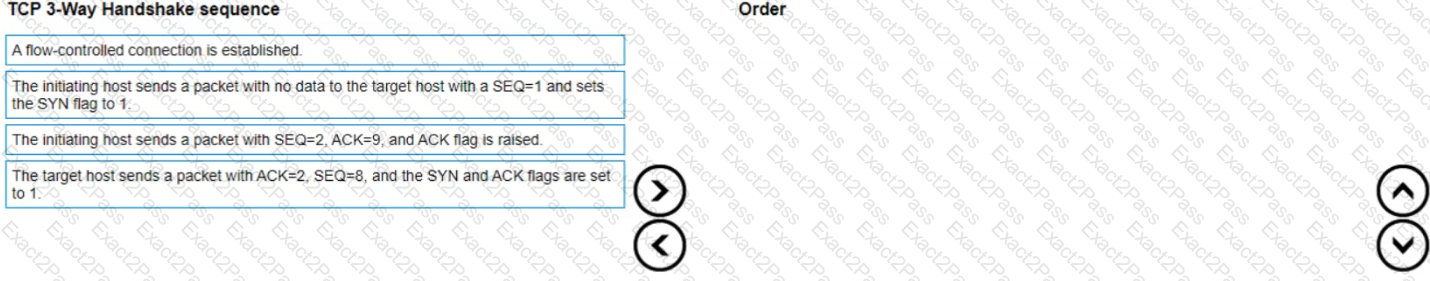

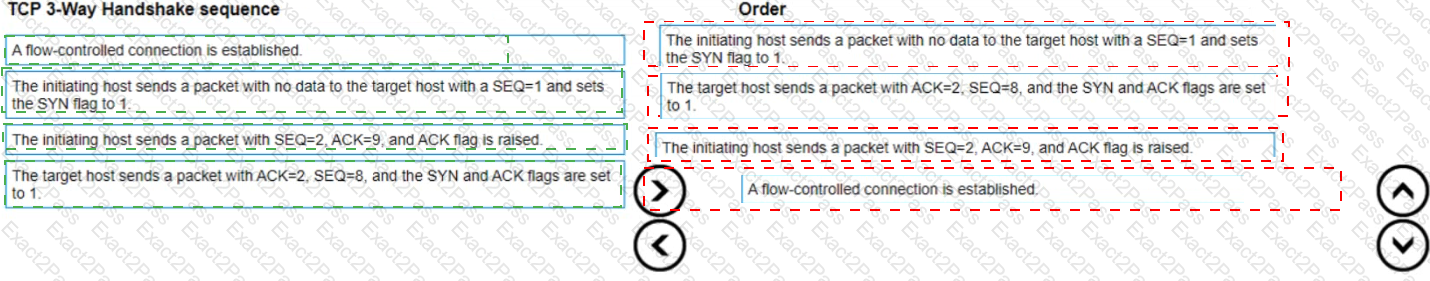

TCP 3-Way Handshake sequence is:

Step 1: The initiating host sends a packet with no data to the target host with a SEQ=1 and sets the SYN flag to 1.

Step 2: The target host responds with a packet with ACK=2, SEQ=8, and the SYN and ACK flags set to 1.

Step 3: The initiating host sends a packet with SEQ=2, ACK=9, and the ACK flag set to 1.

Step 4: A normal-controlled connection is established.

References: https://en.wikipedia.org/wiki/Transmission_Control_Protocol https://www.cisco.com/c/en/us/support/docs/ip/routing-information-protocol-rip/13788-3.html

In Aruba Central's network check page, you can run several diagnostic tests on switches. A ping test is a common utility to check the reachability of a host on an IP network. A Power over Ethernet (PoE) check can help verify the power delivery status to PoE-capable devices. These tests are crucial for ensuring connectivity and power supply to network devices

Bonding multiple 20MHz wide 802.11 channels is a technique to create a wider bandwidth channel that supports higher data rate transmissions. It can increase the throughput between the client and AP by using more spectrum resources and reducing interference. References: https://ieeexplore.ieee.org/document/9288995

Bonding multiple 20MHz wide 802.11 channels is a technique used to increase the throughput between the client device and the Access Point (AP). By combining two or more 20MHz channels into a wider channel (e.g., 40MHz, 80MHz, or even 160MHz), the data carrying capacity and, consequently, the overall throughput of the wireless connection are increased. This method is particularly useful in high-bandwidth applications or environments where higher data rates are required.

In the context of the OSI model, the network layer is responsible for packet forwarding including routing through intermediate routers. Hence, the network layer PDU is known as a packet.
