The correct action to fix the issue is C. Change the SSID to WPA3-Enhanced Open.

WPA3-OWE is not a valid SSID type in Central. OWE stands for Opportunistic Wireless Encryption, and it is a feature that provides encryption for open networks without requiring authentication. OWE is also known as Enhanced Open, and it is one of the options for WPA3 SSIDs in Central 1 .

According to the Aruba document Configuring WLAN Settings for an SSID Profile , one of the steps to configure a WPA3 SSID is:

Select the Security Level from the drop-down list. The following options are available:

WPA3-Personal: This option uses Simultaneous Authentication of Equals (SAE) to provide stronger password-based authentication and key exchange than WPA2-Personal.

WPA3-Enterprise: This option uses 192-bit cryptographic strength for authentication and encryption, as defined by the Commercial National Security Algorithm (CNSA) suite.

WPA3-Enterprise (CCM): This option uses 128-bit cryptographic strength for authentication and encryption, as defined by the Counter with CBC-MAC (CCM) mode.

WPA3-Enhanced Open: This option uses Opportunistic Wireless Encryption (OWE) to provide encryption for open networks without requiring authentication.

The other options are incorrect because:

A. WPA3-Enterprise (CNSA) is a valid SSID type, but it requires 802.1X authentication with a RADIUS server, which may not be suitable for the company’s use case.

B. WPA3-Personal is a valid SSID type, but it requires a passphrase to join the network, which may not be suitable for the company’s use case.

D. WPA3-Enterprise (CCM) is a valid SSID type, but it requires 802.1X authentication with a RADIUS server, which may not be suitable for the company’s use case.

QoS concept:  Class of Service  Definition: 3) A method for classifying network traffic using access categories based on the IEEE 802.11e QoS standards

QoS concept:  Differentiated services  Definition: 2) A method for classifying network traffic at layer-3 or marking packets with one of 64 different service classes

QoS concept:  WMM  Definition: 4) A method for classifying network traffic using access categories based on the IEEE 802.11e QoS standards

BSS coloring is a mechanism that helps identify the BSS Basic Service Set. A BSS is a set of interconnected stations that can communicate with each other. BSS can be an independent BSS or infrastructure BSS. An independent BSS is an ad hoc network that does not include APs, whereas the infrastructure BSS consists of an AP and all its associated clients.  on the same channel and differentiate them from other BSS on the same channel 1 2 .  Each BSS is assigned a color code, which is a 6-bit value that is carried in the PHY header of the Wi-Fi frames 1 2 .  By using BSS coloring, the APs and clients can reduce the threshold for interference detection and avoid unnecessary backoff or retransmissions when they detect frames from other BSS with different colors 1 2 .  This can improve the spectral efficiency and throughput of the network 1 2 . The other options are incorrect because they do not describe the primary benefit of BSS coloring.

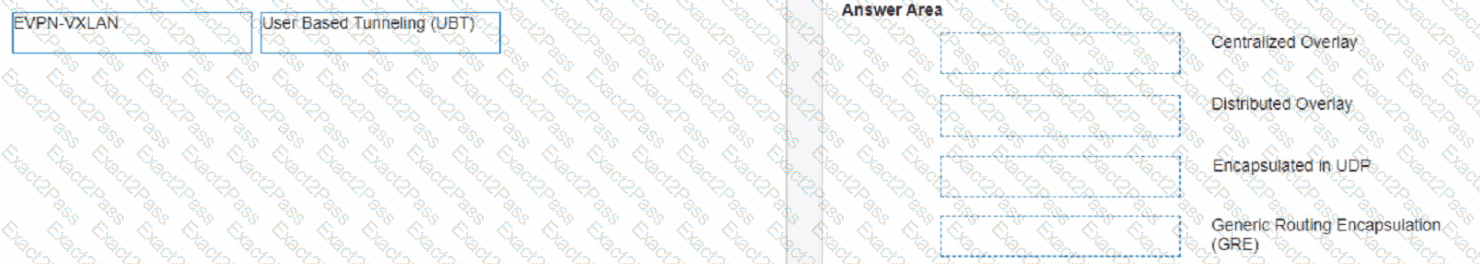

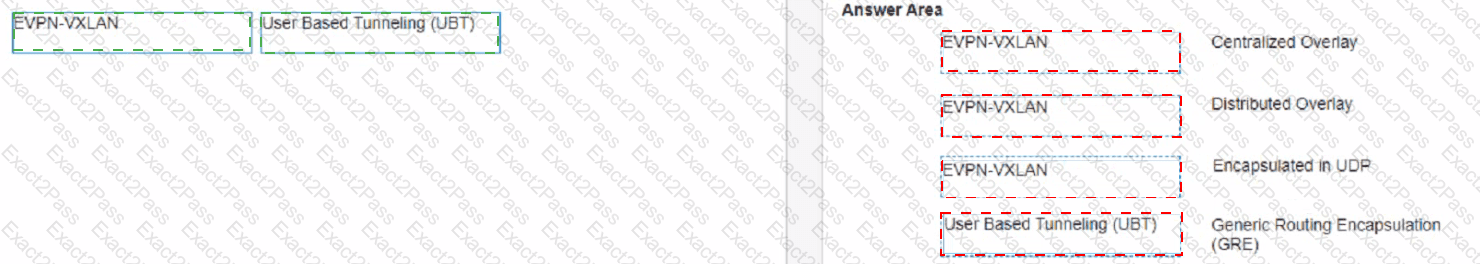

EVPN-VXLAN is a technology that allows layer-2 communication across layer-3 networks by using Ethernet VPN (EVPN) as a control plane and Virtual Extensible LAN (VXLAN) as a data plane 3 . EVPN-VXLAN can be used to support legacy applications that communicate at layer-2 across different campuses or data centers that are connected via layer-3.  EVPN-VXLAN minimizes flooding by using BGP to distribute MAC addresses and IP addresses of hosts across different VXLAN segments 3 .  EVPN-VXLAN also provides benefits such as loop prevention, load balancing, mobility, and scalability 3 . References:  3   https://www.arubanetworks.com/assets/tg/TG_EVPN_VXLAN.pdf

The reason is that PBR allows you to route packets based on policies that match certain criteria, such as source or destination IP addresses, ports, protocols, etc. PBR can also be used to set metrics, next-hop addresses, or tag traffic for different routes.

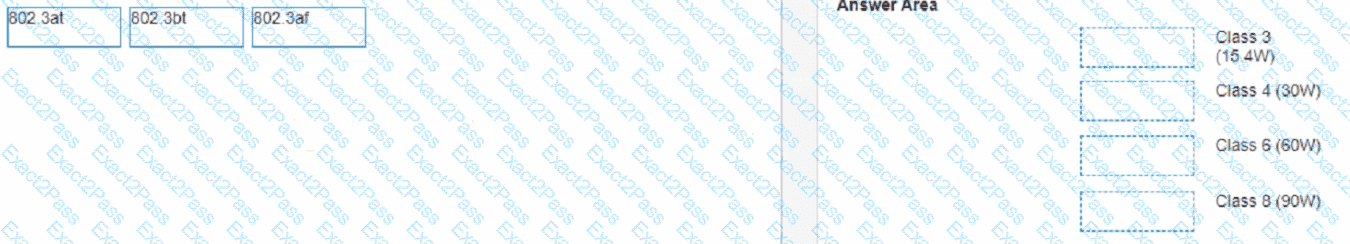

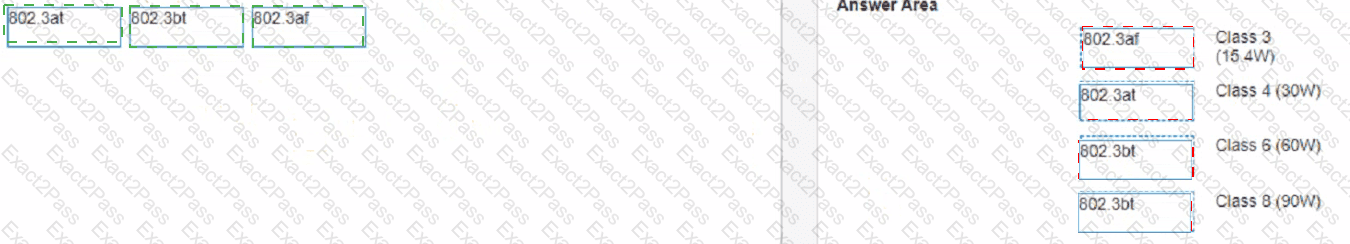

Class 3 (15.4W) :  802.3af

Class 4 (30W) :  802.3at

Class 6 (60W) :  802.3bt

Class 8 (90W) :  802.3bt

The correct answer is B. Spanning-tree instance VLAN mapping.

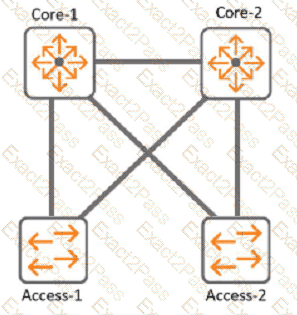

To load-balance VLANs with MSTP, you need to configure the same VLAN-to-instance mapping on all switches in the same MST region. This means that you need to assign different VLANs to different MST instances, and then adjust the spanning tree parameters (such as priority, cost, or port role) for each instance to achieve the desired load balancing. For example, you can make one switch the root for instance 1 and another switch the root for instance 2, and then map half of the VLANs to instance 1 and the other half to instance 2.

According to the Cisco document Understand the Multiple Spanning Tree Protocol (802.1s) , one of the steps to configure MST is:

Split your set of VLANs into more instances and configure different MST settings for each of these instances. In order to easily achieve this, elect Bridge D1 to be the root for VLANs 501 through 1000, and Bridge D2 to be the root for VLANs 1 through 500. These statements are true for this configuration:

Switch D1(config)#spanning-tree mst configuration

Switch D1(config-mst)#instance 1 vlan 501-1000

Switch D1(config-mst)#exit

Switch D1(config)#spanning-tree mst 1 priority 0

Switch D2(config)#spanning-tree mst configuration

Switch D2(config-mst)#instance 2 vlan 1-500

Switch D2(config-mst)#exit

Switch D2(config)#spanning-tree mst 2 priority 0

The above commands create two MST instances, 1 and 2, and map VLANs 501-1000 to instance 1 and VLANs 1-500 to instance 2. Then, they make switch D1 the root for instance 1 and switch D2 the root for instance 2.

The other options are incorrect because:

A. Spanning-tree bpdu-guard setting is a security feature that disables a port if it receives a BPDU from an unauthorized device. It does not affect load balancing with MSTP.

C. Spanning-tree CIST mapping is not a valid command. CIST stands for Common and Internal Spanning Tree, which is the spanning tree instance that runs within an MST region and interacts with other regions or non-MST switches.

D. Spanning-tree root-guard setting is another security feature that prevents a port from becoming a root port if it receives superior BPDUs from another switch. It does not affect load balancing with MSTP.

Active Gateway is the first-hop protocol feature that is used for VSX L3 gateway as per Aruba recommendation. Active Gateway is a feature that allows both VSX peers to act as active gateways for different subnets, eliminating the need for VRRP or other first-hop redundancy protocols. Active Gateway also provides fast failover and load balancing for L3 traffic across the VSX peers. The other options are incorrect because they are either not recommended or not supported by Aruba CX VSX. References: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch07.html https://www.arubanetworks.com/resource/aruba-virtual-switching-extension-vsx/
