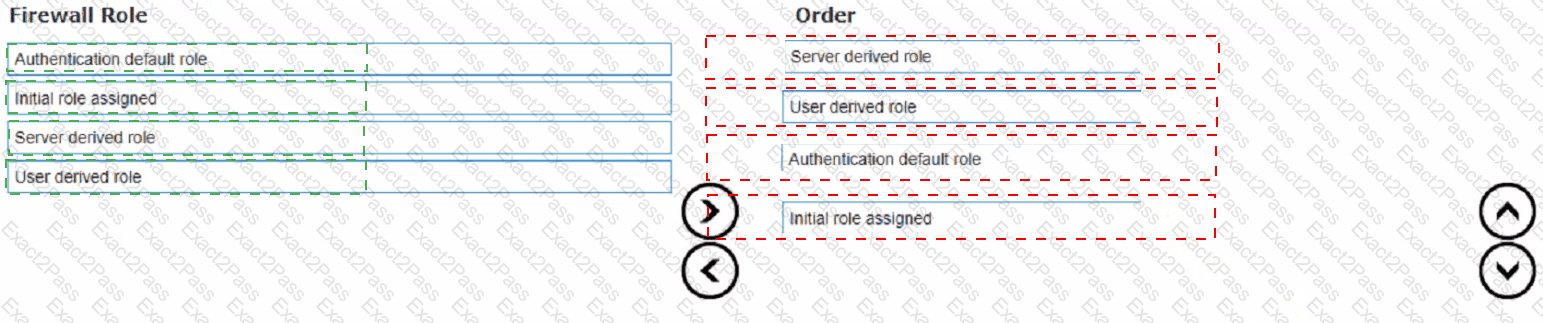

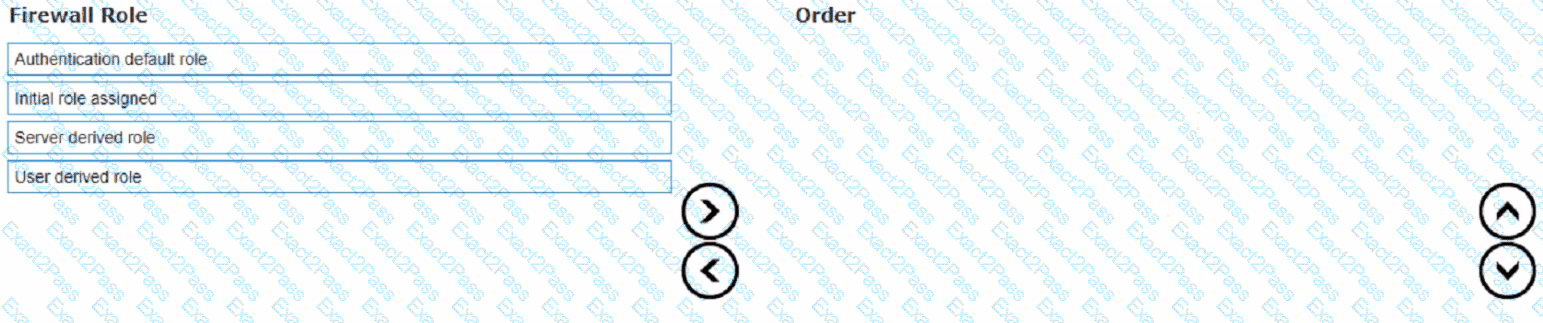

According to the Aruba Documentation Portal 1 , the firewall role derivation flow in the correct order is:

Server derived role

User derived role

Authentication default role

Initiation role assigned

Active gateway is a first hop redundancy protocol that eliminates a single point of failure. The active gateway feature is used to increase the availability of the default gateway servicing hosts on the same subnet. An active gateway improves the reliability and performance of the host network by enabling a virtual router to act as the default gateway for that network.  If you have enabled active gateway, VRRP is not required 3 . Active gateway is similar to VRRP in that routed traffic from the VSX node is sourced from the switch interface MAC and not the virtual MAC address (VMAC). Each active gateway sends a periodic broadcast hello packet to avoid VMAC aging on the access switches.  The switch views the active gateway IP as a self IP address 3 .  Active gateway is preferable over VRRP because with VRRP traffic is still pushed over the ISL link, resulting in latency in the network 3 . Therefore, VRRP and active gateway are mutually exclusive on a VLAN, and answer A is correct.

The default management role that should have been assigned for the user is B. operators.

The operators user role is a predefined role that allows users to view nonsensitive configuration information on the switch, such as interfaces, VLANs, routing protocols, statistics, and more. The operators user role has a privilege level of 1, which is the lowest level of access on the switch 1 .

The administrators user role is a predefined role that has full access to all switch configuration information and all REST API methods. This role is more than what the Director of Security requires 1 .

An OSPF transit network is a network that has at least two routers that are connected by a multi-access link and can forward traffic for other networks 1 . A transit network is different from a stub network, which has only one router connected to it and does not forward traffic for other networks 2 . A transit network is also different from a virtual link, which is a logical connection between two areas that are not physically adjacent 2 . A transit network is not necessarily connected to a different routing protocol, although it can be if the router performs redistribution 2 . Therefore, the correct answer is C. A network on which a router discovers at least one neighbor.

Option C is the correct configuration to ensure that APs will work properly. It uses the  ap  command to configure a port profile for APs with VLAN 100 as the native VLAN and VLAN 200 and 300 as tagged VLANs. It also enables LLDP on the ports to discover the APs and assign them to the port profile automatically. The other options are incorrect because they either do not use the  ap  command, do not enable LLDP, or do not configure the VLANs correctly. References: https://www.arubanetworks.com/techdocs/AOS-CX_10_08/UG/bk01-ch02.html https://www.arubanetworks.com/techdocs/AOS-CX_10_08/UG/bk01-ch03.html

OFDMA (Orthogonal Frequency Division Multiple Access) is a technology that can minimize client latency in a high-density environment by eliminating contention overhead by dedicating subcarriers to clients. OFDMA allows multiple clients to transmit simultaneously on different subcarriers within the same channel, reducing contention and increasing efficiency. MU-MIMO (Multi-User Multiple Input Multiple Output) is a technology that allows multiple clients to transmit simultaneously on different spatial streams within the same channel, but it does not eliminate contention overhead. QWMM (Quality of Service Wireless Multimedia) is a technology that prioritizes traffic based on four access categories, but it does not eliminate contention overhead. Channel Bonding is a technology that combines two adjacent channels into one wider channel, increasing bandwidth but not eliminating contention overhead. References: https://www.arubanetworks.com/assets/ds/DS_AP510Series.pdf https://www.arubanetworks.com/assets/wp/WP_WiFi6.pdf

The standard that is supported by some Aruba APs and can enable a customer to accurately locate wireless client devices within a few meters is A. 802.11mc.

802.11mc is an IEEE standard that enables computing devices to measure the distance to nearby Wi-Fi access points using a technique called Fine Timing Measurement (FTM). FTM uses precise timestamps to calculate the round-trip time of Wi-Fi frames between the device and the access point, and then converts it to a distance estimate. By using multiple access points and triangulation methods, the device can determine its location with high accuracy 1 .

According to the Aruba document 802.11mc Support , this feature is supported on 500 Series, 510 Series, 530 Series, 550 Series, 560 Series and 570 Series access points. These APs act as FTM responders to time measurement queries sent from a client. To configure the AP to send FTM responses, you need to enable the ftm-responder-enable parameter in the WLAN SSID profile 1 .

These are the correct statements regarding the ERSPAN session that needs to be established on an AOS-CX switch for a network administrator to examine the packets over a period of time from their desktop. ERSPAN (Encapsulated Remote Switched Port Analyzer) is a feature that allows an AOS-CX switch to mirror traffic from one or more source ports or VLANs to a remote destination IP address over a GRE (Generic Routing Encapsulation) tunnel. The destination IP address must be the IP address of the administrator’s desktop, which must have a packet capture tool installed to receive and analyze the mirrored traffic. The encapsulation protocol used for ERSPAN is GRE, which adds a header to the mirrored packets with information such as source and destination IP addresses, session ID, etc. The other statements are incorrect because they either do not specify the correct destination IP address or do not use ERSPAN or GRE. References: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch02.html https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch03.html

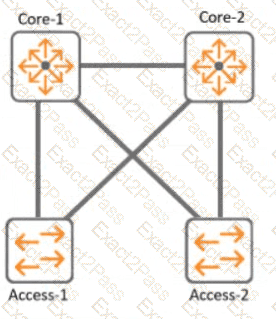

The default value for config-revision on Core-1 is 0. Config-revision is a parameter that indicates the configuration version of a VSX pair. It is used to synchronize the configuration between the VSX peers and to detect any configuration mismatch. The config-revision value is set to 0 by default on both VSX peers and is incremented by 1 every time a configuration change is made on either peer. The other options are incorrect because they do not reflect the default value of config-revision. References: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch07.html https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch02.html

This is the correct explanation of how roles can help keep consistent policy enforcement in a distributed overlay fabric. Roles are used to assign group based policy IDs (GBPs) to devices after they authenticate with ClearPass or a local database. GBPs are then used to tag the traffic from the devices and send them to the ingress VTEP, which applies the GBP on the VXLAN header. The egress VTEP then enforces the policy based on the GBP and the destination device. The other options are incorrect because they either do not describe the correct sequence of events or do not use the correct terms. References: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch03.html https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch05.html
