A Python developer using the REST API cannot modify the VLAN database on an AOS-CX switch. We need to identify the first settings to check.

REST API Requirements for Modification:

HTTPS Server: The REST API operates over HTTPS, so the HTTPS server must be enabled on the switch (show https-server status).

REST Interface: The REST API interface itself must be enabled (it usually is by default, check with show rest-interface).

Authentication: The API client must provide valid credentials (username/password or token) for a user account configured on the switch.

Authorization: The authenticated user account must have sufficient privileges to modify the configuration (e.g., belong to the built-in administrators group or a custom role with appropriate permissions). Check user details (show user < name > ) and role permissions (show user roles).

Analysis of Options:

A. HTTPS settings: Essential for API communication. Check if enabled.

B. SSH settings: Irrelevant to REST API.

C. SNMP settings: Irrelevant to REST API.

D. REST API settings: Check if enabled (show rest-interface), but it's usually enabled by default. Less likely than A or E to be the initial problem.

E. local-user settings: Crucial for both authentication (correct credentials used?) and authorization (does the user have modification privileges?).

Conclusion: When a REST API modification fails, the most critical initial checks involve ensuring the API endpoint is accessible (HTTPS Server enabled - A) and that the user account being used for the API call has the necessary permissions (local-user settings, specifically privileges/roles - E).

The question involves an EAP timeout in HPE Aruba Networking ClearPass Access Tracker during an 802.1X authentication attempt, with the task of identifying a possible cause.

Analysis of Options:

Option A: Incorrect. A client certificate trust issue would cause a different error, not an EAP timeout.

Option B: Incorrect. An expired client certificate would result in an authentication failure, not a timeout.

Option C: Incorrect. If the client sees an expired RADIUS server certificate, it would reject it, but this typically causes a trust error, not a timeout.

Option D: Correct. If the client does not trust the RADIUS server’s certificate (e.g., missing CA certificate or untrusted issuer), it may fail to proceed with the EAP handshake, leading to an EAP timeout.

Why Option D is Correct: In 802.1X authentication with EAP (e.g., EAP-TLS or EAP-PEAP), the client must trust the RADIUS server’s certificate to establish a secure TLS tunnel. If the client’s trust store lacks the Certificate Authority (CA) certificate or the server’s certificate is untrusted (e.g., self-signed without proper installation), the client aborts the EAP handshake, resulting in an EAP timeout logged in ClearPass. This is a common issue in 802.1X deployments and can be resolved by ensuring the client has the correct CA certificate or by using a trusted server certificate, as per HPE Aruba Networking’s security guidelines.

Relevance to Certification Objectives:

Authentication/Authorization (9%): Troubleshooting 802.1X and ClearPass authentication issues.

Security (10%): Diagnosing wired 802.1X with EAP-TLS failures.

Troubleshooting (10%): Resolving authentication timeouts in campus networks.

The customer requires VLAN 151 to be configured as an isolated Private VLAN. A partial configuration was added, but the desired outcome wasn't achieved. We need to determine which configuration snippet should be added before the (unspecified) partial configuration to correctly set up the Private VLAN structure.

Private VLAN Configuration Fundamentals:

A Primary VLAN must be defined. This VLAN carries traffic between promiscuous ports and ports in associated secondary VLANs.

Secondary VLANs (either isolated or community) are associated with the primary VLAN.

Ports are then mapped to either the primary VLAN (promiscuous ports, typically router/firewall connections) or a secondary VLAN (host ports). Isolated ports within the same isolated VLAN cannot communicate with each other.

Analyzing the Options (Assuming VLAN 15 is the intended Primary):

A)

vlan 15

private-vlan primary

vsx-sync

This correctly defines VLAN 15 as the Primary Private VLAN. The vsx-sync command ensures this configuration is synchronized across a VSX pair (relevant if applicable). This is the necessary prerequisite before defining VLAN 151 as an isolated secondary VLAN and associating it with VLAN 15.

B) isolated-vlan primary is incorrect syntax. The command is private-vlan primary.

C) primary-vlan isolated 151 is incorrect syntax for defining either the primary or secondary VLAN type/association within the primary VLAN context.

D) private-vlan isolated 151 within the vlan 15 context is incorrect syntax. The private-vlan isolated command belongs under the configuration of the secondary VLAN (VLAN 151 in this case).

Conclusion: Before configuring VLAN 151 as private-vlan isolated and associating it, the primary VLAN must be defined. Option A correctly shows the command (private-vlan primary) under the intended primary VLAN's configuration (vlan 15) to establish it as the primary VLAN.

The question asks about a possible constraint when connecting an Aruba Gateway Cluster to upstream VSX switches using an MC-LAG.

Scenario: Gateway Cluster acts as a single logical device forming an LACP LAG. The VSX switches are configured with MC-LAG, allowing the gateway cluster to bundle links across the two physical VSX switches.

LACP & Initial Provisioning: LACP requires negotiation (exchange of LACP PDUs) between both ends of the link bundle to activate the LAG. During initial gateway provisioning (ZTP, OTP), the gateway might be in a minimal state without its full configuration, including LACP parameters. If the VSX switch ports are configured strictly for LACP active mode, the LAG might not form until the gateway is fully provisioned and running LACP. This lack of connectivity during provisioning is a constraint.

Analysis of Options:

A: lacp mode active is standard, but the issue is during provisioning, not runtime mode choice. "static-activate" is unrelated.

B: The absence of lacp fallback could be the constraint. Fallback allows connectivity if LACP doesn't establish, which is useful during provisioning.

C: LLDP is not required for LACP.

D: Correctly identifies the constraint: Standard LACP required by the switch might not be supported or active on the gateway during its initial provisioning phase, potentially hindering the setup process. Workarounds like disabling LACP or enabling LACP fallback on the switch ports during this phase are often necessary.

Conclusion: LACP incompatibility during the initial provisioning phase of the gateway cluster is a common constraint when connecting to switches requiring LACP for the LAG.

The goal is to configure a Link Aggregation Group (LAG) on a VSX cluster (pair of CX 8325 switches) that connects to an Aruba 7000 series gateway undergoing Zero Touch Provisioning (ZTP). The LAG needs to support "protocol-based port redundancy" (LACP) and allow connectivity during ZTP.

VSX Requirement: Since the LAG connects to two separate physical switches operating as a VSX pair, the LAG must be configured as a Multi-Chassis LAG (MC-LAG) on the switches. This allows the gateway to form a single LAG across both upstream devices. The command multi-chassis under the interface lag < id > context enables this.

Protocol Redundancy Requirement: "Protocol-based port redundancy" indicates that Link Aggregation Control Protocol (LACP) should be used to dynamically negotiate and manage the LAG bundle between the switches and the gateway. The command lacp mode active enables LACP in active negotiation mode.

ZTP Requirement: During ZTP, the gateway might not have its full configuration, including LACP settings, enabled immediately. To ensure the gateway can establish basic IP connectivity for ZTP (e.g., reach Activate/Central via DHCP/DNS), the switch ports should allow traffic even if LACP negotiation hasn't completed. The lacp fallback feature enables this, allowing individual LAG member ports to become active if LACP PDUs are not received from the peer.

Analyzing the Options:

A) Configures lacp mode active and lacp fallback but lacks the multi-chassis command required for VSX.

B) Correctly configures the LAG as multi-chassis, enables lacp mode active, and enables lacp fallback. This meets all requirements.

C) Configures multi-chassis but uses potentially older or less standard syntax lacp enable and lacp fail-over instead of lacp mode active and lacp fallback.

D) Lacks the multi-chassis command and uses potentially older/less standard syntax.

Conclusion: Option B provides the complete and correct configuration using standard AOS-CX syntax to create an MC-LAG on the VSX pair with LACP enabled for redundancy and LACP fallback enabled to support gateway connectivity during ZTP.

The goal is to add a static route on Router-1 to allow clients in VLAN 10 (subnet 10.2.10.0/24, presumably in VRF 'IoT-Medical' based on options) to reach services in the 10.1.100.0/24 subnet. The exhibit indicates interface 1/1/1 (IP 10.255.101.10/24) is in VRF 'service', and the likely next hop towards the destination is Core-1 at 10.255.101.11 (also implied to be reachable via VRF 'service'). This requires adding a route in the source VRF ('IoT-Medical') pointing towards the destination via the next hop in the 'service' VRF.

Static Route Syntax (with VRF): ip route < destination_prefix > < next-hop-ip > [vrf < source-vrf > ]

Analysis of Options:

A: Claims Core-1 isn't in VRF 'service', contradicting the likely setup.

B: Uses unusual interface:ip syntax (1/1/1:10.255.101.11). Defines the route in VRF 'IoT-Medical'.

C: Uses interface 1/1/1 as the next hop. This is less specific than using the IP address and relies on the interface being point-to-point or having proxy ARP enabled. Defines the route in VRF 'IoT-Medical'.

D: ip route 10.1.100.0/24 10.255.101.11 vrf IoT-Medical. This uses the standard syntax to define a static route for the destination 10.1.100.0/24 via the next-hop IP 10.255.101.11 within the context of the IoT-Medical VRF. The successful function of this route depends on inter-VRF routing (route leaking) being configured between 'IoT-Medical' and 'service' VRFs, but the command itself correctly defines the desired static route.

Conclusion: Option D provides the correct and standard command syntax to configure the required static route within the specified source VRF ('IoT-Medical').

The question asks for the minimal configurations required for Multiple Spanning Tree Protocol (MSTP) to work correctly on AOS-CX switches.

Analysis of Options:

Option A: Correct. The MSTP region name must be configured to define the MSTP region and ensure switches belong to the same region.

Option B: Incorrect. Bridge priority is optional and defaults to 32768; it’s not mandatory for MSTP functionality.

Option C: Correct. The MSTP revision number is required to ensure consistency across switches in the same region.

Option D: Incorrect. Enabling MSTP on interfaces is automatic for VLAN-enabled ports; explicit configuration is not mandatory.

Option E: Incorrect. Creating MSTP instances is optional and only needed for specific VLAN-to-instance mappings.

Why A and C are Correct: MSTP requires a consistent region configuration across all switches to function correctly. The minimal configuration includes:

MSTP region name: Defines the region (e.g., spanning-tree config-name REGION1) to group switches.

Revision number: Ensures region consistency (e.g., spanning-tree config-revision 1).

These settings ensure switches form a single MSTP region, allowing VLAN-to-instance mappings (default instance 0 if not specified) and loop prevention. Other settings, like bridge priority or explicit instance creation, are optional and not strictly required for basic MSTP operation.

Relevance to Certification Objectives:

Network Resiliency and Virtualization (8%): Designing and troubleshooting MSTP for redundancy and fault tolerance.

Switching (19%): Implementing Layer 2 technologies like MSTP for loop prevention.

The question involves granting read-only access to a user with physical access to an AOS-CX switch. The task is to identify the correct command set.

Analysis of Options (Assumed Context): Read-only access is typically configured using AAA with a privilege level or role. Option C is assumed to include commands like:

text

Copy

aaa authentication login privilege-mode

user operator password plaintext < password >

This assigns the “operator” role, which provides read-only access.

Option A: Incorrect. Likely uses an incorrect role or privilege level (e.g., admin).

Option B: Incorrect. May configure a role with excessive permissions or invalid syntax.

Option C: Correct. Configures a user with the “operator” role for read-only access.

Option D: Incorrect. Likely includes commands for a different access level or invalid configuration.

Why Option C is Correct: In AOS-CX, the “operator” role provides read-only access, allowing users to view configurations and status (e.g., show commands) without modifying settings. The command user operator password plaintext < password > creates a local user with this role, and aaa authentication login privilege-mode ensures privilege levels are enforced upon login. This configuration is suitable for a user with physical access (e.g., via console or SSH), ensuring they cannot alter the switch, as per HPE Aruba Networking’s AAA security practices.

Relevance to Certification Objectives:

Authentication/Authorization (9%): Configuring AAA for user access control.

Security (10%): Implementing secure management access in customer networks.

Troubleshooting (10%): Ensuring proper user permissions for network management.

The goal is to enable Bidirectional Forwarding Detection (BFD) for eBGP neighbors 10.10.10.2 and 10.10.20.2 on the AOS-CX VSF stack (AS 65000). Global BFD settings are already configured. We need the specific commands to link BFD state to the BGP neighbor relationship.

BFD for BGP Configuration: Requires enabling the fall-over bfd parameter for the specific neighbor within the router bgp < asn > configuration hierarchy.

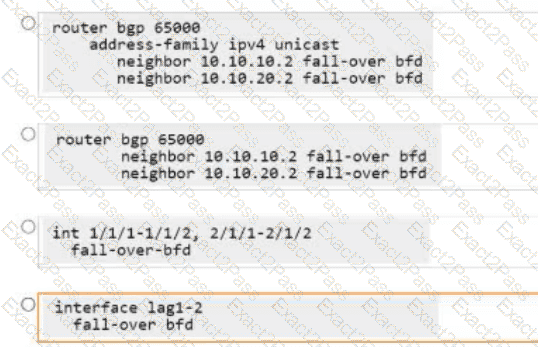

Analyzing the Options (New Image):

Option 1 (Top):

router bgp 65000

address-family ipv4 unicast

neighbor 10.10.10.2 fall-over bfd

neighbor 10.10.20.2 fall-over bfd

This enables BFD specifically within the ipv4 unicast address family context for both neighbors. This is a valid configuration location.

Option 2 (Second):

router bgp 65000

neighbor 10.10.10.2 fall-over bfd

neighbor 10.10.20.2 fall-over bfd

This enables BFD directly under the main neighbor < ip > configuration lines within router bgp 65000. This typically applies BFD to all address families configured for that neighbor relationship (including IPv4 unicast). This is also a valid and common configuration location.

Option 3 (Third):

int 1/1/1-1/1/2, 2/1/1-2/1/2

fall-over-bfd

Incorrect. Applies BFD configuration under an interface range context, which is not how BFD is linked to BGP sessions.

Option 4 (Bottom):

interface lag1-2

fall-over bfd

Incorrect. Applies BFD configuration under an interface LAG range context, which is not how BFD is linked to BGP sessions.

Comparing Valid Options (1 vs 2): Both Option 1 and Option 2 correctly use the fall-over bfd command under router bgp. Option 1 provides per-address-family granularity, while Option 2 applies it to the neighbor generally. Without a specific requirement to enable BFD only for IPv4, applying it at the neighbor level (Option 2) is often simpler and sufficient. Both achieve the goal for the required IPv4 peering. In many documentation examples, the configuration is shown at the neighbor level unless per-AF control is explicitly needed.

Conclusion: Both Option 1 and Option 2 show valid configuration methods. Option 2 is arguably slightly more common/general when BFD is desired for the overall neighbor relationship.

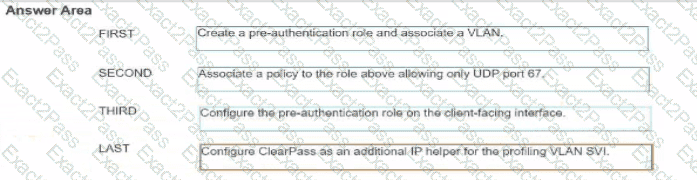

To enable DHCP Endpoint Profiling, the switch needs to forward relevant DHCP packets from the client to the ClearPass server. The most common method is configuring the switch to act as a DHCP relay agent for the ClearPass server IP address on the client VLAN's Switched Virtual Interface (SVI).

In scenarios where port access control (like 802.1X or MAC Auth) is enabled, clients might need to send DHCP requests before they are fully authenticated. To allow this while maintaining security, a pre-authentication role with limited access (specifically allowing DHCP) can be applied to the port initially.

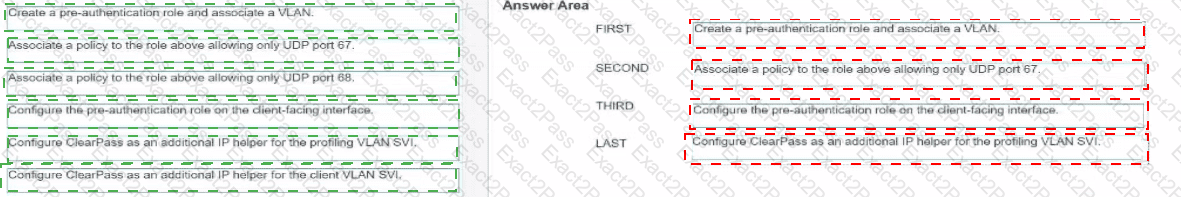

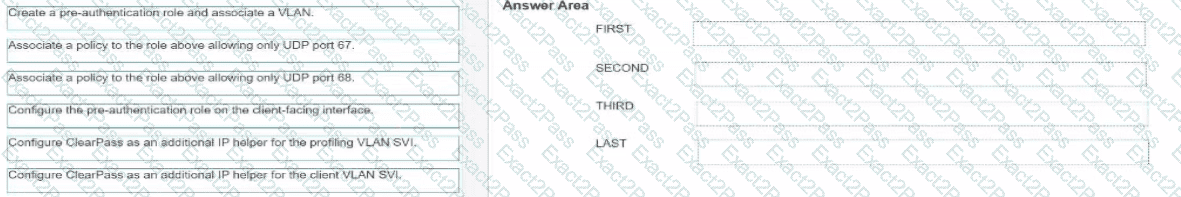

The logical sequence based on the provided steps, assuming a pre-authentication workflow is intended, is:

Create the role: Define the pre-authentication role container and associate it with the appropriate initial VLAN if needed.

Permit DHCP in the role: Apply an Access Control List (ACL) or policy to this role that permits the necessary DHCP traffic (UDP ports 67 and 68). The step provided only mentions UDP 67, which allows the client's initial Discover/Request packets towards the server/relay. (A complete solution requires allowing return traffic on UDP 68 as well).

Apply the role: Configure the client-facing physical interface to use this pre-authentication role before the final role is assigned post-authentication.

Configure DHCP Relay: Configure the ip helper-address < clearpass_ip > command on the client's VLAN SVI. This instructs the switch to forward the DHCP packets it receives from clients in that VLAN to the ClearPass server (in addition to forwarding them to the actual DHCP server). ClearPass receives these packets and extracts information for profiling.

This sequence ensures that even before full authentication, DHCP is permitted, and the necessary packets are relayed to ClearPass for profiling.
