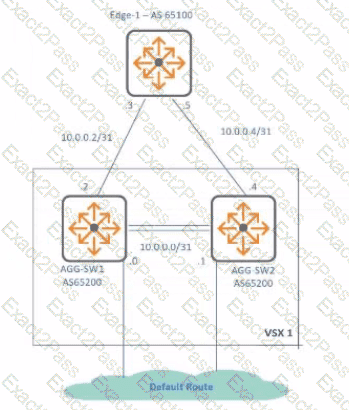

The BGP state on a VSX pair is stuck (not 'Established') after a recent firewall change at the WAN/Internet edge, where the BGP peering likely occurs.

BGP and Firewalls: BGP establishes sessions using TCP port 179 . Firewalls located between BGP peers must explicitly permit TCP port 179 traffic bidirectionally for the peering to establish and maintain. Firewall changes are a frequent cause of broken BGP sessions.

Troubleshooting Steps After Firewall Change: The most logical first step is to verify that the firewall change did not inadvertently block TCP port 179 between the configured BGP neighbor IP addresses.

Analysis of Options:

A: Restarting routing service is disruptive and not the first step.

B: Confirming that appropriate TCP ports (specifically 179) are still allowed through the firewall directly addresses the most probable cause related to the firewall change event.

C: Restarting NAT service is likely irrelevant unless NAT is incorrectly configured for BGP peers.

D: Confirming the peer AS is a basic configuration check but less likely related to the firewall change event than port blocking.

Conclusion: Given the problem occurred immediately following a firewall change, verifying that the firewall still permits TCP port 179 between the BGP peers is the most direct and likely troubleshooting step.

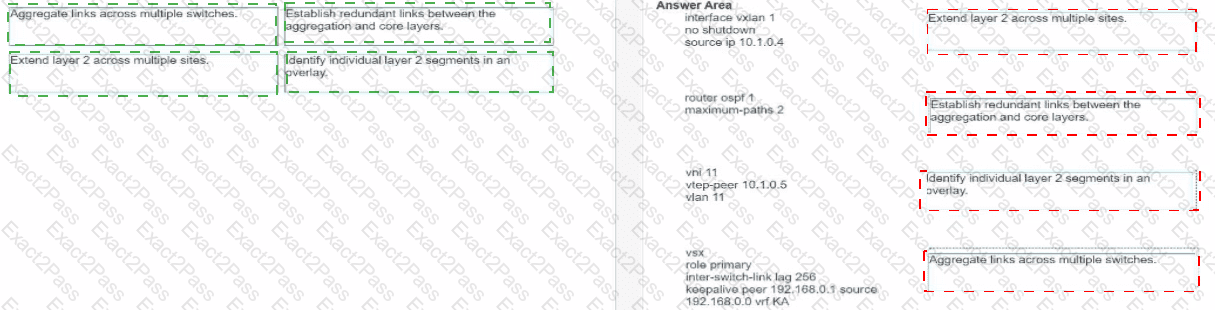

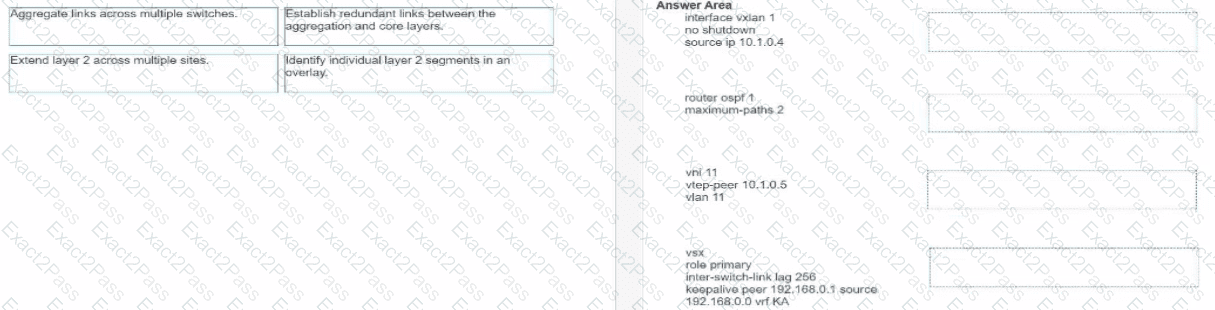

Aggregate links across multiple switches -- >

vsx

role primary

inter-switch-link lag 256

keepalive peer 192.168.0.1 source 192.168.0.0 vrf KA

(Snippet 4)

Establish redundant links between the aggregation and core layers -- >

router ospf 1

maximum-paths 2

(Snippet 2)

Extend layer 2 across multiple sites -- >

interface vxlan 1

no shutdown

source ip 10.1.0.4

(Snippet 1)

Identify individual layer 2 segments in an overlay -- >

vni 11

vtep-peer 10.1.0.5

vlan 11

(Snippet 3)

Comprehensive Detailed Explanation along with All References available from related to the HPE Campus Access Switching Expert certification objectives at end of each question below:

Aggregate links across multiple switches: This requirement describes Multi-Chassis Link Aggregation (MC-LAG), where a device forms a LAG to two separate upstream switches that act as a logical pair. In AOS-CX, VSX (Virtual Switching Extension) enables this functionality. Snippet 4 shows commands related to setting up VSX (vsx, role primary, inter-switch-link, keepalive), which is the foundation for MC-LAG.

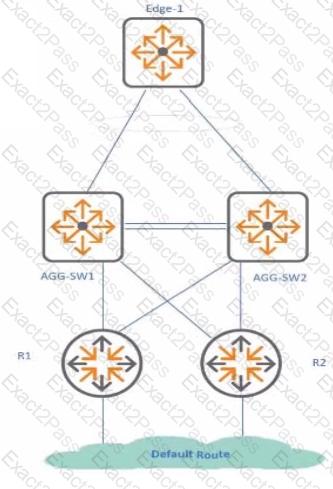

The scenario involves a VSX pair (AGG-SW1/SW2) connected upstream to routers R1/R2. The goal is to configure the SVIs on the VSX switches facing these upstream routers optimally to avoid suboptimal L3 paths and unnecessary traffic over the VSX Inter-Switch Link (ISL).

VSX L3 Interface Options:

Active Gateway: Primarily designed for downstream SVIs to provide a redundant default gateway to clients/access switches. Not typically used for upstream routed interfaces.

Active Forwarding: Specifically designed for upstream routed interfaces (physical or SVIs) on a VSX pair. It allows both VSX members to actively route traffic arriving on that interface locally, without needing to forward L3 traffic across the ISL. This ensures optimal routing and utilizes both members effectively.

Unicast IP (Standard IP): Without specific VSX features, standard routing applies. This could lead to suboptimal paths if, for example, return traffic prefers one VSX switch, but the optimal path requires crossing the ISL.

VRRP: Can be run between VSX members but adds complexity and is generally superseded by Active Gateway (downstream) or Active Forwarding (upstream) in VSX designs.

Analysis of Options:

A. Configure active-forwarding: This enables local L3 forwarding on both VSX members for the upstream SVI, preventing unnecessary ISL traversal for routed traffic. This is the recommended best practice.

B. Configure unicast IP: Standard configuration, potentially leading to suboptimal paths/ISL usage.

C. Configure VRRP virtual-ip: Not the recommended approach for upstream links in VSX.

D. Configure active-gateway: Incorrect, Active Gateway is for downstream SVIs.

Conclusion: Using active-forwarding on the SVIs facing the upstream routers (R1/R2) is the HPE Aruba Networking recommended solution to ensure optimal routing and minimize L3 traffic across the ISL.

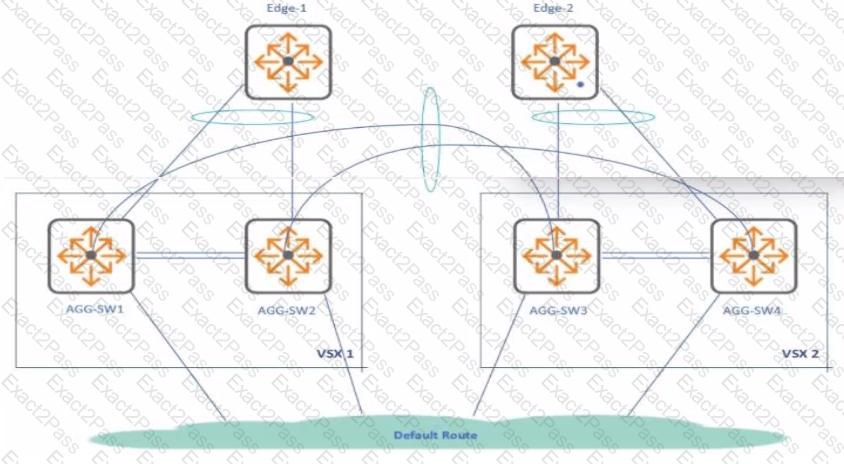

The scenario describes two separate VSX clusters interconnected via MC-LAG, where both clusters are configured to use the exact same virtual IP address and virtual MAC address for their respective Active Gateway SVIs.

Active Gateway Scope & Conflict: Active Gateway provides a highly available default gateway within a single VSX cluster (L2 domain). The vIP/vMAC combination should be unique within its L2 broadcast domain.

Interconnecting Clusters with Same vIP/vMAC: When two VSX clusters using the identical Active Gateway vIP/vMAC are interconnected at Layer 2 (even via MC-LAG), this creates a situation where the same active L2 (vMAC) and L3 (vIP) address exists in multiple places within the extended broadcast domain.

Consequences: This leads to MAC address conflicts and L3 ambiguity. ARP resolution becomes unreliable, potentially causing ARP tables to flap on connected devices. Traffic forwarding becomes unpredictable, as packets destined for the vIP/vMAC might be delivered to the "wrong" cluster. This unstable and unpredictable state is sometimes referred to as an asymmetric or "async" setup.

Analysis of Options:

A: ISL traffic might change, but it's a symptom, not the root problem.

B: Multiple ARP replies would occur, contributing to the confusion.

C: The configuration results in an "async setup," accurately describing the unstable state caused by duplicate active L2/L3 addresses across the interconnected L2 domain.

D: Load-balancing happens within a cluster; this setup causes conflict, not predictable load balancing across clusters.

Conclusion: Reusing the same Active Gateway vIP and vMAC across interconnected VSX clusters is not a valid design and leads to an unstable, asymmetric ("async") environment due to address duplication within the extended L2 domain. Option C best describes this problematic outcome.

The question involves Acme Corp experiencing performance degradation due to overutilized uplinks from ToR-1 to Core-1 and Core-2, with a diagram (not provided) indicating a potential MSTP (Multiple Spanning Tree Protocol) issue. The task is to identify valid reasons for uplink overutilization.

Analysis of Options:

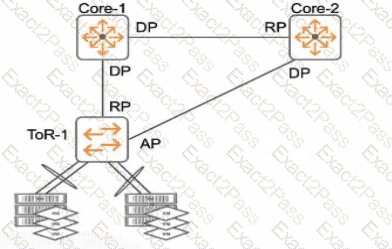

Option A: Incorrect. Incorrect root bridge configuration (e.g., Core-2 as root) may cause suboptimal paths but is not directly linked to uplink overutilization without further context.

Option B: Correct. Inconsistent VLAN-to-instance mappings across switches can cause MSTP to block unexpected ports, funneling traffic through fewer uplinks and causing overutilization.

Option C: Incorrect. Firmware mismatches may cause compatibility issues but are unlikely to directly cause uplink overutilization.

Option D: Correct. Using the default MSTP region configuration (e.g., default region name and revision) across switches can lead to all switches forming a single MSTP region, potentially causing suboptimal topology and uplink overuse.

Option E: Incorrect. Running MSTP with admin-network port-type on uplinks and downlinks is not a standard cause of overutilization; it’s a specific port role.

Why B and D are Correct: MSTP relies on consistent region configurations (region name, revision number, VLAN-to-instance mappings) to create efficient topologies. If VLAN-to-instance mappings differ (Option B), switches treat each other as separate regions, leading to blocked ports and traffic concentration on fewer uplinks, causing overutilization. Similarly, using the default MSTP region configuration (Option D) without customizing the region name or revision can result in all switches forming a single region with suboptimal spanning tree instances, potentially overloading specific uplinks. Both issues disrupt MSTP’s ability to balance traffic across redundant paths, aligning with HPE Aruba Networking’s MSTP troubleshooting scenarios.

Relevance to Certification Objectives:

Network Resiliency and Virtualization (8%): Troubleshooting MSTP for redundancy and fault tolerance.

Switching (19%): Diagnosing Layer 2 issues, including MSTP misconfigurations.

Performance Optimization (6%): Remediating uplink utilization issues.

The ClearPass Event Viewer message "RADIUS authentication attempt from unknown NAD (10.10.1.10:1812)" indicates that ClearPass received a RADIUS request from the IP address 10.10.1.10, but this IP is not configured as a trusted Network Access Device (NAD) in ClearPass's network device list, or the shared secret doesn't match. The first step in troubleshooting on the switch side is to verify which source IP address the switch is actually using to send these RADIUS requests.

RADIUS Source IP: AOS-CX switches can be configured to use a specific source IP address for RADIUS packets, often using the ip source-interface radius [vrf < vrf-name > ] command. This is important if the switch has multiple IP interfaces or uses VRFs.

Analysis of Commands:

A. show ip source-interface radius: This command directly displays the configured source interface and IP address used for RADIUS communications, allowing comparison with the IP configured in ClearPass.

B. show aaa authentication-server radius: Shows server group configuration, not the source IP used by the switch.

C. show radius-server shared-secret: Not a standard command; secrets are usually masked in other commands.

D. show radius-server detail: Shows configured RADIUS server details but doesn't explicitly show the source IP the switch is using to originate packets.

Conclusion: To identify why ClearPass sees requests from an "unknown NAD" IP (10.10.1.10), the first step on the switch is to confirm which source IP it's using. show ip source-interface radius provides this crucial information.

This question asks about 802.1X functionality in an AOS-10 environment involving Gateway Clusters.

AOS-10 Gateway/802.1X Architecture:

Authenticator: The Access Point (AP) typically acts as the 802.1X authenticator, handling EAPoL frames with the client.

RADIUS Proxy: The Gateway Cluster (specifically the cluster leader or UDG anchor) often acts as a RADIUS proxy, forwarding RADIUS messages between the APs and the central RADIUS server (e.g., ClearPass). This simplifies RADIUS configuration as the server only needs to know about the gateway cluster.

CoA: Change of Authorization messages from the RADIUS server are typically sent to the device acting as the RADIUS client, which is the Gateway Cluster when operating in proxy mode.

Mobility (L2 vs L3): Roaming behavior and User Designated Gateway (UDG) assignment can differ based on whether clients maintain their IP address (L2 mobility) or potentially require new IP information (L3 mobility). L2-connected gateway deployments generally allow for more seamless UDG persistence compared to L3-connected deployments where the client might roam across subnet boundaries managed by different gateways.

Re-authentication: Seamless roaming mechanisms aim to minimize full re-authentications during roaming events.

Analysis of Options:

A: Full re-authentication after re-association on L3-connected gateways might occur in some scenarios but contradicts the goal of seamless roaming.

B: States the UDG remains fixed on L2-connected but not on L3-connected gateways. This aligns with the architectural differences in handling mobility across L2 vs L3 boundaries within a cluster.

C: Incorrect. CoA is generally sent to the RADIUS client/proxy (the Gateway Cluster), not always directly to the APs.

D: Correct. Gateways commonly act as a RADIUS proxy, while the AP remains the authenticator handling EAPoL with the client.

E: Incorrect. The RADIUS proxy function is not limited to only Tunnel and Bridged modes.

Conclusion: Options B and D accurately describe common characteristics of 802.1X operation within an AOS-10 Gateway Cluster architecture.

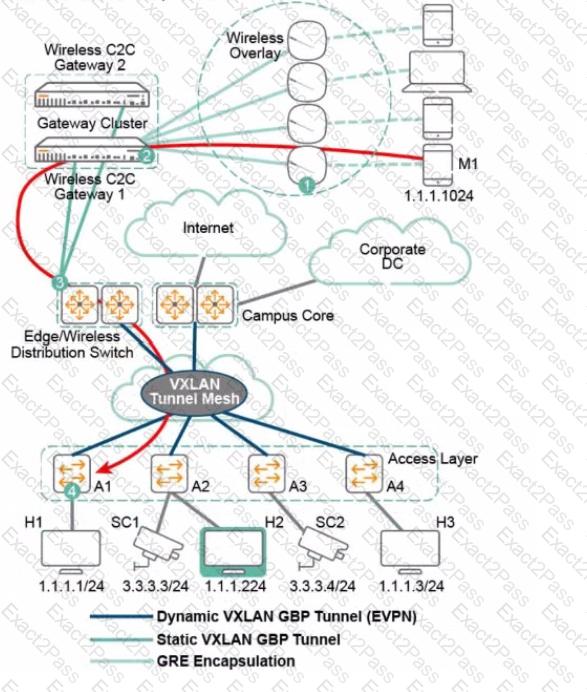

The question asks for the fourth step in applying a role-to-role ACL on traffic from a mobile device (M1) to a role (H2) in a network using Dynamic Segmentation with VXLAN. This follows question 17, which identified the first step as the AP forwarding the packet to the gateway.

Analysis of Options:

Option A: Correct. The fourth step involves the destination switch (Switch A1) determining the destination role (H2) based on the destination MAC or IP address and applying the role-to-role ACL to permit or deny the traffic.

Option B: Describes an earlier step (likely second or third) where the gateway forwards traffic over a VXLAN tunnel.

Option C: Describes the first step, as identified in question 17.

Option D: Describes an intermediate step (likely third) where the edge switch transfers the Group Policy ID over VXLAN.

Why Option A is Correct: In HPE Aruba Networking’s Dynamic Segmentation architecture, the traffic flow for role-based ACLs in a VXLAN environment follows these steps:

The AP forwards the packet from M1 to the gateway (question 17).

The gateway assigns the source role (M1’s role) and forwards the packet over a VXLAN tunnel with the Group Policy ID.

The edge switch transfers the Group Policy ID to the destination switch (A1) via VXLAN.

Switch A1 determines the destination role (H2) based on the destination MAC or IP address and enforces the role-to-role ACL, as defined in the Group-Based Policy (GBP).

The fourth step is critical for policy enforcement, ensuring that traffic complies with the security policies defined between the source and destination roles, providing secure network segmentation.

Relevance to Certification Objectives:

Security (10%): Designing and troubleshooting role-based security policies in customer networks.

Switching (19%): Implementing Layer 2/3 interconnection technologies like VXLAN for policy enforcement.

WLAN (9%): Troubleshooting wireless traffic flows in Dynamic Segmentation.

The question involves a customer experiencing performance degradation due to periodic overutilization of ToR-1 uplinks to legacy Core-1 and Core-2 switches. The proposed solution is to migrate to CX 6400 series switches, and the task is to identify which aspects of the CX 6400 platform address the issue while adhering to HPE Aruba Networking best practices.

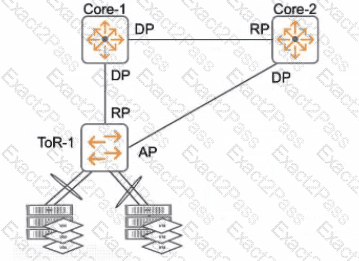

Analysis of Options:

Option A: Incorrect. The CX 6400 does not support “multi-region design” as a feature for active forwarding pathways.

Option B: Correct. Virtual Switching Framework (VSF) on the CX 6400 allows multiple active forwarding pathways by creating a single logical switch from multiple physical switches, eliminating the need for STP in the core and reducing uplink congestion.

Option C: Incorrect. Backplane stacking does not directly enable ESXi hosts to load balance using active LACP; this is unrelated to uplink utilization.

Option D: Correct. Multi-Chassis Link Aggregation (MC-LAG) allows Core-1 and Core-2 to form a single logical 802.3ad (LACP) device, enabling active-active uplinks from ToR-1 and load balancing traffic to prevent overutilization.

Why B and D are Correct: The performance degradation is caused by uplink overutilization, likely due to STP blocking redundant paths or inefficient load balancing. The CX 6400’s VSF capability combines multiple switches into a single logical device, allowing all uplinks from ToR-1 to be active without relying on STP, which often blocks redundant paths. MC-LAG further enhances this by presenting Core-1 and Core-2 as a single LACP system, enabling ToR-1 to use all uplinks actively via LACP load balancing. These features align with HPE Aruba Networking best practices for high-availability and performance in campus core deployments.

Relevance to Certification Objectives:

Network Resiliency and Virtualization (8%): Designing and troubleshooting VSF and MC-LAG for resiliency and redundancy.

Performance Optimization (6%): Analyzing and remediating uplink utilization issues.

Connectivity (9%): Applying advanced networking architectures like VSF and MC-LAG.

The question involves configuring an OSPF virtual link to extend area 0 across a non-backbone area, based on an exhibit (not provided) and four configuration options (A to D). Since the exhibit is unavailable, I will assume a typical scenario where a virtual link is needed to connect two area 0 segments through a transit area (e.g., area 1).

Analysis of Options (Assumed Context): A virtual link is configured using the area < transit-area > virtual-link < router-id > command in the OSPF process. The correct option likely includes:

Option A: Incorrect syntax or incorrect router ID/area for the virtual link.

Option B: Incorrect configuration, possibly missing the virtual link or using wrong parameters.

Option C: Correct. Likely includes the proper command, e.g., area 1 virtual-link 2.2.2.2, where area 1 is the transit area and 2.2.2.2 is the router ID of the remote ABR.

Option D: Incorrect, possibly configuring an unnecessary or incorrect virtual link.

Why Option C is Correct: OSPF requires all areas to connect to the backbone area (area 0). If two area 0 segments are separated by a non-backbone area (e.g., area 1), a virtual link is configured between the Area Border Routers (ABRs) to logically extend area 0 through the transit area. The command area < transit-area > virtual-link < remote-router-id > is used, specifying the transit area and the router ID of the remote ABR. Option C is assumed to provide the correct syntax and parameters based on standard OSPF virtual link configurations, ensuring area 0 connectivity and proper route advertisement.

Relevance to Certification Objectives:

Routing (16%): Designing and troubleshooting OSPF topologies, including virtual links.

Troubleshooting (10%): Resolving OSPF area connectivity issues.
