Comprehensive and Detailed Explanation From Exact Extract of HPE Aruba Networking Switching:

The requirement in this question is to allow IT staff to provision unique pre-shared keys (PSKs) for each IoT device on a single SSID , ensuring that one device’s PSK cannot be used by another. This is the definition of Multi-Pre-Shared Key (MPSK) functionality.

HPE Aruba Networking supports three main MPSK deployment methods:

MPSK Local – Keys are defined locally on the AP or gateway; no external integration.

MPSK with ClearPass – Keys are managed and validated via ClearPass Policy Manager.

MPSK with Cloud Authentication – Keys are generated, stored, and managed natively through Aruba Central Cloud Authentication.

In this scenario, the IT Helpdesk wants a simplified, cloud-based method to generate and manage per-device unique PSKs without needing a ClearPass deployment. This aligns directly with MPSK AES with HPE Aruba Networking Central Cloud Authentication .

Exact Extract from HPE Aruba Networking Switching and Central Documentation:

“MPSK with Cloud Authentication allows administrators to configure a single SSID where each device is assigned a unique PSK. The PSKs are securely stored and validated using Aruba Central’s cloud-based authentication service.”

“Each PSK is tied to a specific client identity. If another device attempts to connect using the same PSK, the authentication will fail.”

“This method simplifies onboarding of IoT and headless devices while maintaining security equivalent to 802.1X.”

Thus, the correct recommendation is MPSK AES with Aruba Central Cloud Authentication , which fully supports per-device key uniqueness, centralized management, and cloud-based authentication—ideal for IoT device onboarding.

Why the Other Options Are Incorrect:

A. MPSK AES with ClearPass: Valid and secure, but requires an on-prem ClearPass Policy Manager deployment. The question specifies a simpler method for IT Helpdesk to manage keys directly, which Cloud Authentication provides natively.

“ClearPass MPSK requires policy manager integration; Aruba Central Cloud Authentication provides a simpler cloud-native alternative.”

C. MPSK Local: Suitable for small static environments, but not scalable and requires manual key creation on the AP or gateway. Does not allow IT staff to easily generate new keys per device via Central.

“MPSK Local does not support centralized lifecycle management or key revocation.”

D. MPSK AES with MAC Auth: MPSK already handles per-device authentication via unique keys; MAC authentication is unnecessary and less secure.

“MAC authentication is an alternate method for non-802.1X devices but is not required with MPSK.”

References of HPE Aruba Networking Switching Documents or Study Guide:

Aruba Central Cloud Authentication and MPSK Deployment Guide – “Configuring MPSK AES with Cloud Authentication.”

Aruba Wi-Fi 6 and IoT Integration Best Practices Guide – “Securing IoT with Cloud-Managed MPSK.”

ArubaOS 10 WLAN Configuration Guide – “MPSK Modes (Local, ClearPass, Cloud Authentication) and Use Cases.”

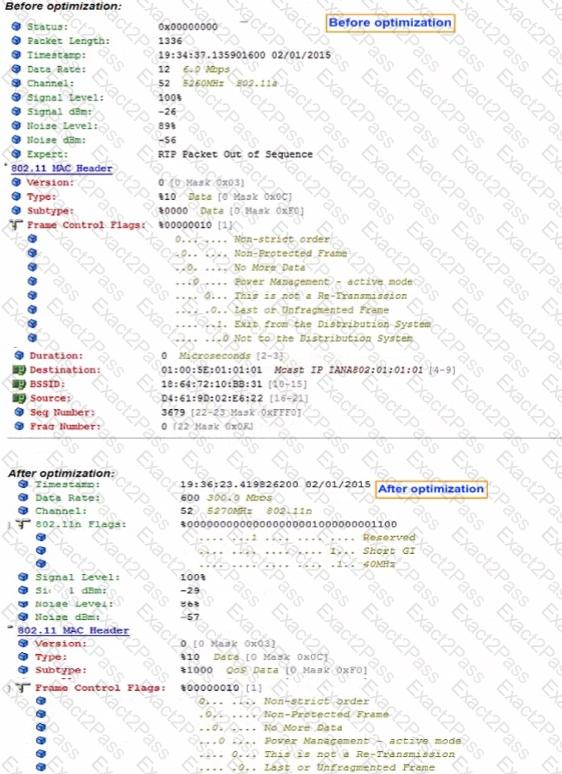

Dynamic Multicast Optimization (DMO) is a feature that enhances the delivery of multicast traffic by optimizing the data rate. The before and after optimization images show a significant increase in the data rate, which is a typical result of DMO being configured, as it allows multicast traffic to be transmitted at higher data rates by converting multicast streams into unicast streams for the clients that need them.

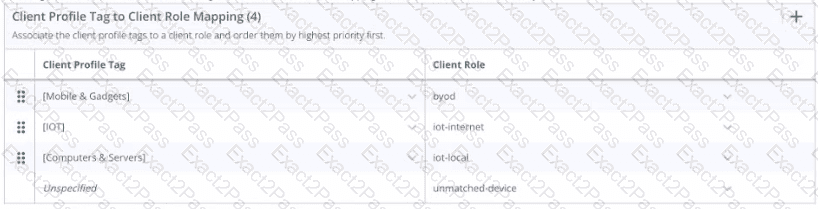

The configuration shown in the third exhibit details a client role mapping that associates different client profile tags with specific client roles. When a new device, such as an Android phone, connects to the network, it will be profiled and assigned a role based on the mappings defined. If the device does not match any predefined profiles, it would be assigned the " unmatched-device " role. This is under the assumption that default settings are in place and the client does not match the criteria for any of the specific roles like " byod " , " iot-internet " , or " iot-local " . Therefore, an Android phone connecting for the first time and not matching any specific profile tag would be assigned to the " unmatched-device " role.

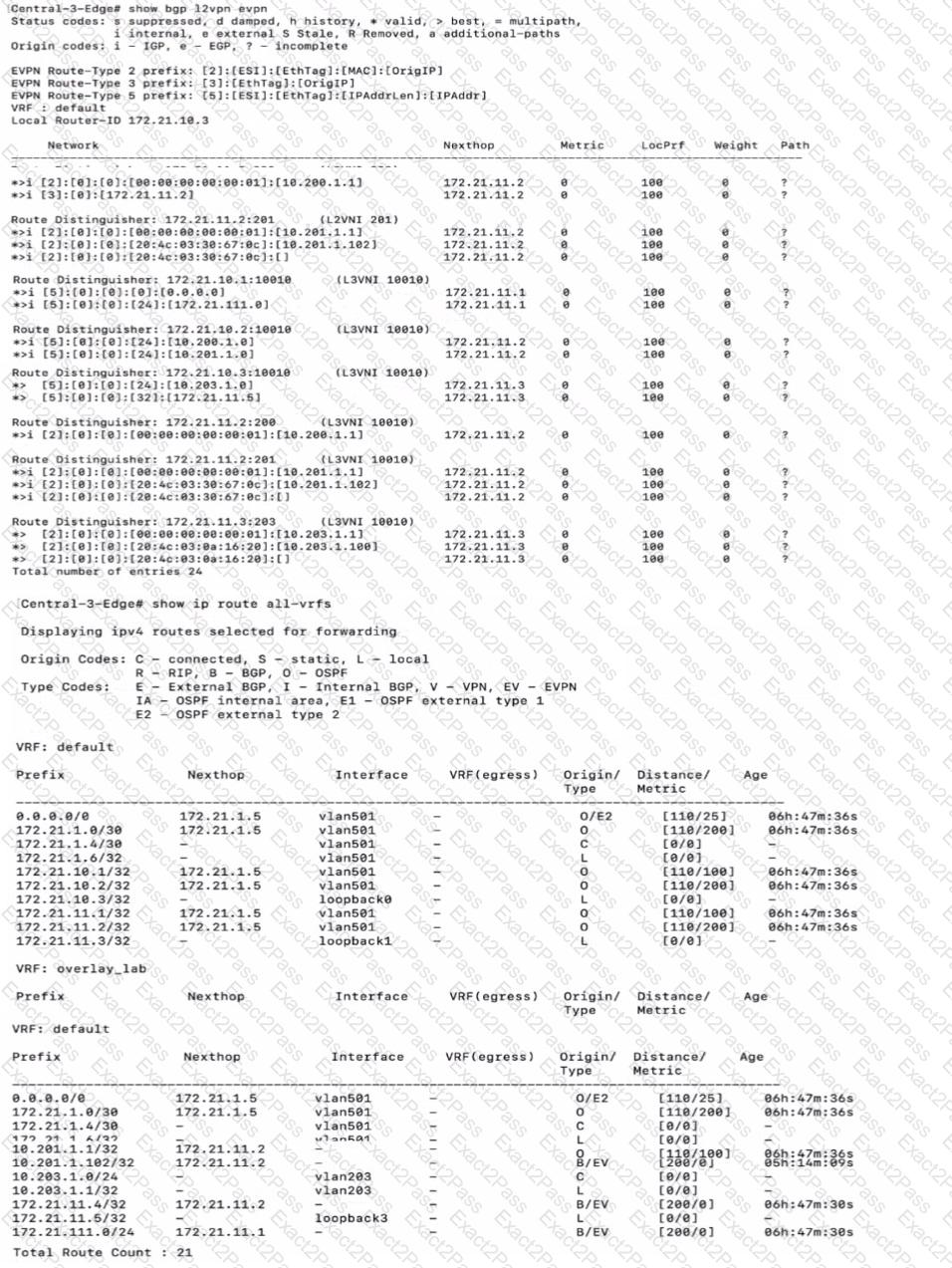

The CLI output provided shows routing information from a CX 6300 switch. The output under " VRF: default " shows various IP routes, including a route for 10.203.1.100/32 with a next hop of 172.21.11.2. This indicates that the route to the client with IP address 10.203.1.100 is known in the network and is reachable via another device in the fabric, which has the loopback IP address 172.21.11.2. Since the route is present in the routing table, it means that the client is known and active within the fabric network.

Comprehensive and Detailed Explanation From Exact Extract of HPE Aruba Networking Documentation

Multicast frames over Wi-Fi are traditionally transmitted at the lowest basic data rate , making them slow and unreliable , particularly outdoors where environmental RF effects are more significant.

Aruba provides a feature designed for this scenario:

✅ Dynamic Multicast Optimization (DMO)

Converts multicast streams into unicast transmissions per associated client

Allows the AP to use the highest possible unicast data rate supported

Significantly improves reliability, throughput, and range for critical multicast applications

HPE Aruba documentation statement:

“Dynamic Multicast Optimization increases the reliability of multicast traffic by converting multicast frames to unicast and allows transmissions using higher data rates.”

This directly supports the requirement in the question:

✅ increase reliability

✅ use the highest possible data rate

Why the Other Options Are Incorrect

Option

Reason Incorrect

A. Increase basic rate

Raising basic rates often reduces coverage range and can disconnect distant outdoor clients

B. Multicast Transmission Optimization

This older mode still transmits multicast over the air , not at highest rate

D. Enable WMM

WMM is for QoS prioritization , not for increasing multicast PHY rates or reliability

✅ Final Verified Answer: C. Dynamic Multicast Optimization

???? Reference Sources (HPE Aruba Official Materials):

Aruba Mobility and WLAN Optimization Guides — Dynamic Multicast Optimization operation and benefits

Aruba Outdoor Wi-Fi Deployment Best Practices — Multicast performance enhancements

ACMP (Aruba Certified Mobility Professional) Study Material — Multicast Optimization for IoT and GPS Applications

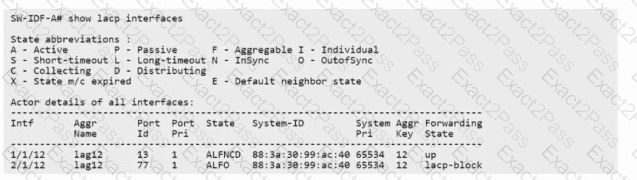

In an Aruba deployment, if an AP ' s interfaces show different LACP states, it often indicates a configuration mismatch. If one interface is up and the other is blocked as shown in the output, it ' s likely due to both interfaces on the AP being set to LACP active mode, which is a correct setting for establishing an LACP channel with Aruba switches like the CX 6300 series.

Comprehensive and Detailed Explanation (Verified Extract from HPE Aruba Networking Switching Documentation)

VOQ (Virtual Output Queuing) is a hardware-based queuing mechanism used in the ArubaOS-CX architecture to prevent head-of-line blocking and minimize packet drops in high-throughput environments.

How VOQ Works:

Each ingress port maintains a separate queue for every egress port in the system.

When a packet arrives, it is placed in the ingress buffer corresponding to its destination egress port.

This structure ensures that traffic destined for one congested egress port does not block packets heading to other ports.

This architecture is critical in high-speed modular switches and aggregation cores (such as the Aruba 8400 and 10000 Series), allowing the fabric interconnect to forward traffic efficiently without dropping packets due to port congestion.

ArubaOS-CX Technical Extract:

“Virtual Output Queuing (VOQ) provides per-egress-port queuing at ingress buffers, preventing head-of-line blocking and ensuring high throughput across the switch fabric. Each ingress queue corresponds to a specific egress port, allowing packets to be transmitted as soon as the egress port becomes available.”

Option Analysis:

A. Incorrect – Refers to priority marking (QoS), not VOQ operation.

B. Correct – VOQ provides ingress buffers with queues for each egress port, reducing dropped packets and head-of-line blocking.

C. Incorrect – VOQ is not related to LACP or VSX link aggregation.

D. Incorrect – VOQ does not dynamically allocate egress buffer space; it segregates ingress queues per egress destination.

Final Verified Answer: B

Reference Sources (HPE Aruba Official Materials):

Aruba AOS-CX Technical Architecture Overview – Virtual Output Queuing (VOQ)

Aruba 8400/10000 Series Switches Hardware and Performance Guide

Aruba Certified Switching Expert (ACSE) Study Guide – Switch Fabric and Queuing Mechanisms

In the provided configuration for interface 1/1/7, there are roles specified for different scenarios concerning authentication. When a voice client attempts to connect and the RADIUS server is unreachable, the role that is assigned is the one specified as the " critical-voice-role " . In this case, the " CRITICAL_VOICE " role is configured to be assigned under such circumstances, ensuring that voice clients receive appropriate network access permissions even when the RADIUS server is not available to authenticate them.

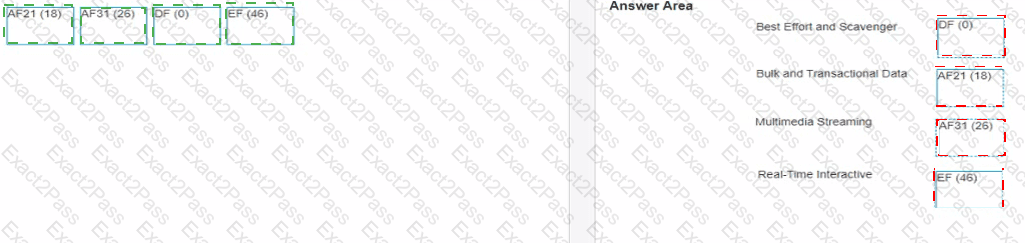

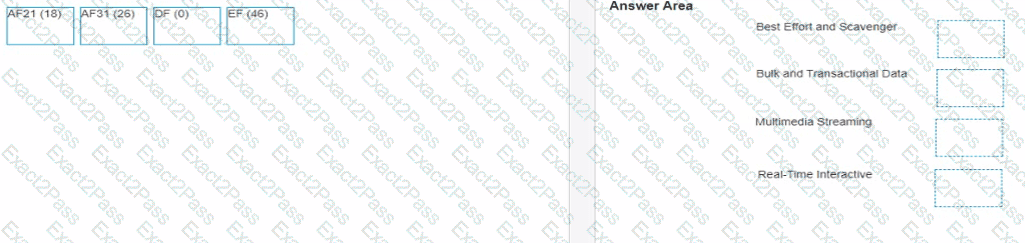

Best Effort and Scavenger = DF (0)

Bulk and Transactional Data = AF21 (18)

Multimedia Streaming = AF31 (26)

Real-Time Interactive = EF (46)

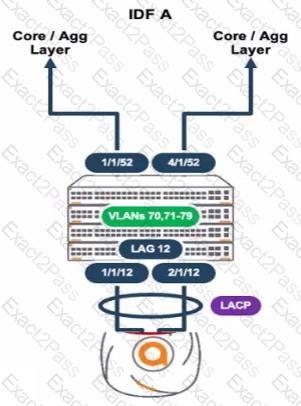

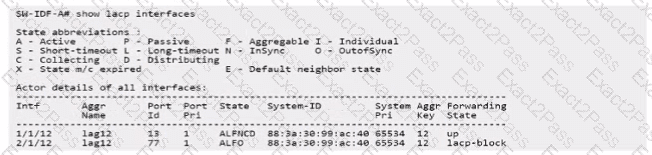

On Aruba CX, LAG members must be link compatible (same speed/duplex and L2 characteristics). If one AP uplink (e0) negotiates SmartRate (e.g., 2.5/5 GbE) while the other (e1) negotiates 1 GbE , the switch detects the speed mismatch between the two member links and will not place both links in the distributing state. The second link is held in lacp-block to prevent forwarding on an incompatible member.

LACP active/passive (Option A) would affect whether a bundle forms at all, not cause lacp-block on just one member.

Routed-only interfaces (Option B) would prevent L2 aggregation entirely, not partially form with one member blocked.

Spanning tree/loop protect (Option C) do not produce an LACP member state of lacp-block.

Therefore, mixing a SmartRate port with a non-SmartRate port in the same LAG is the cause of the lacp-block state.
