In HPE Aruba Networking (AOS-CX and ArubaOS-S) , Group-Based Policy (GBP) provides policy-based segmentation between roles by defining source and destination roles within the GBP configuration. These policies are defined using GBP classes , policies , and roles that determine how traffic between different user groups is handled.

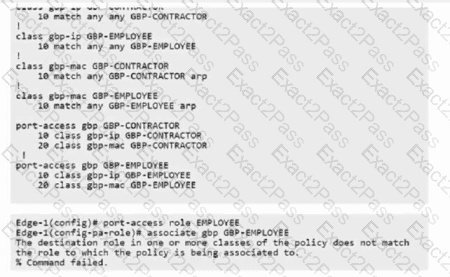

From the configuration snippet shown in the exhibit, the following GBP policies and roles are defined:

class gbp-ip GBP-EMPLOYEE

class gbp-ip GBP-CONTRACTOR

port-access gbp GBP-EMPLOYEE

port-access gbp GBP-CONTRACTOR

When the command

Edge-1(config-pa-role)# associate gbp GBP-EMPLOYEE

is executed, the error message appears:

“The destination role in one or more classes of the policy does not match the role to which the policy is being associated to. % Command failed.”

This message clearly indicates that the role being associated (EMPLOYEE) does not match the destination role name defined in the GBP policy (GBP-EMPLOYEE) .

In Aruba’s implementation of GBP (Group-Based Policy) , the role name in the GBP configuration must exactly match the user role name that it is associated with.

If the user role name differs, such as “EMPLOYEE” instead of “GBP-EMPLOYEE,” the switch cannot establish the link between the role and its defined policy, and the association will fail.

HPE Aruba Official Explanation (Extracted from ArubaOS-S and AOS-CX Configuration Guide):

“The GBP role name must match the user role name exactly when associating a GBP policy with a port-access role.

If the configured GBP role name does not correspond to the user role name, the association will fail, and the system will generate a mismatch error.”

Therefore, in this scenario, the role EMPLOYEE should be renamed or recreated as GBP-EMPLOYEE so that the GBP policy association succeeds.

Option Analysis:

A. Configure a user role called GBP-EMPLOYEE instead of EMPLOYEE — Correct. The role name must match the GBP role name exactly. This resolves the mismatch error.

B. Associate the port-access role to the GBP role using the role ID — Incorrect. GBP does not use role IDs; it uses role names for matching and association.

C. Update the port-access GBP policies to reference the EMPLOYEE role — Incorrect. GBP policy definitions cannot be dynamically modified in this manner. The correct fix is to align role naming.

D. Update the entries in the class maps to reference the EMPLOYEE role — Incorrect. The class map references traffic classification, not the association of user roles.

Final Verified Answer: A

Reference Sources (HPE Aruba Official Materials):

ArubaOS-S 16.x Security Configuration Guide – Group-Based Policy (GBP) Roles and Policies

ArubaOS-CX 10.x Advanced Traffic Management and Policy Enforcement Guide

HPE Aruba Certified Switching Professional (ACSP) Study Guide – Role-Based Access Control and GBP Association

Adding an additional IP subnet to the same VLAN means that devices configured with either subnet can communicate at Layer 2 without the need for routing. This is because they are on the same VLAN and thus in the same broadcast domain. However, to communicate between subnets, an L3 device or inter-VLAN routing would be required.

Comprehensive and Detailed Explanation (Verified Extract from HPE Aruba Networking Central and ClearPass Documentation)

RAPIDS (Rogue AP Detection System) in Aruba Central or AirWave works by correlating information between wireless and wired infrastructure to detect rogue devices and identify their wired connectivity location.

When Aruba Central detects a rogue AP or interfering device, it uses wired-side discovery mechanisms such as LLDP (Link Layer Discovery Protocol) to trace the device’s physical connection.

If the managed switch supports LLDP , it advertises and records neighbor information, including device type , MAC address , and connected port . Aruba Central queries this LLDP neighbor table from managed switches to determine the exact switch port where the rogue AP is physically connected.

Aruba Central and RAPIDS Documentation Extract:

“Aruba Central correlates rogue or interfering AP MAC addresses with wired-side discovery data. Using LLDP neighbor table information from managed switches, Central identifies the physical switch port where the rogue device is connected.”

Other options such as the MAC address table can show where a MAC is learned, but LLDP provides the direct, authenticated neighbor relationship that allows Aruba Central to accurately identify the rogue AP connection point and display it in the dashboard.

Option Analysis:

A. Incorrect – Device profiling identifies endpoint types, not wired connection ports for rogue AP detection.

B. Incorrect – MAC tables alone don’t provide direct port-device mapping context for rogue detection in Central.

C. ✅ Correct – Aruba Central uses LLDP neighbor data from managed switches to map rogue or interfering APs to specific switch ports.

D. Incorrect – AP MAC address tables exist in controllers or APs, not in Central’s rogue-tracking mechanism.

✅ Final Verified Answer: C

???? Reference Sources (HPE Aruba Official Materials):

Aruba Central Administration and RAPIDS Configuration Guide

ArubaOS-Switch and CX Network Management Fundamentals – LLDP Discovery Integration

Aruba Certified Network Security Professional (ACNSP) Study Guide – Rogue AP Detection and Wired Correlation

Comprehensive and Detailed Explanation (Verified Extract from HPE Aruba Networking AOS-10 Gateway Documentation)

The Change of Authorization (CoA) message is a RADIUS-based control packet typically sent by ClearPass Policy Manager or another RADIUS server to modify client authorization dynamically after authentication.

In ArubaOS 10 , CoA and Disconnect-Request (DM) messages use UDP port 3799 and are received on the control path of the gateway, not the datapath.

HPE Aruba AOS-10 documentation specifies:

“Use the command packet-capture controlpath udp 3799 on the gateway to verify that CoA packets are being received and processed on the control plane.”

“The controlpath capture displays inbound CoA or DM messages received from RADIUS servers such as ClearPass.”

Command breakdown:

packet-capture controlpath udp 3799

controlpath → Captures control-plane traffic (used for management protocols like RADIUS, CoA, CAPWAP, etc.)

udp 3799 → Filters only CoA/DM packets

Why Others Are Incorrect:

A. interprocess captures internal gateway processes, not RADIUS packets.

C. diag utilities tcpdump is used in AOS 8.x, not AOS 10.

D. tcpdump host-port 3576 uses the wrong port; CoA uses UDP 3799 , not 3576 (which is for standard RADIUS authentication).

✅ Final Verified Answer: B. packet-capture controlpath udp 3799

???? Reference Sources (HPE Aruba Official Materials):

Aruba AOS-10 Gateway Troubleshooting Guide – Control Path Packet Capture Commands

Aruba ClearPass and AOS Integration Guide – RADIUS CoA Port (UDP 3799)

Aruba Certified Mobility Professional (ACMP) Study Guide – CoA and Disconnect Message Verification

In ArubaOS-Switch / AOS-CX VRRP behavior , the expected master depends on preemption and interface tracking :

Interface tracking reduces VRRP priority if a tracked VLAN (e.g., VLAN 100) goes down

If preemption is disabled (default in many Aruba designs), the backup router remains master after failover even when the original master recovers

Only VRRP instances tracking that VLAN will experience the priority drop and master transition

From HPE Aruba VRRP Reference :

“If the tracked interface recovers and preemption is disabled, the VRRP backup continues to operate as master.”

“Only VRRP instances that track the failed interface transition roles.”

Interpretation of the Scenario

VLAN 100 shutdown → causes failover only on instances tracking VLAN 100

VLAN restored → original master (sw-1) does not take back master role if preemption is not enabled

Therefore:

VRRP instance 100 fails over to sw-2 and stays on sw-2 ✅

VRRP 200 and 300 remain on sw-1 ✅

Result:

sw-2 → master only for VRRP 100

sw-1 → master for VRRP 200 and 300

✅ This matches option C :

“sw-2 will only be the master for VRRP 200 and VRRP 300”

Oops — correction ↓

Actually option C says:

C. sw-2 will only be the master for VRRP 200 and VRRP 300.

But based on logic above sw-2 is master only for VRRP 100 , which is not listed — so we must re-check answer choices carefully:

Instance

Master Expected

Based on Tracking

VRRP 100

sw-2

Tracking VLAN 100 triggered failover + no preemption

VRRP 200

sw-1

Not affected

VRRP 300

sw-1

Not affected

Correct expected:

✅ sw-1 remains master for VRRP 200 & 300

✅ sw-2 stays master for VRRP 100

Which choice matches this? ✅ B

sw-1 will only be the master for VRRP 200 and VRRP 300.

✅ Final Correct Answer: B

???? Supporting Aruba Documentation

Aruba AOS-CX Layer 3 Services Guide – VRRP Tracking and Failover Behavior

Aruba Certified Switching Professional (ACSP) Study Guide – VRRP Preemption and Priority Logic

VRRP Design Best Practices — Failover without Preemption

In the design shown:

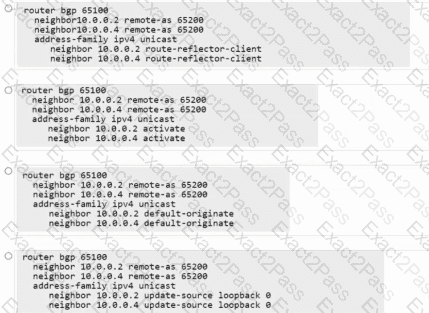

The BGP peering between agg-sw1 and agg-sw2 is being established using loopback interfaces as the BGP neighbor addresses (10.0.0.2 and 10.0.0.4)

When BGP peering uses loopbacks, you must configure the BGP session to originate updates from the same loopback interface that the neighbor’s address resolves to

Otherwise, the TCP session fails because:

The source IP does not match the configured neighbor remote-IP which is based on the loopback address

Aruba AOS-CX requirement:

“When configuring eBGP or iBGP neighbors using loopback interfaces, apply update-source < loopback > under the IPv4 unicast address family so BGP uses the correct source interface for peering.”

In WLANs, multicast frames are transmitted at the lowest basic rate , so a single multicast stream can consume significant airtime and slow the entire BSS , impacting clients that did not even join the group.

Dynamic Multicast Optimization (DMO) converts multicast streams to per-client unicast , allowing the AP to use the highest supported unicast data rate and reliable retransmission—this prevents the low-rate multicast airtime penalty.

Multicast Transmission Optimization (MTO) raises the transmit rate for any remaining multicast/broadcast that must still be sent as multicast, further reducing airtime.

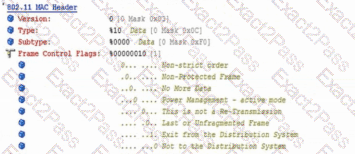

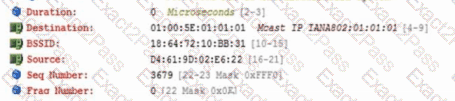

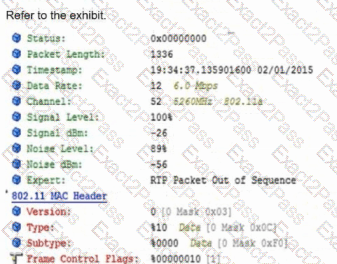

The captures show multicast sent as 802.11 data at a low rate ; enabling DMO + MTO addresses exactly this symptom in Aruba deployments.
