When addressing high cluster IOPS and Cluster Controller Latency where networking is suspected to be the issue, it is essential to check the network configuration settings that can directly impact data transfer and latency. The correct answer is to adjust the "Number of NICs connected" and "frame size." Increasing the number of Network Interface Cards (NICs) connected can improve the network throughput and distribute the load more evenly. Adjusting the frame size, particularly setting larger frames (Jumbo Frames), can reduce overhead and improve network efficiency by allowing more data to be transmitted with fewer packets.

References:

• Nutanix Bible: Networking Considerations
• Nutanix University: Network Performance Optimization

Ref: https://next.nutanix.com/prism- infrastructure-management-26/disk-space-usage-high-alert-in-prism-38199

Prior to the initial base system setup for a new cluster installation, the consultant needs to document several critical infrastructure details. Among the most important are the DNS and NTP IP addresses (C). These addresses are crucial because they ensure that all nodes within the cluster can resolve domain names properly and synchronize their clocks accurately, which is vital for cluster operations and management. Proper DNS and NTP configurations help prevent many common issues related to name resolution and time synchronization that could affect the performance and stability of the cluster.References: Nutanix Installation Prep Guide, Nutanix Network Configuration Requirements.

Considering the network configuration requirements—where all trunk traffic is tagged and a native VLAN is not used—the consultant must set up the CVM and bridge to operate with a specific VLAN tag. The command change_cvm_vlan 10 configures the Controller VM (CVM) to communicate over VLAN 10. The command ovs-vsctl set port br0 tag=10 applies VLAN 10 tagging to the bridge interface br0, ensuring all traffic through it is appropriately tagged. The command ovs-vsctl set port br0-up bond_mode=balance-tcp sets the bonding mode to balance-tcp, which is suitable for environments using LACP to optimize traffic distribution and redundancy across multiple physical links.References: Nutanix Community Documentation, Nutanix University Networking Best Practices.

To find the correct VLAN ID to use during the Foundation of a new 3-node cluster, the consultant should refer to the:

• Deployment Questionnaire: This document typically contains detailed pre-engagement information gathered from the customer, including network specifications such as VLAN IDs. It provides the necessary context and configurations needed for a successful deployment.

References:

• Nutanix Bible (https://www.nutanixbible.com), where the importance of pre-deployment planning and documentation is highlighted.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), which covers the process of gathering and using deployment information.

The error encountered during the LCM operation suggests a failure in reading a file, which might be linked to the foundational services of the cluster. The genesis.out log file is essential for troubleshooting issues related to cluster initialization and fundamental operations. This file logs the activities of the Genesis service, which is responsible for managing and monitoring the lifecycle of cluster services, including LCM tasks. In case of errors during LCM operations, the genesis.out log provides detailed insight into what might have gone wrong during the process, making it the appropriate log to check in this scenario.

References:

• Nutanix Bible: https://www.nutanixbible.com/
• Nutanix University Videos on LCM and Genesis service: Nutanix Official YouTube Playlist

When Foundation VM and a laptop can ping each other but nodes are not being discovered, it suggests a network protocol issue. The consultant should enable IPv6 and multicast on the switch. Multicast is required for node discovery in many environments, especially when using Nutanix Foundation, as it helps in the detection and communication between nodes and the Foundation VM.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Foundation chapter (https://www.nutanixbible.com/)

To limit a datastore to a specific capacity within a Nutanix cluster, the best approach is to configure the advertised capacity in the Container Advanced Settings. Setting the advertised capacity to 100GB ensures that this amount of storage is reported to external entities (like hypervisors or operating systems) as the total usable capacity of the datastore, effectively preventing the storage of additional data beyond this limit. This method is preferred over reserving capacity, which guarantees space for specific uses but doesn't limit the total size visible to the system.

References:

• Nutanix Bible (https://www.nutanixbible.com), specifically the section on storage container configuration.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), covering datastore management.

If after performing a failover operation the virtual machines have no network access despite the network administrator confirming the correct subnets at both sites, the likely issue is:

• A. Network mappings are not configured for the Remote Site: This configuration oversight means that although the VMs are online, they do not have appropriate network settings that correspond to the network environment at the failover site, resulting in connectivity issues.

References:

• Nutanix Bible (https://www.nutanixbible.com), specifically the sections on disaster recovery and network configurations in failover scenarios.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), covering Data Protection and failover operations.

To ensure that the Foundation VM can communicate externally, the virtual network interface card (vNIC) should be set to a bridged adapter. This setting allows the VM to appear as a unique entity on the network, receiving its own IP address accessible from outside the host machine. Additionally, running the 'set_foundation_ip_address' application on the VM desktop enables the consultant to configure a specific, reachable IP address for the Foundation VM, ensuring it can communicate effectively with external network resources and devices.

References:

• Nutanix Bible: Networking Setup for Foundation
• Nutanix University: Foundation VM Configuration

Ref:

Ref: https://next.nutanix.com/installation-configuration-23/physical-relocation-of-nutanix-clusters-38403

The alert for Protection Policy PP-BCA-1HR indicating critical availability issues is most likely due to the workloads included in the policy no longer meeting their intended Recovery Point Objective (RPO). A 1-hour snapshot frequency implies a stringent RPO, which if not maintained, could result in data loss beyond acceptable business limits. This scenario typically generates a critical alert in Prism Central, especially when the snapshots required to meet the RPO are not completed as scheduled due to any number of issues such as resource constraints or network issues.References: Nutanix Prism User Guide, Nutanix Data Protection Best Practices.

In a Nutanix environment, if the login process using an Active Directory (AD) user account takes more than a minute to complete, it could be due to the configuration of the AD lookups.

Active Directory lookups can be configured to use either Recursive or Non-Recursive mode. In Recursive mode, the system will look up each group that a user is a member of, then each group that those groups are members of, and so on. This can lead to a large number of lookups and potentially slow down the login process1.

On the other hand, in Non-Recursive mode, the system only looks up the direct groups that a user is a member of. This can significantly reduce the number of lookups and speed up the login process1.

Therefore, the administrator should confirm that Active Directory lookups are configured to use Non-Recursive mode to resolve this issue.

References:

• Active Directory Authentication is slow - Takes minutes to Logon | Nutanix Community
• Configuring Authentication | Nutanix Community
• Solving Slow Logon Issues in Active Directory Environments

After confirming that all nodes (Hosts and CVMs) are operational and network accessible, the next step in troubleshooting a failed cluster creation process is to use one of the CVMs to manually initiate the cluster creation. This is done using the command cluster create from a CVM, which allows you to establish the cluster management and data services provided by Nutanix. This approach is recommended when the Foundation process has successfully imaged the nodes but the automatic cluster creation has failed.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Cluster Initialization chapter (https://www.nutanixbible.com/)

Ref: http://myvirtualcloud .net/nutanix-scma-the-security-feature-that-could-save-your-organization/

Ref: https://hyperhci.com/2019/11/09/nutanix-ahv-enable-vlan-trunk-mode-on-guest-vm/

Ref: https://next.nutanix.com/installation-configuration-23/product-mixing-restr ictions-37231

The failure of the vMotion operation indicated by the error message could most plausibly be caused by: A. The vmknic (VMkernel network interface card) configured with a conflicting IP address. This conflict can prevent the ESXi hosts from establishing a connection over the VMotion network, as each host must have a unique IP address on the VMotion network to facilitate proper migration communications. Option B, involving NIOC settings, and option D, involving vSS configuration, could influence performance but are less likely to cause a complete failure to connect. Option C, related to the Foundation service, is not relevant to vMotion networking issues directly. References: VMware vSphere Networking Documentation, Nutanix Integration with VMware Environments.

The document that needs to be completed with the customer to collect configuration items such as IP addresses, Gateway, DNS servers, and NTP Servers is the Technical Checklist. This checklist is designed to ensure all necessary technical information is gathered prior to the installation, enabling a smooth and efficient setup process.References: Nutanix Cluster Deployment Guide, Pre-installation Planning Documentation.

To deploy the Foundation VM on VMware ESXi or AHV Hypervisors, the two necessary files are:

• foundation_VM-version.tar which contains the complete Foundation VM package.
• foundation_VM-version.vmdk, which is the virtual disk file for VMware environments.

These files are required to create and boot the Foundation VM in these hypervisor environments, facilitating the deployment and configuration of the Nutanix nodes within the cluster.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

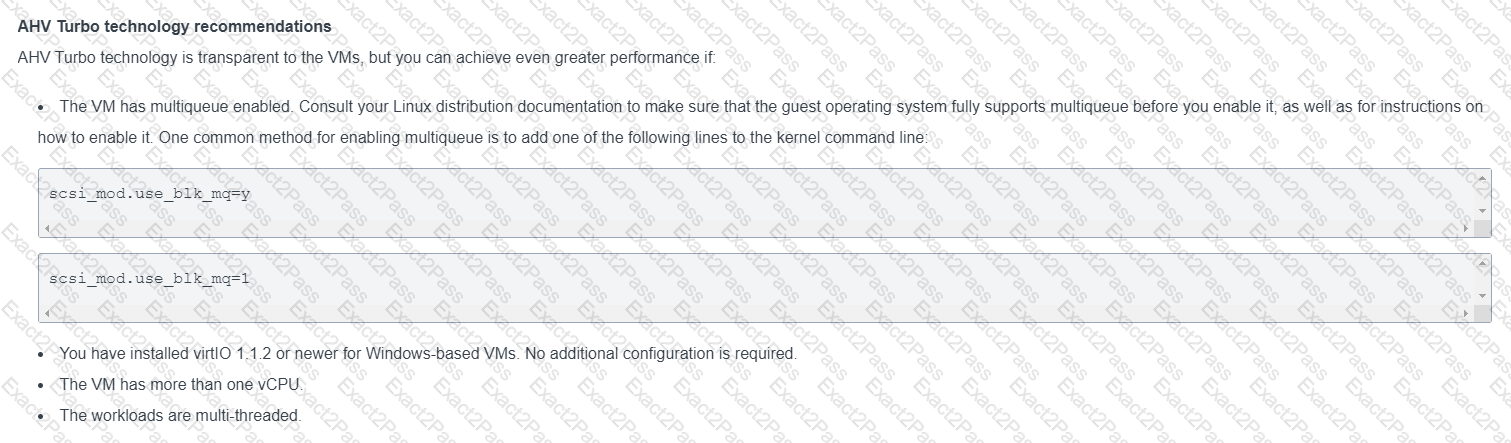

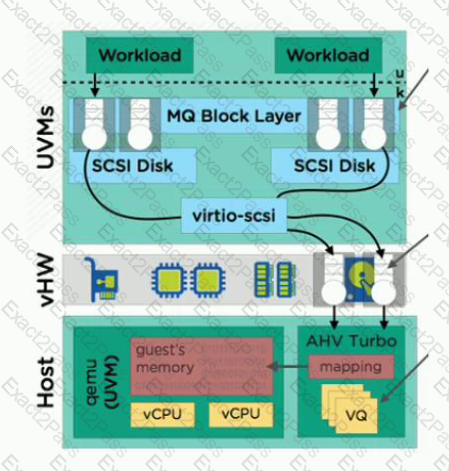

To maximize the performance benefits of AHV Turbo, which is designed to optimize network and storage I/O operations for VMs, certain VM configurations are advantageous. The correct answers are:

Option A, "Workloads are multi-threaded." Multi-threaded applications can better utilize the improvements in I/O processing efficiency provided by AHV Turbo, leading to better overall performance.

Option D, "VMs have more than one vCPU." This configuration allows VMs to handle multiple processes or threads simultaneously, which is particularly beneficial when combined with AHV Turbo's enhanced I/O operations.

References:The benefits of configuring VMs with multiple vCPUs and supporting multi-threaded applications are discussed in Nutanix's documentation on AHV and performance optimization, where AHV Turbo is highlighted for its ability to accelerate VM operations in a Nutanix environment.

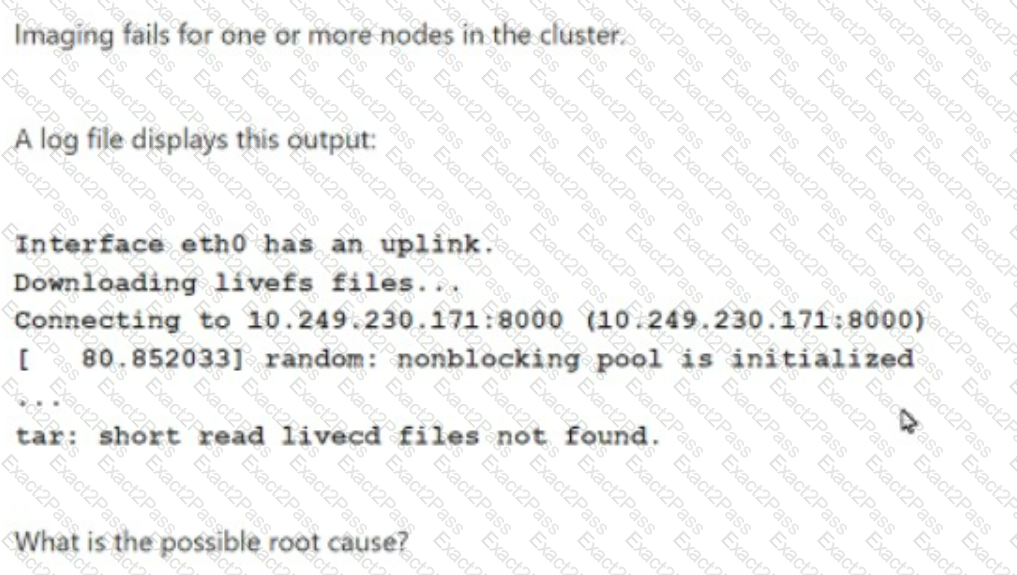

The log file output indicating a failure in downloading livefs files and problems finding the livecd files during node imaging suggests there is a problem connecting to the Foundation VM. The specific error "tar: short read livecd files not found" typically points to an interrupted or failed download process, which can be caused by connectivity issues between the nodes and the Foundation VM. Ensuring robust network connectivity or verifying network settings in the Foundation VM could resolve this issue.References: Nutanix Foundation Tool Error Messages, Nutanix Troubleshooting Documentation.

To separate management and production traffic within a Nutanix AHV cluster, VLAN Tagging is the appropriate feature to configure. VLAN Tagging allows different types of traffic to be segregated onto different network segments over the same physical infrastructure, effectively isolating management traffic from production traffic at the network level. This setup enhances security and performance by reducing the possibility of network congestion affecting critical management operations.

References:

• Nutanix Bible (https://www.nutanixbible.com), specifically the sections on networking and VLANs.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), which covers advanced network configurations including VLAN Tagging.

Before going on-site to deploy a Nutanix cluster, the following prerequisites are crucial:

• A. Complete the kickoff call and validate the BOM (Bill of Materials): This ensures that all necessary components are accounted for and any discrepancies or missing items are addressed prior to installation.
• C. Validate whether the cluster questionnaire is complete and if the physical switch configurations are complete: Ensuring that all relevant customer and network information is obtained and validated is critical to avoid delays or issues during the physical installation and configuration of the cluster.

References:

• Nutanix Bible (https://www.nutanixbible.com), particularly sections on pre-deployment planning and validation.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), covering the importance of thorough preparation and documentation before on-site engagements.

The Nutanix Field Installation Guide primarily provides instructions for using Foundation. Foundation is the tool used for deploying, imaging, and configuring Nutanix nodes in a new installation or when expanding existing clusters. This tool is essential for setting up the Nutanix environment correctly and efficiently.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Foundation chapter (https://www.nutanixbible.com/)

Before starting the Foundation process, the consultant should prepare the network by:

• On Nutanix NX Series, connect the IPMI port and any one of the data ports to the switch: This ensures that the IPMI (for management and remote access) and at least one data port (for cluster communication and data traffic) are connected and operational, facilitating a smooth foundation process.

References:

• Nutanix Bible (https://www.nutanixbible.com), especially sections on initial hardware setup and network preparations.
• Nutanix Hardware Setup Guide from Nutanix University (https://university.nutanix.com), detailing the specific steps for networking configurations during initial setup.

Ref: https://www.vvlsystems.com/wp-content/uploads/2016/1 1/BP-2009_Metro_Availability.pdf

The "Advertised Capacity" parameter in the context of creating a storage container in Nutanix systems is used to cap the usage of storage containers to be smaller than the limit of a storage pool's capacity. This feature allows administrators to set a maximum storage limit for a container, preventing it from using the entire storage pool's capacity and ensuring that resources are allocated based on planned capacity requirements. This helps in maintaining predictable storage management and allocation within a Nutanix environment.References: Nutanix Storage Container Management Documentation, Nutanix Best Practices for Storage Configuration.

The subnet 192.168.254.0/24 is commonly reserved for CVM (Controller Virtual Machine) internal switch traffic within Nutanix environments. This subnet is used internally by the CVMs for management and storage operations that are integral to the Nutanix infrastructure. Using a separate, reserved subnet helps to isolate management traffic from general network traffic, enhancing security and performance.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Network Configuration chapter (https://www.nutanixbible.com/)

In the scenario where the Foundation VM on a laptop is used for a cluster deployment, and an error indicating a failure to connect to the IPMIs is shown, the first troubleshooting step should be to disable the local machine's firewall to ensure it is not blocking traffic necessary for the Foundation VM to communicate with the IPMIs. Firewalls can often block essential ports or IP addresses needed for deployment operations, hindering the Foundation process.References: Nutanix Foundation Tool Troubleshooting Guide, Nutanix Deployment Common Issues.

When preparing the cluster offsite in a safe room, the consultant should ensure that the Foundation VM is correctly configured to handle IPMI networking. Implementing a virtual switch dedicated to the IPMI network within the Foundation VM environment ensures that there is a segregated and controlled network path for IPMI traffic, which is crucial for initial hardware configuration and management. This setup facilitates the secure and efficient foundation process before the cluster is moved to the data center.References: Nutanix Foundation Tool Guide, Nutanix Network Configuration Best Practices.

Given the constraint of a 16-port switch for a 20-node cluster, the consultant cannot physically connect all nodes to the network simultaneously. VLAN tagging allows multiple virtual networks to be carried over the same physical network. However, the challenge here is not about VLANs but the physical limitation of ports. The practical approach would be to manually create the cluster, potentially in stages, as the full network capacity required for all nodes is not available.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Networking chapter (https://www.nutanixbible.com/)

During the Knowledge Transfer phase, customers typically learn about Nutanix basics and their specific environment at a high level through "Technical Handoff Slides." This part of the training and handover process provides a broad overview of the installed solution, how it operates, and how it interacts with the existing infrastructure, making it essential for foundational understanding.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

For the scenario with memory usage warnings and VDI performance issues, the best approach is to analyze and understand the memory usage patterns and demands on the system. Option D focuses on reviewing the Analysis page to monitor memory use trends and patterns, which is crucial for identifying peak usage times or processes consuming excessive memory. The mention of alerting with VDI workload demand implies the need to monitor and possibly adjust the VDI workload to better fit within available resources. Finally, analyzing current and future workload in the Capacity Runaway tab helps in understanding if the cluster resources are sufficient for the demand, which is critical in planning for capacity management and ensuring that such issues are mitigated moving forward.References: Nutanix Prism User Guide, Nutanix Community resources, VDI performance troubleshooting practices.

When encountering issues during the Foundation process, such as an imaging failure, consultants need to access detailed logs to diagnose the problem. Two primary locations for these logs include the direct link accessible via the Foundation Imaging Screen, which provides real-time logs during the imaging process, and the Foundation VM directory at /home/nutanix/foundation/logs. These locations offer comprehensive log data essential for troubleshooting and resolving imaging issues. References: Nutanix Foundation documentation and troubleshooting guides from the Nutanix Bible and Nutanix University training resources.

Ref https://portal.nutanix.com/page/documents/kbs/details?targetId=kA00e000000LIelCAG

After a failed bare metal Foundation imaging process, the consultant can find relevant logs in two primary locations: on the Foundation VM at "/home/nutanix/foundation/logs" and via the "View Logs" link available on the Foundation Imaging progress screen. These logs are crucial for diagnosing issues during the imaging process as they provide detailed error messages and operational data.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Foundation chapter (https://www.nutanixbible.com/)

In a Nutanix cluster, when a Controller Virtual Machine (CVM) fails, the iSCSI targets for the volume groups managed by that CVM are not left inoperable. Instead, the volume group's iSCSI targets (vDisks) are automatically redirected to another operational CVM in the cluster. This failover mechanism ensures that there is no interruption in service or data availability. The redirection is seamless and does not require manual intervention, allowing for continuous access to the volume group by the SQL cluster.

References:

• Nutanix Bible: Data Protection and High Availability
• Nutanix University: Resiliency and Disaster Recovery

To ensure that alerts are automatically sent to Nutanix support, the Nutanix feature called Pulse must be enabled. Nutanix Pulse is an automated system intelligence service that collects health information and system alerts from Nutanix clusters and sends them to Nutanix support for proactive monitoring and troubleshooting. Enabling this feature is crucial for maintaining high availability and performance of the Nutanix environment, as it allows Nutanix support to quickly respond to and manage potential issues.References: Nutanix Pulse Documentation, Nutanix Support Services Information.

After deploying a Nutanix cluster with AOS and ESXi managed by a vCenter server, the consultant should ensure that both CVM eth0 and eth2 interfaces are connected to the assigned portgroups on the standard or distributed switch. This setup allows for network segmentation and proper traffic isolation, which is crucial for maintaining network security and efficiency in a virtualized environment.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

The issue of VMs not being able to ping the default gateway from a newly created VM network on VLAN 20, while the Nutanix cluster uses VLAN 10, most likely stems from the switch port configuration. For the VMs on VLAN 20 to communicate outside their local network, the switch port to which the Nutanix nodes are connected must be configured as a trunk. This configuration allows multiple VLANs to coexist on the same physical port and enables routing between them. Without the trunk setup, the VLAN 20 traffic is restricted and cannot reach the network beyond the switch, including the default gateway.References: Nutanix Network Configuration Guide, Best Practices for VLAN Configurations.SZXCDESX

If a consultant is unable to ping the CVM from the hypervisor using the external interface in a network without VLAN tagging, and both are using the same subnet, the issue might be related to an incorrect default gateway configuration. The default gateway must be correctly set to ensure proper routing of packets between the CVM and the hypervisor. An incorrect gateway can prevent successful communication even if both devices are on the same subnet.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Networking chapter (https://www.nutanixbible.com/)

Ref: https://portal.nutanix.com/page/documents/solutions/details?targetId=BP-2071-AHV-Networking:top_ahv_networking_best_practices.html

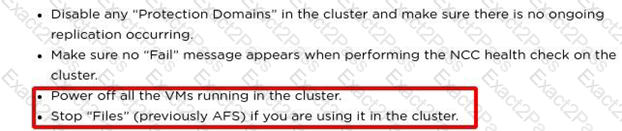

The warning message about powering off VMs during an AOS upgrade in a two-node cluster is issued because, in smaller clusters such as two-node configurations, resource availability and redundancy are limited. To safely perform an upgrade without risking service disruption, the VMs need to be powered down to free up resources and ensure that there is sufficient capacity to handle the cluster operations during the upgrade process.References: Nutanix Bible, NCS-Core 6.8 course content, and Nutanix upgrade best practices.

When facing connectivity issues between the host workstation and the Foundation VM, ensuring proper network configuration is crucial. Removing and re-importing the Foundation VM can help reset any configuration issues, particularly ensuring that the virtual NIC is set to the correct mode, such as Host-Only, to facilitate direct communication with the host. Confirming the IP addresses and subnet masks ensures that both the host and the VM are on the same network segment, which is essential for successful communication. This step verifies that there are no IP configuration errors causing the connectivity issue.

References:

• Nutanix Bible: Foundation VM Setup and Configuration
• Nutanix University: Foundation VM Networking Configuration

When using the Foundation tool for bare metal imaging of Nutanix nodes and dynamic discovery is not possible, the consultant needs the IPMI MAC Address of the nodes. This address is used to identify each node uniquely through its IPMI for remote management purposes, allowing the Foundation VM to interact directly with each node's base management controller (BMC) for the imaging process.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

For a configuration that aims to utilize all available 10G links, achieve maximum throughput per VM, and ensure redundancy with fast reconvergence during link failure, the optimal setting would be to configure Balance-TCP on bridge br0. This setting distributes the load across all available network paths based on the TCP session, maximizing the utilization of network interfaces and ensuring redundancy. This approach is particularly effective in environments with multiple network paths and ensures efficient network traffic management.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Network Configuration chapter (https://www.nutanixbible.com/)

Within a Nutanix cluster, the subnet 192.168.5.0/24 is typically reserved for internal connectivity. This subnet is used for the internal communication between Nutanix Controller VMs (CVMs) and other cluster components. It ensures isolated and efficient network traffic management that is crucial for cluster operations.

References:

• Nutanix Network Configuration Guide: Nutanix Networking Guide
• Nutanix Best Practices for Network Configuration: Nutanix Community

In a Nutanix environment, if the Foundation VM is not discovering the hardware, it could be due to issues with the IPMI (Intelligent Platform Management Interface) settings. IPMI is a set of computer interface specifications for an autonomous computer subsystem that provides management and monitoring capabilities independently of the host system’s CPU, firmware (BIOS or UEFI), and operating system.

In this scenario, the consultant should connect a crash cart to each node, log in to the pre-installed AHV hypervisor, and run the IPMITool commands to set the IPMI IP Address, subnet, and gateway for each node. After setting the IPMI settings, the consultant should run Foundation using the configured IPMI addresses that were just set.

This will ensure that the Foundation VM can communicate with the nodes via IPMI and discover the hardware, allowing the installation to proceed.

References:

• [Nutanix Support & Insights]
• [Nutanix Community]
• [Nutanix Documentation]
• [Nutanix Certified services - core (NCS-Core) 6.8 - Nutanix University]
• [Nutanix Bible]
• [Nutanix Certified services - core (NCS-Core) 6.8 Playlist - YouTube]

Ref: https://kb.vmware.com/s/article/1009465

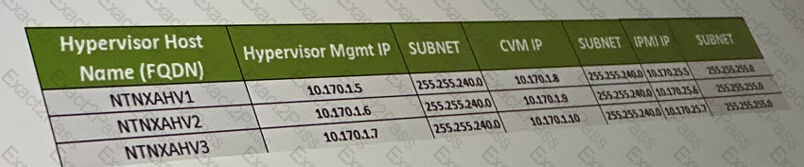

Based on the subnet assignments from the exhibit provided, the Hypervisor Management IP addresses fall within the 10.170.0.5, 10.170.0.6, 10.170.0.7 range with a subnet mask of 255.255.240.0, indicating a /20 subnet. However, the Foundation VM (FVM) and the Consultant Laptop should ideally be on the same subnet as the Controller Virtual Machine (CVM) to facilitate easy access and management. The CVM IP addresses indicated are 10.170.0.4, 10.170.0.9, and 10.170.0.10 with subnet 255.255.240.0 (/20). Thus, the appropriate choice for the FVM and Laptop that matches the subnet without overlapping with existing IPs and allows network configuration without conflicts would be in the same /24 range as suggested in option D, i.e., FVM: 10.170.25.2/24, Laptop: 10.170.25.12/24.

References:

• Nutanix Networking and Foundation Setup Guidelines

When deploying Nutanix hardware, it is essential to ensure that all necessary components are included in the Bill of Materials (BOM). In this case, the BOM includes SFP+ modules but lacks the fiber cables needed for connectivity. The SFP+ modules indicate a requirement for fiber optic cables, and it's crucial for the consultant to ensure the client understands their responsibility to procure compatible cables. Nutanix typically does not provide fiber cables as these are considered network infrastructure components, which vary based on specific network requirements and setups.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible (https://www.nutanixbible.com/)
• Nutanix TechTalks and Learning Videos (https://www.youtube.com/playlist?list=PLAHgaS9IrJecs_AcQT3Y7vSsKT2mjz3Iu)

Ref: https://portal.nutanix.com/page/documents/details?targetId=Prism-Central-Gui de-Prism-v5_18:mul-storage-qos-pc-c.html

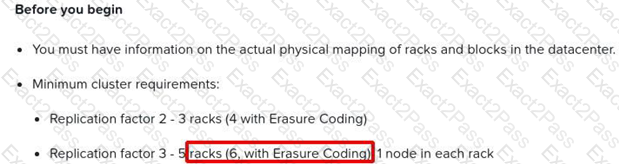

Ref: https://next.nutanix.com/how-it-works-22/rf2-rf3-requirements-37206#:~:text=Controller%20VMs%20must%20be%20configured,for%20the%20feature)%20of%20memory .

Ref: https://portal.nutanix.com/page/documents/details?targetId=Prism-Central-Guide-Prism-v5_10:mul-security-role-p ermissions-pc-t.html

The CVM IP address is a hard requirement for deploying a Nutanix cluster. Each CVM must have a unique IP address assigned to it as this IP address is critical for cluster operations, including data replication, management activities, and communication between CVMs and hypervisors. The other options, while important for various functionalities, do not represent a hard requirement for initial deployment.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Cluster Configuration chapter (https://www.nutanixbible.com/)

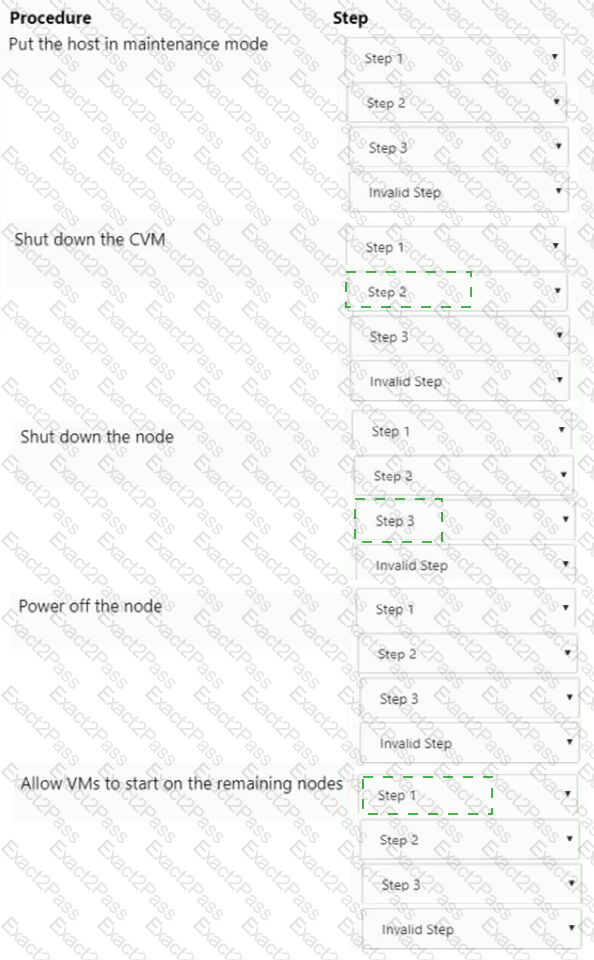

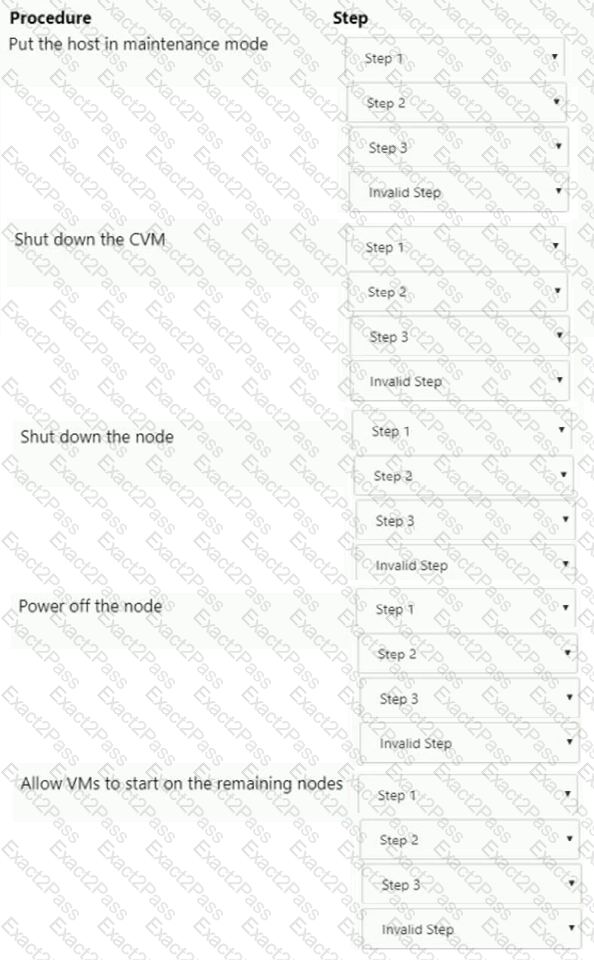

1 allow vms 2 sd CVM 3 sd node

Ref:

The As-Built Guide is a comprehensive document typically prepared at the end of a Nutanix deployment project. It includes detailed information about the Nutanix environment, such as IP addresses, storage container settings, hardware and software configurations, and other deployment specifics. This document serves as a reference for the customer to understand their deployed infrastructure and for any future modifications or troubleshooting needs.

References:

• Nutanix Bible: Documentation and Reporting
• Nutanix University: Deployment Best Practices

In the scenario where SQL queries are running slower post-migration, creating multiple TempDB data files is a recognized best practice for optimizing SQL Server performance, especially when dealing with high transaction rates or complex queries. This approach helps in distributing the I/O load across multiple files and drives, reducing the contention and wait times associated with TempDB, which is a common bottleneck in SQL Server environments. Enabling autogrowth ensures that these files can dynamically grow as needed, which helps in handling unexpected increases in database activity without manual intervention.References: Nutanix Best Practices for SQL Server, SQL Server performance tuning guidelines.

If the Foundation applet's progress bar webpage does not load after a refresh during a cluster creation, the consultant should verify if the Foundation process has completed by attempting to connect to any CVM (Controller Virtual Machine) IP address using a web browser. Accessing the CVM will confirm whether the nodes are operational and part of the cluster, thus indicating whether the Foundation process has successfully completed or not.References: Nutanix Bible, NCS-Core 6.8 official documentation on the Foundation process.

In the event of an Active Directory outage that prevents login to Prism, the recommended approach is to have a contingency plan that allows for local management of the cluster. Option B, "Create and use an emergency local account on the cluster," is the correct choice. This approach ensures that administrators can still access and manage the cluster even if external authentication services are down.

An emergency local account provides a direct, reliable means to access Prism and perform necessary administrative tasks without depending on external systems. This is a critical backup strategy for maintaining access control and managing the cluster during outages.

References:This method is in line with best practices for system availability and disaster recovery, ensuring administrators retain access to manage and troubleshoot without interruption, as detailed in Nutanix's documentation and security configuration guidelines.

The customer is experiencing VM performance issues characterized by excessive read/write I/Os on CVMs and excessive motion of VMs due to the Distributed Resource Scheduler (DRS) in an ESXi-based Nutanix cluster. This is likely caused by the DRS migration threshold being set to Aggressive, which leads to frequent rebalancing of workloads across the cluster, causing high I/O and VM motion. Adjusting this setting to a less aggressive level can help reduce unnecessary VM motions and stabilize performance.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

To ensure that the Foundation Applet is up-to-date across all nodes, the best approach is to use the Foundation VM. The Foundation VM allows consultants to manage and upgrade Foundation on all nodes centrally. This method avoids the necessity of manual upgrades on each node individually, thus ensuring a more efficient and error-free process, aligning with Nutanix's best practices for scalability and management of infrastructure.References: The Nutanix Bible, the Nutanix University's NCS-Core 6.8 materials, and official Nutanix documentation on the Foundation VM.

To ensure the latest version of Foundation is used for imaging to support the latest hardware and software hypervisor configurations, the consultant should utilize the Foundation VM. This tool allows for upgrading the Foundation on all nodes simultaneously, ensuring consistency across the cluster. It streamlines the process by leveraging the existing Foundation infrastructure rather than requiring manual updates via a crash cart or the limited capabilities of the Foundation Applet for single node upgrades.

References:

• Nutanix Foundation Documentation: https://portal.nutanix.com
• Nutanix Upgrade Guide: Nutanix Foundation Upgrade Process

Ref: https://next.nutanix.com/community-blog-40/scaling-up-vm-sto rage-performance-on-ahv-volume-group-load-balancer-28063

Given the reported RX errors on eth2 and the intermittent ping loss as observed from the CVM logs, the best initial troubleshooting step that avoids VM disruption is to inspect the switch port for errors. Option C, "Check the port on the switch side for any errors," is the most direct and non-invasive approach to determining if the issue lies with the network infrastructure rather than the server hardware itself or the configuration.

This action helps identify whether the problem is related to the physical connection (e.g., port issues, switch configuration errors) without altering the current active network setup on the Nutanix node. If errors are found on the switch port, adjustments or repairs can be made accordingly, potentially resolving the RX errors without impacting the running VMs.

References:This recommendation follows Nutanix's best practices for network troubleshooting, focusing first on external network components before altering host configurations.

When configuring network settings for a hypervisor or accessing local services hosted on it, the IP address must be reachable from the network configuration you are currently using. Given the generic nature of the options, the correct choice typically depends on the subnet used for management purposes, which often uses a standard private address. "192.168.5.254" is a common choice for local network configurations and is likely set up as the gateway or a primary network interface on the hypervisor.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Network Configuration chapter (https://www.nutanixbible.com/)

To troubleshoot physical network mis-cabling without physical access to the data center and connected to Cisco Nexus 9k switches, the appropriate command to run from the Nutanix AHV host is lldpctl. This command allows the consultant to view the Link Layer Discovery Protocol (LLDP) information about directly connected devices. LLDP is supported on Nexus switches and provides detailed network topology information, which is crucial for identifying how the AHV nodes are connected to the switches, and to verify correct physical connections.References: Nutanix Command Reference Guide, Cisco Nexus 9000 Series documentation.

https://next.nutanix.com/how-it-works-22/vm-capacity-and-prism-capacity-are-different-33134

Validating software compatibility for a Nutanix cluster installation necessitates the identification of the AOS version and the type of Hypervisor in use. AOS is central to the Nutanix infrastructure, governing storage, compute, and networking functions. The hypervisor layer is critical as it supports the virtual machines running on the cluster. Compatibility between these components ensures stable operation and support for all features. References: Nutanix Certified Services - Core (NCS-Core) Learning Documents

For a customer using an ESXi cluster with two 10GbE NICs on each node and a vSphere Distributed Switch, the recommended load balancing configuration, following Nutanix Best Practices for redundancy and efficiency, is "Route based on IP hash." This setting allows for optimal utilization of network bandwidth and redundancy by distributing the traffic based on the IP address pairings, ensuring a balanced load across the physical NICs.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

To manually create a cluster after the nodes have been successfully imaged but the automated cluster creation fails, the correct command to use is:

cluster create -s IP_CVM_A, IP_CVM_B, IP_CVM_n

This command specifies the -s option to include the IP addresses of the Controller Virtual Machines (CVMs) on the nodes, initiating the manual cluster creation process.

References:

• Nutanix Bible (https://www.nutanixbible.com), particularly the sections on manual cluster operations.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), with detailed instructions on manual cluster commands.

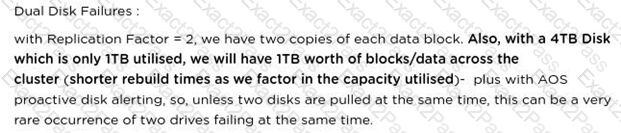

Ref: https://next.nutanix.com/how-it-works-22/redundancy-factor-vs-replication-factor-37486

An alert of this nature in the file server dashboard usually indicates issues related to node availability within a cluster. Specifically, the failure of a node in a three-node cluster (Option B) can lead to insufficient resources to handle all tasks, which might trigger such an alert. Additionally, setting a node to maintenance mode in a three-node cluster (Option D) also disrupts service availability and could generate a similar alert, as the remaining nodes might struggle to handle the load or maintain data redundancy.References: Nutanix AOS User Guide, Nutanix Files Documentation.

The issue where users can mount all three storage containers despite the intention to restrict access to just container-1 typically stems from a Global whitelist entry. A global whitelist allows all entities to access all containers unless more specific restrictions are applied at the container level. To correct this, specific whitelist entries need to be configured for each container to define and restrict access appropriately.References: Nutanix NCS-Core 6.8 training resources, the Nutanix Bible, and Nutanix technical documentation on storage container management.

Ref:

rx_crc_errors are caused either by faults in layer 1 (in the past, we have seen failed twinax cables and incorrect types of fibre being used), or issues with jumbo frames on the network. In an environment with 10 Gig switches that use cut-through forwarding (Cisco Nexus, Arista, Cisco devices using IOS default to Store and Forward switching), any packets that come into the switch will get forwarded out the destination interface once the switch has read the destination MAC address. If that packet has an MTU over what is configured on the interface, it will cut off the packet at the designated MTU, causing the server to receive a malformed packet, which will throw a CRC error.

If you have a layer 1 issue, you will see rx_crc_errors, not on all but one or two nodes.

Ref: https://support-portal.nutanix.com/page/documents/details/?targetId=Web-Console-Guide-Prism-v55:st o-metro-availability-witness-c.html

In this scenario, the delay and packet loss during failover when one of the network cables is disconnected can be addressed by enabling "Portfast" on the switch ports connected to the Nutanix nodes. Portfast is a Cisco network switch feature that allows network switches to immediately bring ports into the forwarding state during connectivity changes, bypassing the usual listening and learning states of Spanning Tree Protocol (STP). This significantly reduces the time to re-establish network connectivity, thereby minimizing the packet loss during such failover events. Enabling Portfast is crucial for endpoints like servers where quick recovery from disconnections is necessary.References: Cisco Networking Academy materials on STP and Portfast, Nutanix Bible.

To validate the performance of a Microsoft SQL workload for a CRM application, using X-Ray with an OLTP (Online Transaction Processing) Workload is most suitable. OLTP workloads simulate typical transactional database operations which are representative of CRM application usage, providing accurate insights into expected performance on the Nutanix platform.

References:

• Nutanix Bible (https://www.nutanixbible.com), specifically the sections on performance testing tools and methodologies.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), detailing how to use X-Ray for specific application testing.

In the preparation for a new cluster installation, after ensuring that the basic physical requirements such as space, cabling, and hardware connectivity are met, it's crucial to confirm power requirements. For enterprise installations, particularly where high-powered equipment like a four-node cluster is involved, ensuring redundant power is critical. The question specifically mentions "redundant" power, suggesting the need for a high-capacity solution typically found in 208v configurations in data centers, which provides more power efficiently and is standard for high-density computing hardware. Therefore, redundant 208v power should be confirmed as available onsite to support the new cluster's power needs effectively. References: Nutanix Certified Services - Core (NCS-Core) training materials and installation best practices available through Nutanix University and the Nutanix Bible.

For ensuring that Nutanix storage containers can be mounted on non-Nutanix hosts for data migration workflows, the consultant should validate the configuration under: A. Prism Element - Settings - Filesystem Whitelist. This setting allows specific non-Nutanix hosts to access the Nutanix storage containers, which is essential for environments where data must be accessible to systems outside the Nutanix cluster. By whitelisting the IP addresses or hostnames of these external systems, they are granted the necessary permissions to mount and interact with the Nutanix file systems.References: Nutanix Prism Element User Guide, Nutanix Storage and Filesystem Configuration Best Practices.

To satisfy the customer's requirements for maximum uptime and throughput in an AHV cluster deployment with link aggregation at the Top-of-Rack (TOR) switches, the consultant should:

• Bonded 2 x 40GbE Adapters with LACP Enabled for Storage Traffic and Guest Traffic using balance-tcp: This configuration leverages Link Aggregation Control Protocol (LACP) to combine the bandwidth of the two 40GbE adapters, enhancing both redundancy and throughput. The balance-tcp mode ensures effective load balancing of traffic based on TCP session ensuring optimal use of available bandwidth and improved fault tolerance.

References:

• Nutanix Bible (https://www.nutanixbible.com), particularly the sections discussing network configurations and LACP.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), which covers advanced network settings for performance optimization.
