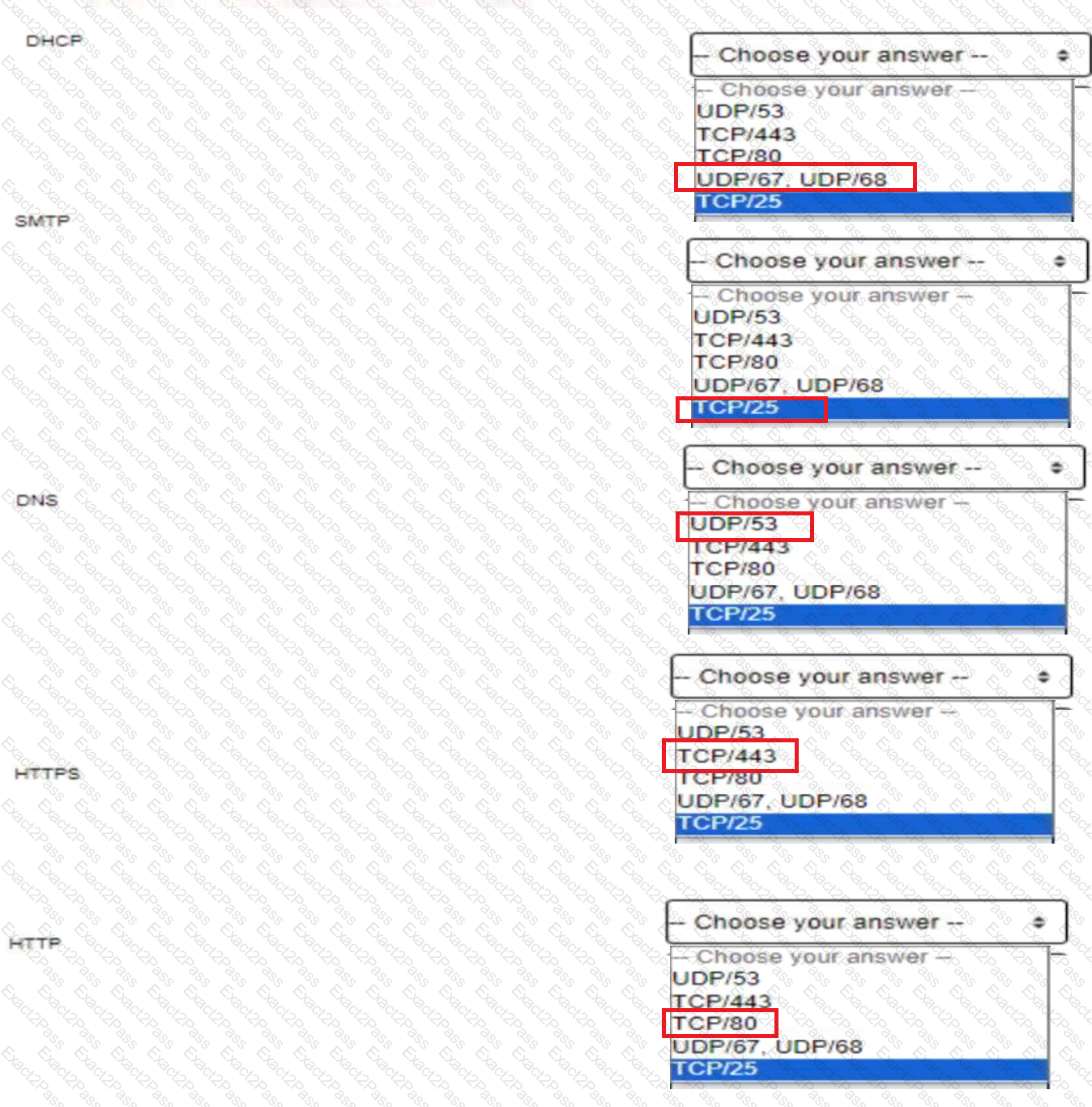

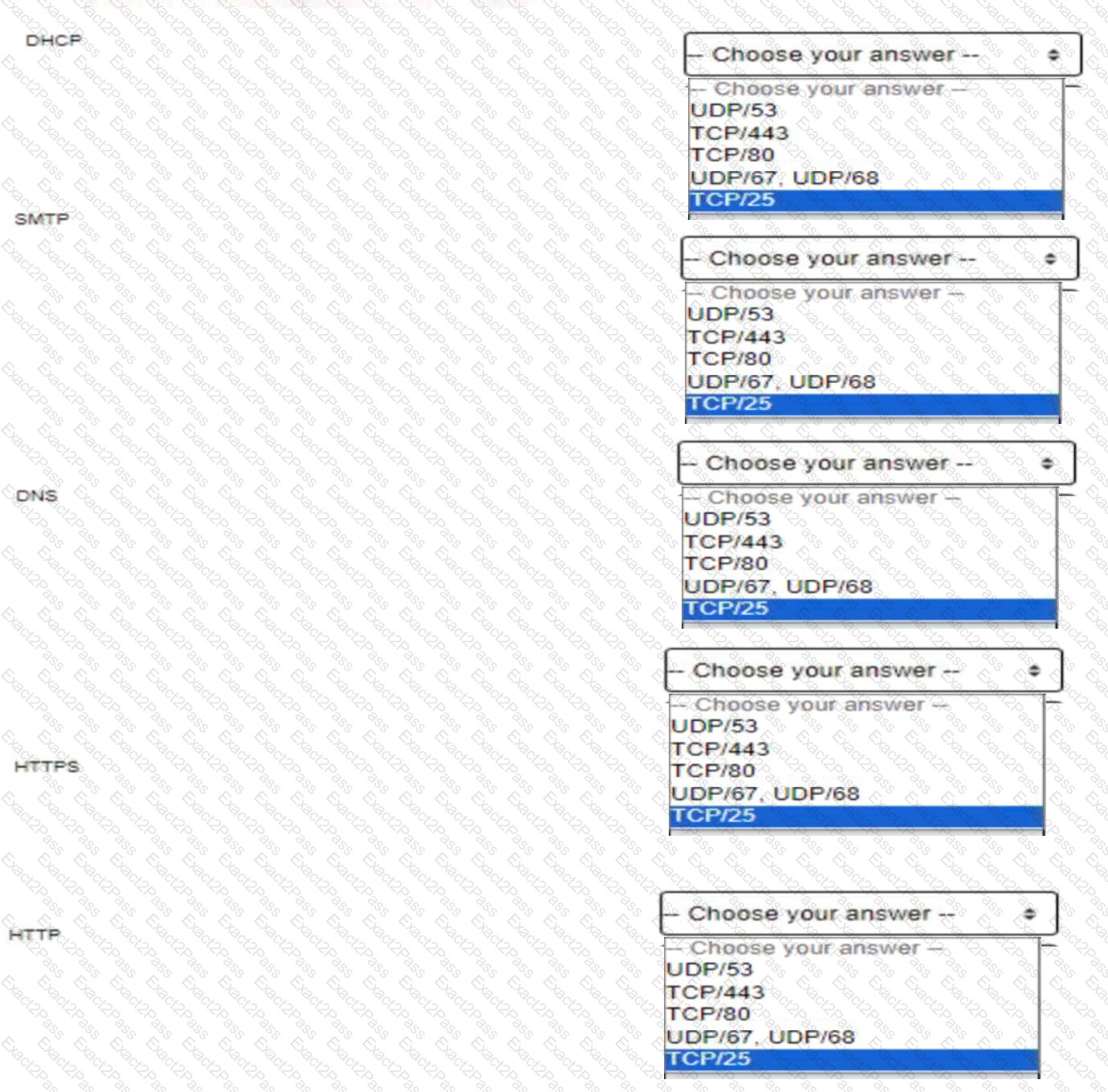

 DHCP (Dynamic Host Configuration Protocol): DHCP operates over UDP ports 67 and 68. Port 67 is used by the DHCP server to listen for client requests, and port 68 is used by the DHCP client. This allows devices to automatically receive IP addresses and other network configuration details on a network, essential for automating IP management. [Referenced from multiple sources on network fundamentals]

 SMTP (Simple Mail Transfer Protocol): SMTP uses TCP port 25 for sending emails from client to server or between mail servers. SMTP is integral for email transmission, allowing efficient communication across mail servers within and outside organizational networks. [Referenced in standard protocols documentation in network management guides]

 DNS (Domain Name System): DNS typically runs on UDP port 53 for standard queries, with TCP/53 used for zone transfers and other larger requests. DNS is critical for resolving human-readable domain names into IP addresses, which allows users to connect to websites using easily remembered names rather than numerical IP addresses. [Foundational knowledge as detailed in network security and management resources]

 HTTPS (Hypertext Transfer Protocol Secure): HTTPS, an encrypted version of HTTP, operates on TCP port 443. It provides secure communication over the internet by encrypting data between the client and server using SSL/TLS, protecting data integrity and privacy. [Security essentials for network communications as found in secure web traffic documentation]

 HTTP (Hypertext Transfer Protocol): HTTP operates on TCP port 80 and is used for unencrypted web traffic. HTTP is the foundation of data exchange on the World Wide Web, supporting basic client-server interactions for retrieving resources from the web. [Basic networking knowledge referenced across multiple network essentials texts]

Based on the configuration shown in the image, the HTTPS-proxy-out policy allows traffic from Any-Trusted and Any-Optional networks to Any-External destination on port 443 (which is the standard port for HTTPS). This rule effectively permits outbound HTTPS connections from clients within the trusted network to external HTTPS websites, such as https://www.watchguard.com.

Since the policy type is HTTPS-proxy , it can inspect and manage HTTPS traffic according to configured policies, but it does not block the connection itself. Therefore, users on the network should be able to successfully connect to external HTTPS sites.

Dynamic NAT enables clients on a private network to connect to servers on the Internet. By translating private IP addresses to a public IP address (or pool of addresses), Dynamic NAT allows multiple devices within a private network to access external resources on the Internet. This form of NAT is essential in conserving IP addresses and maintaining privacy for internal network topologies.

By default, Firebox policies do not allow HTTPS connections between devices on separate trusted networks without specific policy configuration. Firebox’s default security posture is to restrict inter-network traffic unless explicitly permitted, enhancing network segmentation and security within trusted zones​.

In the policy configuration shown in the image:

From Section : It specifies "Any-External" and 10.0.1.0/24, indicating that this policy applies to traffic from any external source (Internet users) as well as from devices on the internal network 10.0.1.0/24.

To Section : The destination specifies a public-facing IP address (203.0.113.100) that is statically NAT'd to the internal IP address of the web server (10.0.1.80). This means external users and internal users can access the web server using the Firebox's external IP.

Effect of Static NAT : The policy uses Static NAT to map the Firebox’s external IP address to the web server’s internal IP address, allowing inbound connections to reach the server. This setup provides consistent access for both external and internal users via the same public IP address.

This configuration effectively enables both Internet users and users within the specified internal network (10.0.1.0/24) to connect to the web server using the Firebox’s external IP, making Option D the correct answer.

The Address Resolution Protocol (ARP) is used to map an IP address to a physical machine (MAC) address on a local network. When a device wants to communicate with another device on the same local network, it uses an ARP request to discover the MAC address associated with a known IP address. The ARP process is essential for IP-based communication within the same network segment.

Option D is correct because ARP's primary function is to find the MAC address associated with an IP address.

Other options mention IP addresses or hostnames, which would be resolved using other methods like DNS, not ARP.

When policies are automatically ordered, policies with more specific user-based criteria have higher precedence over general policies. In this scenario, an HTTPS policy for a specific user (e.g., User1@Firebox-DB ) would take precedence over policies that apply to broader groups or networks, such as Any-Trusted or Any-Optional . This ordering ensures that individual user rules are evaluated first before generic policies, providing finer access control.

A Firebox backup image indeed includes any certificates previously imported to the Firebox. This backup not only contains configurations and policies but also all associated certificates, ensuring that if a restoration is necessary, all security certificates will be restored alongside other settings. This feature is critical for maintaining the integrity and continuity of encrypted connections and secure communications across the Firebox environment​.
