Firewall Software Blocking Connections : If the web server has its own firewall software, it may be configured to block incoming connections. This would prevent the server from responding to requests, even if the Firebox is allowing the traffic through.

Incorrect Default Gateway Configuration : If the web server's default gateway is not correctly set to route through the Firebox, it will be unable to respond to inbound traffic routed from external sources. This misconfiguration is a common cause of connectivity issues in environments with complex network setups.

These two issues often lead to situations where the Firebox allows traffic, but the destination server is unreachable due to internal configurations​.

FireWatch : FireWatch provides a visual interface to monitor traffic and review log messages related to network activities on the Firebox. It offers real-time visibility into network usage, highlighting application activity and bandwidth utilization, which helps in analyzing traffic patterns and reviewing logs.

Traffic Monitor : Traffic Monitor is an integral part of the Firebox System Manager, which displays detailed logs of network traffic. Administrators can use Traffic Monitor to review live traffic logs, filter traffic based on criteria, and troubleshoot network issues by examining these logs.

Dimension : WatchGuard Dimension is a cloud-based logging and reporting solution that aggregates log messages from multiple Fireboxes. Dimension provides comprehensive reporting and enables administrators to analyze traffic patterns, detect potential threats, and generate detailed log-based reports for security audits and monitoring.

These tools are commonly used in WatchGuard environments for reviewing traffic log messages and ensuring thorough monitoring of network activities​​.

You cannot run TCP Dump directly from a Firebox device. While Firebox has various monitoring tools such as Traffic Monitor and Firebox System Manager, it does not natively support TCP Dump, which is a command-line tool primarily available on Linux-based systems. Instead, packet captures and traffic monitoring need to be handled through Firebox-specific tools or by exporting logs to external devices for further analysis.

BOVPN virtual interfaces (route-based VPNs) offer several advantages over traditional policy-based BOVPNs:

Supports VPN connectivity to cloud services (A) : Route-based VPNs can more easily integrate with cloud environments, as they use routing rather than specific policies, making it possible to route traffic to various cloud services and manage cloud-based VPN connections.

More flexible routing options (C) : Route-based VPNs allow administrators to define more granular routing rules using standard IP routing tables. This flexibility supports complex network architectures and multiple routes for redundancy or load balancing.

These features make route-based VPNs more adaptable to modern network needs, particularly in hybrid and multi-cloud environments.

Link Monitor Target for Backup ISP : If the backup ISP’s Link Monitor target is not responsive, the Firebox will not initiate a failover, as it interprets the backup connection as inactive or faulty.

Primary ISP Link Monitor Configuration : When the Link Monitor for the primary ISP only checks the default gateway, it may not detect issues occurring further upstream. If the outage is beyond the gateway, failover will not activate because the monitor assumes the link is still valid.

These settings are critical to ensuring proper Multi-WAN failover behavior in case of ISP issues​.

Analyzing a typical Firebox log message for a denied connection with an associated virus detection involves recognizing multiple elements:

HTTP Proxy Detection (C) : If the connection utilized an HTTP proxy, this is typically noted in the log. Firebox’s HTTP proxy is often used to inspect and manage web traffic, including scanning for malicious content.

Gateway AntiVirus Detection (D) : This service scans HTTP traffic for malware and will generate log messages if it identifies a virus. When a virus is detected, the action taken is generally to block the connection.

Connection Denial (E) : When a threat is detected (e.g., a virus via Gateway AntiVirus), Firebox policies are configured to deny the connection to prevent potential infection or data breaches. This is logged as a denied connection.

Other options, such as Application Control detecting a virus or the use of an HTTP Packet Filter, are not relevant in this context based on the function of HTTP proxies and Gateway AntiVirus in Firebox logs.

When migrating configurations:

Option A : Management user settings transfer, preserving administrator access control configurations on the new device.

Option C : Policies, including firewall rules, transfer, ensuring that network traffic handling settings are retained.

Option B (Certificates) and Option D (DNS servers) are specific configurations often set manually and do not automatically transfer.

Option E (Feature key) is unique to each device and must be installed separately on the new Firebox.

When a port scan is detected, Firebox devices with default settings often include a rule to add the source IP address of the scan to the Blocked Sites list to prevent potential threats. This is a standard security measure in Firebox configurations, aimed at mitigating the risk of network scanning attempts. Consequently, if the server you used to perform the port scan was added to the Blocked Sites list, it would lose Internet access as the device blocks any outgoing connections from that IP. This behavior aligns with Firebox's handling of port scan detection through default security rules​.

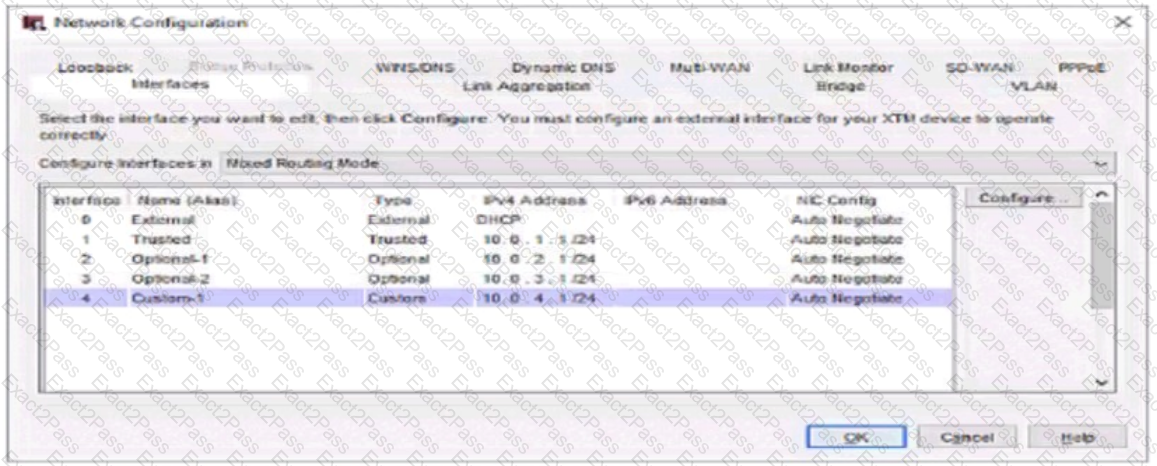

In the network configuration image provided, the interface Optional-1 is mapped to Eth2 . Here’s how the aliases work:

Optional-1 : Directly includes Eth2 since it’s configured as Optional-1 in the network configuration.

Any-Optional : This alias includes all optional interfaces, which would cover Eth2 as it is associated with Optional-1.

Any : The "Any" alias includes all interfaces on the Firebox, covering all Trusted, Optional, and External interfaces. Thus, Eth2 is part of this alias by default.

Aliases like Any-Trusted and Any-External would not include Eth2 since it is configured as an Optional interface, not Trusted or External.

The Firebox System Manager (FSM) and Fireware Web UI are two key interfaces in Firebox devices for local management that offer real-time diagnostic information.

Firebox System Manager (FSM) : FSM provides a graphical interface that allows administrators to monitor traffic in real-time, view logs, and analyze performance metrics directly from the device. This interface includes specific tools such as Traffic Monitor and Subscription Services, which display current activity and status of security services, respectively. FSM is highly effective in immediate diagnostics due to its continuous update capabilities.

Fireware Web UI : Fireware Web UI, another management interface available in Firebox, offers similar diagnostic functionalities but is accessible through a web browser. This interface is essential for remote diagnostics and provides real-time views on device status, traffic, and security service health. The Web UI is particularly beneficial for quick access without needing specialized client software like FSM, making it convenient for on-the-go monitoring.

These two interfaces are central to Firebox management and are designed to streamline real-time monitoring and diagnostics, ensuring network health is visible and manageable at all times​.
