Based on the ArchiMate 3 documents or objectives, an assessment represents the result of an analysis of the state of affairs of the enterprise with respect to some driver. An assessment may reveal strengths, weaknesses, opportunities, or threats for some area of interest. An assessment is a motivation element that can be associated with other motivation elements such as stakeholders, drivers, goals, outcomes, etc. The notation for an assessment is a rectangle with a rounded top and a horizontal line inside it. The symbol in this question is an assessment that expresses the analysis of ArchiSurance’s situation.

References: ArchiMate® 3.2 Specification, Chapter 7 Strategy Elements, Section 7.2 Motivation Elements  1 ; Assessment ArchiMate | QualiWare Center of Excellence  2 .

Comprehensive and Detailed In-Depth Explanation:

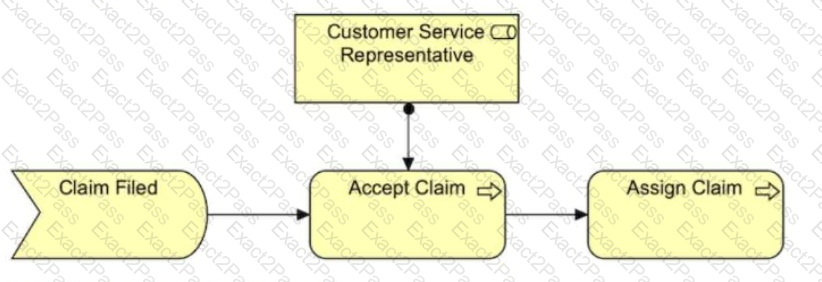

This ArchiMate Business Layer diagram represents a sequence of business processes triggered by a business event .

"Claim Filed" is a Business Event , which means it represents an external occurrence that initiates a process .

"Accept Claim" is a Business Process , meaning it is a structured activity that follows the event.

"Assign Claim" is another Business Process , which follows after the "Accept Claim" process.

A Customer Service Representative role is assigned to the "Accept Claim" process , but the focus of the diagram is the event-driven flow of processes.

Analysis of Answer Choices:

✅ A. The Claim Filed event assigns the Customer Service Representative to participate in the Accept Claim and Assign Claim processing. → ❌ Incorrect

The Customer Service Representative role is involved only in the "Accept Claim" process , but the diagram does not indicate their role in "Assign Claim."

ArchiMate 3.2 Specification, Section 6.3.2 , states that Business Events trigger processes but do not assign roles.

✅ B. The event Claim Filed triggers the Accept Claim process which is serviced by the Customer Service Representative role before the Assign Claim process. → ❌ Incorrect

While Claim Filed triggers Accept Claim , the focus of the diagram is on process flow, not role assignments .

The key relationship is between the business processes, not the role.

✅ C. The information that flows from Claim Filed to Accept Claim and then to Assign Claim is reviewed by the Customer Service Representative role. → ❌ Incorrect

The Customer Service Representative role is assigned to "Accept Claim," but there is no indication they review information across all steps.

The diagram shows process flow, not an explicit review process.

✅ D. Business event Claim Filed triggers a business process Accept Claim which in turn triggers an Assign Claim process. → ✅ Correct Answer

"Claim Filed" (Business Event) triggers "Accept Claim" (Business Process), which then triggers "Assign Claim" (Business Process).

ArchiMate 3.2 Specification, Section 6.3.1 , states that Business Events initiate Business Processes, and processes can trigger subsequent processes.

This matches the flow depicted in the diagram.

Final Answer: ✅ D. Business event Claim Filed triggers a business process Accept Claim which in turn triggers an Assign Claim process.

References:

ArchiMate 3.2 Specification: Sections 6.3.1 (Business Processes) and 6.3.2 (Business Events).

Archi User Guide: Modeling event-driven process flows in business architecture.

Comprehensive and Detailed in Depth Explanation: The Course of Action element represents what an enterprise has decided to do in order to achieve a strategic objective. It defines high-level actions and strategies that guide business capabilities and activities .

The ArchiMate 3.2 Specification states that Courses of Action define the high-level choices and strategic actions taken by an organization .

References:

Archi User Guide ​

ArchiMate 3.2 Specification

This is because a grouping is a composite element that aggregates or groups other elements based on some common characteristic or purpose. A course of action is a motivation element that represents an approach or plan for achieving some goal. An aggregation is a structural relationship that models the whole-part hierarchy between elements. A contract is a passive structure element that represents a formal or informal specification of an agreement between a provider and a consumer that specifies the rights and obligations associated with a product or service.

ased on the ArchiMate 3 documents or objectives, a grouping is a composite element that consists of other concepts, from one or more aspects or layers of the ArchiMate language. A grouping can be used to model a logical or physical grouping of elements that belong together based on some criteria. A grouping can itself aggregate or compose other groupings, leading to a hierarchy of these elements.

References: ArchiMate® 3.2 Specification, Chapter 4 Generic Metamodel, Section 4.1 Behavior and Structure Elements, Subsection 4.1.5 Composite Elements  1 ; Composite Elements | Enterprise Architect User Guide  2 .

Comprehensive and Detailed In-Depth Explanation:

This ArchiMate Technology Layer diagram represents a software application architecture where different application components interact with data objects.

"Online Claims" is an application component that interacts with "Loss Claim" .

"Loss Claim" is another application component, likely acting as a back-end system that processes claims.

"Customer Record" is a data object that "Loss Claim" accesses to retrieve or store customer-related information.

The Online Claims system does not directly access the Customer Record , but instead relies on the Loss Claim system to fetch the required data .

Analysis of Answer Choices:

✅ A. The Loss Claim application serves the Online Claims department and accesses a data object called Customer Record. → ❌ Incorrect

There is no indication that "Online Claims" represents a department; it is an application component.

The diagram focuses on software components, not organizational units .

✅ B. The Online Claims application uses a back-end module called Loss Claim to access a data object called Customer Record. → ✅ Correct Answer

The Online Claims system depends on the Loss Claim system, which in turn accesses the Customer Record .

This matches the typical structure of a front-end application relying on a back-end module .

ArchiMate 3.2 Specification, Section 7.3 , states that application components can interact hierarchically, where a front-end application calls a back-end service to process data.

✅ C. The Loss Claim application realizes the Online Claims service and accesses a Customer Record data object. → ❌ Incorrect

"Realization" means the Loss Claim application would be implementing a service provided by Online Claims.

In the diagram, Online Claims and Loss Claim are separate application components , and Loss Claim is not a realization of an Online Claims service .

✅ D. The Customer Record application uses Loss Claim middleware to present the Online Claims user interface. → ❌ Incorrect

The Customer Record is a data object, not an application.

Loss Claim is not middleware; it is a back-end application component.

The diagram does not indicate that Loss Claim is responsible for presenting a user interface.

Final Answer: ✅ B. The Online Claims application uses a back-end module called Loss Claim to access a data object called Customer Record.

References:

ArchiMate 3.2 Specification: Sections 7.3 (Application Components), 7.5 (Data Objects), and 7.6 (Application Services).

Archi User Guide: Modeling front-end and back-end application interactions.

Comprehensive and Detailed In-Depth Explanation:

This diagram represents a Technology Layer model in ArchiMate, where X and Z are servers , and E is a shared technology component .

X and Z are likely hardware devices (Servers), which are typically represented as Technology Nodes or Devices in ArchiMate.

E is a shared resource that both servers connect to, implying a common storage or network area storage device.

According to ArchiMate 3.2 , Technology Objects like Storage Devices or Infrastructure Services can be shared across multiple devices.

Analysis of Answer Choices:

✅ A. The servers, represented by devices, are connected by a communication network. → ❌ Incorrect

There is no explicit network symbol (e.g., a communication path or a network node).

The relationship between X, Z, and E indicates a shared resource rather than a network connection .

ArchiMate 3.2 Specification, Section 6.6.4 , defines Communication Networks separately, and none are present here.

✅ B. The servers are shown in the technology interaction E, where they collectively process data. → ❌ Incorrect

Technology Interaction represents behavior in ArchiMate, meaning two or more active elements are collaborating on a process .

E is a shared object, not an interaction process.

✅ C. The servers share a common network area storage device E. → ✅ Correct Answer

E is a shared resource , meaning it is likely a storage device used by both servers .

ArchiMate 3.2 Specification, Section 6.6.2 , states that Technology Objects can represent storage elements used by multiple devices.

This matches the pattern of a shared Network Attached Storage (NAS) or Storage Area Network (SAN).

✅ D. Technology collaboration E represents a point of access for services offered by the servers. → ❌ Incorrect

Technology Collaboration elements represent active behavior , not a static resource like a shared storage system.

E does not behave as a collaboration element but as a shared infrastructure object.

Final Answer: ✅ C. The servers share a common network area storage device E.

References:

ArchiMate 3.2 Specification: Sections 6.6.2 (Technology Object), 6.6.4 (Communication Network), and 6.6.7 (Technology Collaboration).

Archi User Guide: Understanding shared technology infrastructure and storage modeling.

Based on the ArchiMate 3 documents or objectives, the diagram uses a specialization relationship to indicate that the two business roles Travel Insurance Claim Analyst and Home Insurance Product Specialist are more specific versions of the business role Specialist. A specialization relationship is a type of structural relationship that indicates that an object is a specialization of another object. The notation for a specialization relationship is a solid line with an empty triangle at the end that points to the more general element.

References: ArchiMate® 3.2 Specification, Chapter 4 Generic Metamodel, Section 4.1 Behavior and Structure Elements, Subsection 4.1.2 Structural Relationships  1 ; ArchiMate Specialization Relationship - ArchiMate Quick Guide - GitBook  2 .

Comprehensive and Detailed in Depth Explanation: A Business Interface is an external active structure element that provides an external point of access to one or more Business Services. In the Business Layer metamodel , a Business Service is assigned to a Business Interface because interfaces define how services are exposed to external parties or other components within an enterprise.

This is confirmed in the ArchiMate Specification 3.2 , where a Business Interface is described as representing a point of interaction that enables access to Business Services .

References:

Archi User Guide ​

ArchiMate 3.2 Specification

According to the ArchiMate® 3.2 Specification 1 , a facility is a physical element that is used to model buildings that have an important role in production processes.  A facility represents a physical structure or environment 1 . Therefore, the correct answer is A. Facility.

Comprehensive and Detailed in Depth Explanation: A Principle in ArchiMate is a high-level guideline that directs decision-making and architecture development . It is a specialization of a Constraint , meaning that it restricts behavior in a way that aligns with organizational goals.

The ArchiMate 3.2 Specification describes Principles as specific constraints that apply to enterprise architecture and governance.

References:

Archi User Guide ​

ArchiMate 3.2 Specification
