In BPMN (as used in OMG-aligned certifications), Boundary Events can be interrupting or non-interrupting. The general rule is:

Many boundary events (Timer, Message, Signal, etc.) can be either interrupting or non-interrupting.

Some types, however, exist only as interrupting boundary events :

Error Boundary Event – always interrupting the activity/subprocess it is attached to.

Cancel Boundary Event – always interrupting and only valid on a Transaction Sub-Process.

Compensation Boundary Event – used to trigger compensation behavior and treated as a special interrupt-style handler attached to the scope of the completed activity.

So, among boundary events, Error, Cancel, and Compensation are treated as always interrupting variants , in contrast with others that can be non-interrupting.

Thus option A correctly captures this differentiating property; the other options contradict the specification or reverse the visual notation (C) or incorrectly constrain outgoing flows from boundary events (D).

Porter’s Five Forces is a classic strategic analysis framework frequently referenced in business architecture and BPM to understand the external environment that shapes processes and strategies.

The five forces are:

Barriers to entry / Threat of new entrants – How easy is it for new competitors to enter the market?

Threat of substitute products or services – Can customers switch to something different that satisfies the same need?

Bargaining power of suppliers – How much power do suppliers have over price, quality, and terms?

Bargaining power of customers (buyers) – How much power do customers have to push prices down or demand more value?

Competitive rivalry within the industry – Intensity of competition among current players.

OMG’s Business Motivation Model (BMM) and enterprise strategy views use these kinds of external assessments to drive:

Ends (goals, objectives).

Means (strategies, tactics).

Resulting business processes modeled in BPMN.

Why the other options are incorrect:

A, C, and D mix in elements of strategic planning steps , value chain analysis , or goal setting , but none of them match the canonical list of the Five Forces.

Thus, the correct set of Porter’s Five Forces is exactly what is listed in Option B .

Within the Object Management Group (OMG) perspective—particularly referencing the principles found in Business Process Management (BPM) , Business Motivation Model (BMM) , and Value-Driven Process Design —a consistent and proactive marketing strategy must be grounded in a customer ‑centric philosophy . This aligns directly with the foundational OMG principle that all business processes must deliver value to customers and stakeholders .

Here’s why Option A is the correct and OMG‑aligned choice:

1. Customer Focus as the Strategic Anchor (BMM Alignment)

OMG’s Business Motivation Model (BMM) defines the organization’s Ends (Goals, Objectives) and Means (Mission, Strategies). A proactive marketing strategy, from an OMG standpoint, must start with a customer-focused mission and strategy , meaning that:

Resources, processes, and capabilities are organized around customer needs.

The marketing strategy anticipates customer demands, not just reacts to them.

The organization’s courses of action and directive frameworks support value delivery.

This matches Option A exactly.

2. BPM Perspective: Processes Designed for Customer Value

BPMN (Business Process Model and Notation) encourages modeling marketing processes as value-driven workflows , where the trigger of the process is usually rooted in customer needs, customer segments, or market insights.

A consistent, proactive marketing strategy requires:

Predictive understanding of customer needs

Alignment of processes to deliver satisfaction

Continuous refinement driven by customer feedback loops

This again reflects the philosophy described in Option A.

3. Why the Other Options Are Not Correct (Based on OMG BPM Principles)

Option B emphasizes sales results measurement and corrective actions . This describes an operational control process , not a proactive marketing strategy. It is reactive rather than proactive.

Option C refers to a top‑down, compliance-oriented metrics review. This aligns with performance management , not with strategy formation or proactive marketing.

Option D focuses on KPIs and behavioral monitoring. While important, this is part of tactical execution and performance monitoring, not the overarching key to maintaining a proactive marketing strategy.

4. OMG Core Principle Supporting Option A

OMG frameworks stress that processes must originate from and be continuously aligned with customer value propositions . The marketing strategy becomes proactive only when the customer’s needs, wants, and demands drive decisions and resource allocation.

Thus, Option A is the only answer aligned with OMG’s structured, customer-centered view of organizational strategy and process management.

In cost accounting, expenses like electricity, water, heating, rent, and factory insurance are typically categorized as overhead costs (often called indirect costs or indirect manufacturing costs ).

From a Business Process Management (BPM) and OMG value-chain view:

These costs support core operational processes (production, service delivery) but cannot be directly traced to a single product, unit, or customer.

In process modeling (e.g., using BPMN ), they are part of the resources and environment needed to perform activities, not attributed to one specific activity output.

Why the other options are incorrect:

A. Labor costs – Labor can be direct (e.g., assembly worker) or indirect (e.g., supervisor), but electricity and water are not labor.

B. Variable costs – Electricity and water can behave variably with activity level, but in cost accounting terminology they are classified as overhead , not as primary variable costs like direct materials.

D. Indirect materials costs – Indirect materials are items like lubricants, cleaning supplies, small tools. Electricity and water are utilities , not materials.

So in standard cost accounting and in how OMG-aligned enterprise models group resource costs, electricity and water are treated as overhead costs .

The narrative is:

Start of production day.

Produce scenes .

When production is complete, Review Sound and Review Pictures take place simultaneously .

After both reviews are done, the director Plans Next Day .

End of production day.

In BPMN, this is modeled as:

A task Produce Scenes

Followed by a parallel gateway (AND-split) to start Review Sound and Review Pictures in parallel

A parallel gateway (AND-join) to synchronize both reviews

Then Plan Next Day

Then an End Event.

Option D shows exactly that: a parallel gateway after Produce Scenes , two parallel review tasks, then a convergence and Plan Next Day before the End Event.

The other options either do not show explicit parallelism or do not correctly synchronize before planning the next day.

In BPMM, the sponsor is responsible for securing and committing long-term resources such as funding, staffing, and organizational support for a process improvement effort.

This aligns exactly with option C .

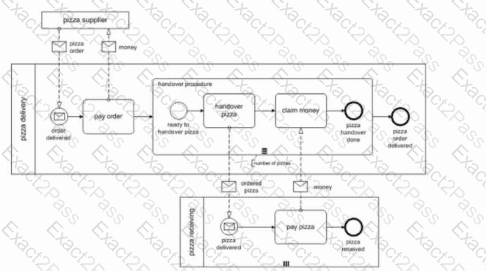

In the given collaboration diagram:

The top collapsed pool (e.g., “pizza supplier”) is a black-box pool . Even though its internal process is hidden, it still represents a participant .

The middle pool (e.g., “pizza delivery”) is a white-box pool showing its internal process — a second participant.

The bottom pool (e.g., “pizza receiving”) is another white-box pool — a third participant.

BPMN defines that every pool (black-box or white-box) corresponds to one participant in the collaboration. Therefore, the collaboration shows three participants , and answer D is correct.

In the BMM, Directives (i.e., Business Policies and Business Rules) are used to govern how the enterprise acts to achieve its Ends.

BMM breaks down:

Means into:

Mission

Courses of Action (Strategies and Tactics)

Directives (Business Policies and Business Rules)

The specification states that Business Policies (a type of Directive) exist to govern – control, guide, and shape – Strategies and Tactics , which together are the Courses of Action . Business Rules, derived from these policies, provide precise, enforceable guidance for their execution.

Thus, Directives govern Courses of Action , not Goals, Assessments, or Business Policies (Business Policies themselves are a type of Directive).

So the correct answer is Courses of Action .

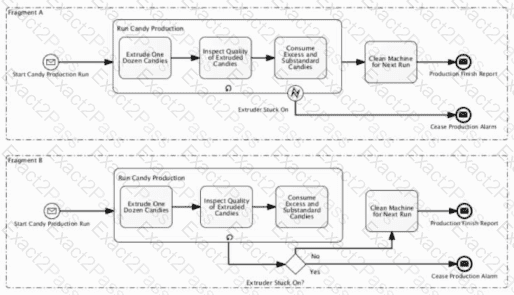

In Fragment A , Run Candy Production is a subprocess with a boundary event labeled Extruder Stuck On attached to it.

According to BPMN 2.0:

A boundary event attached directly to an activity/subprocess is evaluated while that activity is executing .

When it triggers (here, when the “Extruder Stuck On” condition occurs), it interrupts the subprocess (for an interrupting boundary event) and the normal internal flow stops. Control is redirected along the boundary-event’s outgoing sequence flow (toward the alarm/handling path).

So, in Fragment A, the first time the extruder gets stuck during the execution of Run Candy Production , that subprocess is interrupted and the alternate flow (e.g., cease production alarm, possibly skipping remaining steps inside the subprocess) is taken.

In Fragment B , the “Extruder Stuck On?” is modeled as an Exclusive Gateway after the internal tasks (after Consume Excess and Substandard Candies ). That means:

The condition is checked only when the token reaches that gateway , i.e., after finishing the last internal task.

If “Yes”, we follow the alarm/cease path; if “No”, we continue to the normal completion/cleaning path.

This is exactly what option D states.

Options A and C say the fragments have the same or inverted behavior, which contradicts the execution semantics of boundary events vs. gateways.

Option B incorrectly assumes the boundary event is specifically an Error Event and misstates the validity of Fragment A. The fragment is valid BPMN; the key difference is when and how the stuck-extruder condition is handled, captured correctly only by option D .

The APQC Process Classification Framework (PCF) groups enterprise processes into two high-level categories:

Operating Processes – the value-creating core operations of the business.

Management and Support Processes – processes that manage, direct, or support the operating processes.

So option B reflects the official enterprise-level split.
