A black-box Pool in BPMN:

Represents a Participant in a Collaboration whose internal process is not shown .

It is used precisely to show that this external party exists and can exchange messages, while hiding its internal flow.

Therefore:

A. It indicates a participant. – Correct.

B. It can be partitioned using lanes – not in a black-box; the interior is intentionally not detailed.

C. It shows full process information – false; it shows none.

D. It cannot be used if messages should be exchanged – false; showing message exchange with a black-box pool is a very common pattern.

According to the Object Management Group (OMG) and its references to business processes and enterprise modeling (especially in the Business Process Model and Notation (BPMN) and Business Motivation Model (BMM) standards), marketing is treated as a structured, goal-driven business process within the broader context of an organization’s strategy and performance management.

In the context of BPM and OMG documentation, marketing is modeled as a repeatable, structured process that aligns with business objectives and delivers customer value. Here’s how each component of Option A aligns with OMG principles:

Situational Analysis : This corresponds to the "Assessment" phase in the Business Motivation Model (BMM) , where organizations evaluate external and internal factors (e.g., customer needs, market trends, competitor analysis). BPMN can model this as a subprocess involving data collection and analysis tasks.

Strategy Formulation : In BMM, strategy is a core construct. Strategies guide the enterprise in achieving its goals, and in the context of marketing, this includes positioning, segmentation, and targeting decisions. BPMN supports this through modeling high-level strategic activities and decision-making gateways.

Marketing Mix Decisions : Also known as the 4Ps (Product, Price, Place, Promotion), these decisions are modeled as business processes in BPMN, where each element (e.g., promotion strategy) can be broken into subprocesses (e.g., campaign planning, execution, measurement).

Implementation and Control : This reflects OMG’s emphasis on governance, monitoring, and continuous improvement —which is supported by BPM concepts such as Key Performance Indicators (KPIs), performance dashboards, and feedback loops.

In contrast:

Option B is a general textbook definition of marketing (as described by Philip Kotler) but lacks the process orientation emphasized in OMG BPM materials.

Option C focuses too narrowly on advertising and revenue generation—components of marketing but not the structured end-to-end process approach supported by BPM.

Option D confuses product development with marketing and does not reflect the structured process defined in BPM modeling.

Therefore, Option A is the only one fully aligned with the OMG BPM approach , presenting marketing as a structured business process with analysis, strategic planning, operational decisions, execution, and control—all of which can be modeled and optimized using BPM standards like BPMN and BMM.

Straight-through-processing (STP) refers to end-to-end automation where a process instance flows through the system without any human intervention .

Option A is the precise definition used in BPM and BPMS literature.

In BPMN, an End Event represents the point where a particular execution path in the process terminates. A process may have multiple end events, each ending a different path.

It is not merely a pointer to the last activity (A).

It is not necessarily the last event generated by the entire process (C), because multiple paths can end independently.

It is not the connection point between a Sub-Process and its parent (D); that is the role of the Sub-Process’s boundaries.

So the correct conceptual definition is that an End Event marks the end of a path through a process .

Management documents without any External Links or URL :

In the Business Motivation Model (BMM) :

Courses of Action (Strategies and Tactics) represent how the organization intends to achieve its Ends (Goals and Objectives).

Directives (Business Policies and Business Rules) govern and constrain how those Courses of Action are carried out.

So:

Directives specify what is allowed, required, or prohibited in implementing strategies and tactics.

This is why BMM explicitly states that Directives govern Courses of Action .

Why others are incorrect:

Objectives (B) are measurable targets (Ends), not governing elements.

Internal Influencers (C) affect assessments and motivation but do not directly govern Courses of Action.

Business Processes (D) are operational implementations, not governance elements in BMM terminology.

Thus, the correct governing elements for Courses of Action in BMM are Directives .

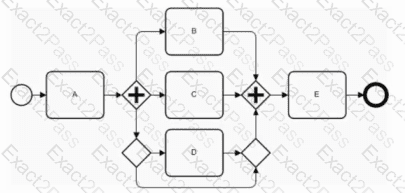

The diagram shows:

Activity A , then

A parallel gateway that fans out to three branches (B, C, D), and

A parallel gateway that joins all three before E .

This means:

After A, the process may carry out B , C , and D in parallel (or at least independently).

All active branches must complete before moving to E .

Scenario C fits this pattern:

A = enter primary recipients

B = optionally add cc-recipients

C = write the email text

D = optionally add attachments

E = send email

The optional activities (cc and attachments) can be done in any order while writing the text, but all work is complete before sending. The other scenarios are essentially linear or don’t naturally occur in parallel like this.

In the Business Motivation Model (BMM) , a Goal is a high-level, long-term, qualitative statement of a desired future state of the enterprise.

“A large energy company is striving to be a process-driven organization and support lean and efficient operations.”

This describes a future state the organization wants to achieve (process-driven, lean, efficient), not a specific short-term target, policy, or evaluation. That is exactly what BMM calls a Goal : an overarching desired condition the organization aims for.

It is not a Tactic (B), because tactics are concrete, actionable ways to implement strategies.

It is not a Directive (C), which would be policies or rules governing behavior.

It is not an Assessment (D), which is an evaluation of influencers (e.g., “current operations are inefficient”).

So, the description is modeled in BMM as a Goal .

In the diagram, a single Pool is partitioned into lanes labeled:

“System 123”

“Role A”

“GUI 123”

In BPMN, lanes are flexible partitions used to organize and categorize activities within a Pool. They may represent organizational units, roles, systems, applications, or any other logical grouping that helps clarify responsibilities.

Therefore:

A. “Lanes are only allowed outside pools” – incorrect; lanes exist inside pools.

B. “Lanes must always indicate organizational units” – too restrictive; they can also represent systems, roles, etc.

C. “Lanes must always indicate systems but not GUIs” – also false; BPMN does not impose that limitation.

D. Yes, lanes can be used as shown in the model. – This matches BPMN’s flexible lane semantics.

In BPMN , a rounded rectangle with a dashed border around activities is a Group artifact.

Key BPMN semantics for a Group :

It is purely documentary : used to visually group related activities (for example, labeling them “Process Payment” or “Deliver Product”).

It does not affect execution semantics —sequence flow, data flow, and transaction behavior are exactly the same as if the group were not drawn .

Looking at the diagram:

The sequence is: Verify Credit → Process Payment → Deliver Product → Notify Customer , each connected by normal sequence flows.

The two dashed rectangles just visually cluster the first two and last two activities; there are no special events or gateways.

Now the options:

A. Activities that are in the dashed rectangle must exchange data. BPMN Groups say nothing about data exchange; this is incorrect.

B. The activities are executed as if the dashed rectangles do not exist. This matches the BPMN definition of a Group artifact and is correct.

C. Canceling "Notify Customer" will cancel the result of "Deliver Product". That would require a transaction subprocess with cancel behavior , not just a Group.

D. "Verify Credit" and "Process Payment" are executed in parallel. "Deliver Product" and "Notify Customer" are executed in parallel. Parallelism requires a parallel gateway or similar construct; here, a simple sequence flow shows they are executed sequentially .

Therefore, the correct statement is that the dashed rectangles have no execution effect : option B .
