Pseudostates in UML state machines serve a different purpose than regular states. They are used as markers or waypoints to facilitate complex state transitions. Key distinctions include:

Transient Nature:  Pseudostates do not represent persistent states of an object. They are not associated with entry/exit actions or internal activities like regular states. The state machine immediately transitions through a pseudostate.

Run-to-Completion Restrictions:  A run-to-completion step (the sequence of states and transitions activated by a single event) cannot end in a pseudostate.

Let's analyze why the other options are incorrect:

Option A (A pseudostate must have an outgoing transition): While most pseudostates have outgoing transitions to guide the flow of the state machine, this is not a strict requirement. For example, the 'terminate' pseudostate signifies the end of a statemachine and thus has no outgoing transitions.

Option B (An outgoing transition from a pseudostate must always terminate on a regular state): While true in many cases, outgoing transitions can also target other pseudostates for more intricate state machine designs.

Option D (The outgoing transitions of a pseudostate must have triggers that consist exclusively of guard conditions): Pseudostate transitions can have a mix of triggers, including events, timeouts, and guard conditions.

References:

UML Specification (Superstructure) Version 2.5.1: Specifically, sections covering statemachines (Chapter 14), pseudostates (Section 14.2.3.8), and run-to-completion steps (Section 14.2.3.13). You can find it on the OMG website:  https://www.omg.org/spec/UML/2.5.1

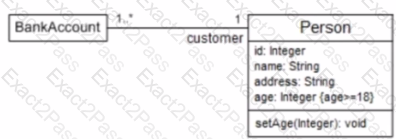

In UML 2, a class diagram is used to depict the structure of a system by showing the system's classes, their attributes, operations (or methods), and the relationships among the classes. The constraint {age > = 18} in the Person class diagram indicates a condition that must hold true for the instances of the Person class whenever they are used in the context of a BankAccount . This constraint is an invariant of the Person class that specifies the rule for the attribute age .

Now, let's consider the provided options and explain why option B is correct:

A. The preferred age to open a bank account is 18 years old or older – This statement is incorrect because the diagram does not indicate a preference; it indicates a constraint or a rule.

B. Only customers who are 18 years old or older can open a bank account – This is the correct statement. The {age > = 18} constraint next to the age attribute of the Person class signifies that any instance of Person associated with a BankAccount must be at least 18 years old. Since Person is connected to BankAccount with the role name customer , this implies that only persons who are at least 18 can be customers of a bank account.

C. The age condition should only hold when the setAge(Integer) function is called – This statement is incorrect because the constraint {age > = 18} is not a condition that applies only when the setAge operation is invoked. Instead, it is a class invariant that must always hold true for any instance of Person .

D. An object of Customer with age set to 18 or greater will raise an exception – This is incorrect because the UML diagram specifies a constraint, not an exception condition. The constraint ensures validity, not the raising of an exception.

The answer is verified according to the UML 2 Foundation documents, such as the UML 2.5 specification, where class diagrams and constraints are defined. The specification states that constraints are semantic conditions or restrictions expressed in natural language text or in a machine-readable language that must hold true for the system being modeled (UML 2.5 specification, section 7.9).

In UML, when specifying the value of an attribute in an instance specification (which is what each of these boxes represents), the notation used is generally:

attributeName: Type = Value

Looking at each option provided, we see that they are different representations of numerical values for an attribute named salary of type Real . Here's how to interpret each representation:

A) -salary: Real = “$10,000.00” - This uses a string representation of the number, which is generally not how numerical values are assigned in UML, especially with the explicit type Real .

B) -salary: Real = $20,000.00 - This is more typical for showing a real number in UML, though the dollar sign is not part of the actual numerical value and should not be included.

C) -salary: Real = 30000.00 - This is a correct numeric representation of a real number without unnecessary symbols.

D) -salary: Real = 40,000.00 - This is also a correct representation and indeed has the highest numeric value among the options provided.

E) -salary: Real = 500 E 02 - This is scientific notation, which is also a valid representation of real numbers in UML. The value represented here is 500 * 10^2, which equals 50,000.00.

After examining each option, the correct answer is D. Option D, because the instance four:Employee has the highest value properly assigned to a salary slot according to the standard UML notation. However, there's a point to be clarified: while UML does not specify formatting of numbers with commas for thousands or currency symbols, it does accept scientific notation. So, if we were strictly interpreting the values as real numbers, Option E would represent the highest numerical value. But considering proper UML formatting and assuming the intent is to use standard decimal notation without currency symbols or commas, Option D is the best answer.

An execution occurrence specification in UML sequence diagrams is represented by a thin rectangle on a lifeline. It shows that an instance is performing an action over a period of time.

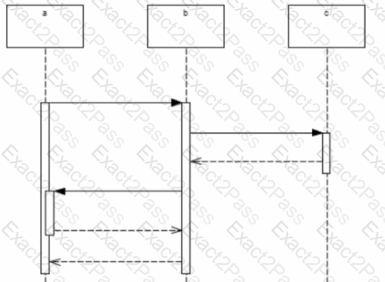

In the provided sequence diagram, we can see three such thin rectangles on lifeline 'b', which indicates that there are three execution occurrence specifications.

One for the message that comes from 'a' to 'b'.

Another one for the message that 'b' sends to 'c'.

And the last one for the return message from 'c' to 'b'.

There are no execution occurrence specifications on lifelines 'a' and 'c'.

Therefore, the correct answer is:

D. 3

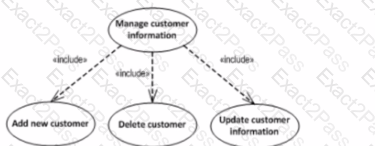

In the context of the given scenario, the Use Case "Manage customer information" appears to be a general use case that encompasses the functionalities of adding, deleting, and updating customer information. The specific functionalities are represented by separate use cases, namely "Add new customer", "Delete customer", and "Update customer information".

In UML Use Case diagrams, the «include» relationship should be used when a use case implicitly requires the capabilities of another. However, when the use case is a higher-level description that can be further elaborated into more specific use cases, the «extend» relationship is more appropriate, but in the reverse direction as shown in Option B.

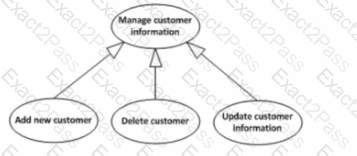

Option B correctly uses the generalization relationship which is not depicted by any arrows or lines but by a whole-part structure, indicating that the specific use cases are a part of the general "Manage customer information" use case.

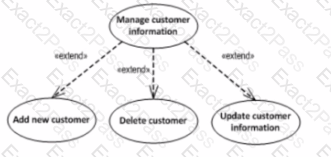

Option A shows the "Manage customer information" use case extending the specific use cases, which is not correct given the context.

Option C incorrectly uses «include» relationships, implying that the "Manage customer information" use case always requires the included use cases.

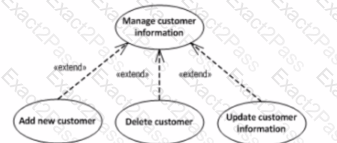

Option D has the «extend» relationships backward, which is not aligned with the scenario described.

Therefore, the correct answer is:

B. Option B

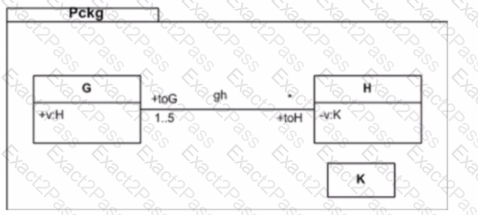

The diagram shows a package Pckg that includes two classes G and H with a one-to-many association between them. The multiplicity '1..5' near class G on the 'gh' association end suggests that for each H object, there should be between 1 to 5 associated G objects. However, the '*' (multiplicity many) near class H on the 'gh' association end indicates that a G object can be associated with zero or more H objects. This implies that it's possible to have a G object that is not associated with any H object.

References:

UML 2.x Superstructure Specification: Multiplicity notations and association rules are clearly defined in the UML specifications, which detail the semantics of multiplicities and their implications for object association.

UML 2.x Infrastructure Specification: Further explains the basic constructs of the UML metamodel, which underpin the interpretation of multiplicities in associations.

In UML, the «extend» relationship indicates that the behavior defined in the extending use case (the extension) can be inserted into the behavior defined in the extended use case (the base). The extension occurs only under certain conditions, which are specified by the extension points. This relationship allows for the addition of optional behavior to a use case, which can be activated under certain conditions.

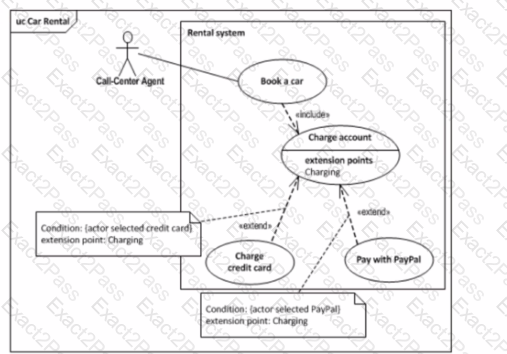

The diagram provided shows an extension relationship where "Charge credit card" and "Pay with PayPal" are extending "Charge account" use case at the "Charging" extension point.

The key benefit of using the «extend» relationship in this context is that it allows for the flexible addition of new behaviors (like new payment methods) without modifying the main use cases. It helps in evolving the system by adding optional behaviors that only occur under certain conditions, which is mentioned as an option:

C. This Use Case model could be updated with further payment methods without changing the main Use Cases "Book a car" and "Charge account".

This means that new payment methods could be incorporated as additional extending use cases in the future, just like "Charge credit card" and "Pay with PayPal".

The other options do not correctly describe the use of the «extend» relationship: A) «extend» relationships do not replace the need for behavior descriptions such as activities. B) It's not about functional decomposition; it's about adding optional or conditional behavior. D) «extend» is not a taxonomic relationship and does not extract general descriptions into a super Use Case; rather, it adds behavior under certain conditions.

Therefore, the correct answer is:

C. This Use Case model could be updated with further payment methods without changing the main Use Cases "Book a car" and "Charge account".

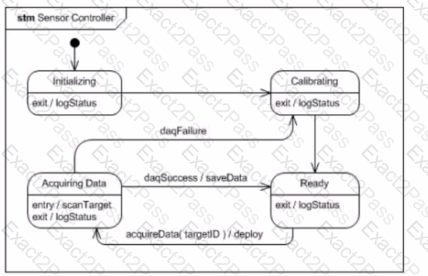

The provided image depicts a block diagram of a sensor controller represented as a state machine. The state machine transitions between the following states:

Initializing

Calibrating

Ready

Acquiring Data

The question specifies the state machine starts in the Ready state and the acquireData event triggers the transition.

Analyzing the image, we can identify the following behaviors for the scenario:

logStatus : This behavior is depicted in the diagram as the first action upon exiting the Ready state. It most likely logs the current state of the sensor controller.

deploy : The transition from Ready to Acquiring Data triggers the  deploy  behavior. This likely involves preparing the sensor for data acquisition.

scanTarget : Upon entering the Acquiring Data state, the  scanTarget  behavior is initiated. This suggests the sensor controller is actively collecting data from the target.

Therefore, the complete sequence of behaviors is logStatus , followed by deploy , and lastly scanTarget , before reaching the Acquiring Data state.

Justification for excluding other options:

Option A (deploy only) excludes the initial state logging and target scanning actions.

Option B (logStatus.deploy) excludes the target scanning upon entering the Acquiring Data state.

Option C (deploy, scanTarget) omits the initial state logging.

Option E (logStatus.deploy.scanTarget.logStatus) includes an extra  logStatus  action after target scanning, which is not supported by the diagram.

In conclusion, based on the state machine diagram and the behavior descriptions, option D (logStatus.deploy.scanTarget) accurately reflects the sequence of actions that occur before the sensor controller arrives at the Acquiring Data state.

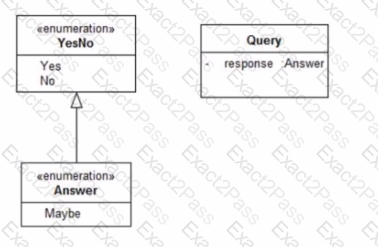

The second diagram fragment you provided includes two enumeration types, YesNo and Answer, where YesNo is a generalization of Answer. The class Query has an attribute 'response' of type Answer. Given that YesNo is a generalization of Answer, the possible values for 'response' include the literals of Answer plus those inherited from YesNo. Since Answer includes 'Maybe', and YesNo includes 'Yes' and 'No', all three are valid values for 'response'.

References:

UML 2.x Superstructure Specification: Discusses attributes and their types, the concept of generalization, and how attributes of a generalized type can take on values from their own literals as well as those from their parent in the hierarchy.

UML 2.x Infrastructure Specification: Explains the foundational modeling constructs related to enumeration, classes, and attributes, which provides the basis for determining the legal values of an attribute based on its type's enumeration literals.
