A domain model's defining characteristic is that it captures the main domain concepts and their relationships. This model focuses on representing the key elements within the problem domain, outlining how these elements interact with each other without detailing the specific implementations. The domain model is an essential tool in software development for understanding and communicating the fundamental structure of the system from a problem domain perspective, helping teams to design solutions that are well-aligned with actual domain needs. UML is often used to represent domain models due to its capability to visually and clearly model complex relationships and structures.

The diagram displays an activity labeled "Account Authentication".

There are two main paths branching from the start of the activity:

One path leads to an activity named "Validate Password".

The other path leads to an activity named "Send OTP".

Both paths converge into a decision diamond labeled "Authentication Successful?".

Depending on the outcome of the decision (Yes/No), the flow continues to either a "Grant Access" or "Deny Access" activity.

Explanation of why Option B is Correct:

This diagram accurately represents the scenario of account authentication where there are two alternative paths for validation: using a password or an OTP (One-Time Password). The decision point after these paths merges the flow for a final decision on granting or denying access based on successful authentication.

Comparison with Other Options:

Option A, C, and D show different activity sequences that don't align with the two initial validation paths (password vs. OTP) and the subsequent decision point based on authentication success.

References

UML 2.5.1 Specification (Superstructure) : Sections on Activity Diagrams  https://www.omg.org/spec/UML/2.4/Superstructure/PDF

ML 2 Foundation concepts for activity diagrams, there are eight object nodes in total. Here's a breakdown of the elements:

Object Nodes:

Order:  This rectangle near the start of the diagram represents an object node.

Cust Name:  This rectangle following the "Get Customer Details" action is another object node.

Order Details:  This rectangle after the "Get Order Details" action is an object node as well.

New Order:  The rectangle positioned after the decision diamond (approved) is an object node.

Repeat  (text near the decision diamond): This is not an object node. It likely indicates a loopback or repetition, but it doesn't represent an object itself.

Cust Order:  The rectangle after the "Place Order" action is an object node.

Invoice:  The rectangle following the "Create Invoice" action is an object node.

OrderAck:  The rectangle at the end signifies another object node.

Counting the Nodes:

There are eight rectangles that represent object nodes in the diagram (Order, Cust Name, Order Details, New Order, Cust Order, Invoice, OrderAck).

References

UML 2.5.1 Specification (Superstructure) : Sections on Activity Diagrams and Object Nodes  https://www.omg.org/spec/UML/2.5.1/

In the given UML package diagram fragment, various elements are listed with stereotypes indicating their nature («class», «interface»). Stereotypes are used in UML to extend the vocabulary of UML in order to create new kinds of building blocks. They are typically enclosed in guillemets (« »).

The last element, 'six', does not have a stereotype indicating whether it's a class, interface, or some other kind of element. This lack of a stereotype leads to ambiguity about the nature of 'six'. Therefore, the fragment is considered invalid due to this omission.

All the other options do not constitute an error in the UML fragment: A) A list of elements is allowed in a package body. B) Visibility is not required for every element, especially within package diagrams. C) Interfaces are allowed in packages. D) Private elements are allowed in a package. E) Protected elements are also allowed in a package.

Therefore, the correct answer is:

F. Element six is missing its stereotype.

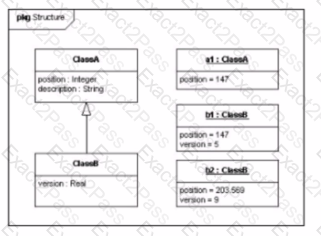

In the UML diagram given, we see two classes, ClassA and ClassB , with ClassB inheriting from ClassA . ClassA has two attributes, position of type Integer and description of type String . ClassB introduces an additional attribute, version of type Real .

Looking at the instance specifications (the right part of the diagram), we have three instances: a1 of type ClassA , b1 of type ClassB , and b2 also of type ClassB .

In UML, an instance specification must comply with the structure of its classifier, which means an instance of ClassA must show slots for both position and description , whereas an instance of ClassB must show slots for position , description , and version .

In the provided diagram, instance a1 of ClassA only shows a slot for position . This is an error because it does not show a slot for description , which is a defined attribute of ClassA . To correct this error, we would need to add a description slot to a1 .

This means that the correct answer is:

B. Add a description slot to a1.

The other options do not correct the error in the model:

A) Specifying unique values for position does not address the missing description slot in a1 . C) Changing the type of ClassB.version from Real to Integer is not required by any UML constraint in the context given. D) Changing the type of ClassA.position from Integer to Real does not address the missing description slot in a1 and is unrelated to the inheritance structure.

In UML, when a class diagram shows an operation with a parameter that has a multiplicity of [0..1], it indicates that the parameter is optional. The range [0..1] means that the parameter can have 0 or 1 occurrence. This does not mean it accepts a collection, nor does it specify the values it accepts (it specifies how many times the parameter can occur).

The correct interpretation of the parameter par1 : Integer [0..1] is:

A. It is optional.

B is incorrect because the multiplicity [0..1] does not mean a collection of items; rather, it signifies that the parameter can be omitted or present, but not multiple times. C is incorrect because the multiplicity [0..1] does not constrain the values to 0 or 1; it refers to the number of instances of the parameter. D is incorrect because [0..1] is not a range of values but a range of occurrences or instances of the parameter.

Therefore, the correct answer is:

A. It is optional.

The most appropriate use of UML during software development is to capture the essential characteristics and design decisions of a planned or existing system. UML (Unified Modeling Language) is primarily utilized to visually represent the architecture, design, and behavior of a system, which includes detailing the components, relationships, and interactions within the system. This makes it a critical tool for understanding complex systems and making informed design decisions that align with project requirements and constraints. UML facilitates clear communication among development team members and stakeholders, ensuring that design decisions are well-understood and accurately implemented.
