Dynamic ARP Inspection (DAI) is a security feature that intercepts and validates Address Resolution Protocol (ARP) packets in a network. It ensures that only legitimate ARP requests and responses are relayed, preventing ARP spoofing and man-in-the-middle attacks.

Conditions Allowing ARP Packets to Pass DAI Checks:

IP/MAC Pair in the DHCP Binding Database:

When DHCP snooping is enabled, the switch maintains a binding table of IP-to-MAC address mappings assigned by the DHCP server.

DAI uses this database to verify that ARP packets have legitimate IP/MAC address pairs.

If the ARP packet ' s IP/MAC pair matches an entry in the DHCP binding database, it passes the DAI check.

Static ARP Entry with Inspection Flag Set:

Administrators can configure static ARP entries for known devices, marking them as trusted for DAI purposes.

These entries include the IP/MAC pair and are flagged to bypass DAI checks.

An ARP packet matching a static entry with the inspection flag set will pass the DAI check.

Request Originated on a Trusted Port:

Ports can be designated as trusted, typically those connected to other switches or network devices.

DAI does not inspect ARP packets arriving on trusted ports, assuming they are from legitimate sources.

Therefore, ARP requests or responses from a trusted port pass the DAI check.

References:

For more information on configuring DAI and related security features, refer to the RUCKUS FastIron Layer 3 Routing Configuration Guide: Dynamic ARP Inspection overview

Implementing DAI with these conditions helps protect the network from ARP-based attacks by ensuring that only validated ARP traffic is permitted.

Dynamic Host Configuration Protocol (DHCP) Snooping is a security feature that acts as a firewall between untrusted hosts and trusted DHCP servers. It helps prevent malicious or malformed DHCP traffic by monitoring DHCP messages and filtering untrusted sources.

When configuring DHCP Snooping on RUCKUS ICX switches, consider the following:

Global Enablement: DHCP Snooping must be enabled globally on the switch to activate the feature across the device. This is done using the following command in global configuration mode:

ip dhcp snooping

Trusted Interfaces: Interfaces connected to legitimate DHCP servers should be configured as trusted to allow DHCP server messages to pass through. This is configured per interface:

interface ethernet 1/1/1

ip dhcp snooping trust

Replace 1/1/1 with the appropriate interface identifier.

VLAN Configuration: DHCP Snooping must be enabled on specific VLANs where DHCP services are required. This ensures that DHCP messages are monitored within those VLANs:

The RUCKUS ICX7850 series offers high-performance switches suitable for core and aggregation layers in enterprise networks. Among the models in this series:

ICX7850-32Q:

Overview:

Designed for high-density 100GbE deployments.

Port Configuration:

32 ports of 100GbE QSFP28.

Use Case:

Ideal for environments requiring extensive 100GbE connectivity, such as data centers or large enterprise cores.

ICX7850-48F:

Overview:

Designed for high-density 25GbE deployments with additional uplink capabilities.

Port Configuration:

48 ports of 1/10/25GbE SFP28.

8 ports of 40/100GbE QSFP28 for uplinks or stacking.

Use Case:

Suitable for aggregation layers where a mix of 25GbE access ports and high-speed uplinks are needed.

ICX7750-32Q:

Overview:

Part of the ICX7750 series, designed for high-performance aggregation and core layers.

Port Configuration:

32 ports of 40GbE QSFP+.

Supports breakout cables for 10GbE connections.

Use Case:

Suitable for networks requiring 40GbE connectivity with flexibility for 10GbE access.

ICX7850-48FS:

Overview:

Similar to the ICX7850-48F but includes MACsec support for enhanced security.

Port Configuration:

48 ports of 1/10/25GbE SFP28 with MACsec.

8 ports of 40/100GbE QSFP28 for uplinks or stacking.

Use Case:

Ideal for secure aggregation layers requiring MACsec encryption.

References:

For detailed specifications, refer to the ICX 7850 data sheet: ICX 7850 Data Sheet

In summary, the ICX7850-32Q model offers the highest number of 100GbE ports among the listed options, making it the optimal choice for scenarios demanding extensive 100GbE connectivity.

Layer 3 Address Assignment:

Stack Interface (A): A stack interface is a virtual interface representing all members of a stack. It can be assigned a Layer 3 IP address for management or routing purposes.

Loopback (E): Loopback interfaces are virtual interfaces always " up " and used for routing, management, or stable endpoint addressing.

GRE Tunnels (F): GRE tunnels operate at Layer 3 and require IP addresses for both endpoints to encapsulate and route traffic.

Why Not Other Options?

B. VxLAN: VxLAN operates at Layer 2 over Layer 3 and does not require direct IP address assignment to itself.

C. Virtual LAN: VLANs are Layer 2 constructs; while they are associated with SVI (Switch Virtual Interfaces), they are not directly assigned an IP address.

D. Virtual Ethernet: Virtual Ethernet interfaces are typically Layer 2 and used within virtualized environments, not directly assigned Layer 3 addresses.

References:

ICX Routing Configuration Guide: RUCKUS Documentation

Understanding the Configuration:

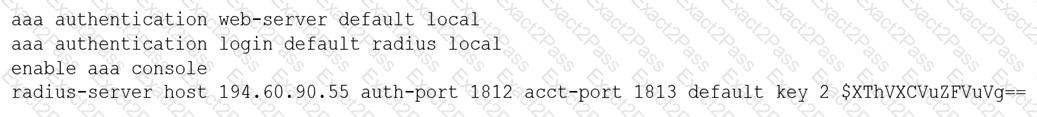

The command aaa authentication login default radius local specifies that the switch will attempt RADIUS authentication first. If the RADIUS server is unavailable, it will fallback to the local username/password.

If the RADIUS server is operational, the local credentials will not be accepted, even over the console port.

Why Can ' t the Technician Log In?

The local username/password will only work if the RADIUS server is unreachable. In this scenario, the RADIUS server is functional, so the switch continues to authenticate through it and does not fall back to the local credentials.

This behavior is by design, as dictated by the configuration.

Solution:

If access to the console port using local credentials is a critical requirement, consider adjusting the configuration to prioritize local credentials. For example, use:

aaa authentication login default local radius

This configuration ensures that local credentials are tried first, with RADIUS as a secondary option.

References:

ICX Switch Command Reference Guide (AAA Configuration Section): RUCKUS Support
