Power over Ethernet (PoE) allows ICX switches to deliver electrical power to connected devices over standard Ethernet cables. The amount of power provided is determined by the PoE class assigned to the port. To supply a maximum of 15.4W to a connected device, the port should be configured to PoE Class 3.

PoE Power Classes:

Class 0: 0.44W to 12.95W

Class 1: 0.44W to 3.84W

Class 2: 3.84W to 6.49W

Class 3: 6.49W to 15.4W

Class 4: 15.4W to 30W (PoE+)

Configuration Steps:

Access the Switch ' s CLI:

Connect to the switch via console or SSH to access the Command Line Interface (CLI).

Enter Global Configuration Mode:

enable

configure terminal

Navigate to the Specific Interface:

Replace 1/1/1 with the appropriate interface identifier.

interface ethernet 1/1/1

Set the PoE Power Class:

Configure the port to provide power corresponding to Class 3.

inline power power- by - class 3

Exit Configuration Mode and Save Changes:

end

write memory

Verification:

Check PoE Status:

To verify the PoE status and power allocation on the configured port, use:

show inline power

This command displays the current PoE status, power consumption, and class information for each port.

Considerations:

Device Compatibility:

Ensure that the connected device is compatible with PoE Class 3 and does not require more than 15.4W.

Power Budget:

Monitor the switch ' s total PoE power budget to prevent over-subscription when multiple devices are connected.

References:

How to enable Dynamic PoE power on the ICX switches

FastIron 08.0.90 Command Reference Guide

Open Shortest Path First (OSPF) is a widely used interior gateway protocol (IGP) designed for routing within an autonomous system (AS). It is a link-state routing protocol that offers several key features:

Key Features of OSPF:

Calculates Link Cost:

OSPF assigns a cost to each link, representing the overhead required to send packets across that link. The cost is typically based on the link ' s bandwidth; higher bandwidth links have lower costs.

OSPF uses these costs to calculate the shortest path to each network destination, ensuring efficient routing.

Updates Routes Dynamically:

OSPF routers exchange link-state advertisements (LSAs) to share information about network topology changes.

When a change occurs, such as a link failure, OSPF quickly propagates this information, allowing routers to update their routing tables dynamically and converge on a new optimal topology.

Clarifications on Other Options:

Option A: Utilizes distance vector

OSPF is a link-state protocol, not a distance vector protocol. Distance vector protocols, like RIP, use different mechanisms for route calculation.

Option C: Automatic redistribution of routes

OSPF does not automatically redistribute routes from other routing protocols. Route redistribution between different protocols requires manual configuration.

Option E: Uses exterior gateway protocols

OSPF is an interior gateway protocol (IGP) used within a single autonomous system, not an exterior gateway protocol (EGP) like BGP, which is used between autonomous systems.

References:

OSPF Design Guide

Understanding OSPF

To configure RUCKUS ICX switch ports 1/1/1 and 1/1/2 as untagged members of VLAN 10, and port 1/2/1 as a tagged member of VLAN 10, follow these steps:

Access the Switch ' s Command Line Interface (CLI):

Use SSH or a direct console connection to access the switch ' s CLI.

Enter Global Configuration Mode:

At the prompt, enter:

bash

Copy code

enable

configure terminal

Create or Select VLAN 10:

Ensure VLAN 10 exists. If not, create it:

Copy code

vlan 10

Assign Ports 1/1/1 and 1/1/2 as Untagged in VLAN 10:

Within VLAN 10 configuration, assign the ports:

css

Copy code

untagged ethernet 1 / 1 / 1 to 1 / 1 / 2

Assign Port 1/2/1 as Tagged in VLAN 10:

Still within VLAN 10 configuration, assign the port:

Copy code

tagged ethernet 1/2/1

Exit Configuration Mode and Save Changes:

Exit to the previous mode:

bash

Copy code

exit

Save the configuration to ensure changes persist after a reboot:

arduino

Copy code

write memory

VLAN Configuration:

The command vlan 10 selects VLAN 10 for configuration. If VLAN 10 does not exist, this command creates it.

Untagged Ports:

The command untagged ethernet 1/1/1 to 1/1/2 assigns ports 1/1/1 and 1/1/2 as untagged members of VLAN 10. Untagged ports are typically used for end devices that do not tag their own traffic.

Tagged Ports:

The command tagged ethernet 1/2/1 assigns port 1/2/1 as a tagged member of VLAN 10. Tagged ports are commonly used for trunk links between switches or other network devices that handle multiple VLANs.

Command Syntax:

The sequence of commands in option D correctly follows the RUCKUS ICX switch configuration syntax, ensuring that the ports are appropriately assigned to VLAN 10.

References:

VLAN configuration on Ruckus ICX switches for Ruckus Wireless WLAN ' s

ICX 7150 tag port VLAN1 - RUCKUS Community Forums

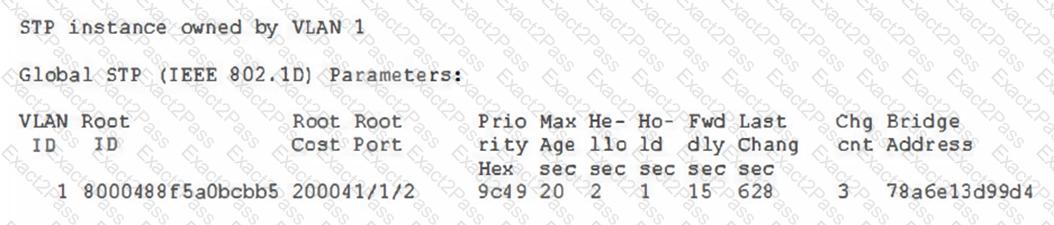

Understanding Bridge Priority:

The bridge priority in the Spanning Tree Protocol (STP) is represented in hexadecimal format in RUCKUS ICX switches.

In the output, the bridge priority is a combination of the priority value (default is 32768 or 0x8000 in hex) and the VLAN ID.

Why It Is 8000:

Unless explicitly modified, the default bridge priority is 8000 in hexadecimal.

Why Other Options Don ' t Apply:

B. 0: This value does not align with the default or modified priority values.

C. 9c49: This might represent a different component of the output, such as MAC address.

D. 20009: This is an incorrect representation of the bridge priority.

References:

ICX Spanning Tree Configuration Guide: RUCKUS Documentation

In RUCKUS ICX devices, interfaces can be configured to support both IPv4 and IPv6 addresses concurrently, a setup known as dual-stack configuration. This allows the interface to handle both IPv4 and IPv6 traffic simultaneously.

Given the configuration:

ICX-Router (config)# ipv6 unicast-routing

ICX-Router (config)# interface ethernet 1/3/1

ICX-Router (config-if-e1000-1/3/1)# ip address 10.172.10.1/24

ICX-Router (config-if-e1000-1/3/1)# ipv6 address 2001:db8:12d:1300::/64

The command ipv6 unicast-routing enables IPv6 routing on the device globally.

Within the interface configuration mode for Ethernet 1/3/1, the ip address command assigns an IPv4 address, and the ipv6 address command assigns an IPv6 address to the same interface.

This configuration allows the interface to transmit and receive both IPv4 and IPv6 traffic simultaneously, facilitating communication in a dual-stack network environment.

Therefore, the correct statement is:

B. The interface will transmit and receive both IPv4 and IPv6 traffic simultaneously.

Zero-touch stacking simplifies the process of forming a stack by automating the configuration. To ensure all devices join the stack seamlessly, the following prerequisites must be met:

Enable Stacking on All Devices :

Access each switch ' s CLI.

Enter global configuration mode: configure terminal .

Enable stacking by executing: stack enable .

Save the configuration with: write memory .

Ensure Units Have Clean Configurations :

It ' s crucial that switches have default configurations to prevent conflicts during the stacking process.

To reset a switch to its default settings:

Enter global configuration mode: configure terminal .

Execute the command: write erase .

Reload the switch to apply the default configuration: reload .

Additional Considerations :

Ensure all switches are running compatible firmware versions to prevent software mismatches.

Verify that stacking cables are correctly connected to facilitate proper communication between units.

References :

For a comprehensive guide on building an ICX stack using zero-touch provisioning, consult the RUCKUS Community Forums.

In a core/edge network topology, Root Guard is a Spanning Tree Protocol (STP) feature that prevents designated ports from becoming root ports. This ensures that the core switch remains the root bridge, maintaining a stable and predictable network topology.

Configuration Steps:

Identify Core Ports Facing the Edge:

Determine which ports on the core switch connect to edge switches.

Enable Root Guard on These Ports:

Access the core switch ' s configuration mode.

For each identified port, apply the Root Guard configuration:

interface ethernet 1/1/1

spanning-tree root-guard

Replace 1/1/1 with the actual port identifier.

Example Configuration:

arduinoICX(config)# interface ethernet 1/1/1

ICX(config-if-e1000-1/1/1)# spanning-tree root-guard

This configuration ensures that port 1/1/1 on the core switch will not accept superior BPDUs, preventing edge switches from becoming the root bridge.

RUCKUS ICX switches are designed to store multiple software images simultaneously, allowing network administrators to manage firmware versions effectively. The maximum number of software images that can be stored on an ICX switch is three.

Image Storage Structure:

Primary Image:

The main firmware image that the switch loads during the boot process.

Secondary Image:

An alternative firmware image that can be used for redundancy or testing purposes.

Tertiary (or Additional) Image:

A third firmware image slot available for further flexibility in image management.

Managing Software Images:

Viewing Stored Images:

To display the software images stored on the switch, use the following command:

sql

Copy code

show flash

This command lists all firmware images present in the switch ' s flash memory.

Setting Boot Preferences:

To specify which image the switch should load on the next reboot, use:

sql

Copy code

boot system flash primary

Replace primary with secondary or tertiary as needed.

Upgrading Firmware:

When upgrading the switch firmware, you can upload the new image to any of the available slots (primary, secondary, or tertiary) without overwriting existing images, providing a fallback option if needed.

Best Practices:

Maintain Multiple Images:

Keeping multiple firmware images allows for quick recovery in case of issues with the current running image.

Regular Updates:

Ensure that the stored images are up-to-date to maintain security and feature enhancements.

Consistent Configuration:

After uploading a new image, verify that the switch configuration is compatible with the firmware version to prevent potential issues.

References:

RUCKUS FastIron 08.0.90 Command Reference Guide

To monitor and manage the PoE power budget on RUCKUS ICX switches, the following commands are utilized:

show inline power Command:

Purpose: Displays a summary of the PoE status, including total power capacity, power consumption, and available power.

Usage:

Access the switch ' s command-line interface (CLI).

Enter the command:

plaintext

Copy code

show inline power

Output Details:

Power Capacity: Total PoE power available on the switch.

Power Allocations: Power consumption per port, indicating which ports are supplying power to connected devices.

Example Output:

plaintext

Copy code

Power Capacity: Total is 124000 mWatts. Current Free is 64000 mWatts.

Power Allocations: Requests Honored 8 times

Port Admin Oper ---Power (mWatts)--- PD Type PD Class Pri Fault/

State State Consumed Allocated Error

-----------------------------------------------------------------------------

1/1/1 On On 4733 30000 2P-IEEE Class 4 3 n/a

1/1/2 On Off 6015 30000 2P-IEEE Class 4 3 n/a

(additional ports)
