Question # 21

You are configuring an FCIP tunnel with four circuits. Two of the circuits will be active and the other two will be in standby in case of failure. You want to ensure that there are always at least two active circuits in the event of a failure.

Which two steps will accomplish this task? (Choose two.)

Configure all the circuits as metric 1.

Configure two circuits as metric 1 and two circuits as metric 0.

Configure two failover groups consisting of a metric 1 and a metric 0 circuit per group.

Configure two failover groups consisting of two metric 1 circuits in one group and two metric 0 circuits in the second group.

Question # 22

You are configuring a 10 km long distance ISL between a Brocade DCX 8510 and a Brocade 5300 with no additional license.

Which two configurations are needed? (Choose two.)

Configure the ISL ports at both ends for LE.

Configure the ISL ports at both ends for LD.

Configure the fill word to ARB on the ISL port of the 5300.

Configure the fill word to ARB on the ISL ports on both ends of the ISL.

Question # 23

Which action is performed by an Access Gateway (AG) during the N_Port login process?

N_Ports perform the PLOGI command and the acceptance sequence with the fabric.

FDISC is used by the host to discover the AG.

FLOGI from the AG connected host is converted to FDISC by the AG.

FDISC is used by the AG device to discover the attached fabric.

Question # 24

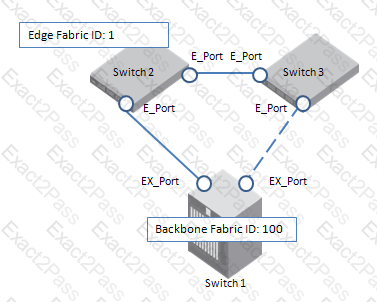

Refer to the exhibit.

FC-FC routing is properly configured between Switch 1 and Switch 2. You have configured the EX_Port that will be attached to Switch 3 using a front Domain ID of 1 and a Fabric ID of 100.

When you connect the cable between Switch 1 and Switch 3, as shown in the exhibit, the connection segments.

What is the cause?

The EX_Port is administratively disabled.

The Fabric ID is set incorrectly.

The front Domain ID is set incorrectly.

FC-FC routing must be enabled on Switch 3.

Question # 25

You have an ISL that is oversubscribed. You clear the port statistics and run the porterrshow command.

Which output would you expect to see?

CRC errors incrementing with no enc_out errors

enc_in errors incrementing with no CRC errors

enc_out errors incrementing with no disc_c3 errors

disc_c3 errors incrementing with no CRC errors

Question # 26

A customer ' s Brocade DCX 8510-4 has been set as shown in the exhibit. A slow drain device connected to port 2 triggers the bottleneck threshold for latency.
