Question # 71

Which of the following is NOT an advantage of RSVP-TE compared to LDP?

RSVP-TE supports Connection Admission Control (CAC).

RSVP-TE enables simplified configuration of LSPs.

RSVP-TE supports path calculations that do not use IGP cost.

RSVP-TE provides support for traffic protection features.

Question # 72

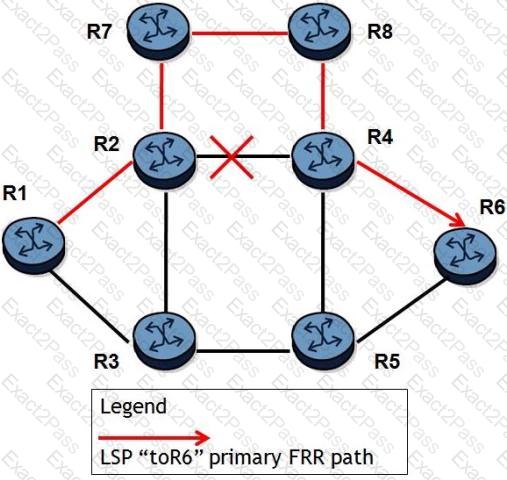

Click on the exhibit.

A fully loose LSP "toR6" is enabled with FRR protection. All links have the same cost. After the link between R2 and R4 goes down, FRR protection repairs the LSP and traffic traverses on R1-R2-R7-R8-R4-R6. Which of the following about this CSPF-enabled LSP on an Alcatel-Lucent 7750 SR is TRUE?

The LSP will stay on the current path indefinitely unless another failure occurs.

The LSP will stay on the current path until the resignal timer expires.

The LSP will switchover to R1-R2-R3-R5-R6 after the resignal timer expires.

The LSP will switchover to R1-R3-R5-R6 after the retry timer expires.

Question # 73

All links have 1Gbps unreserved bandwidth initially and all LSPs have the least-fill feature enabled. After the two LSPs have been signaled as shown, two new LSPs are configured. LSP-3 is signaled first with 600Mbps reserved. LSP-4 is signaled after with 800Mbps reserved. All LSPs have the same setup and hold priorities. Which paths will CSPF choose for LSP-3 and LSP-4?

LSP-3 takes R1-R3-R5-R6 and LSP-4 takes R1-R2-R4-R6.

LSP-3 takes R1-R2-R4-R6 and LSP-4 takes R1-R3-R5-R6.

LSP-3 takes R1-R3-R5-R6 and LSP-4 has no available path.

LSP-3 takes R1-R2-R4-R6 and LSP-4 has no available path.
